  1. Radial Basis Functions and Application in Edge Detection Chris Catiatore, Tian Jiang and Kerenne Paul

  2. Abstract • This project focuses on the use of Radial Basis Functions in Edge Detection in both one-dimensional and two-dimensional images. We will be using a 2-D iterative RBF edge detection method. We will be varying the point distribution and shape parameter. We also quantify the effects of the accuracy of the edge detection on 2-D images. Furthermore, we study a variety of Radial Basis Functions and their accuracy in Edge Detection.

  3. Radial Basis Functions • Multi-Quadric RBF: • Inverse Multi-Quadric RBF: • Gaussian RBF: ()

  4. Shape Parameter: ε • Uses distance between points on a given interval • Is used as a variable in RBF representation

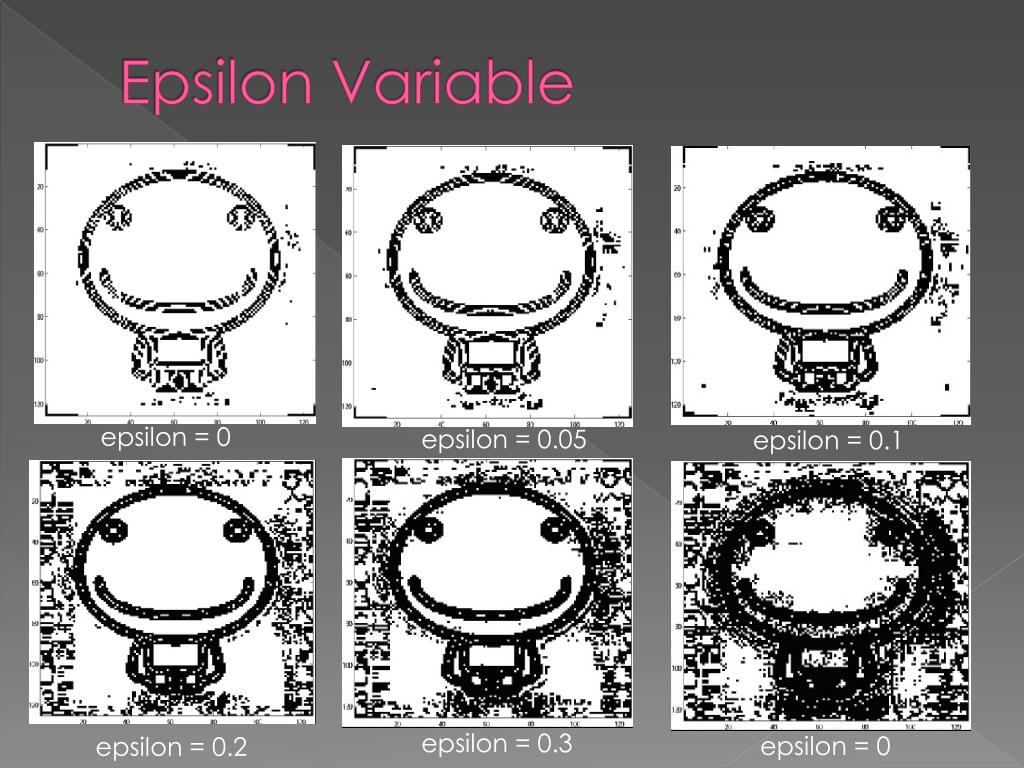

  5. Epsilon Variable epsilon = 0 epsilon = 0.05 epsilon = 0.1 epsilon = 0.3 epsilon = 0 epsilon = 0.2

  6. Epsilon Variable epsilon = 0.01 epsilon = 0.05 epsilon = 0 epsilon = 1 epsilon = 2 epsilon = 0.1

  7. Edge map from x-direction

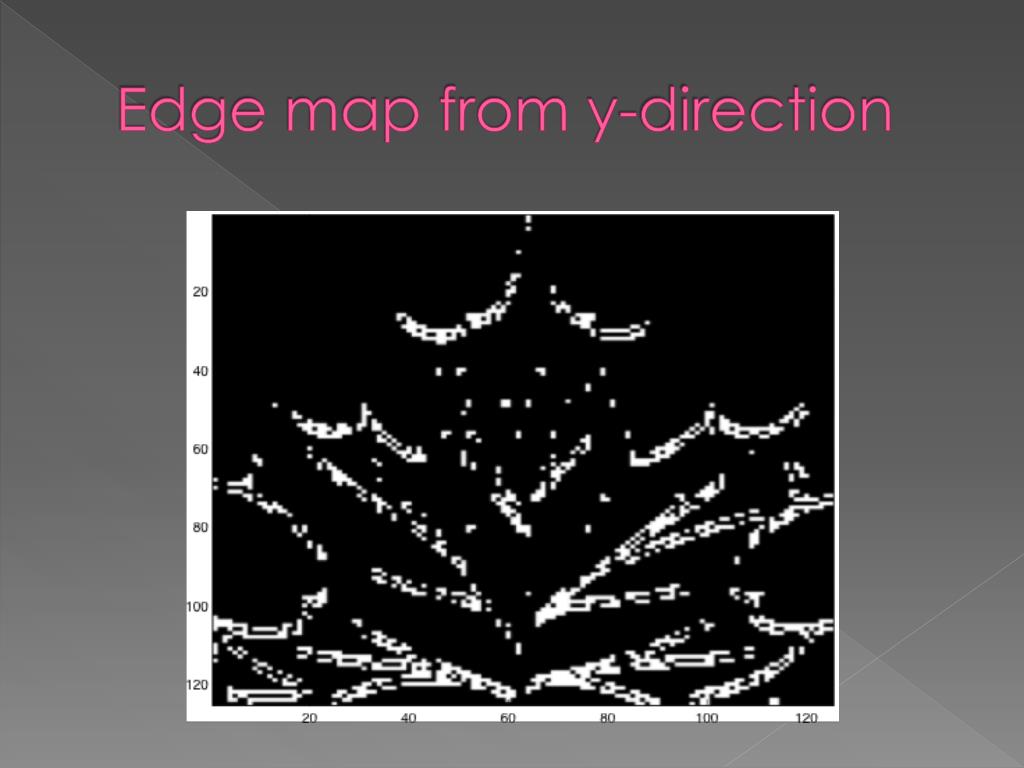

  8. Edge map from y-direction

  9. Edge Map at 0.1 (x-direction and y-direction)

  10. Edge map from x-direction, y-direction and total

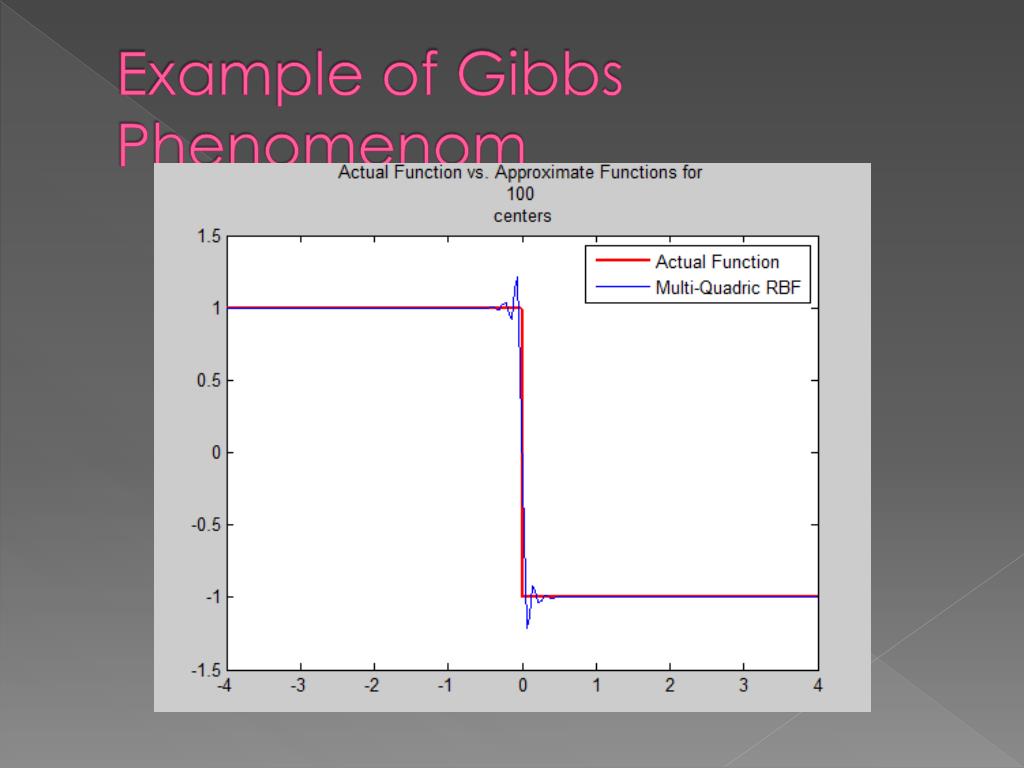

  11. Example of Gibbs Phenomenom

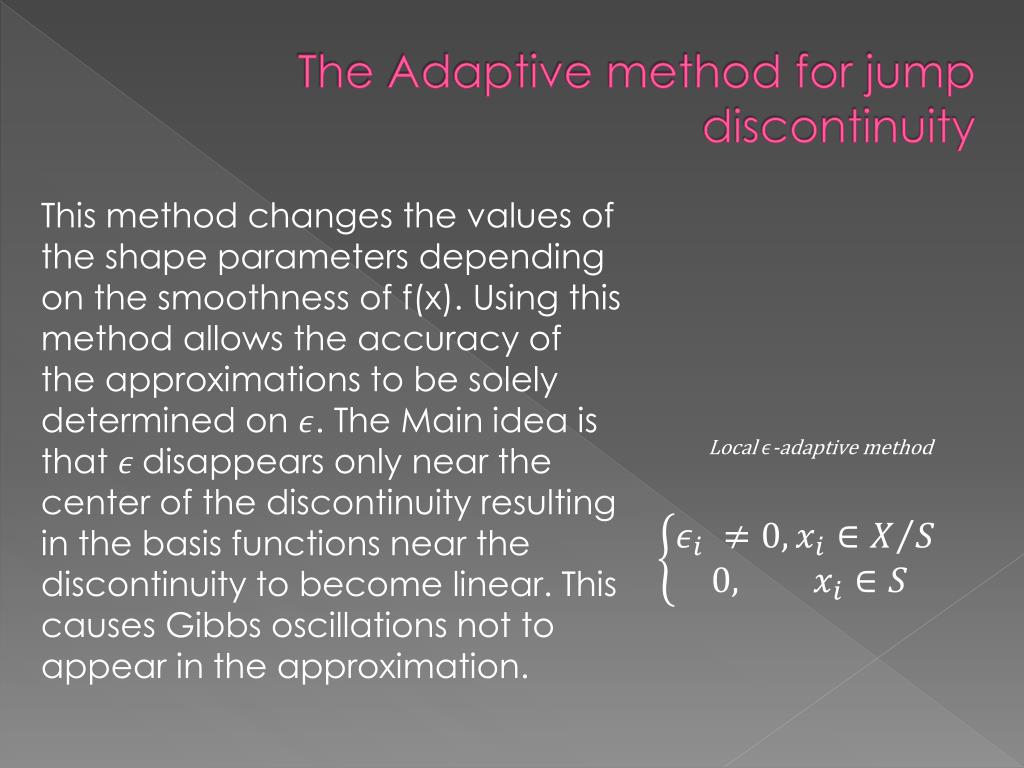

  12. The Adaptive method for jump discontinuity This method changes the values of the shape parameters depending on the smoothness of f(x). Using this method allows the accuracy of the approximations to be solely determined on . The Main idea is that disappears only near the center of the discontinuity resulting in the basis functions near the discontinuity to become linear. This causes Gibbs oscillations not to appear in the approximation. Local -adaptive method

  13. Future works: Start using other types of Radial Basis Functions Research more about matrix involvement in the code Try to understand more about the code itself and what’s causing the variation in edge maps
