Algorithm Efficiency

1. Algorithm Efficiency CS 110: Data Structures and Algorithms First Semester, 2010-2011

2. Learning Objectives • To analyze the efficiency of algorithms in terms of counting operations and Big-Oh notation

3. Algorithm Efficiency • An algorithm should not use any more of the computer’s resources than necessary • Two options • Benchmarking • Analysis

4. Algorithm Efficiency • Benchmarking • Measure execution time of an algorithm using System.currentTimeMillis() or other methods • Pitfalls • Limited set of test inputs – may not be indicative of running time on other inputs • Comparing two algorithms requires the same machine setup • Algorithm must first be implemented

5. Algorithm Analysis • Define primitive operations • Assigning a value to a variable • Calling a method • Performing an arithmetic operation • Comparing two values • Indexing into an array • Following an object reference • Returning from a method

6. Algorithm Analysis • Count the total number of operations: Algorithm arrayMax(A,n): Input: An array A storing n integers. Output: The maximum element in A. maxA[0] for i 1 to (n - 1) do if max < A[i] then max A[i] return max

7. Algorithm Analysis • Some notes • The for statement implies assignments, comparisons, subtractions and increments • The statement max A[i] will sometimes not be carried out

8. What to count? maxA[0] for i 1 to (n - 1) do if max < A[i] then max A[i] return max assignment, array access assignment, comparison, subtraction,increment (2 operations) comparison, array access assignment, array access return

9. Algorithm Analysis • Counting operations: maxA[0] for i 1 to (n - 1) do if max < A[i] then max A[i] return max Running time (worst case) Running time (average case) 2 1 + 2n + 2(n-1) 2(n-1) 0 … 2(n-1) 1 8n-2 6n

10. Algorithm Analysis • Exercise: What if there are nested loops?for i 1 to n do for j  1 to n do print i, j • Note: inner loop gets executed n times

11. Worst Case vs. Average Case • Worst Case: maximum number of operations executed • Average Case: average number of operations on a typical run • Need to define range of inputs • Need to find out probability distribution on range of input

12. Algorithm Analysis • Considerations for Counting Primitive Steps • Implicit Operations in the Execution Path • Worst-case vs average-case vs best-case • Arbitrariness of Measurement • Compare algorithms by looking at growth rates • Linear vs polynomial vs exponential • Goal • To simplify analysis by getting rid of irrelevant information

13. Asymptotic Behavior • How important is the exact number of primitive operations? • Example: arrayMax • It’s enough to say: “The running time of arrayMax grows proportionally to n”

14. Big-Oh Notation • Big-Oh notation provides a way to compare two functions • “f(n) is O(g(n))” means:f(n) is less than or equal to g(n) up to a constant factor for large values of n

15. Formal Definition of Big-Oh • Let f(n) and g(n) be functions of the running times of algorithms F and G respectively • f(n) is O(g(n)) or “f(n) is Big-Oh of g(n)”if there exists: • a real constant c > 0 • an integer constant n0 ≥ 1 such that • f(n) ≤ c • g(n) for all n ≥ n0

16. Example • f(n) = 2n + 5 and g(n) = n • Consider the condition 2n + 5 ≤ nWill this condition ever hold? No! • Suppose we multiply a constant to n 2n + 5 ≤ 3nThe condition holds for values of n ≥ 5 • Thus, we can select c = 3 and n0 = 5

17. Example

18. Big-Oh Notation • 6n - 3 is O(n) • c = 6 • 6n - 3 ≤ 6n for all n ≥ 1 • 3n2 + 2n is O(n2) • c = 4 • Is there an n0 such that 3n2 + 2n ≤ 4n2 for all n ≥ n0? • 4n3 + 8n2 + 2 is O(n4)

19. Big-Oh Notation • na ∈O(nb) whenever a ≤ b • Suppose there is a c such that: • na ≤ cnb ⇔1 ≤ cnb-a • Since 1 ≤ a ≤ b, b – a ≥ 0 • If b = a then, 1 ≤ cnb-a ⇒1 ≤ cn0 ⇒1 ≤ c • So 1 ≤ cnd (where d≥0) will always be true for all n ≥ 1 and c ≥ 1

20. Big-Oh Notation • Usually to prove that f(n) ∈ O(g(n)) we give a c that can work then solve for n0 • However, this usually involves factorization of polynomials for which is hard for degrees greater than 2. • An alternative is to prove by giving an n0 then solving for c.

21. Big-Oh Notation • 3n2 + 26n + 34 ∈ O(n2) • Let n0 = 1 so n ≥ 1. Thus: • n2 ≥ n2, n2 ≥ n, n2 ≥ 1 • 3n2 ≥ 3n2, 26n2 ≥ 26n, 34n2 ≥ 34 • Adding all terms: • 3n2 + 26n2 + 34n2 ≥ 3n2 + 26n + 34 • 63n2 ≥ 3n2 + 26n + 34 • So c = 63

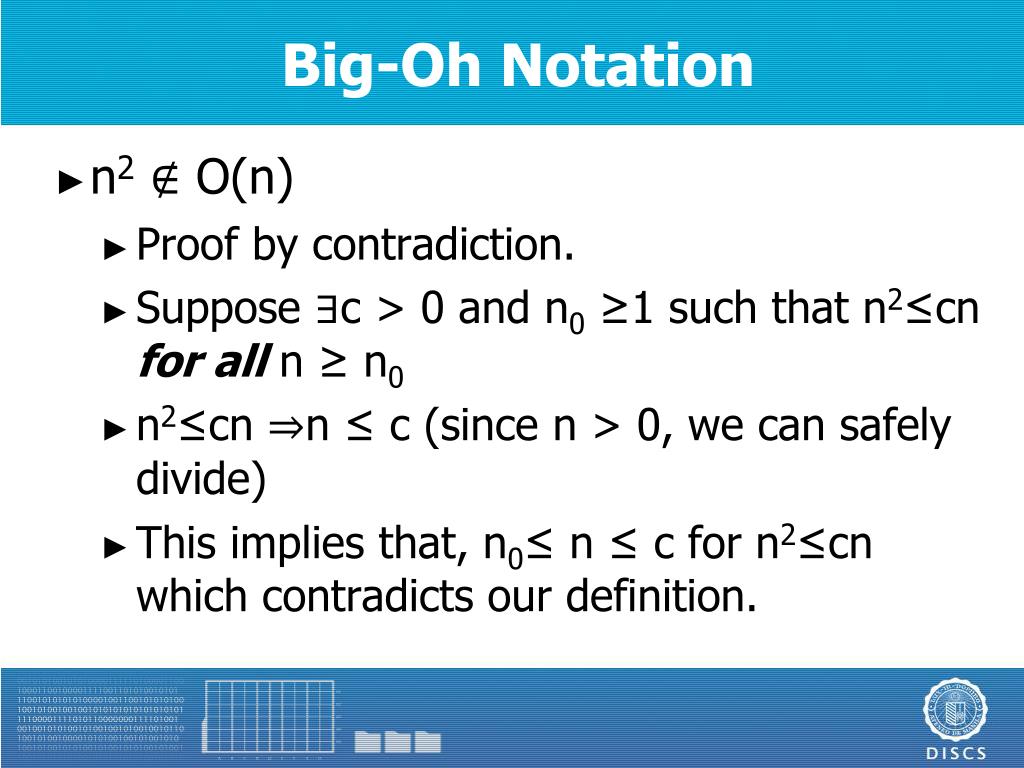

22. Big-Oh Notation • n2 ∉ O(n) • Proof by contradiction. • Suppose ∃c > 0 and n0 ≥1 such that n2≤cn for all n ≥ n0 • n2≤cn ⇒n ≤ c (since n > 0, we can safely divide) • This implies that, n0≤ n ≤ c for n2≤cn which contradicts our definition.

23. Big-Oh Notation • 3n ∉ O(2n) • Suppose 3n ∈ O(2n) then 3n ≤ c2n, for some c > 0 and n ≥ n0 ≥1 • Note that log is a monotonically increasing function so • 0 < a ≤ b if and only if log(a) ≤ log(b) • log 3n ≤ log c2n ⇒ n log 3 ≤ log c + n log 2 • n (log 3 – log 2) ≤ log c

24. Big-Oh Notation • 3n ∉ O(2n) • n (log 3 – log 2) ≤ log c • To make the inequality easier to read, let • b = log 3 – log 2 (note that b > 0) • a = log c • Thus, nb ≤ a which is a contradiction since n cannot have an upper bound.

25. Big-Oh Properties/Identities • g(O(f(n))) = { g(h(n)) for all h(n) in O(f(n)) } • c⋅O(f(n)) = O(f(n)) • O(O(f(n))) = O(f(n)) • O(f(n))⋅O(g(n)) = O(f(n)⋅g(n)) • f(n)⋅O(g(n)) = O(f(n)⋅g(n)) • O(f(n)) + O(g(n)) = O(|f(n)| + |g(n)|)

26. Big-Oh Notation • Big-Oh allows us to ignore constant factors and lower order (or less dominant) terms • Rule: Drop lower order terms and constant factors • 5n + 2 is O(n) • 4n3 log n + 6n3 + 1 is O(n3 log n) • Allows us to classify functions into categories

27. Function Categories • The constant function: f(n) = 1 • The linear function: f(n) = n • The quadratic function: f(n) = n2 • The cubic function: f(n) = n3 • The exponential function: f(n) = 2n • The logarithm function: f(n) = log n • The n log n function: f(n) = n log n

28. Comparing Function Categories • Linear (n) is better than quadratic (n2) which is better than exponential (2n) • Are there any function categories better than linear? Yes! • Constant (1) • Logarithmic (log n) • “Better” means resulting values are smaller (slower growth rates)

29. Functions by IncreasingGrowth Rate • The constant function: f(n) = 1 • The logarithm function: f(n) = log n • The linear function: f(n) = n • The n log n function: f(n) = n log n • The quadratic function: f(n) = n2 • The cubic function: f(n) = n3 • The exponential function: f(n) = 2n

30. Big-Oh in this Course • For this course, you will be expected to assess the running time of an algorithm and classify it under one of the categories, using Big-Oh notation • You should be able to recognize, for instance, that, most of the time (not always): • Algorithms with single loops are O(n) • Algorithms with double-nested loops are O(n2)

31. Big-Oh as an Upper Bound • The statement "f(n) is O( g(n) )" indicates that g(n) is an upper bound for f(n) • Which means it is also correct to make statements like: • 3n+5 is O(n2) • 3n+5 is O(2n) • 3n+5 is O(5n + log n - 2) • But the statement 3n+5 is O(n) is the “tightest” statement one can make

32. Other Ways of Analysis • Aside from Big-Oh, there are other ways of analyzing algorithm running time • Big-Omega Ω(g(n)) • Specifies an asymptotic lower bound rather than an upper bound • Big-Theta Θ(g(n)) • Specifies both asymptotic upper and lower bounds. i.e. f(n)∈Θ(g(n)) if f(n)∈O(g(n)) and f(n)∈Ω(g(n))

33. Big-Omega and Big-Theta • 6n - 3 is Ω(n) • c = 3 • 6n - 3 ≥ 3n for all n ≥ 1 • 3n2 + 2n is Θ(n2) • c = 3 • 3n2 + 2n ≥ 3n2 for all n ≥ 1 • Therefore, it is Ω(n2) • 4n3 + 8n2 + 2 is notΘ(n4)
