Quasi-Static Binary Analysis

1. Quasi-Static Binary Analysis Hassen Saidi

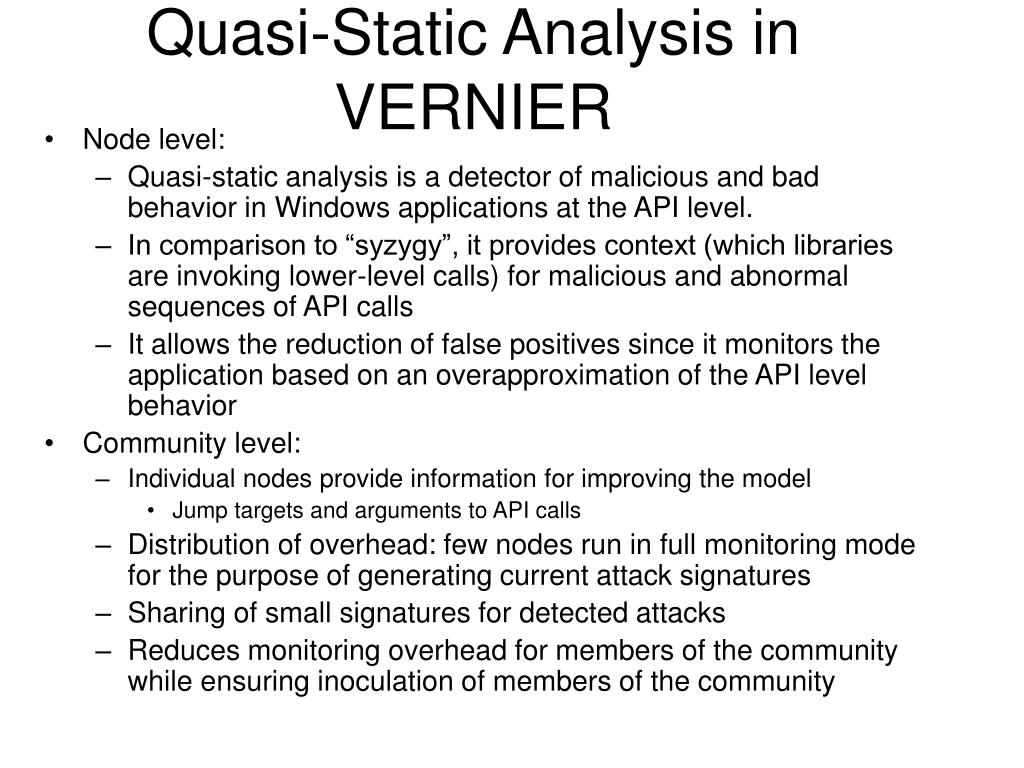

2. Quasi-Static Analysis in VERNIER • Node level: • Quasi-static analysis is a detector of malicious and bad behavior in Windows applications at the API level. • In comparison to “syzygy”, it provides context (which libraries are invoking lower-level calls) for malicious and abnormal sequences of API calls • It allows the reduction of false positives since it monitors the application based on an overapproximation of the API level behavior • Community level: • Individual nodes provide information for improving the model • Jump targets and arguments to API calls • Distribution of overhead: few nodes run in full monitoring mode for the purpose of generating current attack signatures • Sharing of small signatures for detected attacks • Reduces monitoring overhead for members of the community while ensuring inoculation of members of the community

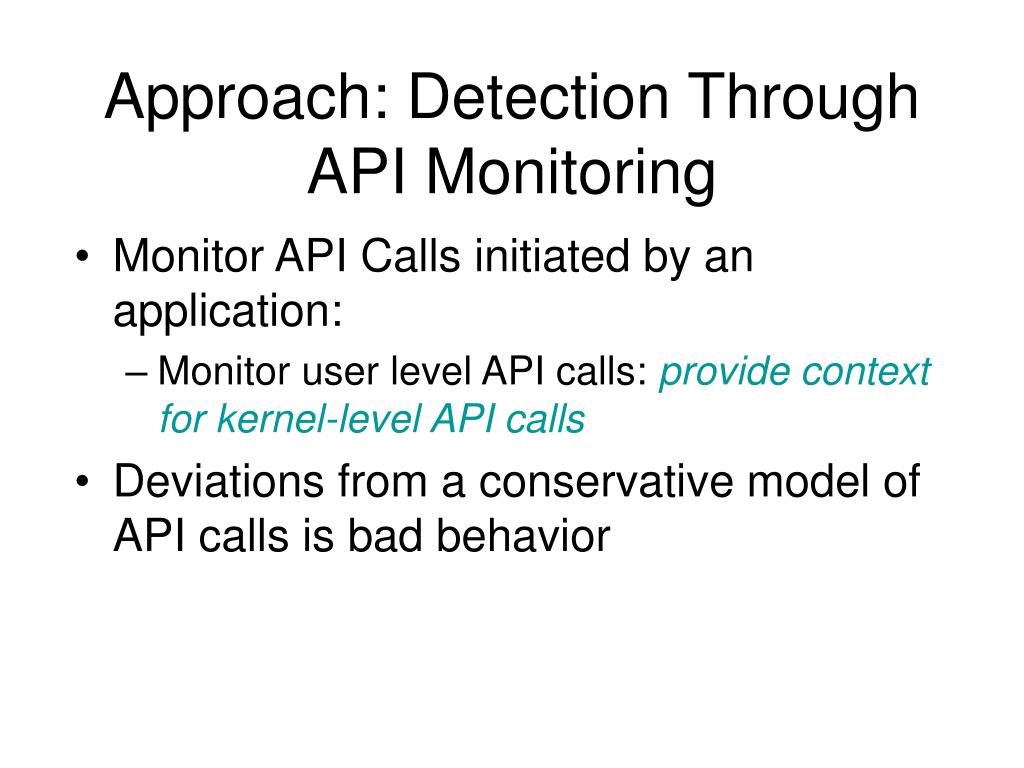

3. Approach: Detection Through API Monitoring • Monitor API Calls initiated by an application: • Monitor user level API calls: provide context for kernel-level API calls • Deviations from a conservative model of API calls is bad behavior

4. Model • For any Windows executable file: • Capture DLL dependencies: static and dynamic • Capture API calls order (CFG) • Capture statically determined API calls arguments

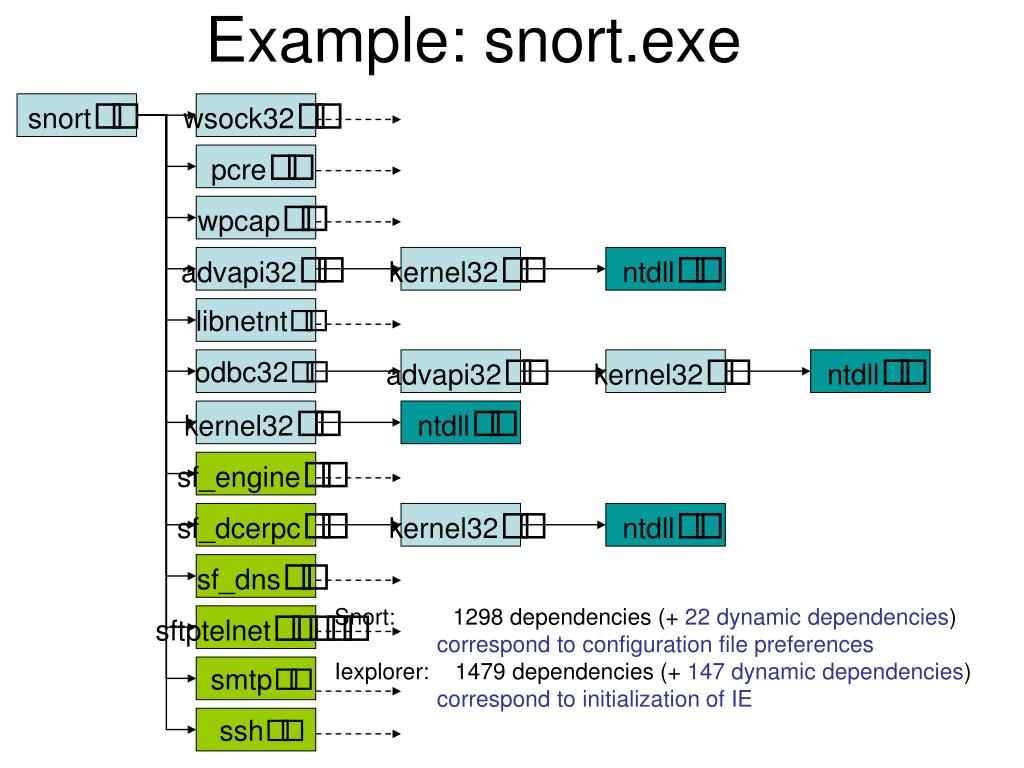

5. Example: snort.exe snort wsock32 pcre wpcap advapi32 kernel32 ntdll libnetnt odbc32 advapi32 kernel32 ntdll kernel32 ntdll sf_engine sf_dcerpc kernel32 ntdll sf_dns Snort: 1298 dependencies (+ 22 dynamic dependencies) correspond to configuration file preferences Iexplorer: 1479 dependencies (+ 147 dynamic dependencies) correspond to initialization of IE sftptelnet smtp ssh

6. Dependency Graph for snort.exe

7. Dependency Graph for Iexplorer.exe

8. Model (2) • Dll dependencies: • Calls to APIs from different dlls • Capture the CFG of .exe and .dll files • Capture statically determined arguments of API calls

9. advapi32 Push 2 Push 0 Push ptr word [] Call LoadLibraryExW start sub2 sub1 sub3 OpenFile LoadLibraryExW(?,0,2) LoadLibraryExW

10. Model building: 3 steps • Capture dependencies: .exe and .dlls: detect attacks where calls to APIs that are not supposed to occur based on dependencies • Capture control and data-flow properties of arbitrary Windows executables: detect attacks where API calls are out of order • Capture arguments of API calls: detect attacks where API calls are invoked with unexpected arguments

11. Monitoring and Detection: Use of StraceNt • Each API call is traced: <monitorcode> API Name (arguments) • <0> API Name (): • Expected API call • <1> API Name () • API call not allowed in this particular path • <2> API Name () • API call allowed in this path but out of order • <3> API Name () • API call allowed in this path, is in the right order, but is executed with unexpected arguments

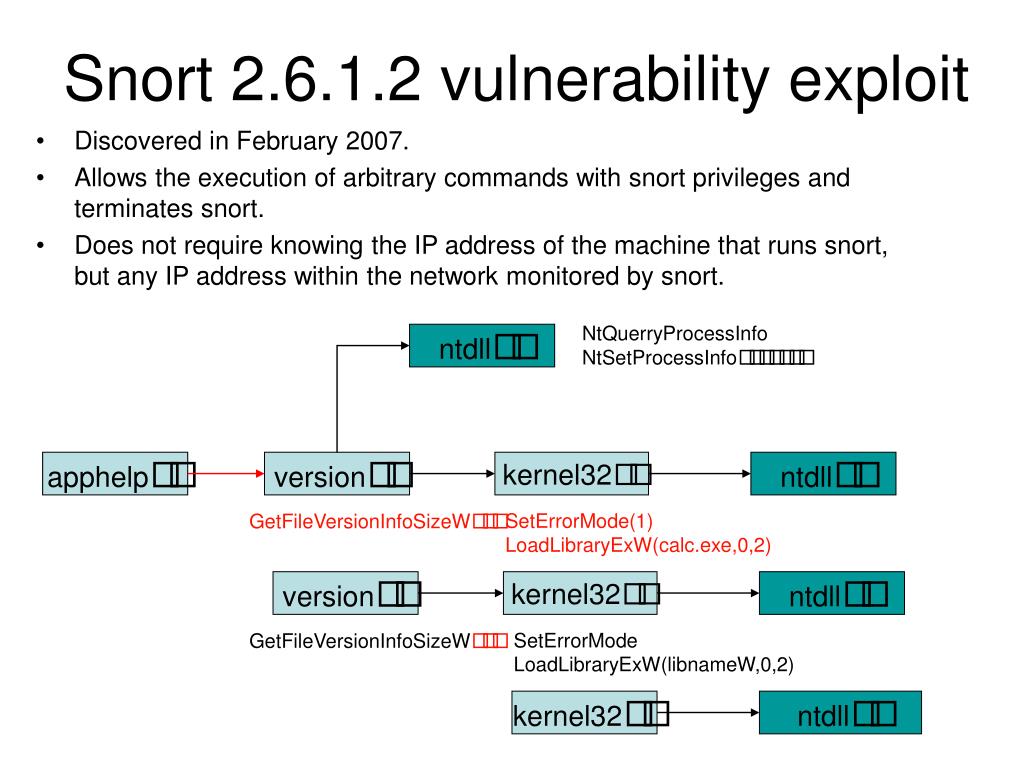

12. NtQuerryProcessInfo NtSetProcessInfo ntdll apphelp version kernel32 ntdll GetFileVersionInfoSizeW SetErrorMode(1) LoadLibraryExW(calc.exe,0,2) version kernel32 ntdll GetFileVersionInfoSizeW SetErrorMode LoadLibraryExW(libnameW,0,2) kernel32 ntdll Snort 2.6.1.2 vulnerability exploit • Discovered in February 2007. • Allows the execution of arbitrary commands with snort privileges and terminates snort. • Does not require knowing the IP address of the machine that runs snort, but any IP address within the network monitored by snort.

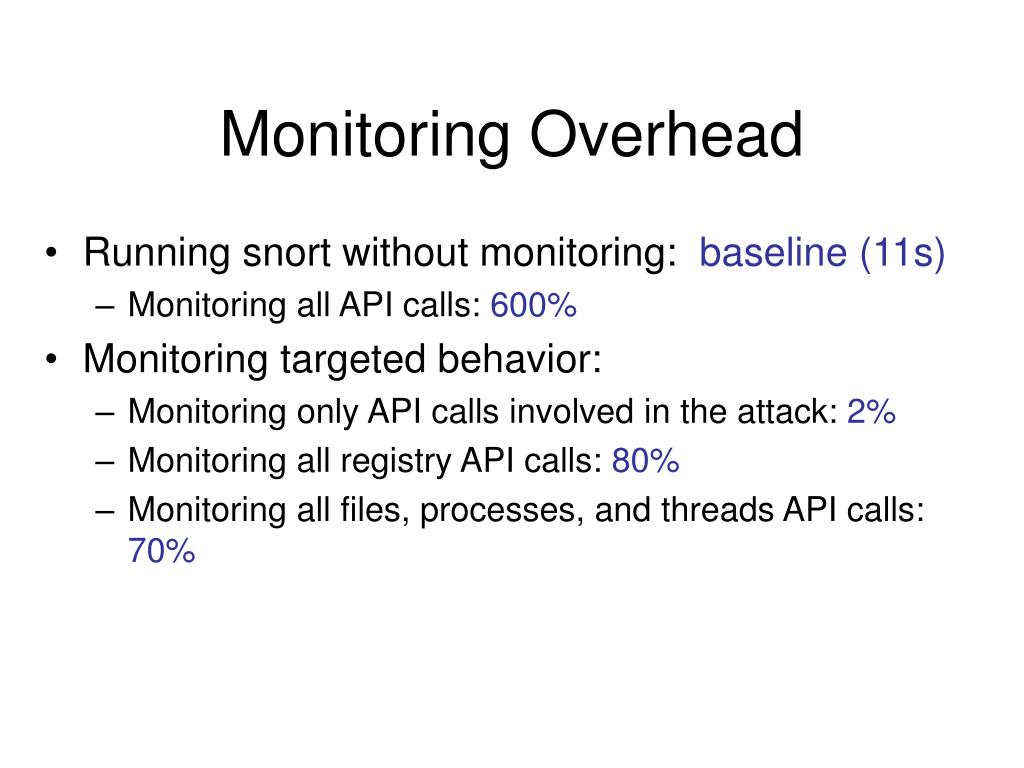

13. Monitoring Overhead • Running snort without monitoring: baseline (11s) • Monitoring all API calls: 600% • Monitoring targeted behavior: • Monitoring only API calls involved in the attack: 2% • Monitoring all registry API calls: 80% • Monitoring all files, processes, and threads API calls: 70%

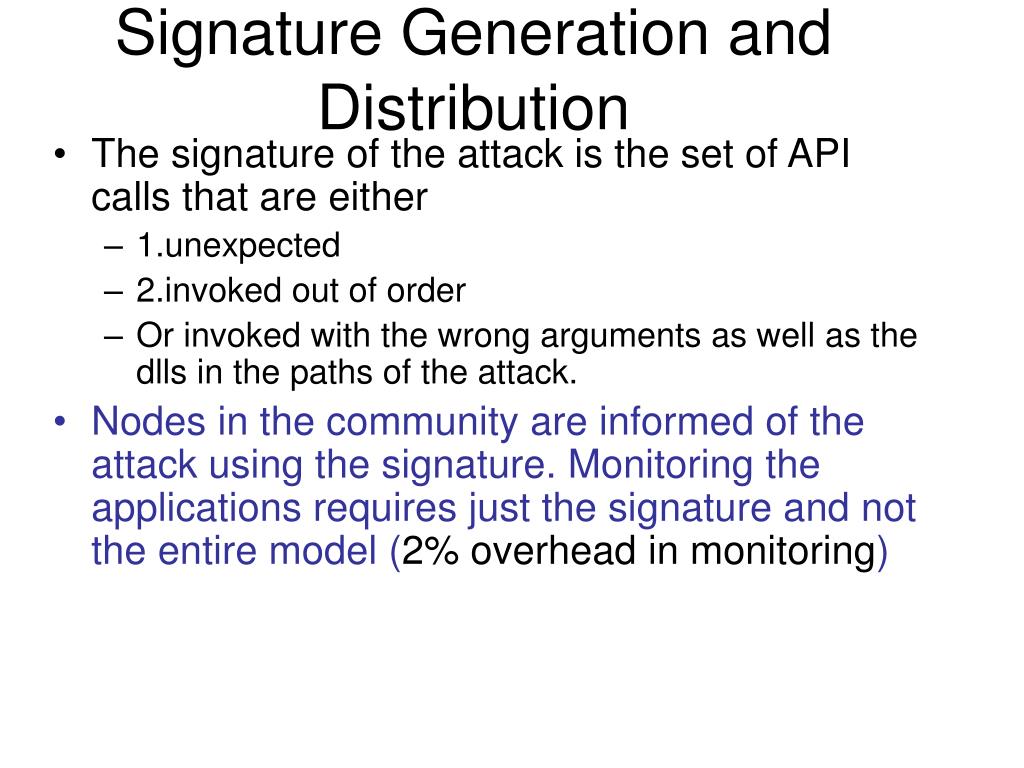

14. Signature Generation and Distribution • The signature of the attack is the set of API calls that are either • 1.unexpected • 2.invoked out of order • Or invoked with the wrong arguments as well as the dlls in the paths of the attack. • Nodes in the community are informed of the attack using the signature. Monitoring the applications requires just the signature and not the entire model (2% overhead in monitoring)

15. Evaluation Plan • Agree on a set of applications, platforms, configurations… • Unit test for bad behavior • Classes of attacks covered: • Deviations from call sequence behavior • Unexpected call • Out of order call • Call with unexpected arguments • Measure the benefits for the community: Reduction of the number of nodes affected by a given attack

16. Evaluation Plan • Measure the speed by which attack signatures are shared with the community: unlikely to detect flush worms in time, but we will measure the speed of knowledge sharing for interactive applications (office) and reactive applications (network services) • Performance Measure: Total overhead at the community level • Measure how much information the dynamic analysis must provide to support static analysis: how many indirect calls have to be resolved, and how many arguments need to be determined dynamically. • Measure how many attacks are detected for known exploits and for known services.

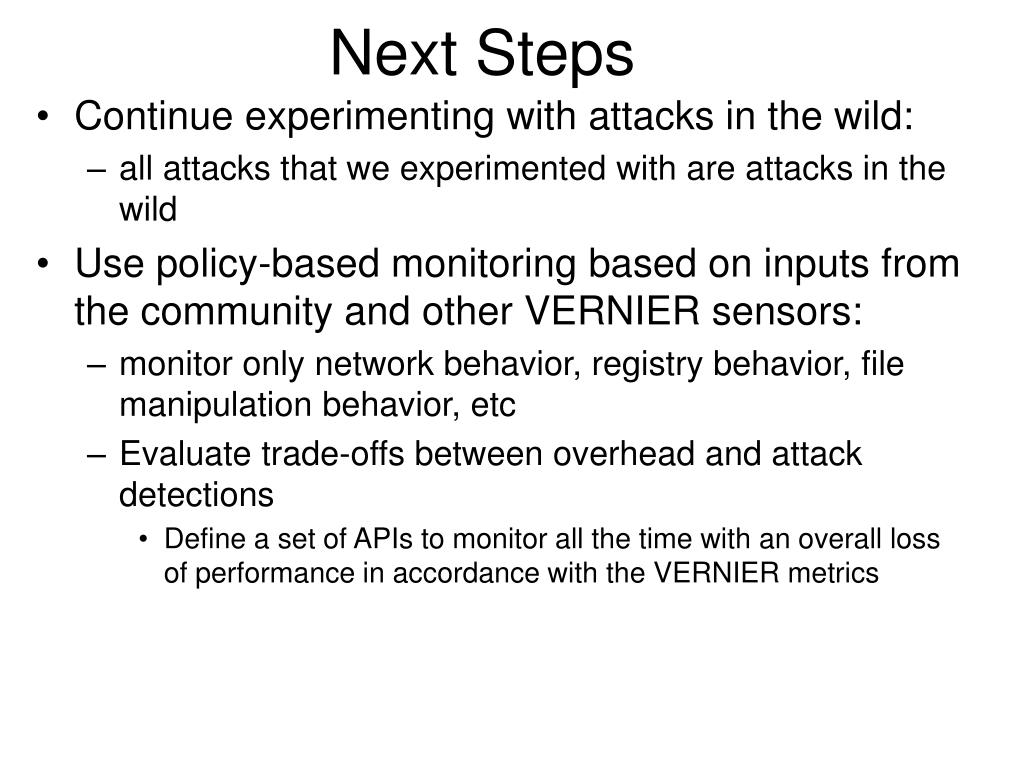

17. Next Steps • Continue experimenting with attacks in the wild: • all attacks that we experimented with are attacks in the wild • Use policy-based monitoring based on inputs from the community and other VERNIER sensors: • monitor only network behavior, registry behavior, file manipulation behavior, etc • Evaluate trade-offs between overhead and attack detections • Define a set of APIs to monitor all the time with an overall loss of performance in accordance with the VERNIER metrics
