Linear Discriminant Analysis

nuru avatar
nuru
14 diapositives · 525 Views · Oct 15, 2014

Linear Discriminant Analysis. Linear Discriminant Analysis. Why To identify variables into one of two or more mutually exclusive and exhaustive categories. To examine whether significant differences exist among the groups in terms of the predictor variables. What

Linear Discriminant Analysis - slide 1
01 / 14Linear Discriminant Analysis
1 / 17

Télécharger la présentation

Linear Discriminant Analysis
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Linear Discriminant Analysis

  2. Linear Discriminant Analysis • Why • To identify variables into one of two or more mutually exclusive and exhaustive categories. • To examine whether significant differences exist among the groups in terms of the predictor variables. • What • The analysis helps determine what predictor variables contribute most to intergroup differences. • It then classifies cases to one of the groups based on the values of the predictor variables. • How • Using a combination of MANOVA, PCA and MLP.

  3. LDA • Assumptions • Absence of outliers • Equal samples size • Many data • Homogeneity of variance-covariance • Linear relationship • No multicolinearity

  4. LDA • Toy example IVs DVs =X

  5. LDA • First step: Significance testing of the overall classifier in order to know if a set of discriminant functions can significantly predict group membership or not • Second step: Significance testing for each discriminant function. • Third step: Computation of the (standardized, unstandardized) discriminant functions

  6. LDA - Overall Testing • Sum of Square and Cross Product SSCP=

  7. LDA - Overall Testing • Canonical Correlation Matrix • Error and hypothesis matrices

  8. LDA - Overall Testing • Computing W (WLR) • where s = min(df, q), lk is ktheigenvalue extracted from HiE-1 and |E| (as well as |E+Hi|) is the determinant. The overall test is significant

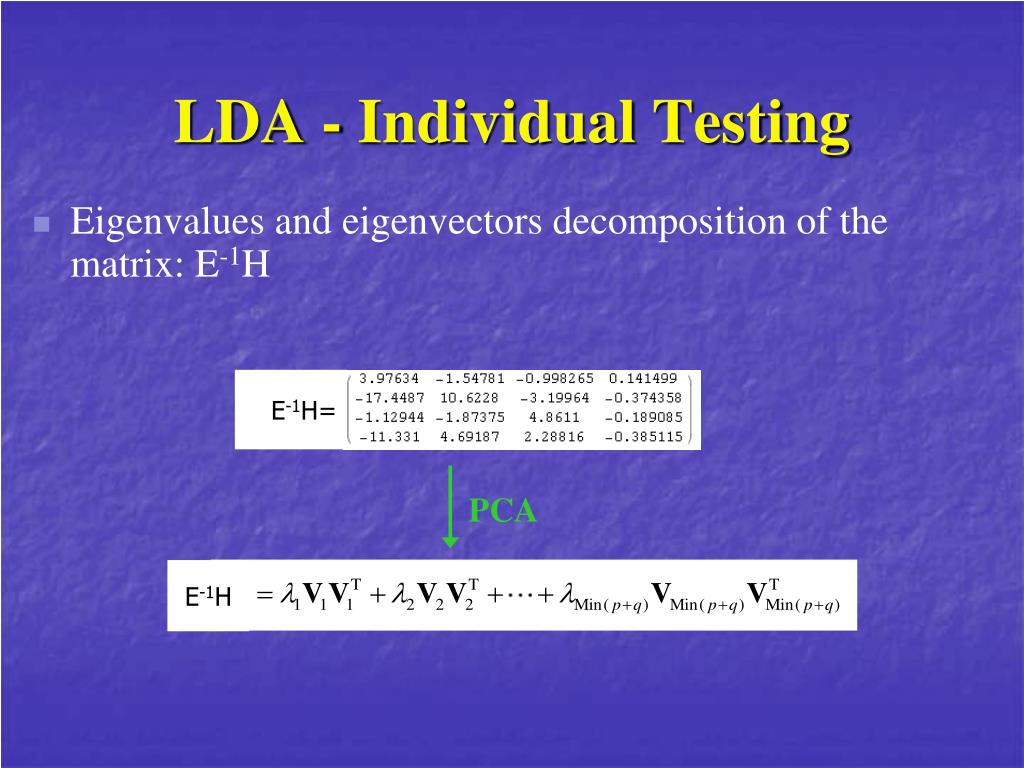

  9. LDA - Individual Testing • Eigenvalues and eigenvectors decomposition of the matrix: E-1H E-1H= PCA E-1H

  10. LDA - Individual Testing • Canonical Discriminant Analysis Squared canonical correlation (Can also obtained from the eigenvalues of the correlation matrix R) Canonical correlation

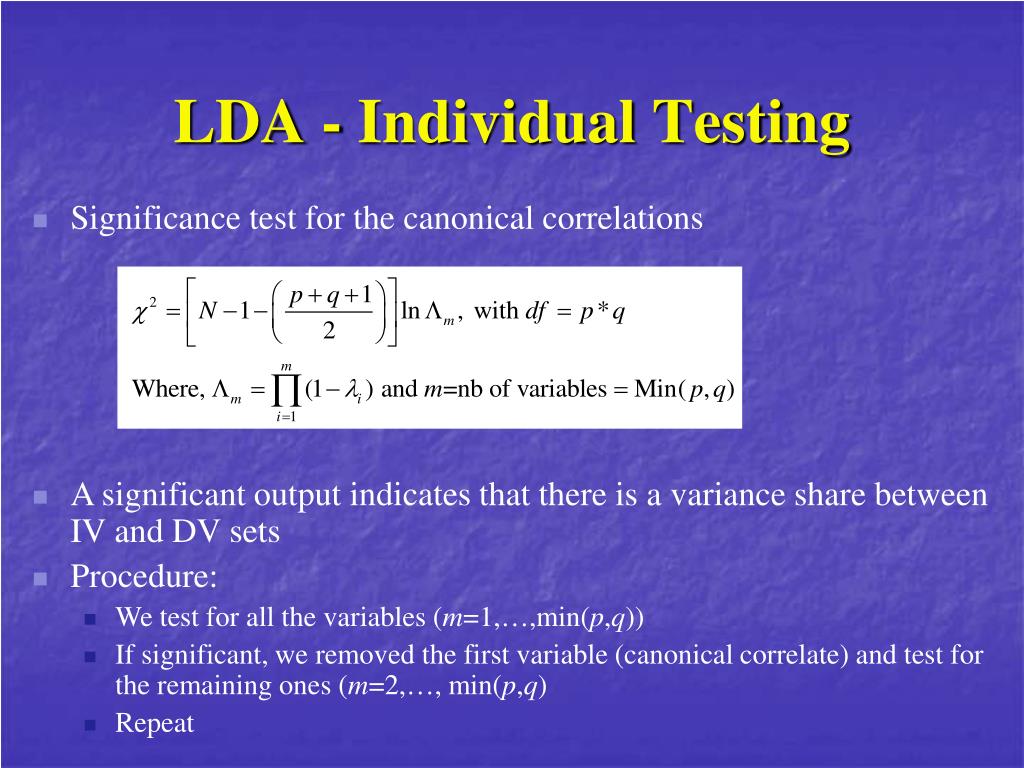

  11. LDA - Individual Testing • Significance test for the canonical correlations • A significant output indicates that there is a variance share between IV and DV sets • Procedure: • We test for all the variables (m=1,…,min(p,q)) • If significant, we removed the first variable (canonical correlate) and test for the remaining ones (m=2,…, min(p,q) • Repeat

  12. LDA - Individual Testing • Significance test for the canonical correlations Since all canonical variables are significant, we will keep them all.

  13. LDA – Projection of the solution Second group First group P=VY Third group Second discriminant function First discriminantfunction

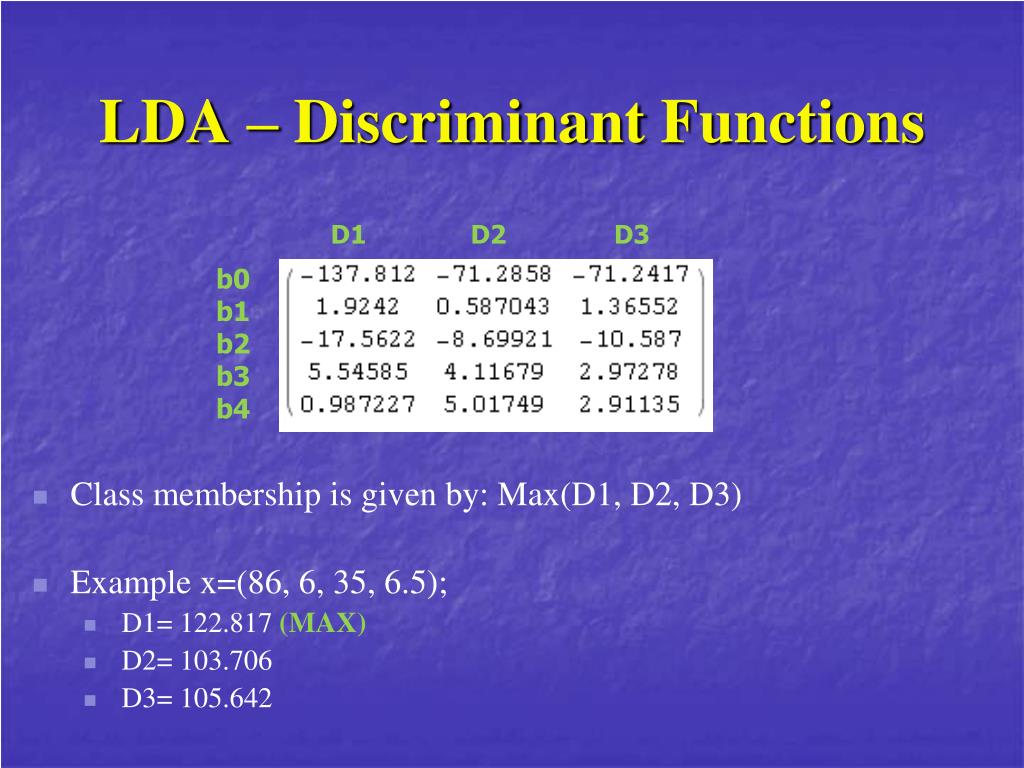

  14. LDA – Discriminant Functions D1 D2 D3 b0 b1 b2 b3 b4 • Class membership is given by: Max(D1, D2, D3) • Example x=(86, 6, 35, 6.5); • D1= 122.817 (MAX) • D2= 103.706 • D3= 105.642
