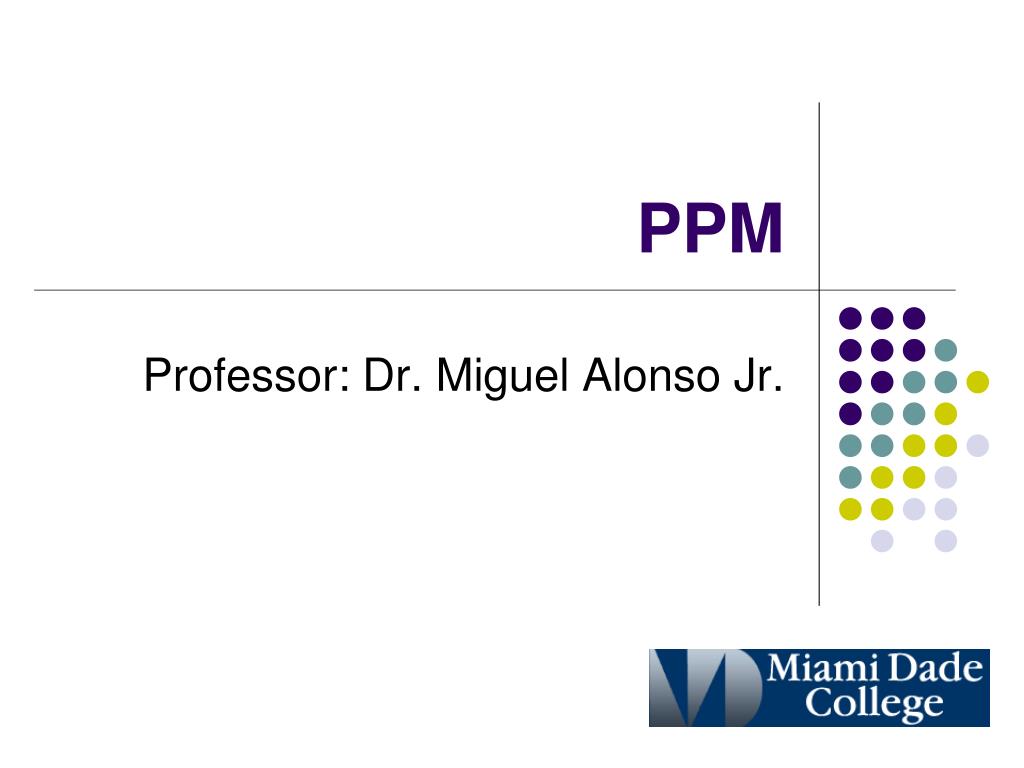

  1. PPM Professor: Dr. Miguel Alonso Jr.

  2. Outline • PPM • Delta Modulation

  3. PPM • Pulse Position Modulation • Very Similar to PWM • PPM can be generated from PWM

  4. PPM • The inverter first inverts the signal • Differentiator causes positive and negative spikes to be generated • Applying them to a Schmidt trigger sensitive to only positive levels, a constant amplitude constant pulse width is formed • Position of these pulses is proportional to the original modulating signal

  5. PPM Demodulation • At the receiver, the PPM is typically converted into PWM and then low-pass filtered • PWM is recovered from the PPM by using the PPM signal and a synchronization pulse at the original sampling rate • The sync pulse can be used to set an SR flip flop and the PPM pulse can be used to reset it, thus generating a PWM signal.
