  1. S3/S4 Calibration A cast of thousands… including Peter Fritschel, Gabriela González, Corey Gray, Mike Landry, Greg Mendell, Brian O’Reilly, William Quintero , Rick Savage Xavier Siemens, Myungkee Sung, Patrick Sutton, Rai Weiss…

  2. S3 Calibration • S3 Final calibration V3: released Jan 28 2005. • First version to use “demodulated” lines for alpha, beta estimates (X. Siemen’s code). • Also, first science run to use “dynamic beta”. • Somewhat reviewed (?) • Document, paper with details and errors in preparation. • Measurement errors in alpha, beta <0.5%, DC calibration ~few-10%, reference functions ~few %, 5o • new flag CALIB_LINE_V03 (supersedes all the old flags, except no EXC).

  3. S4 calibration • Two gw channels, with different (but related!) calibrations: • DERR(t)=b(t) ASQ(t); CDERR(f)=k0CASQ(f) • AS_Q, with h(f)=RASQ(f,t) ASQ(f) and RASQ(f,t)=(1+a(t)b(t)G(f))/(a(t)CASQ(f)) • DARM_ERR (“darma”), with h(f)=RDERR(f,t) DARM_ERR(f) and RDERR(f,t)=(1+a(t)b(t)G(f))/(a(t)b(t)CDERR(f))

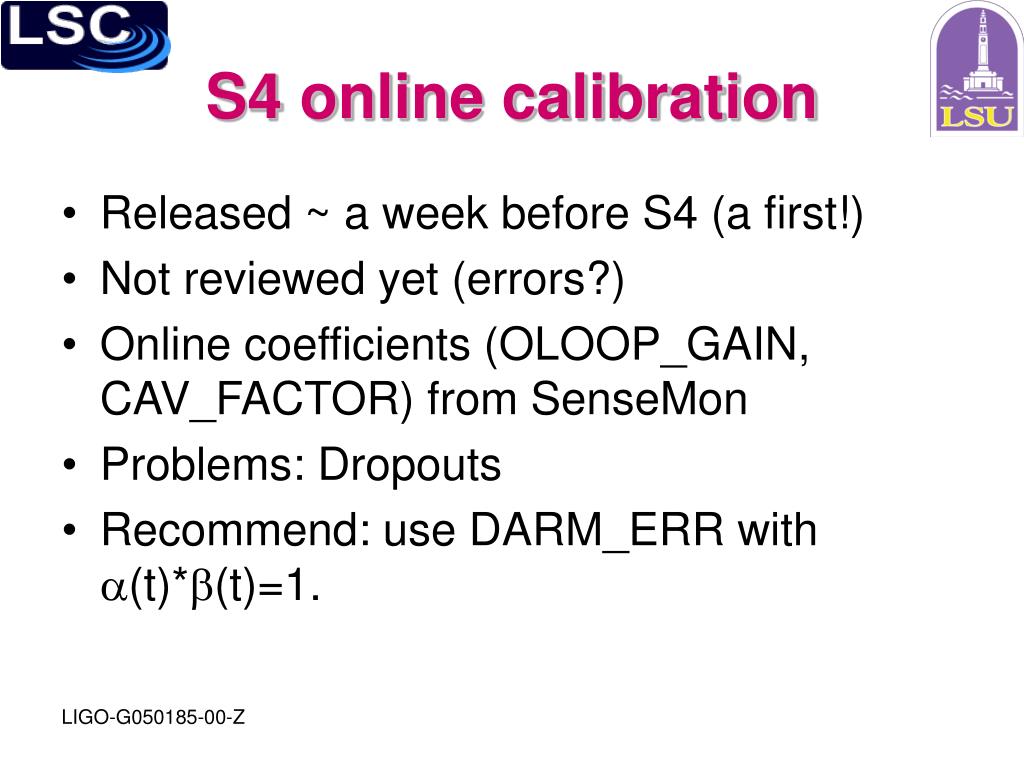

  4. S4 online calibration • Released ~ a week before S4 (a first!) • Not reviewed yet (errors?) • Online coefficients (OLOOP_GAIN, CAV_FACTOR) from SenseMon • Problems: Dropouts • Recommend: use DARM_ERR with a(t)*b(t)=1.

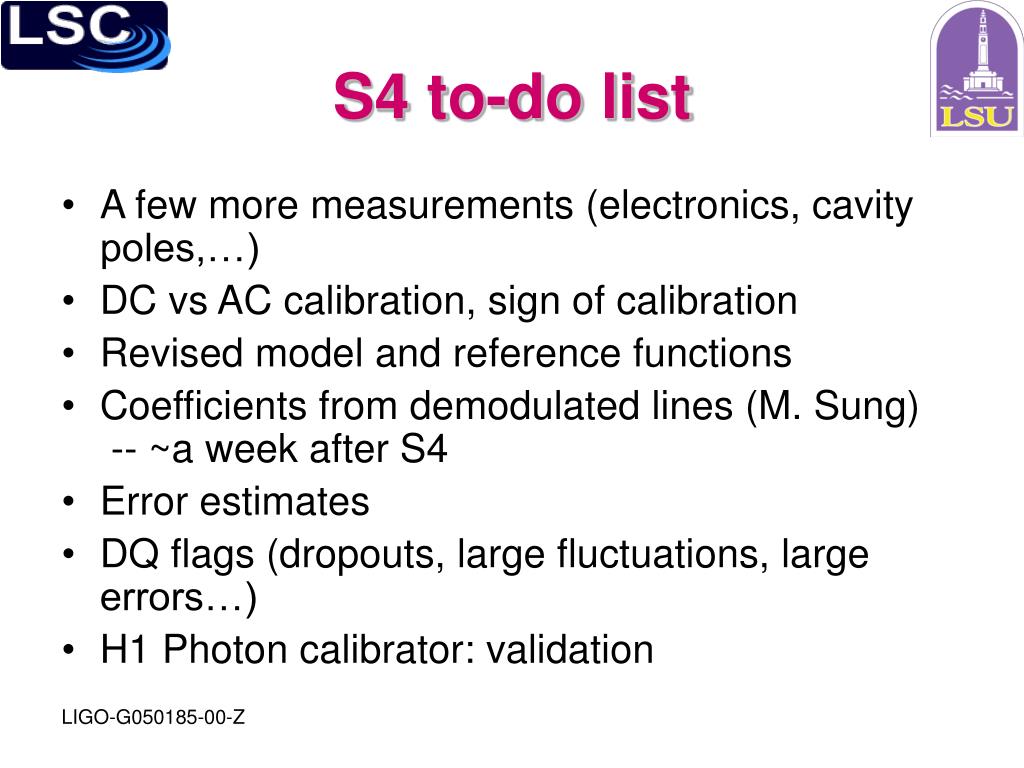

  5. S4 to-do list • A few more measurements (electronics, cavity poles,…) • DC vs AC calibration, sign of calibration • Revised model and reference functions • Coefficients from demodulated lines (M. Sung) -- ~a week after S4 • Error estimates • DQ flags (dropouts, large fluctuations, large errors…) • H1 Photon calibrator: validation

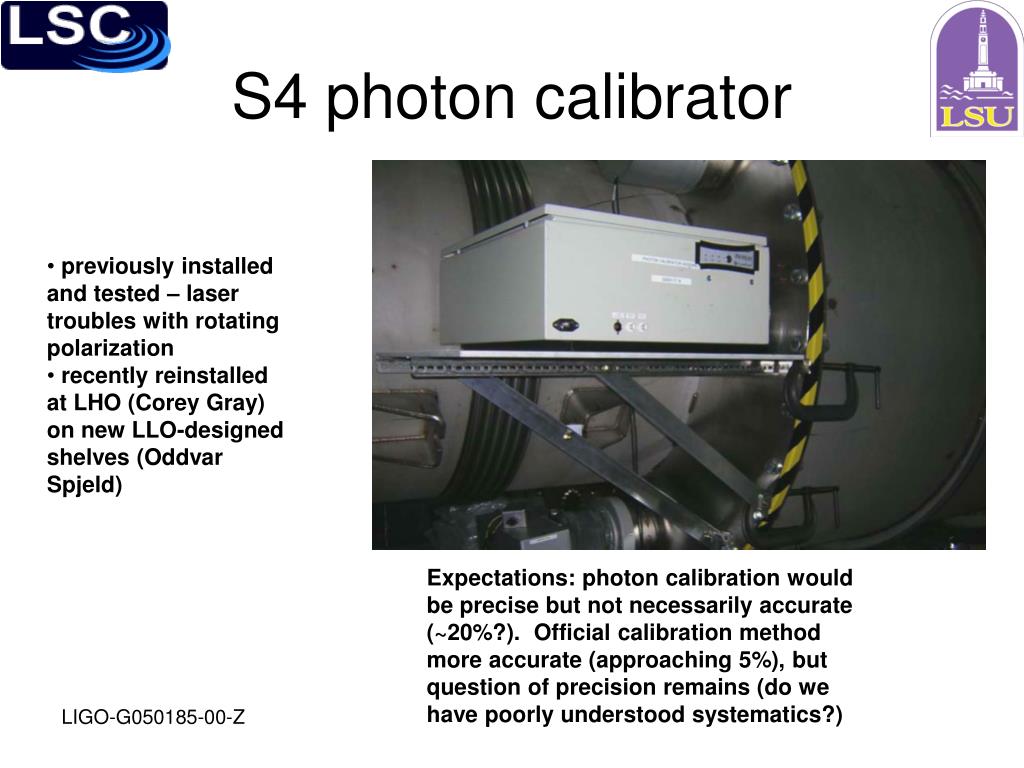

  6. S4 photon calibrator • previously installed and tested – laser troubles with rotating polarization • recently reinstalled at LHO (Corey Gray) on new LLO-designed shelves (Oddvar Spjeld) Expectations: photon calibration would be precise but not necessarily accurate (~20%?). Official calibration method more accurate (approaching 5%), but question of precision remains (do we have poorly understood systematics?)

  7. photon calibrator injected lines • Single test in EX made at LHO ~9h prior to S4 • 5 calibration lines briefly injected • Calibration for these five curves: standard, official method

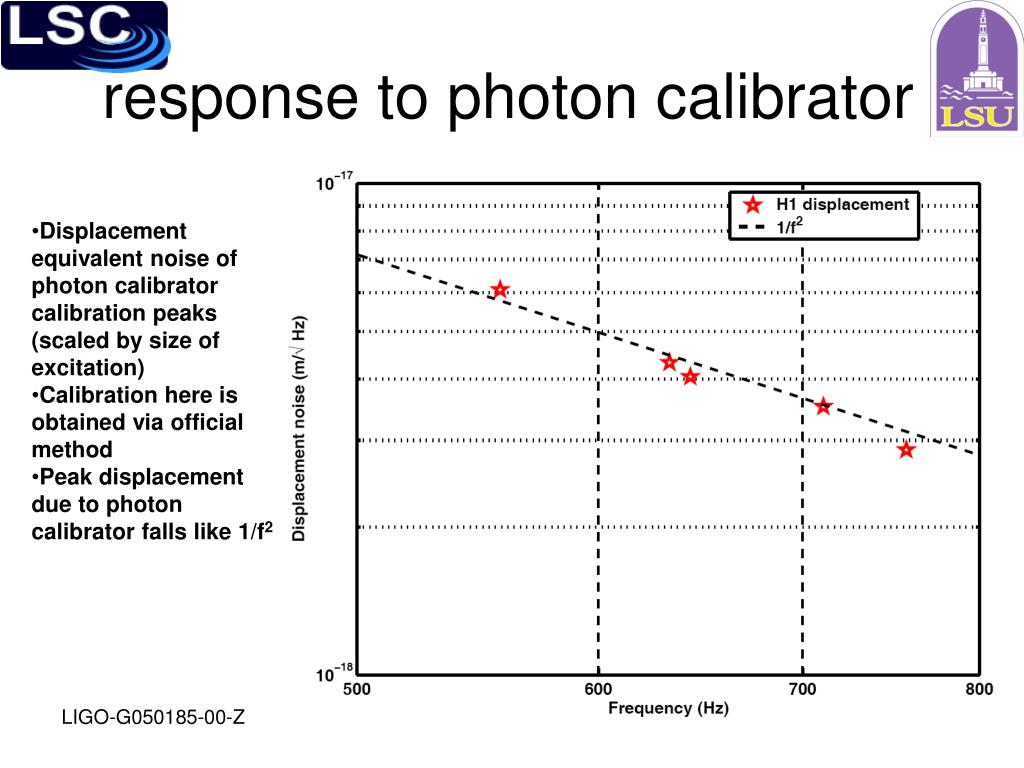

  8. response to photon calibrator • Displacement equivalent noise of photon calibrator calibration peaks (scaled by size of excitation) • Calibration here is obtained via official method • Peak displacement due to photon calibrator falls like 1/f2

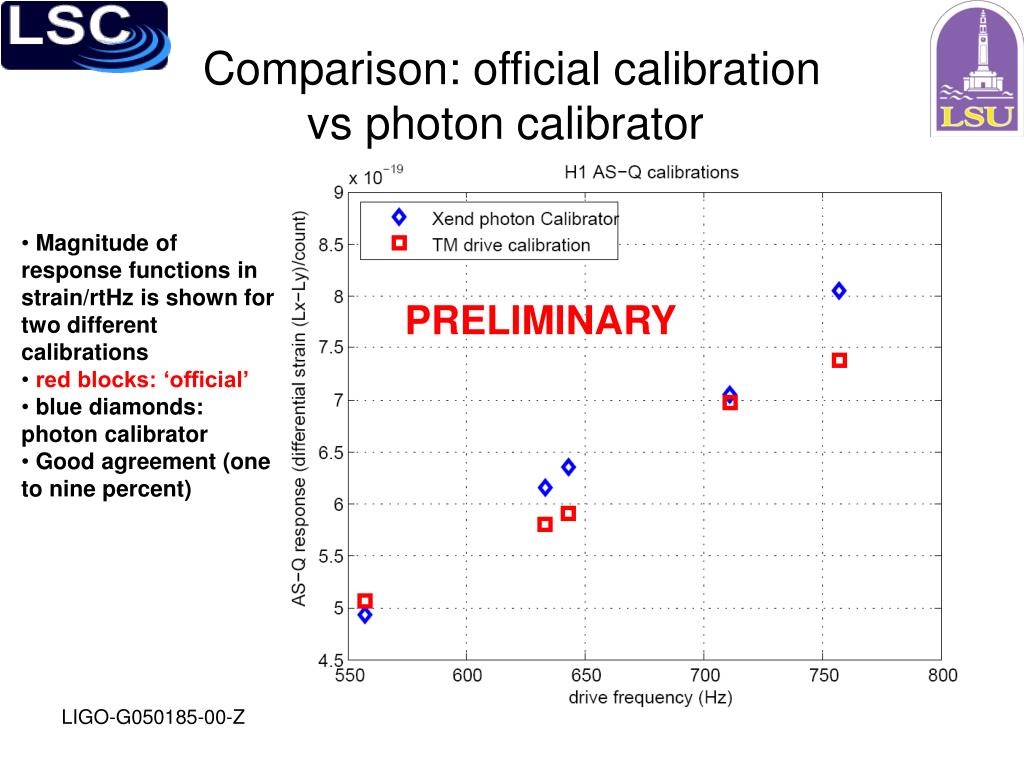

  9. Comparison: official calibration vs photon calibrator • Magnitude of response functions in strain/rtHz is shown for two different calibrations • red blocks: ‘official’ • blue diamonds: photon calibrator • Good agreement (one to nine percent) PRELIMINARY

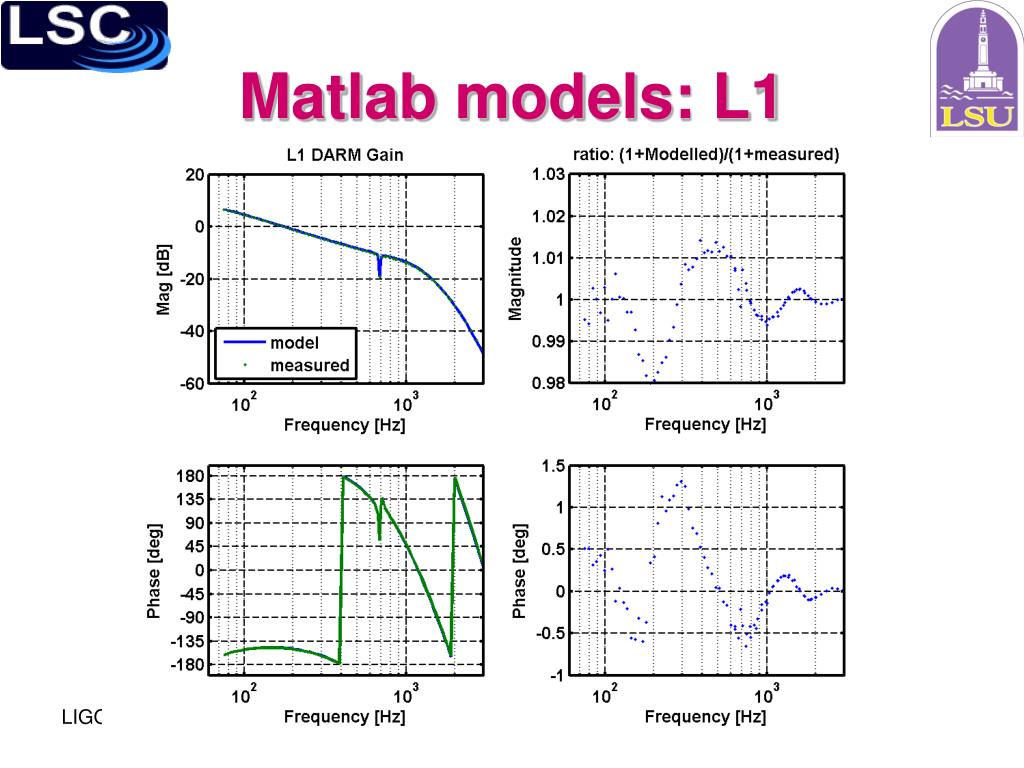

  10. Matlab models: L1

  11. H1, Seg 17, 60 sec Warm-up ~-0.3 rad “systematic error” in G0 at 1144 Hz, ~0.2% “statistical error” in ab estimate http://ligo.phys.lsu.edu/sung/Factors/S4/index.html

  12. H1, Seg 17, 16 Hz Noise bursts Gain fluctuation ~-0.3 rad systematic error ~5% statistical error

  13. Calibration dropouts • For first 3 weeks in S4: • L1: 83 instances, 283 sec flagged • H1: 56 instances, 168 sec flagged • H2: 120 instances, 360 sec (0.02%)
