Encryption Key Management Proposal for Secure Data Sessions

This proposal details mechanisms for deriving keys through data encryption, using KCVs and PKCS #11 module management to enhance security. It addresses attribute inheritance, key generation for HMAC, and domain parameters in key-pair generation. The document reorganizes authentication objects and ACLs, resolves contradictions, and specifies object attributes for authentication and key management. It also covers managing token sessions and modifying constraints.

patrick-barrett
Télécharger la présentation

Encryption Key Management Proposal for Secure Data Sessions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

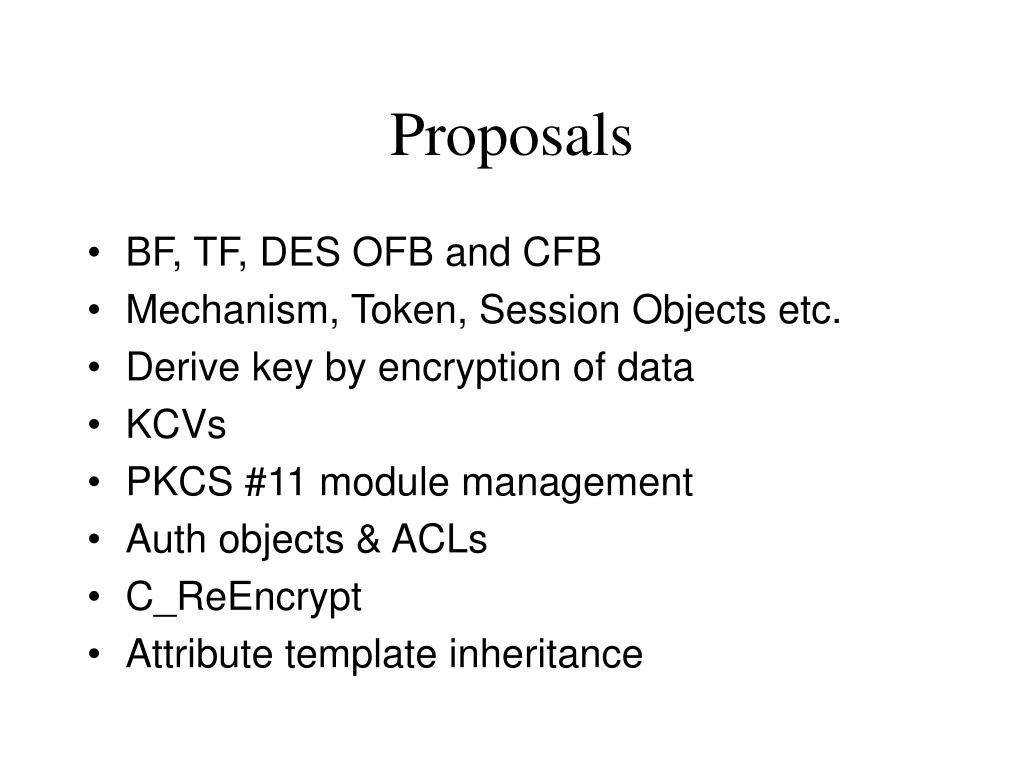

  1. Proposals • BF, TF, DES OFB and CFB • Mechanism, Token, Session Objects etc. • Derive key by encryption of data • KCVs • PKCS #11 module management • Auth objects & ACLs • C_ReEncrypt • Attribute template inheritance

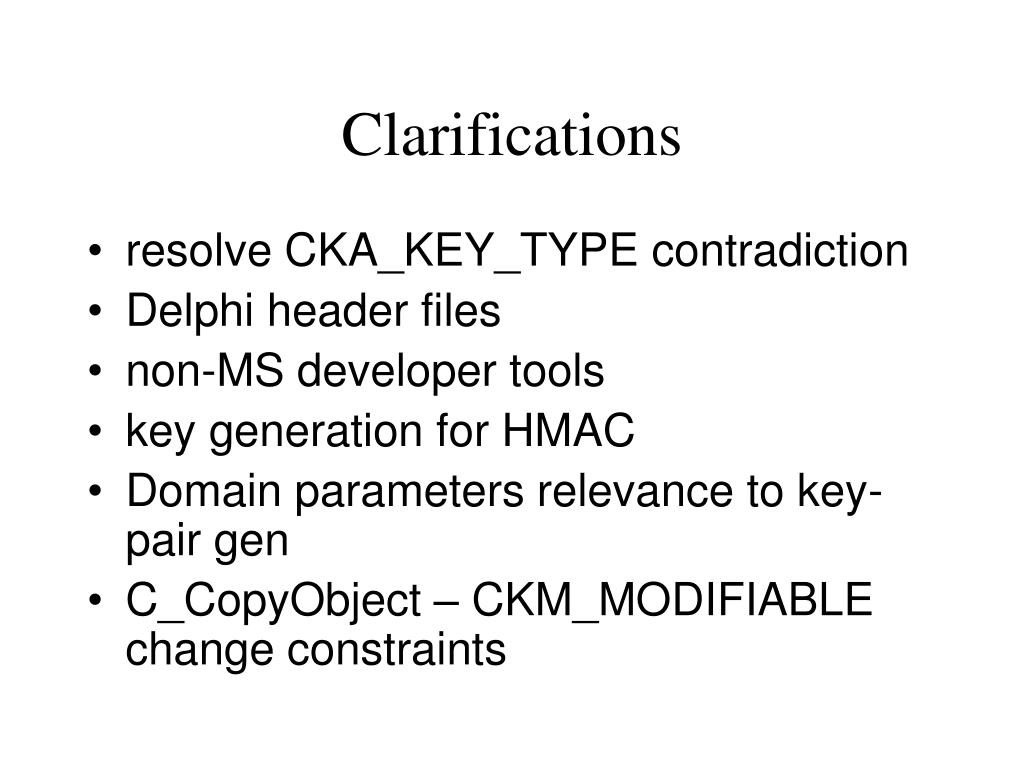

  2. Clarifications • resolve CKA_KEY_TYPE contradiction • Delphi header files • non-MS developer tools • key generation for HMAC • Domain parameters relevance to key-pair gen • C_CopyObject – CKM_MODIFIABLE change constraints

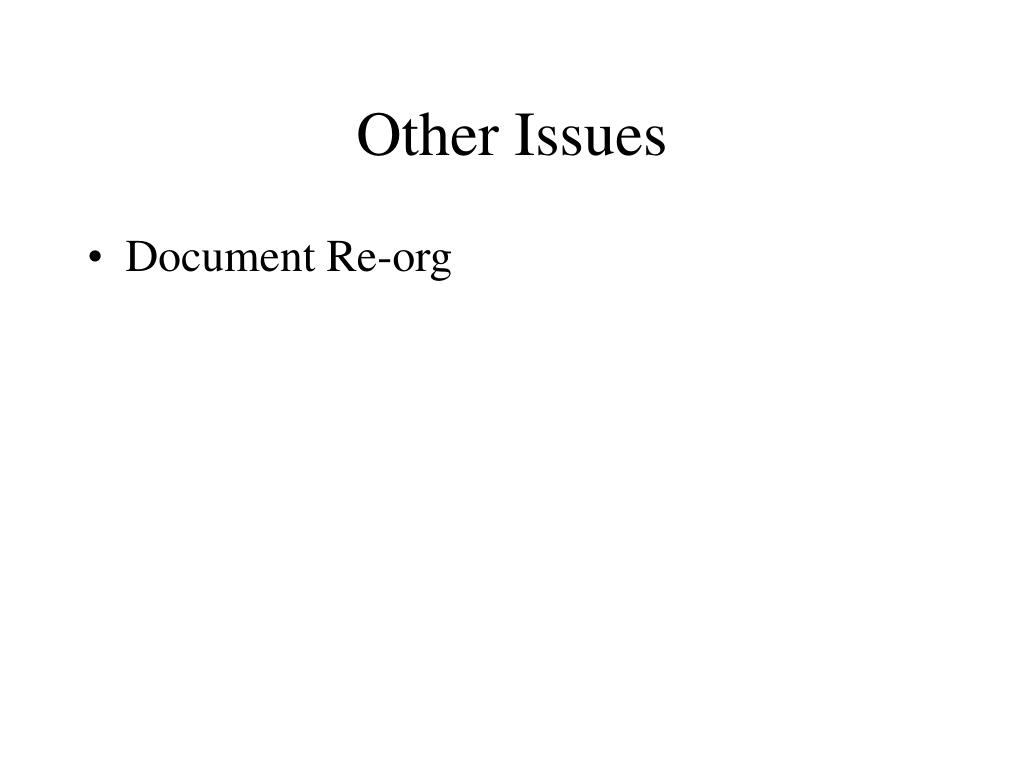

  3. Other Issues • Document Re-org

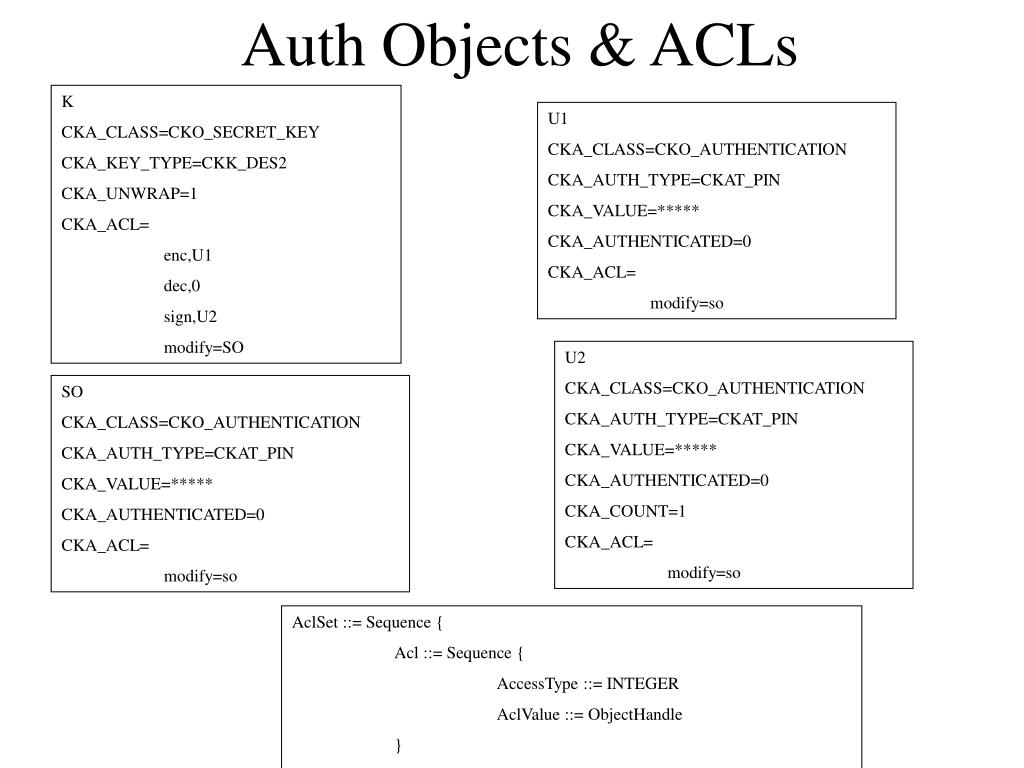

  4. Auth Objects & ACLs K CKA_CLASS=CKO_SECRET_KEY CKA_KEY_TYPE=CKK_DES2 CKA_UNWRAP=1 CKA_ACL= enc,U1 dec,0 sign,U2 modify=SO U1 CKA_CLASS=CKO_AUTHENTICATION CKA_AUTH_TYPE=CKAT_PIN CKA_VALUE=***** CKA_AUTHENTICATED=0 CKA_ACL= modify=so U2 CKA_CLASS=CKO_AUTHENTICATION CKA_AUTH_TYPE=CKAT_PIN CKA_VALUE=***** CKA_AUTHENTICATED=0 CKA_COUNT=1 CKA_ACL= modify=so SO CKA_CLASS=CKO_AUTHENTICATION CKA_AUTH_TYPE=CKAT_PIN CKA_VALUE=***** CKA_AUTHENTICATED=0 CKA_ACL= modify=so AclSet ::= Sequence { Acl ::= Sequence { AccessType ::= INTEGER AclValue ::= ObjectHandle } }

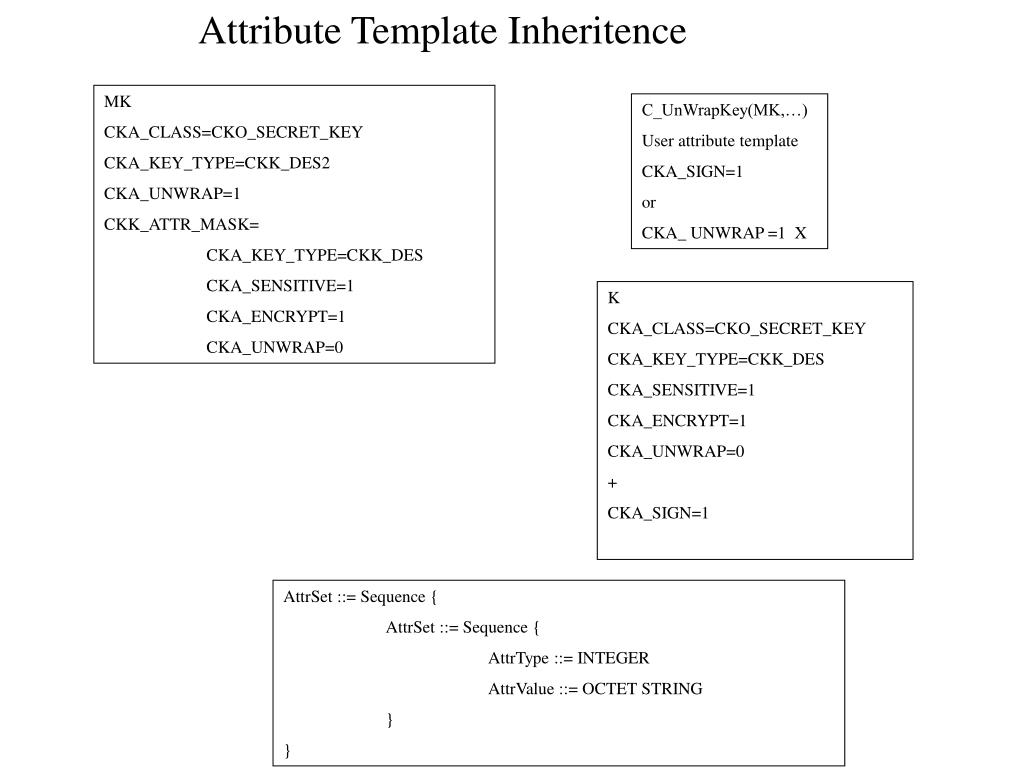

  5. Attribute Template Inheritence MK CKA_CLASS=CKO_SECRET_KEY CKA_KEY_TYPE=CKK_DES2 CKA_UNWRAP=1 CKK_ATTR_MASK= CKA_KEY_TYPE=CKK_DES CKA_SENSITIVE=1 CKA_ENCRYPT=1 CKA_UNWRAP=0 C_UnWrapKey(MK,…) User attribute template CKA_SIGN=1 or CKA_ UNWRAP =1 X K CKA_CLASS=CKO_SECRET_KEY CKA_KEY_TYPE=CKK_DES CKA_SENSITIVE=1 CKA_ENCRYPT=1 CKA_UNWRAP=0 + CKA_SIGN=1 AttrSet ::= Sequence { AttrSet ::= Sequence { AttrType ::= INTEGER AttrValue ::= OCTET STRING } }
