Designing Execution Semantics in WSMX Software

Learn about the formal specification and benefits of modeling system behavior in WSMX software. Explore the use of Petri nets and challenges faced in model checking.

pepper
Télécharger la présentation

Designing Execution Semantics in WSMX Software

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

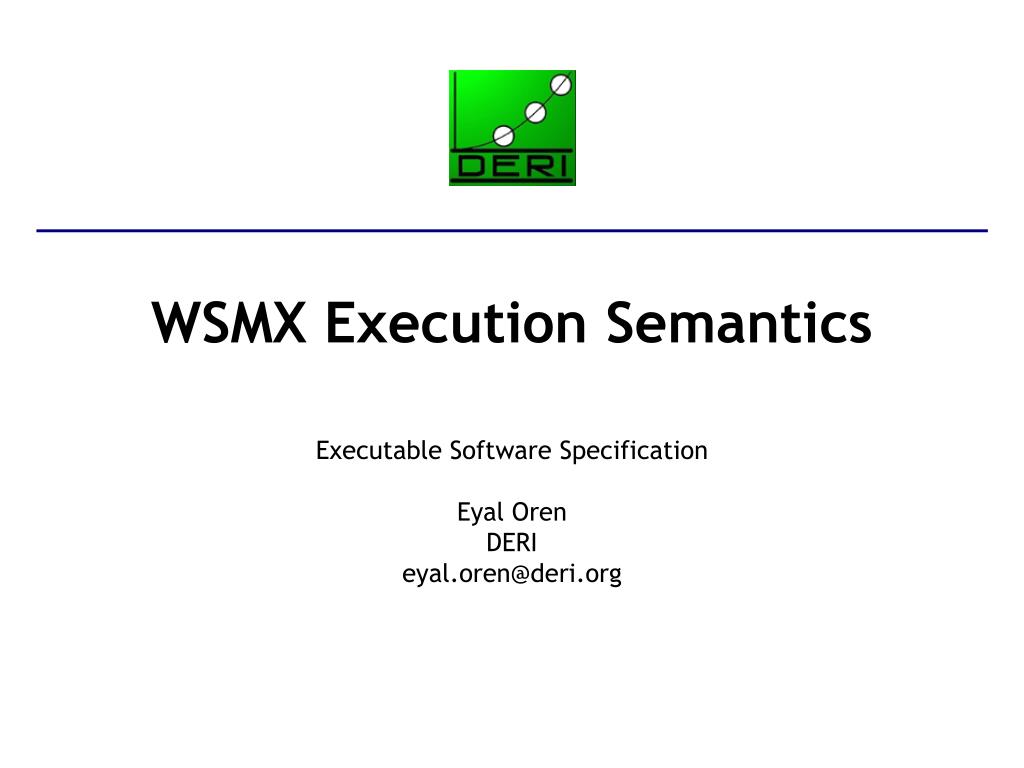

  1. WSMX Execution Semantics Executable Software Specification Eyal Oren DERI eyal.oren@deri.org

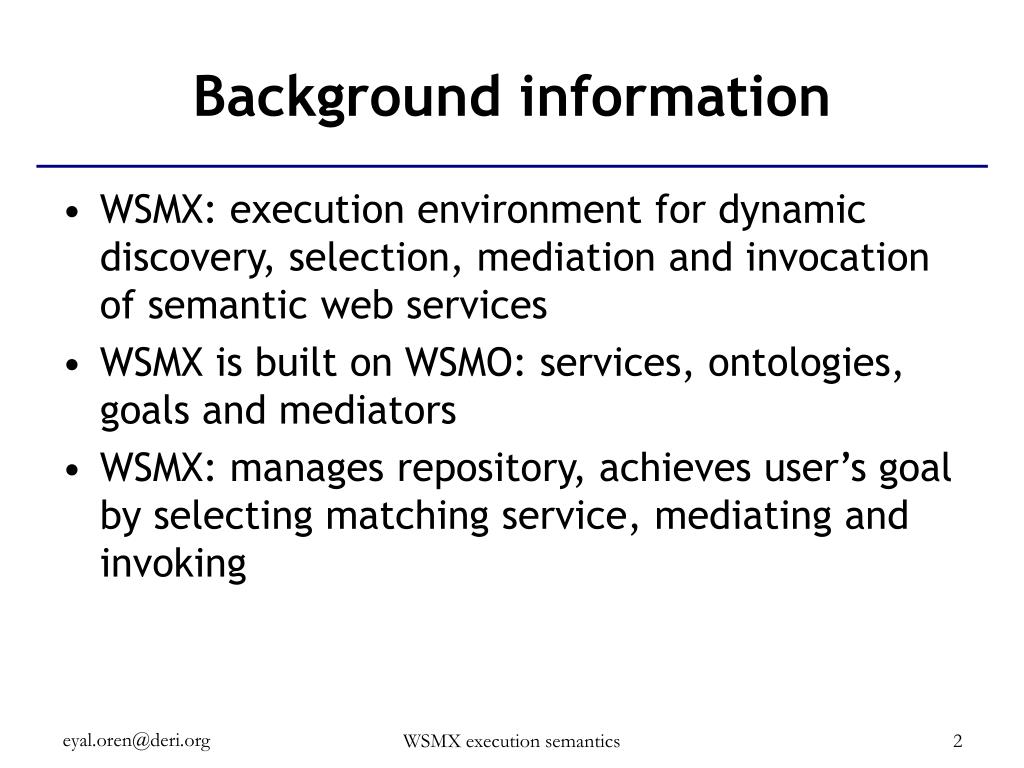

  2. Background information • WSMX: execution environment for dynamic discovery, selection, mediation and invocation of semantic web services • WSMX is built on WSMO: services, ontologies, goals and mediators • WSMX: manages repository, achieves user’s goal by selecting matching service, mediating and invoking WSMX execution semantics

  3. Designing WSMX • Conceptual model: what are we talking about • Architecture: components, how they interact • Execution semantics: system behaviour WSMX execution semantics

  4. What did we do? • Design of WSMX includes formalspecification of system behaviour • Reasons: • enlarging developers’ understanding of the system • proving properties of the system • enabling model-driven component execution • We present the execution semantics of WSMX • Did our approach address the objectives? WSMX execution semantics

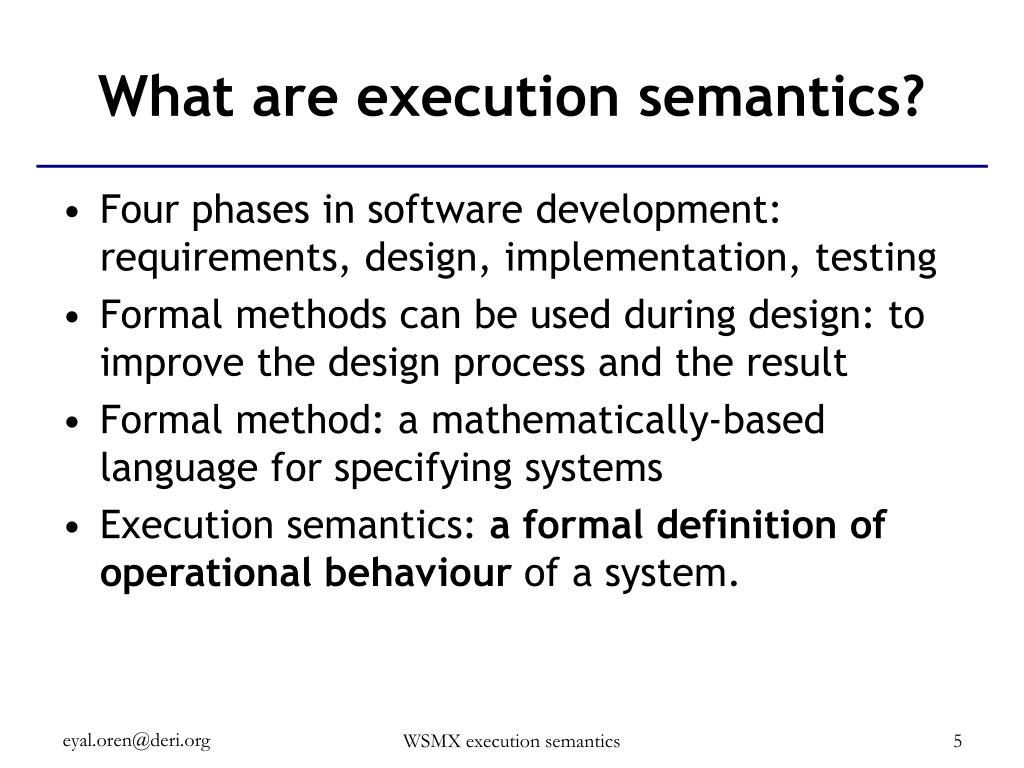

  5. What are execution semantics? • Four phases in software development: requirements, design, implementation, testing • Formal methods can be used during design: to improve the design process and the result • Formal method: a mathematically-based language for specifying systems • Execution semantics: aformal definition of operational behaviour of a system. WSMX execution semantics

  6. Why model execution semantics? • Formal methods do not make correct programs! • Increase understanding and agreement between project members (by explicit specification process) • To checkproperties of the constructed specification: discover future properties of the modelled system WSMX execution semantics

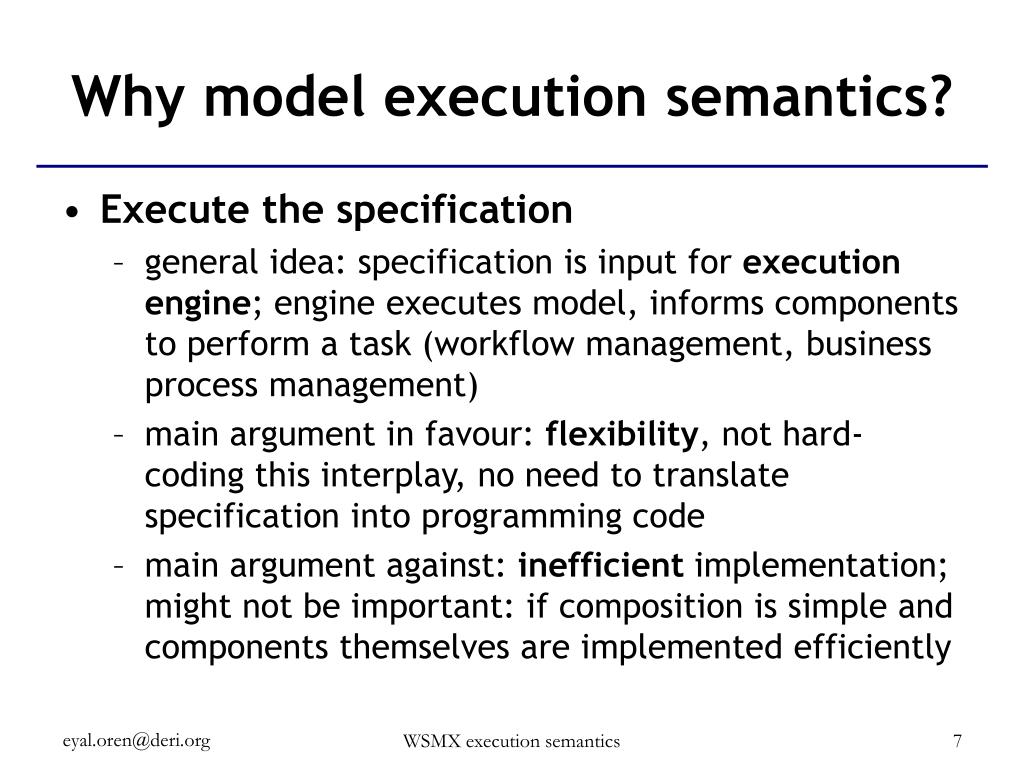

  7. Why model execution semantics? • Execute thespecification • general idea: specification is input for executionengine; engine executes model, informs components to perform a task (workflow management, business process management) • main argument in favour: flexibility, not hard-coding this interplay, no need to translate specification into programming code • main argument against: inefficient implementation; might not be important: if composition is simple and components themselves are implemented efficiently WSMX execution semantics

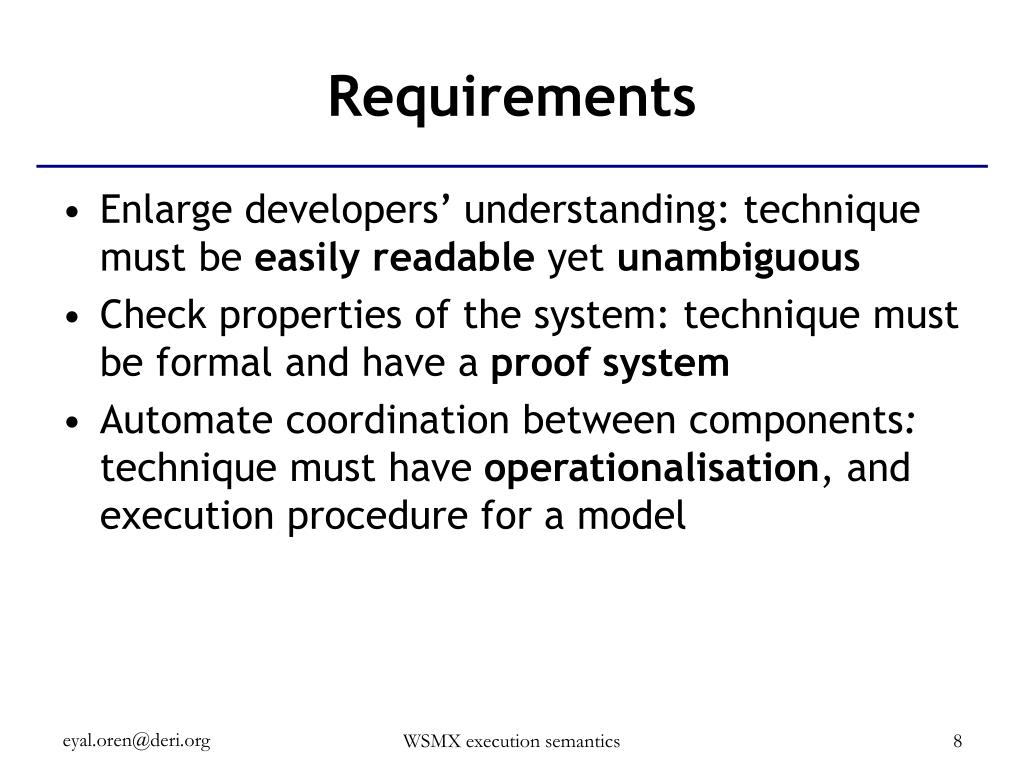

  8. Requirements • Enlarge developers’ understanding: technique must be easily readable yet unambiguous • Check properties of the system: technique must be formal and have a proof system • Automate coordination between components: technique must have operationalisation, and execution procedure for a model WSMX execution semantics

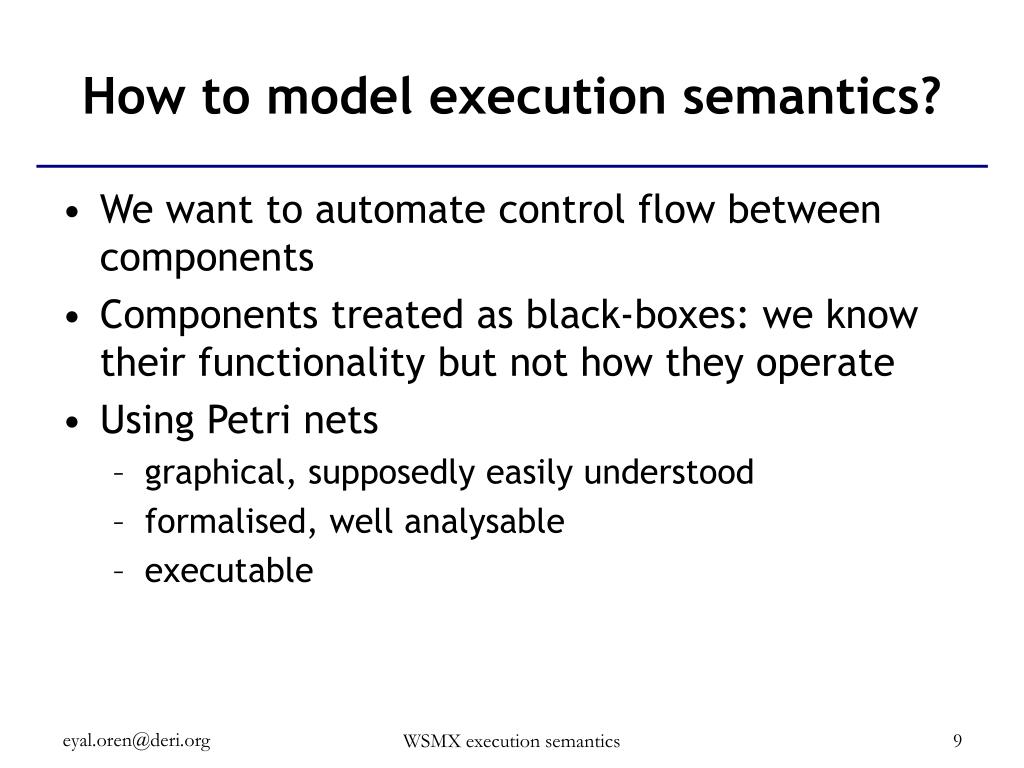

  9. How to model execution semantics? • We want to automate control flow between components • Components treated as black-boxes: we know their functionality but not how they operate • Using Petri nets • graphical, supposedly easily understood • formalised, well analysable • executable WSMX execution semantics

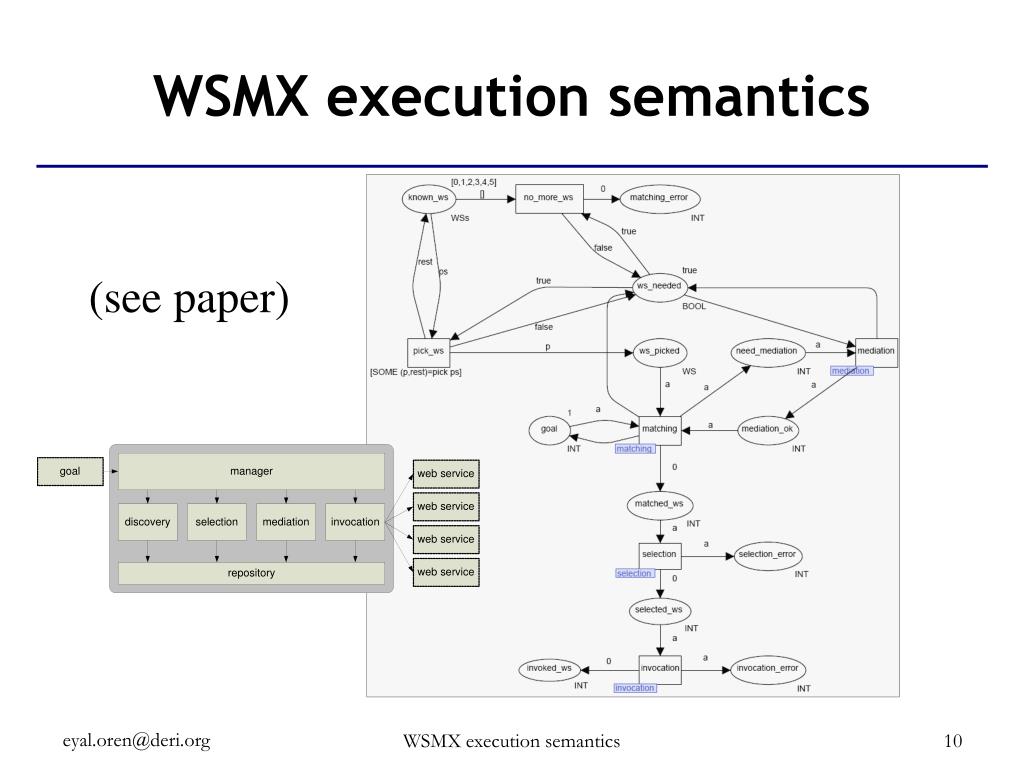

  10. WSMX execution semantics (see paper) WSMX execution semantics

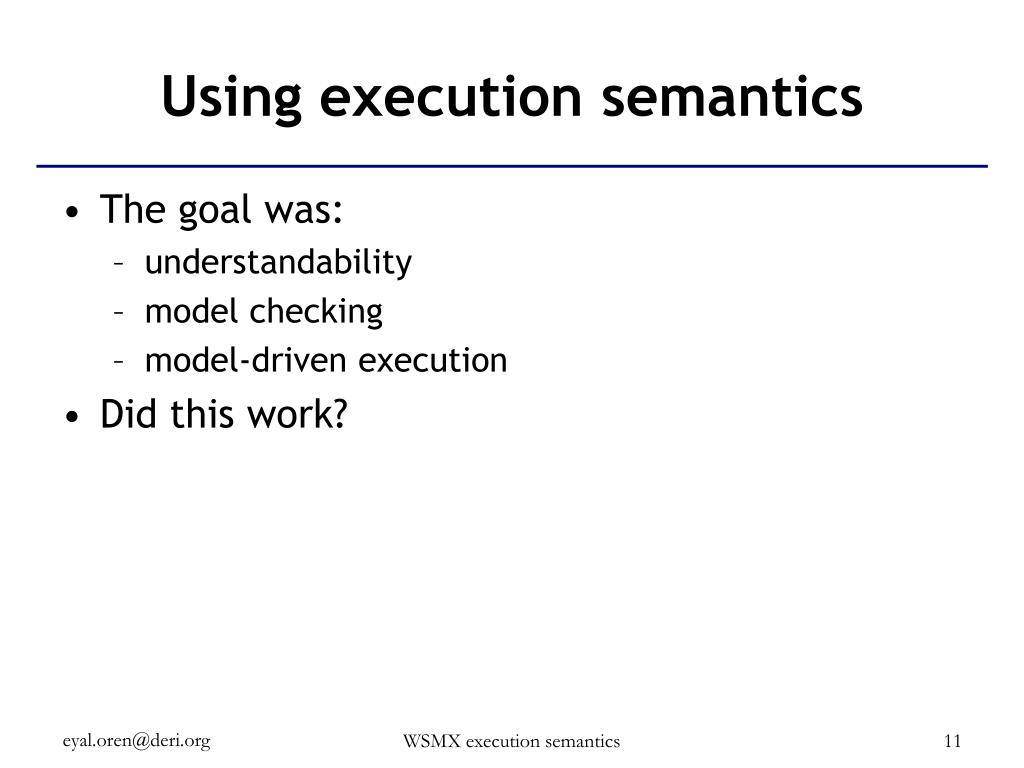

  11. Using execution semantics • The goal was: • understandability • model checking • model-driven execution • Did this work? WSMX execution semantics

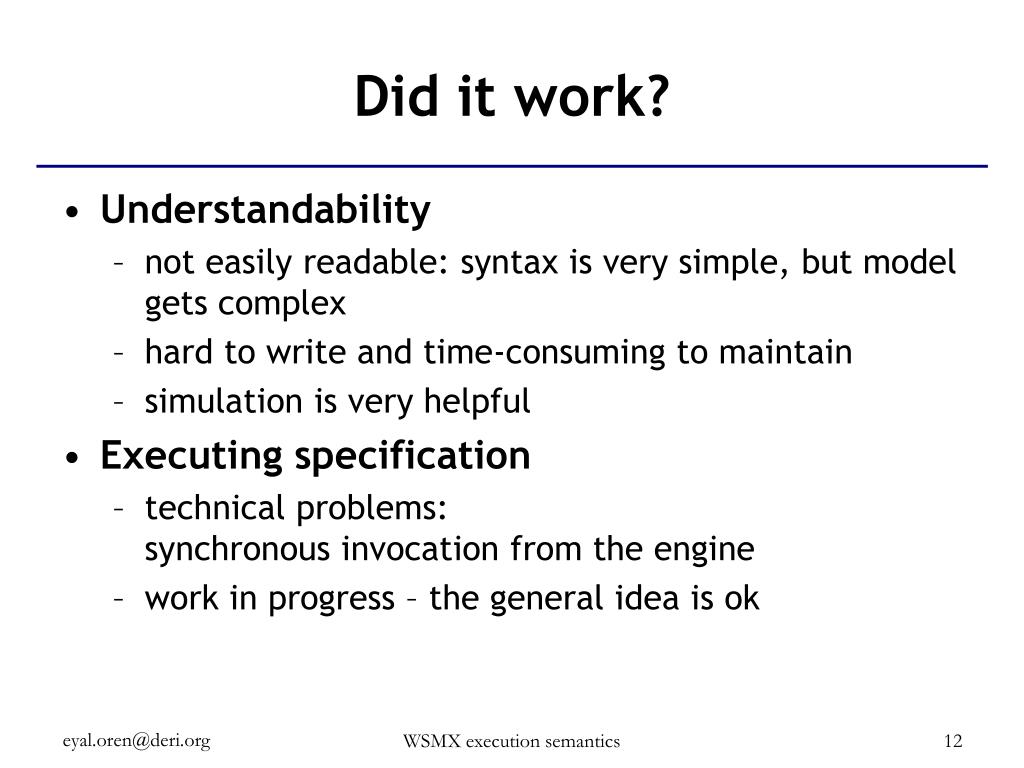

  12. Did it work? • Understandability • not easily readable: syntax is very simple, but model gets complex • hard to write and time-consuming to maintain • simulation is very helpful • Executingspecification • technical problems: synchronous invocation from the engine • work in progress – the general idea is ok WSMX execution semantics

  13. Did it work? • Model checking • large amount of work on problems in Petri nets (algorithms, tools, decidability & complexity results) • however, we did not use this possibility: • during implementation developers had to manually translate the Petri net specification into Java code. • but model is not easily readable: implementation did not strictly follow model! • model checking not very useful WSMX execution semantics

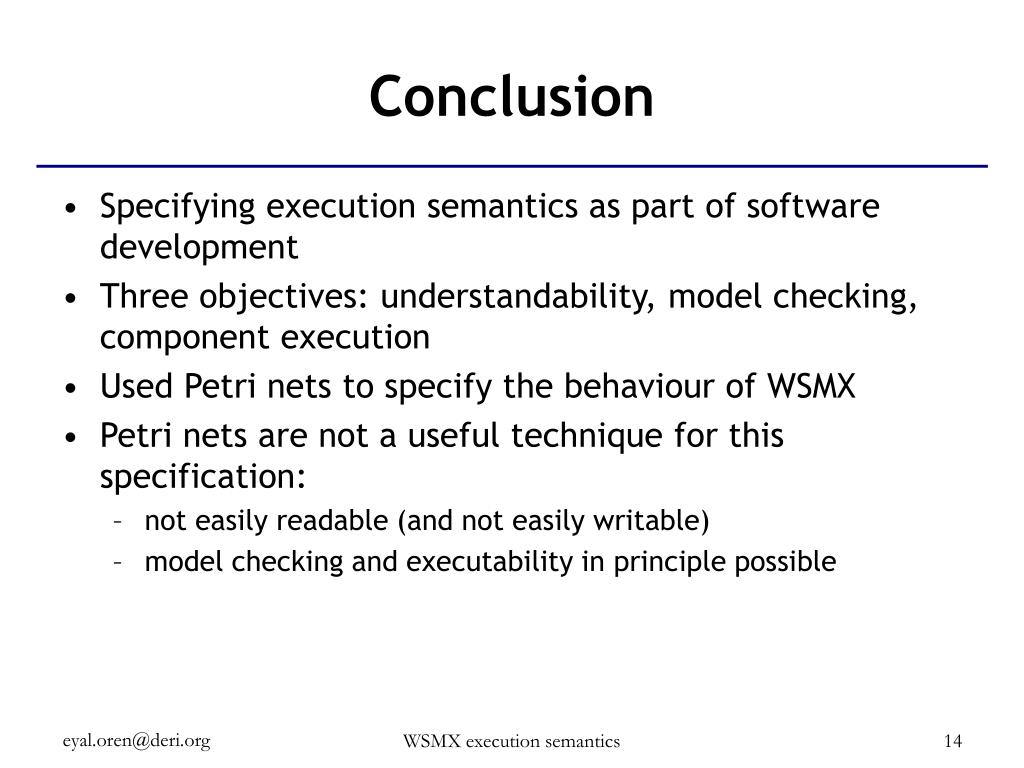

  14. Conclusion • Specifying execution semantics as part of software development • Three objectives: understandability, model checking, component execution • Used Petri nets to specify the behaviour of WSMX • Petri nets are not a useful technique for this specification: • not easily readable (and not easily writable) • model checking and executability in principle possible WSMX execution semantics

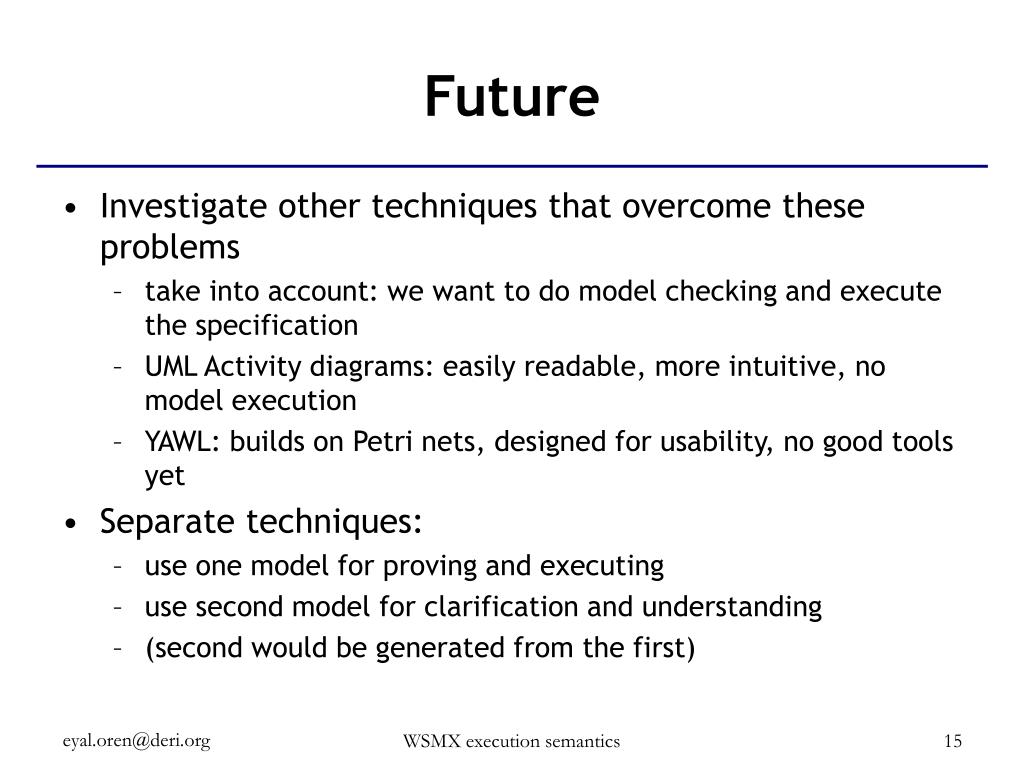

  15. Future • Investigate other techniques that overcome these problems • take into account: we want to do model checking and execute the specification • UML Activity diagrams: easily readable, more intuitive, no model execution • YAWL: builds on Petri nets, designed for usability, no good tools yet • Separate techniques: • use one model for proving and executing • use second model for clarification and understanding • (second would be generated from the first) WSMX execution semantics

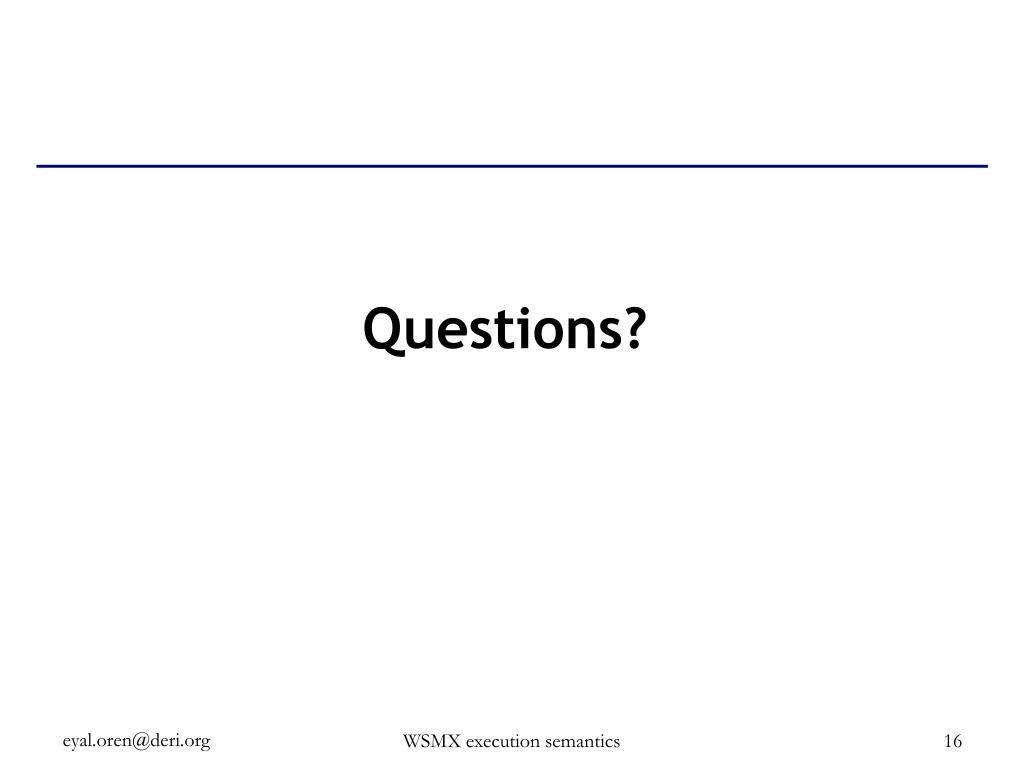

  16. Questions? WSMX execution semantics
