  1. Computing Fundamentals Unit 2- Computer Hardware

  2. Objectives • Identify system components • Describe the role of the central processing unit • Define computer memory • Identify types of storage devices • Care for storage media

  3. Case • Box that contains components • Tower case • All-in-one

  4. Monitor • Displays the images • LCD or LED • Very thin • CRT (old) • Very bulky

  5. What Do You Have? • Homework: • Take a picture of your computer & monitor or laptop • Paste in a PowerPoint • Bring in on your flash drive • Is it a desktop or laptop? • What kind of monitor do you have?

  6. Motherboard • Circuit board • Different sizes • Connects components • Hard drive • CPU • Memory • Has expansion ports • Bus • Data transfer to components

  7. How fast is your computer?- CPU • Processor or “Brain” • Reads/interprets instructions • Performs calculations to complete tasks • Speed= Gigahertz (GHz) • 2.2Ghz, 3GHz • 1979= 8 MHz • 1993= 200 MHz • 2013= 3 GHz

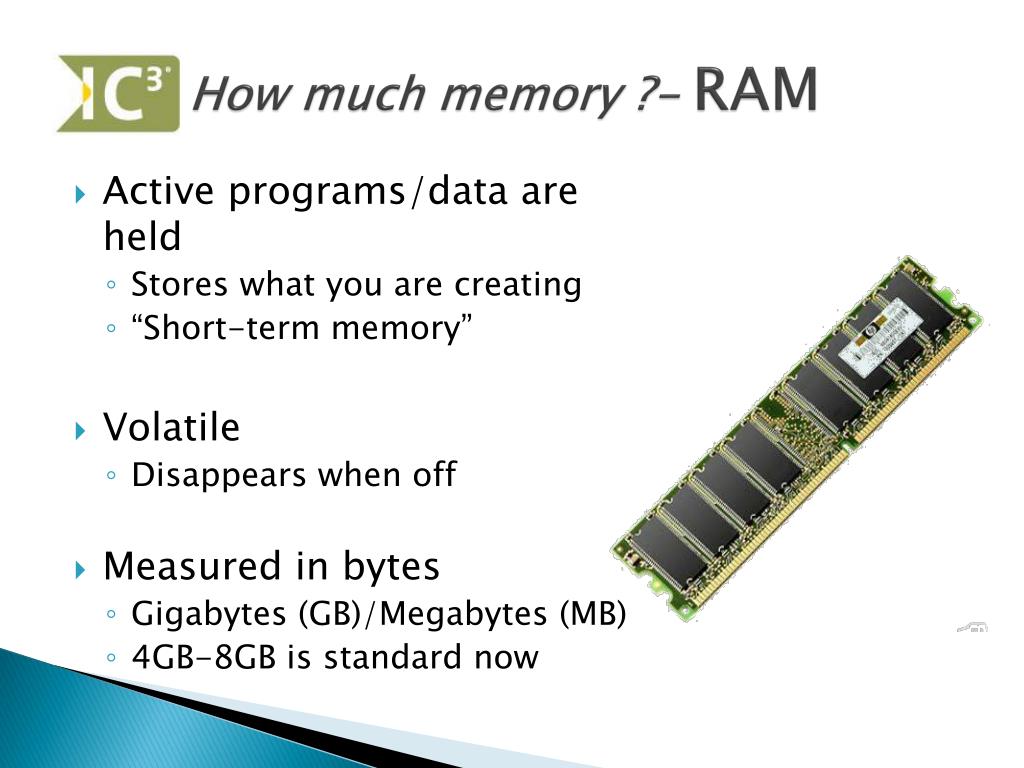

  8. How much memory ?- RAM • Active programs/data are held • Stores what you are creating • “Short-term memory” • Volatile • Disappears when off • Measured in bytes • Gigabytes (GB)/Megabytes (MB) • 4GB-8GB is standard now

  9. Memory Size • 1’s & 0’s • Use for storage size • Hard drive, RAM, CD/DVD • Bit= a 1 or a 0 • 8 bits = 1 byte (a letter or number) • KB= 1024 bytes • MB= Million bytes • GB= Billion bytes • TB= Trillion bytes

  10. What Do You Have? • Start, Control Panel, System

  11. Review

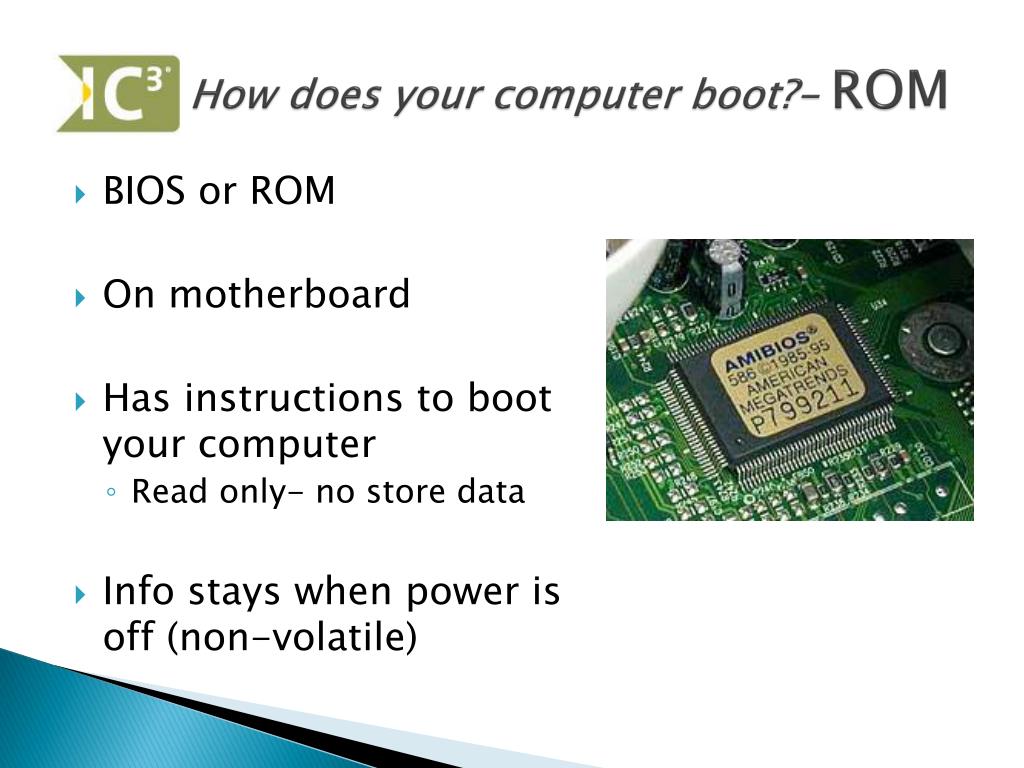

  12. How does your computer boot?- ROM • BIOS or ROM • On motherboard • Has instructions to boot your computer • Read only- no store data • Info stays when power is off (non-volatile)

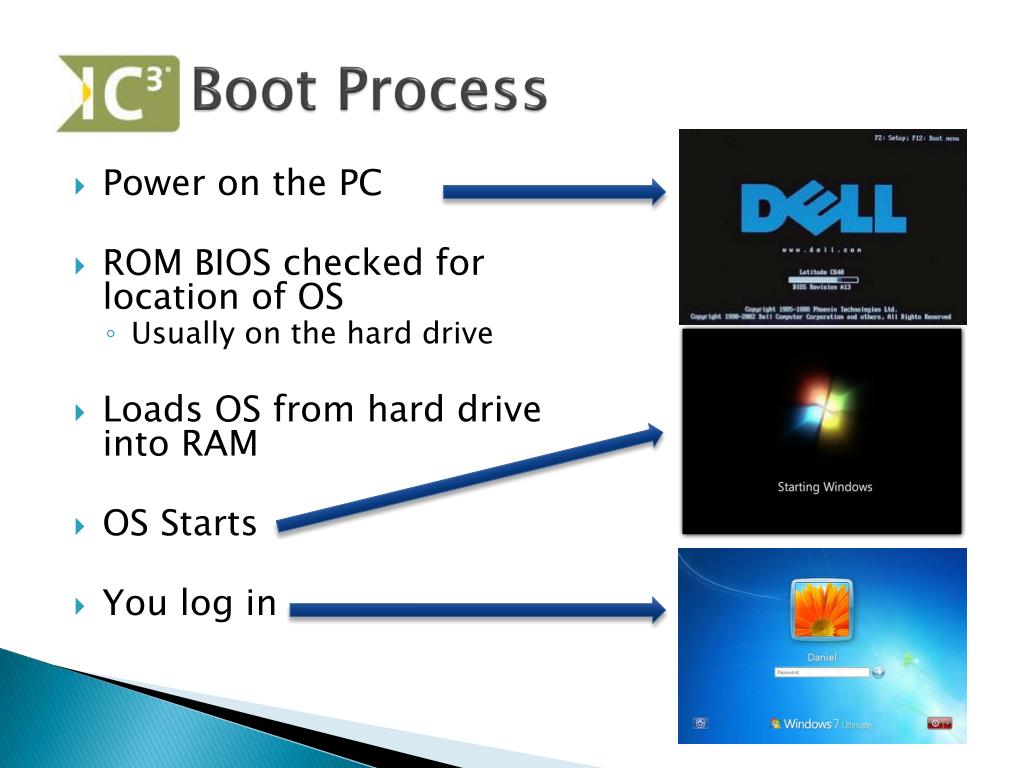

  13. Boot Process • Power on the PC • ROM BIOS checked for location of OS • Usually on the hard drive • Loads OS from hard drive into RAM • OS Starts • You log in

  14. Review • What is a CPU measured in? • MHz or GHz • Which memory is volatile? • RAM • Which is the largest? • 3GB • 3MB • 3KB

  15. Review • What speed is a CPU measured in? • GHz • Which memory holds your active, running programs or what you copied? • RAM • Which type of monitor is shown? • CRT

  16. Review • Which memory goes away when power is off? • RAM • What holds the computer’s boot instructions? • BIOS ROM • What is the brains of a computer? • CPU- what does it stand for? • The CPU, RAM, and ROM are all on what component? • Motherboard

  17. Magnetic Storage Inside Case 3.5”- desktop 2.5”- laptop Storage Device- Hard Drive

  18. Store data permanently Long-term storage GB or TB 320GB 1TB External HD USB Storage Device- Hard Drive

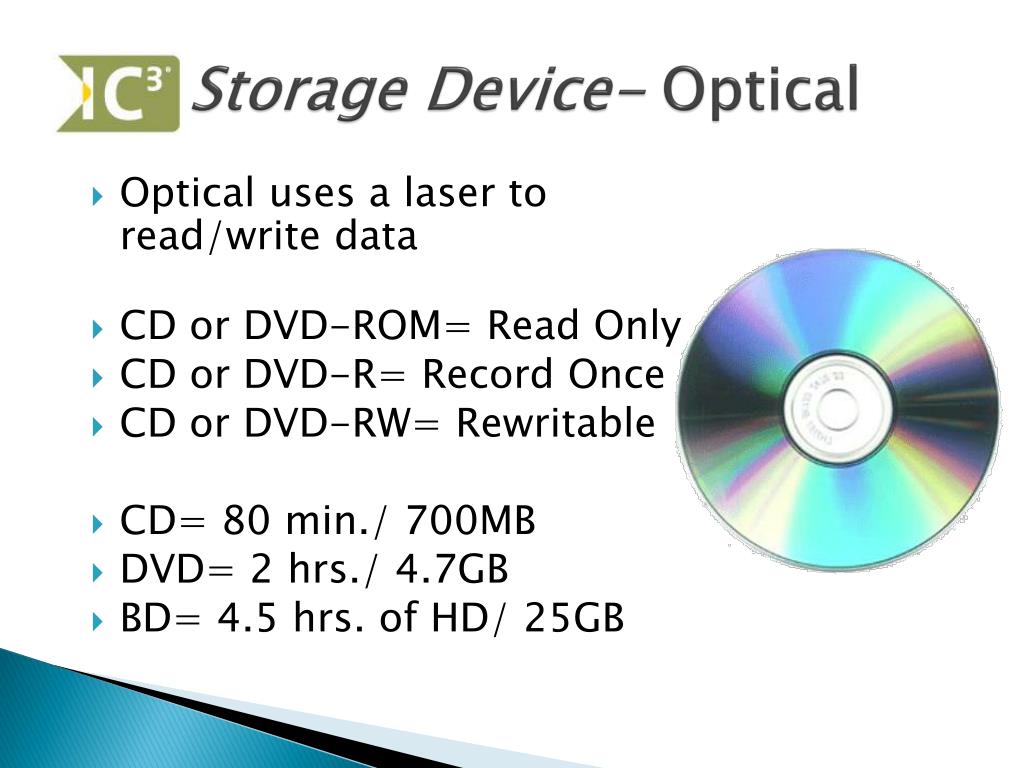

  19. Optical uses a laser to read/write data CD or DVD-ROM= Read Only CD or DVD-R= Record Once CD or DVD-RW= Rewritable CD= 80 min./ 700MB DVD= 2 hrs./ 4.7GB BD= 4.5 hrs. of HD/ 25GB Storage Device- Optical

  20. What Do You Have? • Size Hard Drive: • Start, Computer, right-click on C: • Screenshot in Word • Type of Optical Drive: • Take a picture of front

  21. Storage- Floppy Disks 8-inch 5 ¼” 3 ½” Magnetic Storage- 3.5”=1.44MB

  22. Storage Device- SSD • No moving parts inside • SSD HD • In thin laptops • Memory Cards • SD, SDHC, microSD, CF, Memory Stick • USB Flash drive

  23. Caring for Storage Media • Keep magnetic devices away from TV’s & monitors • Have magnetic fields; may erase • Avoid extreme temps • Like in a car • Hold optical media by edges • Keep discs in sturdy case

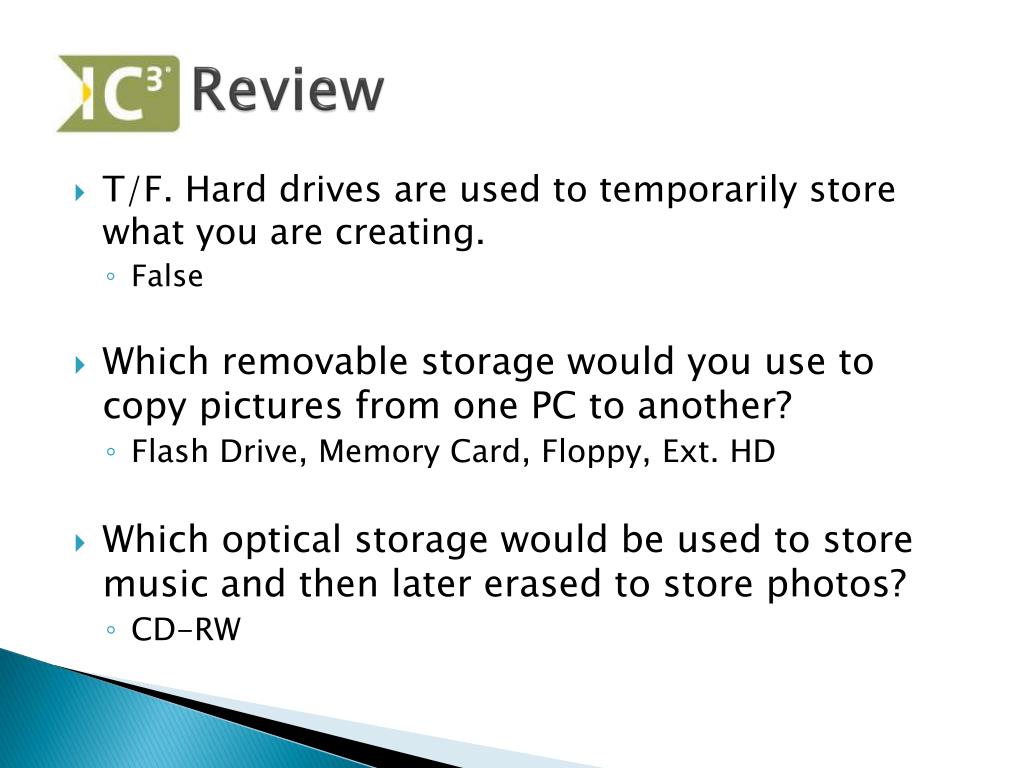

  24. Review • T/F. Hard drives are used to temporarily store what you are creating. • False • Which removable storage would you use to copy pictures from one PC to another? • Flash Drive, Memory Card, Floppy, Ext. HD • Which optical storage would be used to store music and then later erased to store photos? • CD-RW

  25. Review • How much data can a Blu-Ray DVD hold? • 25GB • If pictures are about 3MB each, how many pictures could you put on that disc? • About 8300! • Which storage device has no moveable parts? • SSD/Flash

  26. Computing Fundamentals Unit 2- Computer Hardware
