Probabilistic Models of Sensing and Movement • Move to probability models of sensing and movement • Project 2 is about complex behavior using sensing • Sensor interpretation is difficult – simple interpretation in this section • Artifacts [goal-directed motion] and reactive behaviors • Lectures • Probabilistic sensor models • Probabilistic representation of uncertain movement • Particle filter implementation • Project • PF for motion model • Markov localization with PF • Stretch – feature-based localization Slides thanks to Steffen Gutmann CS225B Kurt Konolige
Markov Localization • Bayes filter • Motion: • Sense: • Implementations • Discrete filter • Particle filter • Kalman filter • Multi-Hypotheses tracking (MHT) • … CS225B Kurt Konolige
Discrete Filter • Piecewise constant • Histogram • Probability grid CS225B Kurt Konolige

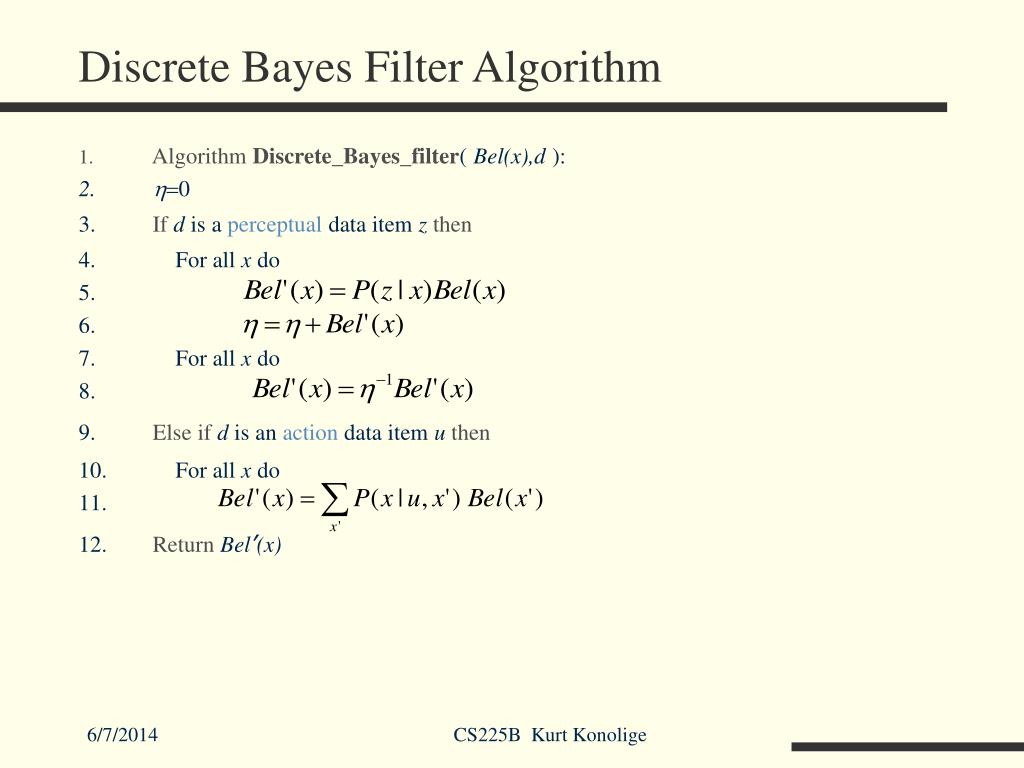

Discrete Bayes Filter Algorithm • Algorithm Discrete_Bayes_filter( Bel(x),d ): • h=0 • Ifd is a perceptual data item z then • For all x do • For all x do • Else ifd is an action data item uthen • For all x do • ReturnBel’(x) CS225B Kurt Konolige

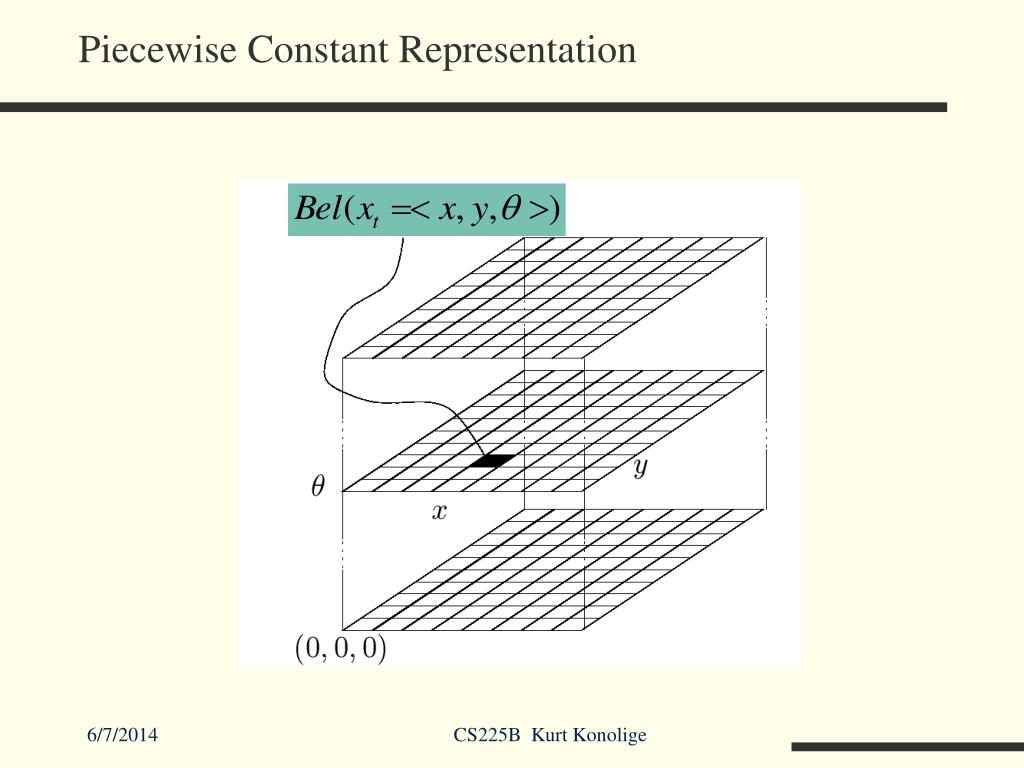

Piecewise Constant Representation CS225B Kurt Konolige

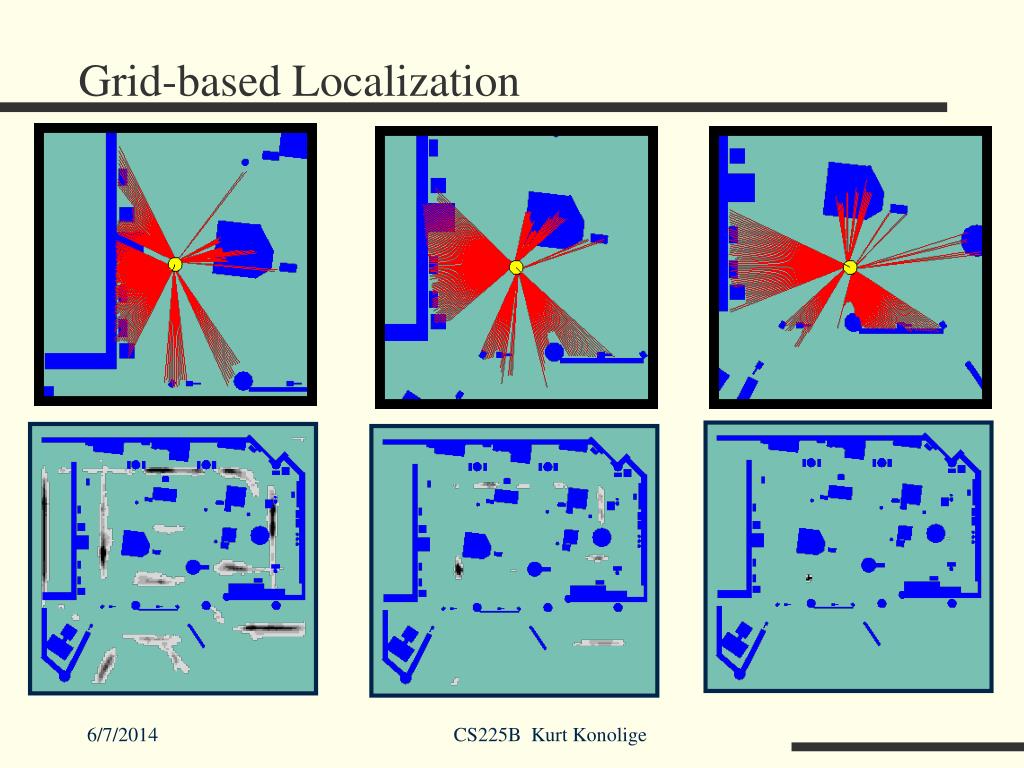

Grid-based Localization CS225B Kurt Konolige
Xavier: Localization in a Topological Map [Courtesy of Reid Simmons] CS225B Kurt Konolige

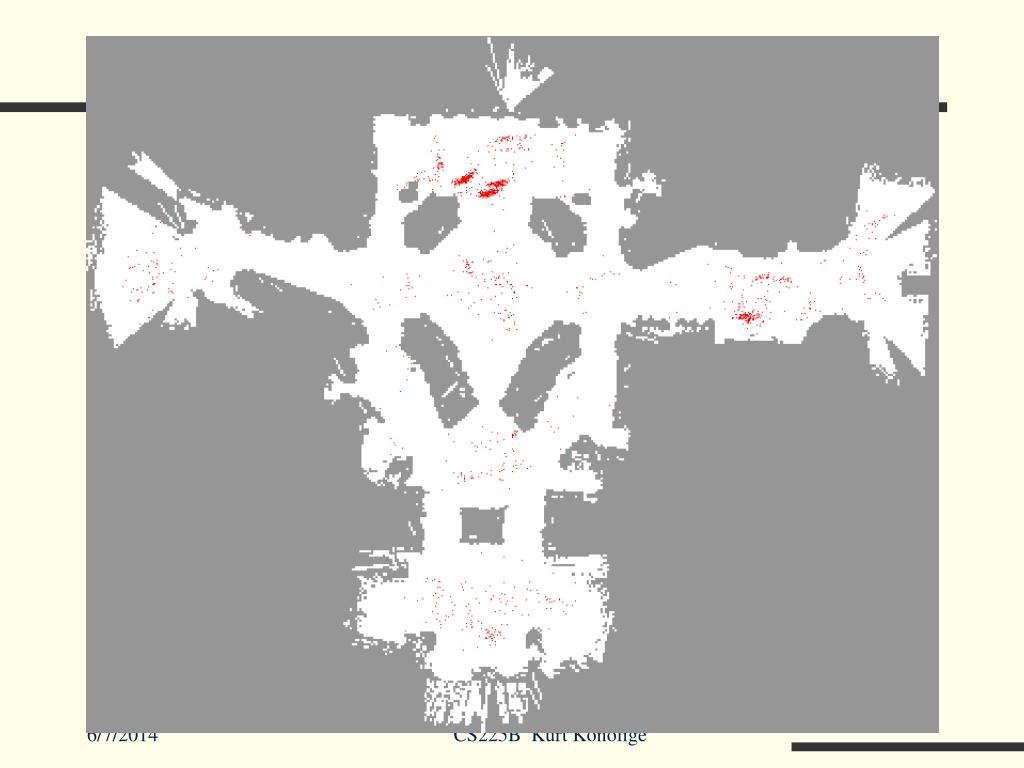

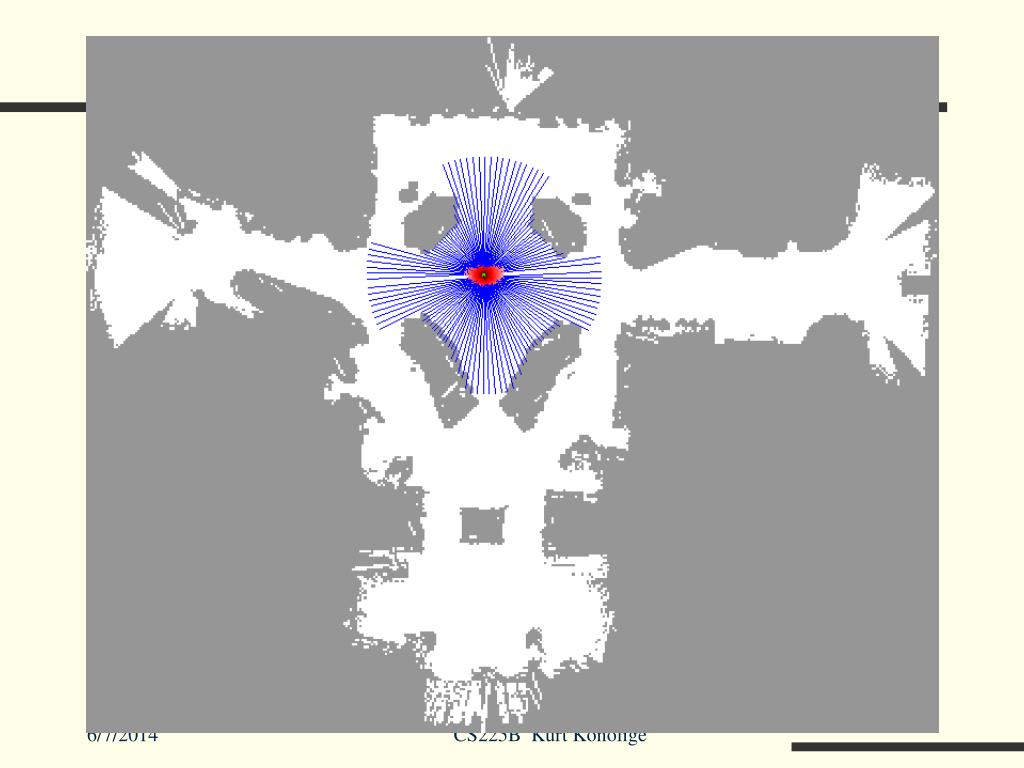

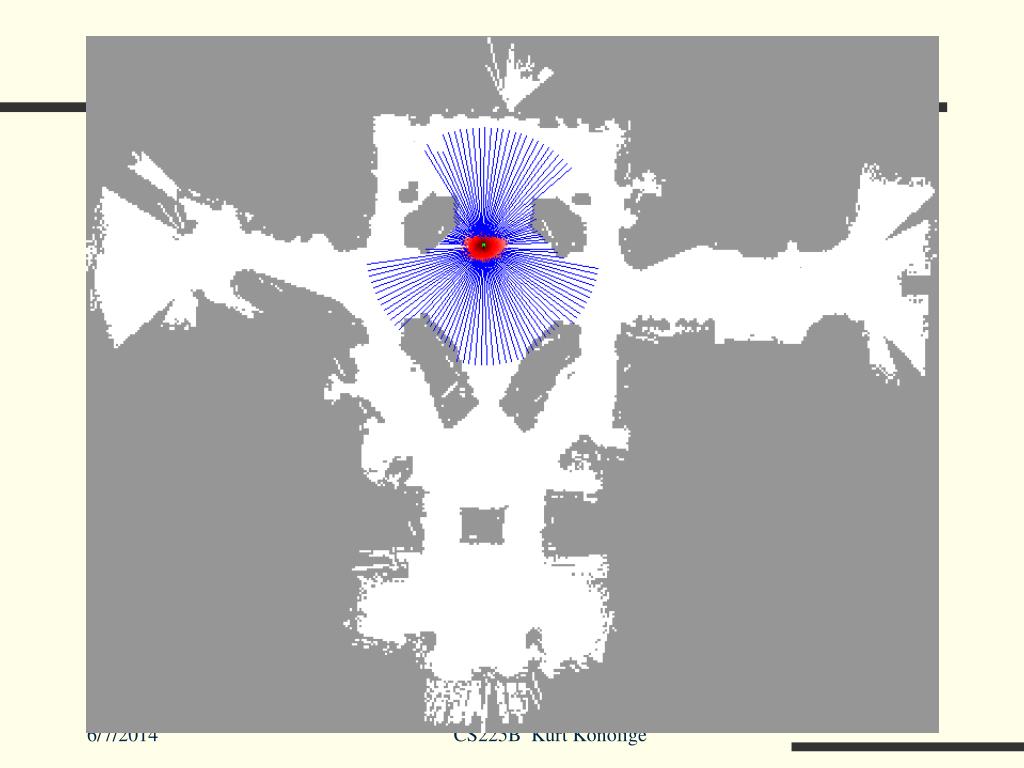

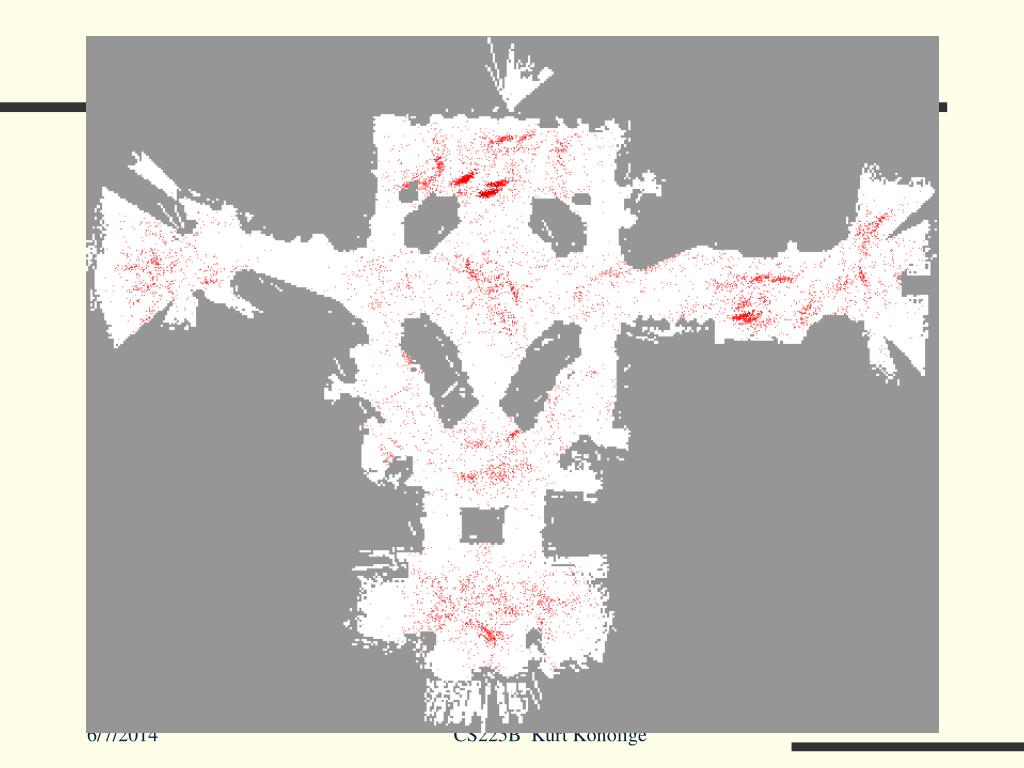

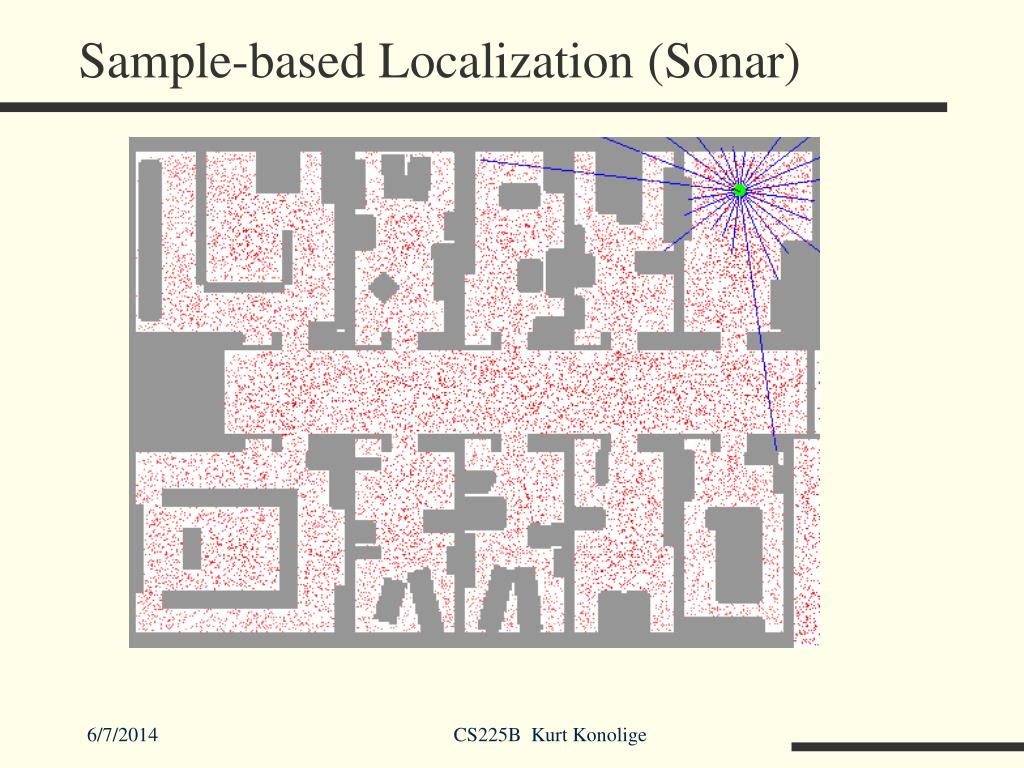

Sample-based Localization (Sonar) CS225B Kurt Konolige
Particle Filters • Represent belief by random samples + weight state + weight • Estimation of non-Gaussian, nonlinear processes • Monte Carlo filter, Survival of the fittest, Condensation, Bootstrap filter, Particle filter • Filtering: [Rubin, 88], [Gordon et al., 93], [Kitagawa 96] • Computer vision: [Isard and Blake 96, 98] • Dynamic Bayesian Networks: [Kanazawa et al., 95] CS225B Kurt Konolige
Robot Motion Sample: CS225B Kurt Konolige

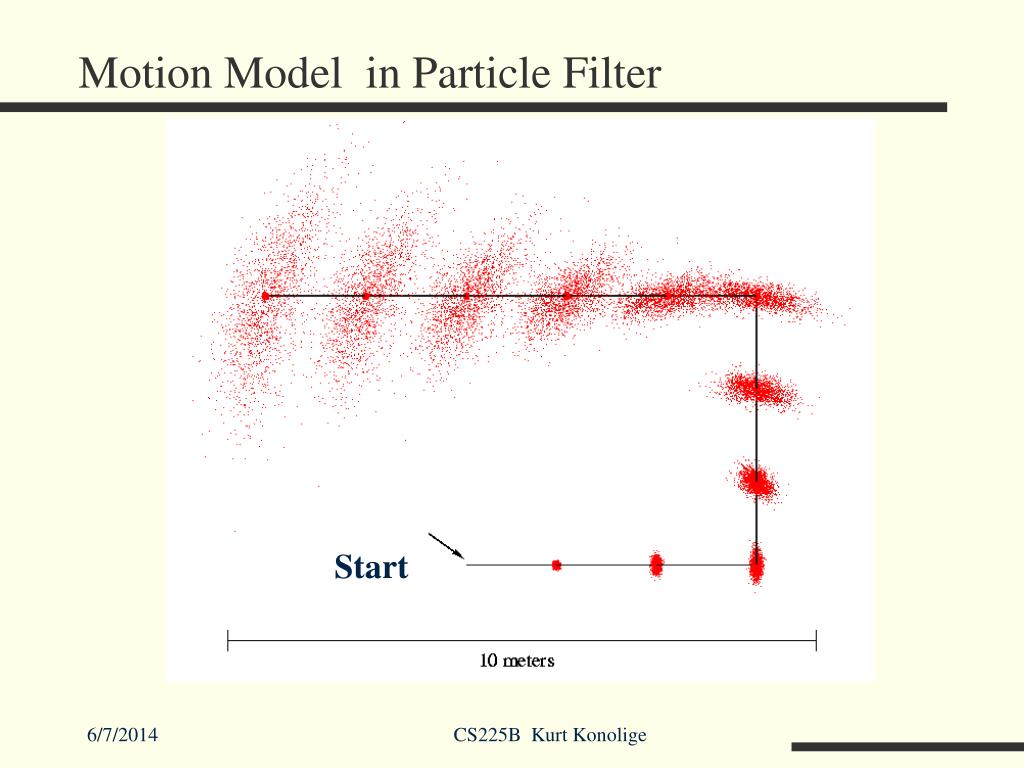

Motion Model in Particle Filter Start CS225B Kurt Konolige
Sensor Information: Importance Sampling CS225B Kurt Konolige

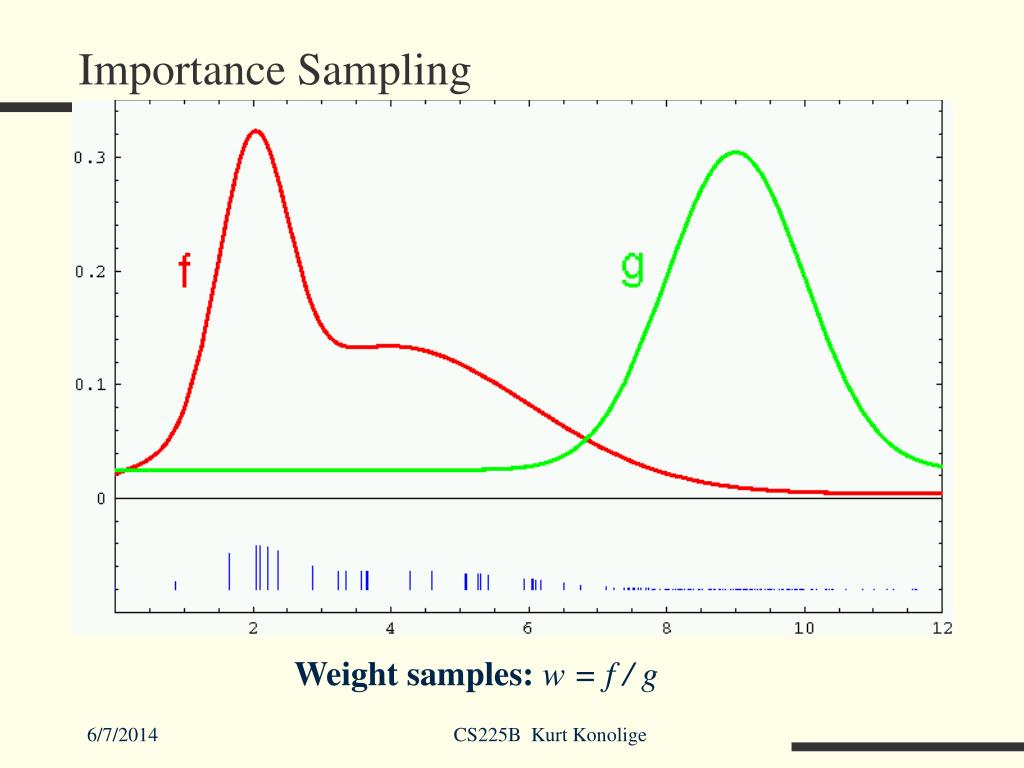

Importance Sampling Weight samples: w = f / g CS225B Kurt Konolige

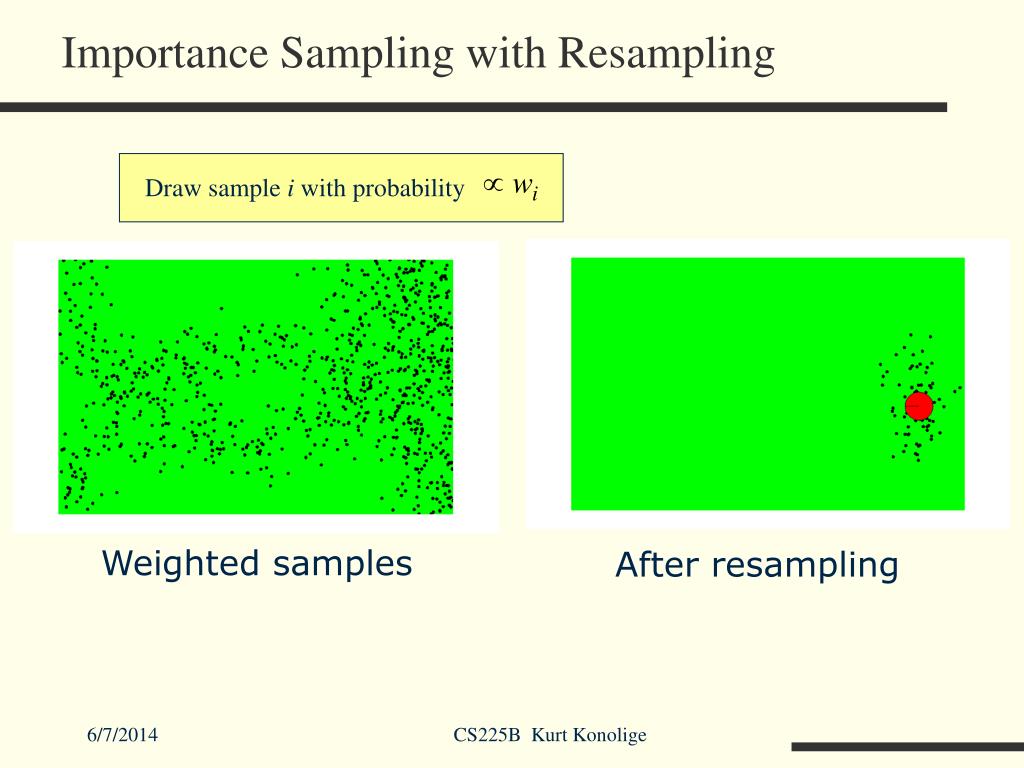

Importance Sampling with Resampling Draw sample i with probability Weighted samples After resampling CS225B Kurt Konolige
draw xit-1from Bel(xt-1) draw xitfrom p(xt | xit-1,ut) Importance factor for xit: Particle Filter Algorithm CS225B Kurt Konolige
Particle Filter Algorithm • Algorithm particle_filter(Xt-1, ut, zt): • for Generate new samples • Insert into temporary set • endfor • forResample • draw i with probability • Insert into final set • endfor • return Xt CS225B Kurt Konolige
Resampling • Given: Set X of weighted samples. • Wanted : Random sample, where the probability of drawing xi is given by wi. • Typically done n times with replacement to generate new sample set X’. CS225B Kurt Konolige
w1 wn w2 Wn-1 w1 wn w2 Wn-1 w3 w3 Resampling • Stochastic universal sampling • Systematic resampling • Linear time complexity • Easy to implement, low variance • Roulette wheel • Binary search, n log n CS225B Kurt Konolige
Resampling Algorithm • Algorithm systematic_resampling(): • Initialize threshold • for • Increment threshold • while Skip until next threshold • endwhile • Insert • endfor • returnXt CS225B Kurt Konolige
Berkeley Street Localization [Freuh] CS225B Kurt Konolige

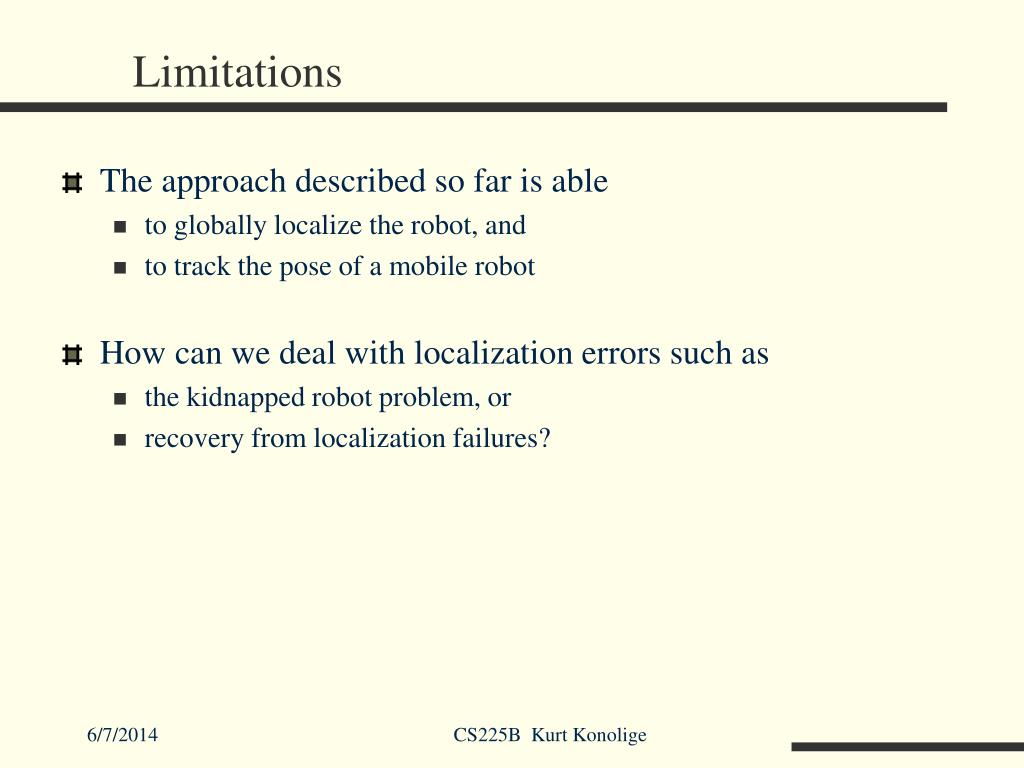

Limitations • The approach described so far is able • to globally localize the robot, and • to track the pose of a mobile robot • How can we deal with localization errors such as • the kidnapped robot problem, or • recovery from localization failures? CS225B Kurt Konolige
Approaches • Random samples: • During re-sampling, insert a few random samples (the robot can be teleported at any point in time) • Insert random samples inverse proportional to the average likelihood of the particles (the robot has been teleported with higher probability when the likelihood of its observations drops). • Samples drawn from observations: p(x|z) • Inverse proportional to average likelihood of particles (Sensor Resetting Localization) [Lenser, Veloso, 2000] • Constant number but weight each sample by motion model (Mixture MCL) [Thrun et al., 2000] • Proportional to noise in observations estimated over time (Adaptive MCL) [Fox 2002] CS225B Kurt Konolige
Particle Filter with Random Samples • Algorithm particle_filter_random(Xt-1, ut, zt): • for Generate new samples • Insert into temporary set • endfor • forResample • with probability pranddo • Insert random pose • else • draw i with probability • Insert sample • endwith • endfor • return Xt CS225B Kurt Konolige

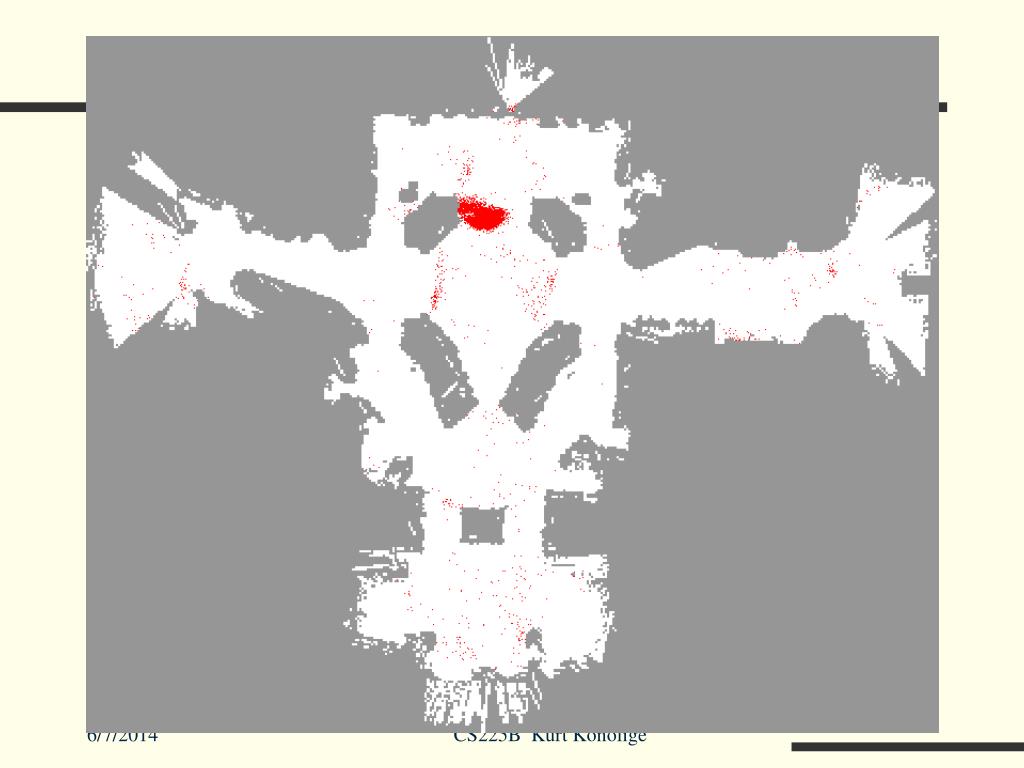

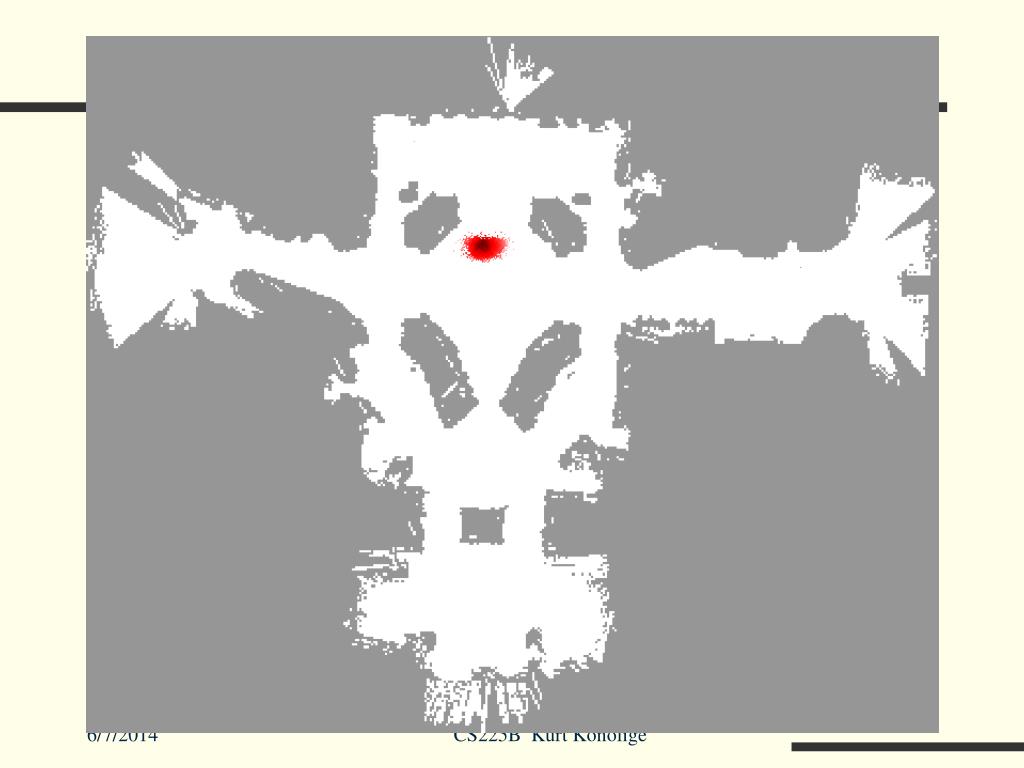

Recovery from Failure failure CS225B Kurt Konolige

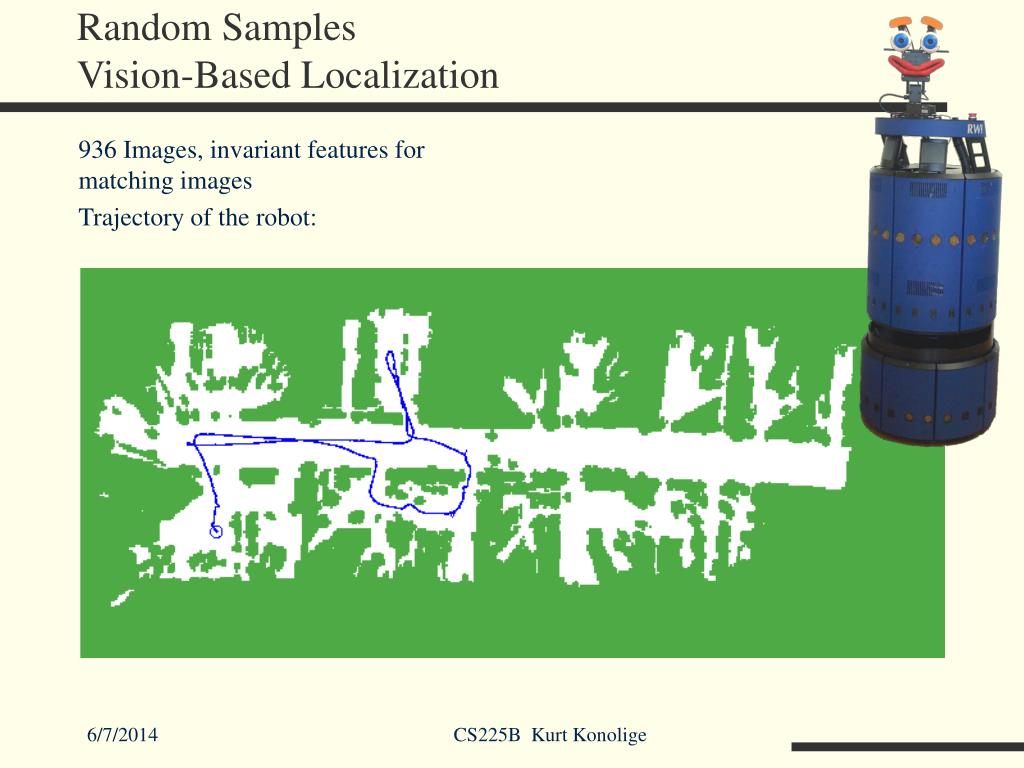

Random SamplesVision-Based Localization 936 Images, invariant features for matching images Trajectory of the robot: CS225B Kurt Konolige

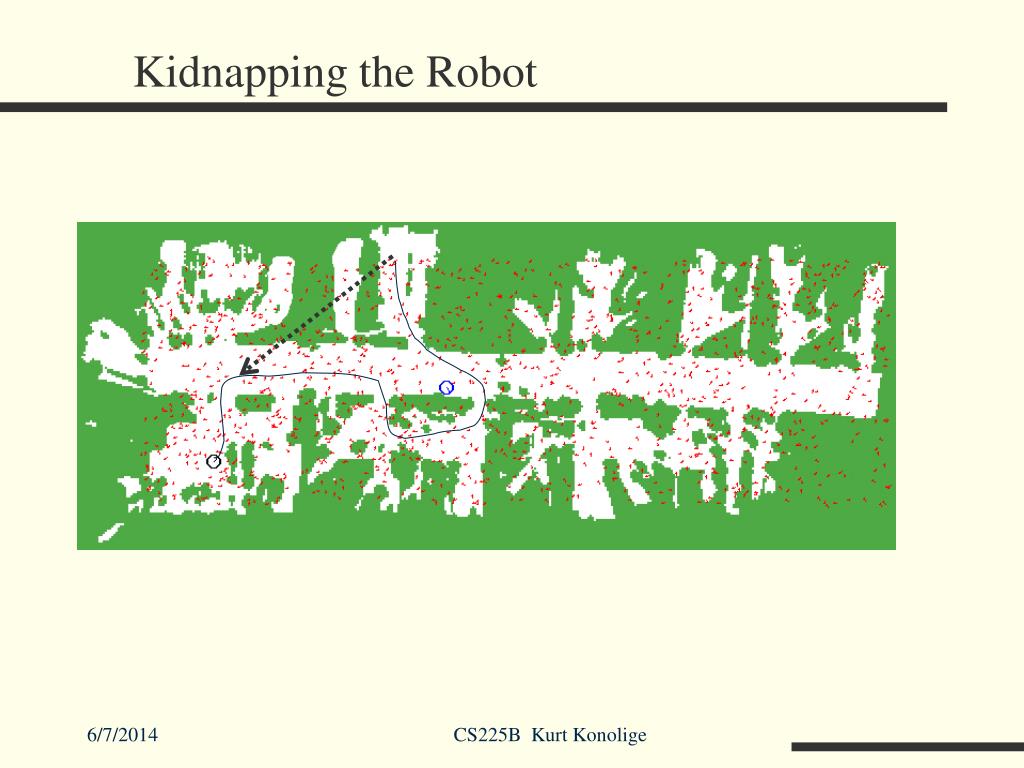

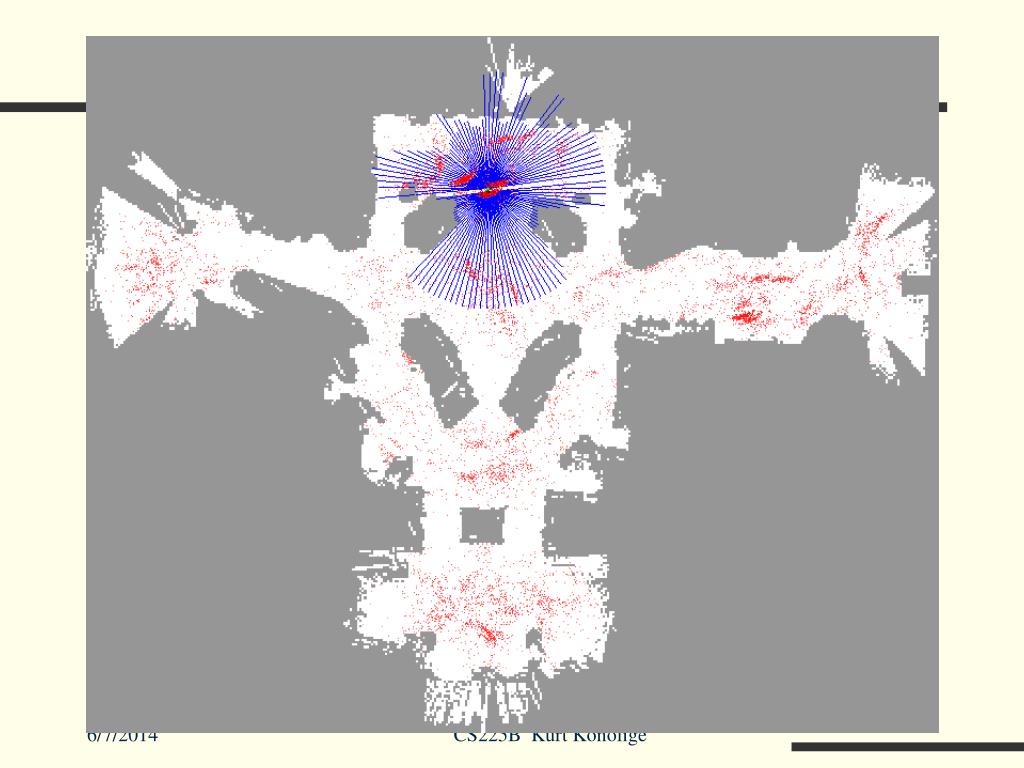

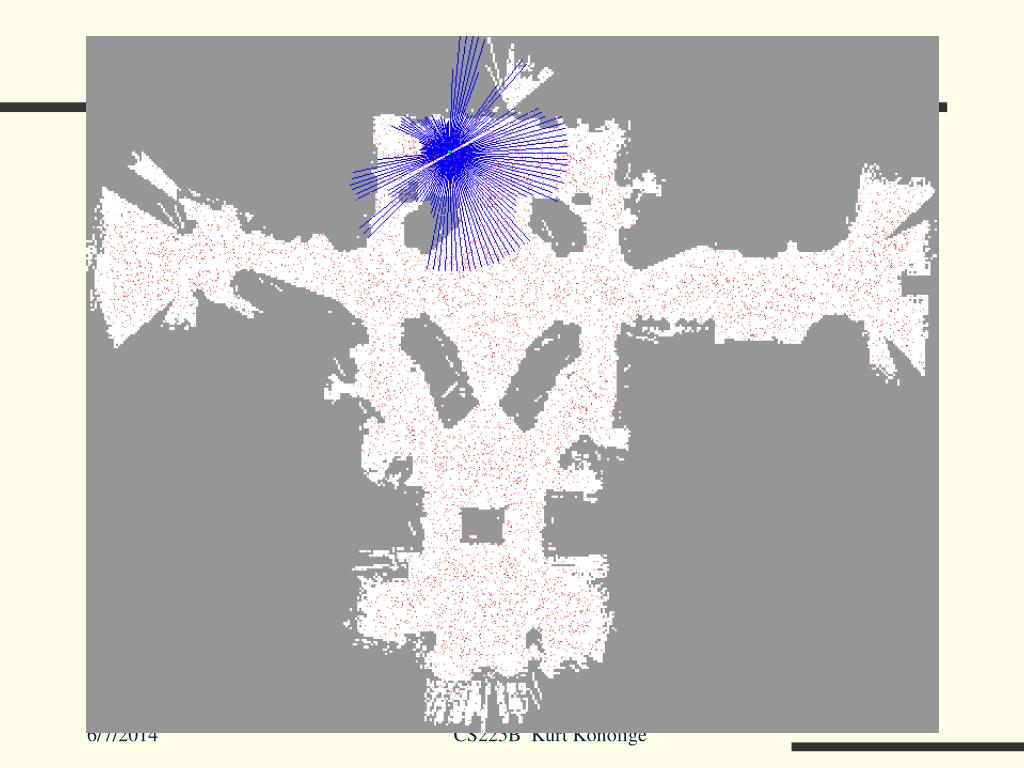

Kidnapping the Robot CS225B Kurt Konolige
Adaptive Monte Carlo Localization • Algorithm Augmented_MCL(Xt-1, ut, zt): • static wslow, wfast • forGenerate new samples • Insert into temporary set • endfor • forResample • with probability max{0, 1– wfast / wslow} do • Insert random pose • else • draw i with probability • Insert sample • endwith • endfor • return Xt CS225B Kurt Konolige
