  1. NEWMAR 115 – 12 – 20AUFull-Wave Rectifier with Choke-Input Filter

  2. Choke-Input Filter

  3. DC Operation + + Vdc V’dc - - V’dc = Vdc(Rinductor) / (Rinductor + Rload)

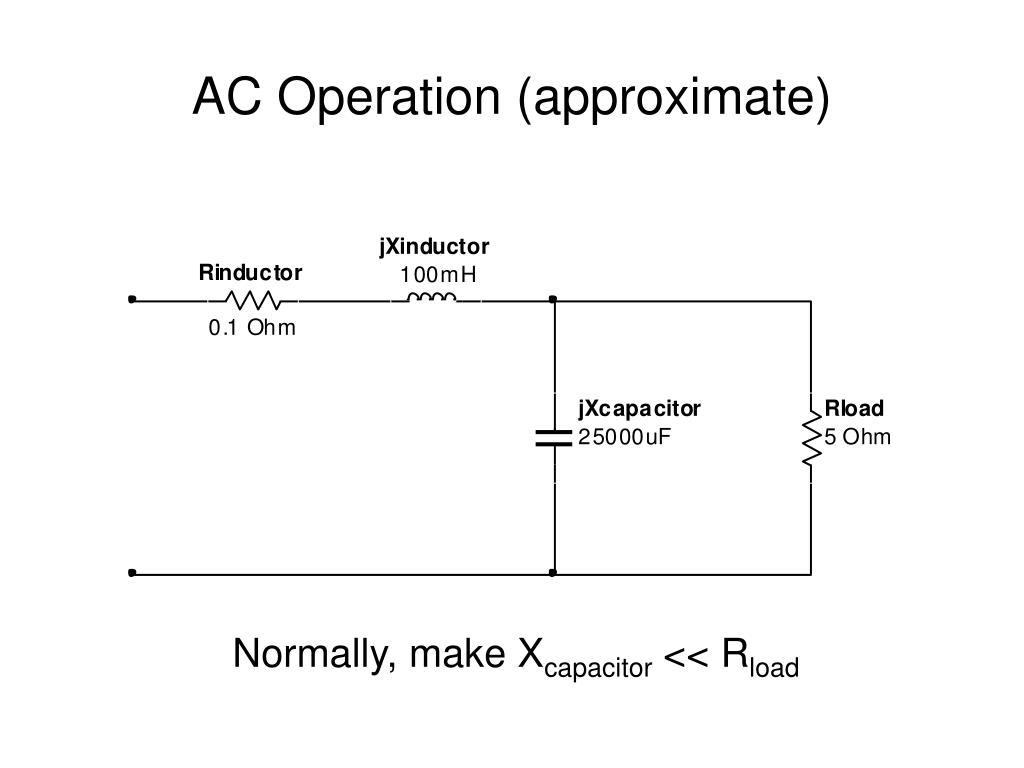

  4. AC Operation (approximate) Normally, make Xcapacitor << Rload

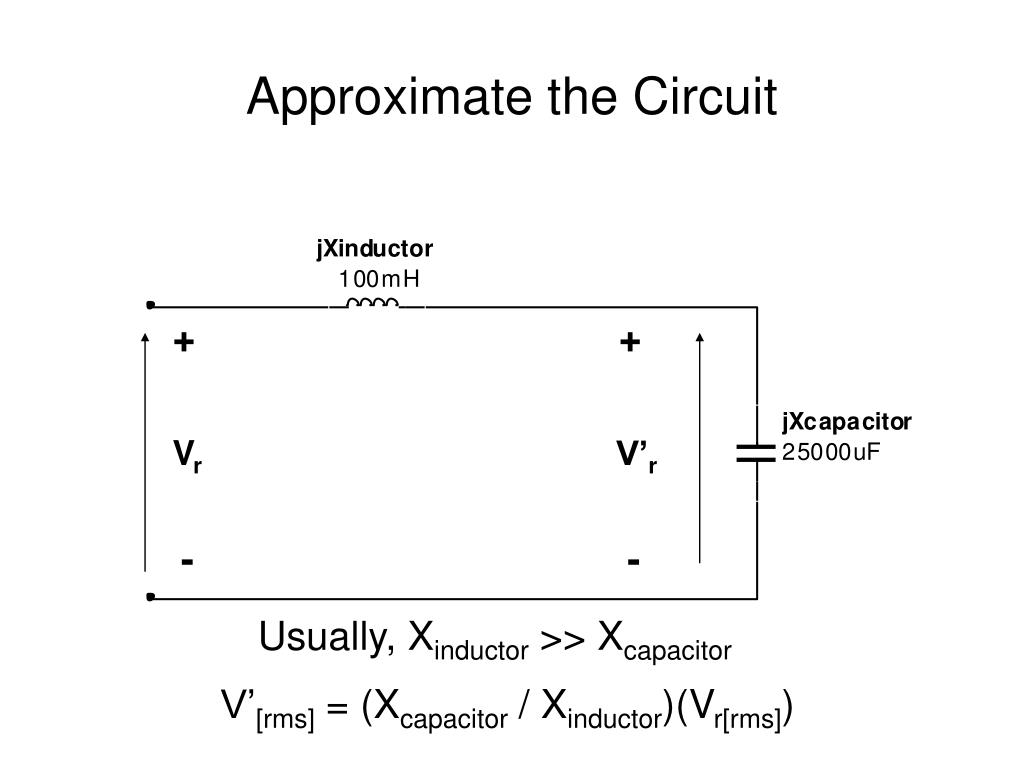

  5. Approximate the Circuit + + Vr V’r - - Usually, Xinductor >> Xcapacitor V’[rms] = (Xcapacitor / Xinductor)(Vr[rms])

  6. Full-Wave Rectifier OutputOutput frequency = twice the line frequency Second Harmonic (first ac component)

  7. 2π(120)

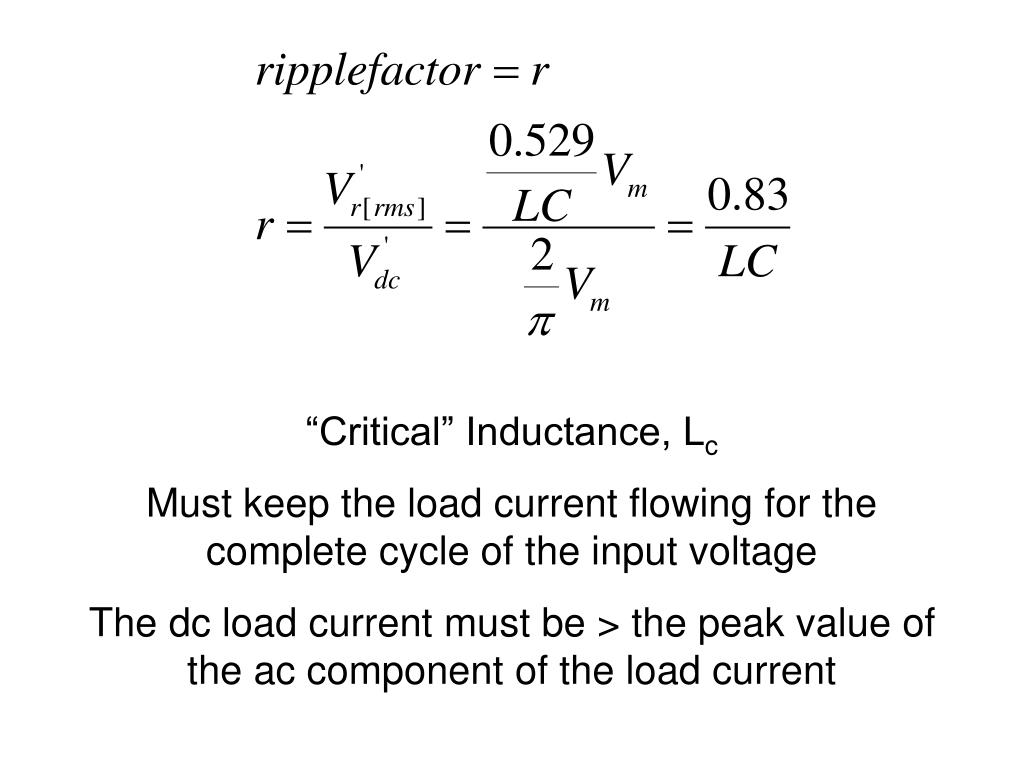

  8. “Critical” Inductance, Lc Must keep the load current flowing for the complete cycle of the input voltage The dc load current must be > the peak value of the ac component of the load current

  9. Minimum Inductance Lc

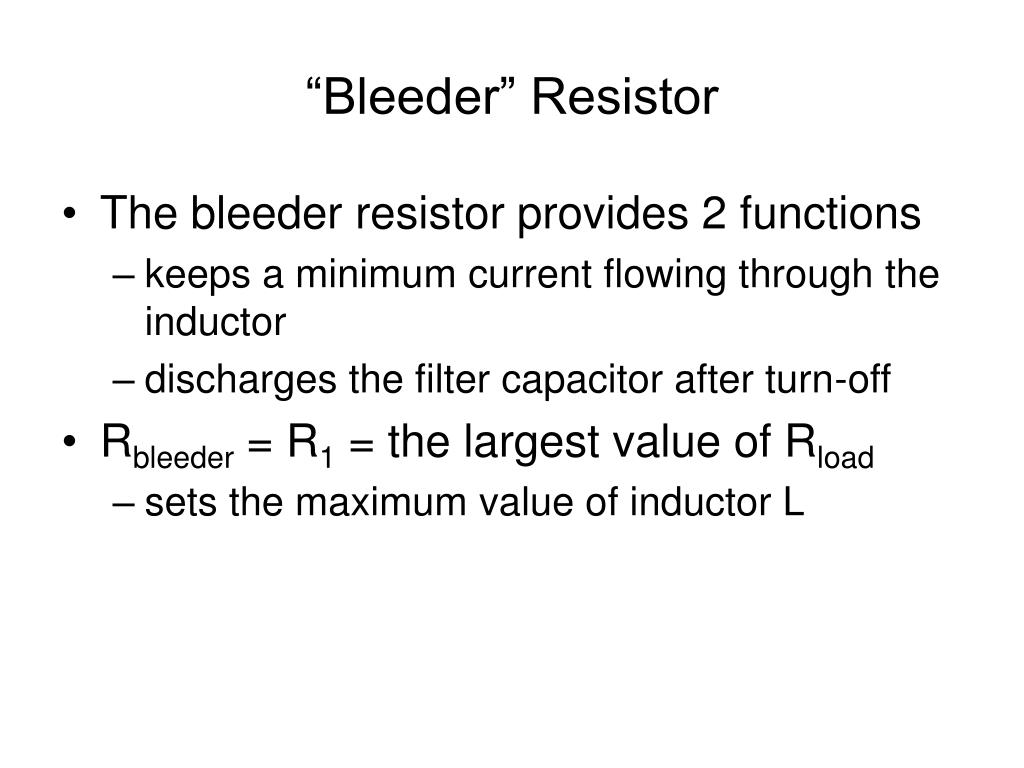

  10. “Bleeder” Resistor • The bleeder resistor provides 2 functions • keeps a minimum current flowing through the inductor • discharges the filter capacitor after turn-off • Rbleeder = R1 = the largest value of Rload • sets the maximum value of inductor L

  11. Range of values for the Filter Choke • NEWMAR 115 – 12 – 20AU Power Supply • Lmax > R1/1000 = 5/1000 = 5mH  50mH • Lc >= R1/1000 = (12 V/20 A)/1000 = 0.6mH
