  1. The Design Process, RTL, Netlists, and Verilog Erik Seligman CS 510, Lecture 3, January 2009

  2. Goals of This Lecture • Review basics of VLSI design process • Review important RTL design concepts • Review (or learn) Verilog language • All these should be review • Verilog may be new • if you’ve used different RTL languages • But all concepts should be familiar

  3. RTL and Netlists in the Design Process

  4. Review: Design Process Architecture RTL Netlists Layout/Backend

  5. FV In The Design Process FPV Architecture CDC, TOV RTL Netlists FEV Layout/Backend

  6. Who Does Formal Verification? • General DEs • FEV for RTL-netlist closure • Often run high-level flows, little understanding • Other areas optional • FPV, CDC, TOV mostly left to specialists • FV Specialists • Run most forms of FV • But tools / methods have improved greatly • My contention: many DEs could gain from use!

  7. Focus of This Class • RTL (Register Transfer Level) is most mature area for FV • FEV: Formal Equivalence • RTL-netlist, or RTL-RTL • FPV: Formal Property Verification • CDC, TOV most useful at RTL level • Netlists (schematics) • FEV Critical: must be equivalent to RTL • Also netlist-netlist FEV for late changes useful • CDC, TOV also sometimes done on netlists

  8. RTL Design In Verilog

  9. What Is Verilog? • Hardware definition language • Similar abstraction level to VHDL • Multiple iterations • Verilog 95: First standard version • Verilog 2001: More features, very popular in modern designs • SystemVerilog: Leading edge, will be unified with Verilog standard in 2009 • IEEE p1800 committee

  10. Verilog Basics • Case-sensitive • Event-based semantics • Many events may occur at each time step • Contains static and procedural code • Procedural = software-like: execute in order within procedure • No order among procedures or static code • Nonblocking and blocking assignments • Blocking = immediate • Nonblocking = hold until end of time step

  11. Common Operators • Arithmetic: *,/,+,- • Equality (comparison): ==, != • Bitwise AND,OR,NOT: &, |, ~ • Don’t confuse with logical &&, || • Unary &,| can be applied to reduce a vector: &foo[2:0] = foo[2] & foo[1] & foo[0] • Concatenation: {} • foo[2:0] = {bar[1],bar[0],1’b0};

  12. Data types • Most commonly used: wire, reg • wire = combinational value • reg = more general, combo or state • But NOT automatically a latch or flop: depends on usage • 2-D Vector declaration a little odd • 1-D, packed: wire [3:0] foo; • 1-D, unpacked: wire foo[3:0]; // DON’T USE • 2-D: wire [3:0] foo [1:0];

  13. Compiler Macros • Preprocessed, similar to #define in C++ • Exact text substituted at preprocess time • Thus hidden in many tools • Recommend parameter instead of `define for consts • Include ‘;’ only if defining full statement! `define MYCONST 1 `define THIS_IS_BAD 1; parameter MYCONST2 = 1; `define MYAND(x,y) (x & y) … assign foo = `MYCONST & sig; // OK assign bar = `THIS_IS_BAD & sig; // error! assign baz = MYCONST2 & sig; // OK assign xyz = `MYAND(sig1,sig2) & sig; // OK

  14. Synthesizable Verilog • “Synthesizable” subset of verilog • Accepted by synthesis & FV tools • Some fancy features disallowed • Example: time delays (#n) • This class will focus on synthesizable verilog • Required by most FV tools

  15. Basic Verilog example module mymod (i1, clk, o1); input wire i1; input wire clk; output reg o1; always @(posedge clk) begin o1 <= i1; end endmodule;

  16. Basic Verilog example module mymod (i1, clk, o1); input wire i1; input wire clk; output reg o1; always @(posedge clk) begin o1 <= i1; end endmodule;

  17. Basic Verilog example module mymod (i1, clk, o1); input wire i1; input wire clk; output reg o1; always @(posedge clk) begin o1 <= i1; end endmodule;

  18. Basic Verilog example module mymod (i1, clk, o1); input wire i1; input wire clk; output reg o1; always @(posedge clk) begin o1 <= i1; end endmodule;

  19. Basic Verilog example module mymod (i1, clk, o1); input wire i1; input wire clk; output reg o1; always @(posedge clk) begin o1 <= i1; end endmodule;

  20. More RTL Examples

  21. Latch example module mymod (i1, clk, o1); input wire i1; input wire clk; output reg o1; always @(clk) begin if (clk) o1 <= i1; end endmodule;

  22. Mux example module mymod (i1, i2, sel, clk, o1); input wire i1, i2, sel; input wire clk; output reg o1; wire mux_out; assign mux_out = (sel) ? i1 : i2; always @(posedge clk) begin o1 <= mux_out; end endmodule;

  23. State Machine example … parameter STATE0=0, STATE1=1, STATE2=2, STATE_ERR=3; reg [1:0] sm; reg [1:0] sm_next; always @(sm or i1) begin case (sm) STATE0: sm_next = STATE1; STATE1: sm_next = i1 ? STATE1: STATE2; STATE2: sm_next = STATE0; default: sm_next = STATE_ERR; endcase end always @(posedge clk) begin sm <= sm_next; end …

  24. Looping and Conditionals … wire [3:0] enable; wire [3:0] newval; reg [3:0] foo; always @(posedge clk) begin for (int i=0; i<3; i++) begin if (enable[i]) begin foo[i] <= newval[i]; end end end …

  25. Race Condition Example … reg foo; reg foo_next; always @(i1) begin foo_next = i1; end always @(i1) begin foo_next = ~i1; end always @(posedge clk) begin foo <= foo_next; end …

  26. Not a Race Condition … reg foo; reg foo_next; always @(i1) begin foo_next = i1; foo_next = ~i1; end always @(posedge clk) begin foo <= foo_next; end …

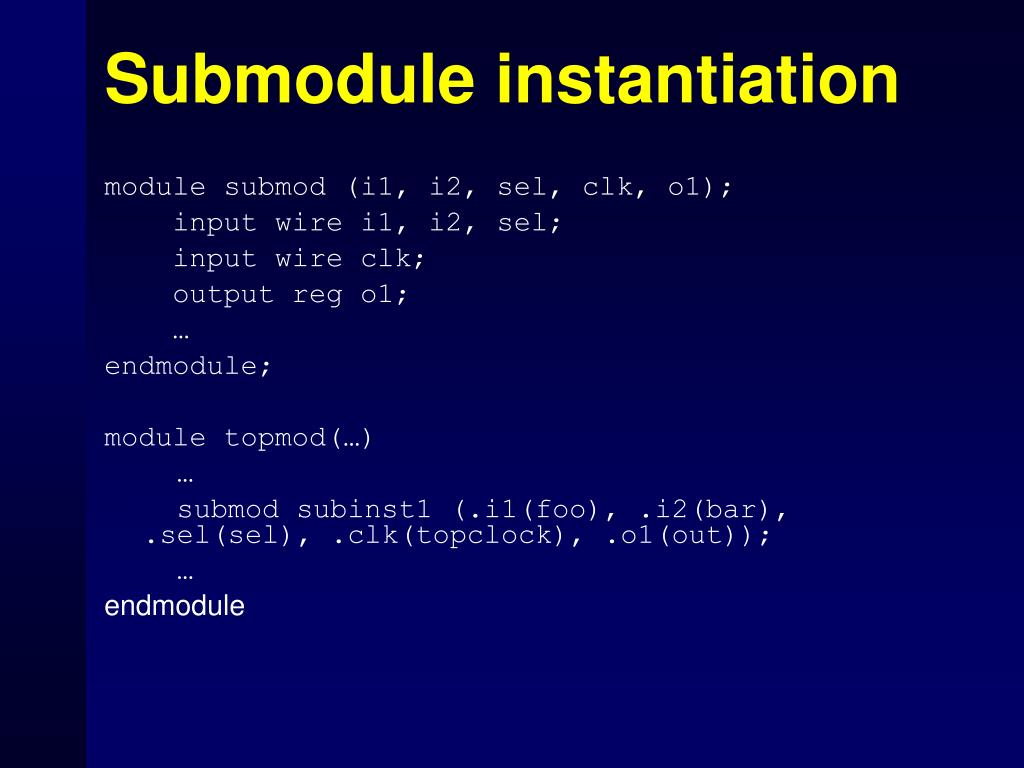

  27. Submodule instantiation module submod (i1, i2, sel, clk, o1); input wire i1, i2, sel; input wire clk; output reg o1; … endmodule; module topmod(…) … submod subinst1 (.i1(foo), .i2(bar), .sel(sel), .clk(topclock), .o1(out)); … endmodule

  28. Generate Blocks module submod (i1, i2, sel, clk, o1); input wire i1, i2, sel; input wire clk; output reg o1; … endmodule; module topmod(…) … genvar i; generate for (i=0; i<4; i++) begin submod subinst1 (.i1(foo[i]), .i2(bar), .sel(sel), .clk(topclock), .o1(out[i])); end endgenerate … endmodule

  29. Verilog Netlists

  30. What is a netlist? • Lower-level representation than RTL • Maybe translated from drawn schematics • But often no schematic if synthesized • Represents transistor-level logic • If synthesized, transistors wrapped in library cells • Library cells contain true transistor logic • Raw transistors may appear for custom schematic design • Often Spice rather than Verilog used for transistor netlist

  31. Synthesis Example: RTL always @(posedge clk) begin for (int i=0; i<3; i++) begin if (enable[i]) begin foo[i] <= newval[i]; end end end

  32. Synthesis Example: Verilog Netlist y00EnFlop(foo_0,newval_0,enable_0, clk); y00EnFlop(foo_1,newval_1,enable_1, clk); y00EnFlop(foo_2,newval_2,enable_2, clk); y00EnFlop(foo_3,newval_3,enable_3, clk);

  33. Transistor-Level Design Review

  34. Basic CMOS Inverter in out in • P-stack passes 1s • N-stack passes 0s

  35. CMOS NAND gate in1 in2 out in1 in2

  36. CMOS Complex Gate Example: ~(in1&in2 | in3) in1 in2 in3 out in1 in3 in2

  37. State Elements: Latch • Latch = level-sensitive • How do we make an edge-sensitive flop?

  38. Domino Logic: NAND example clk out in1 in2

  39. Some References • http://www.verilog.net • http://en.wikipedia.org/wiki/Verilog • http://www.asic-world.com/verilog/veritut.html • http://en.wikipedia.org/wiki/CMOS • http://assets.cambridge.org/97805218/73345/excerpt/9780521873345_excerpt.pdf
