Titrations

Titrations. Titrations are used to measure exact amounts of reactants in a reaction and use the information to find unknown concentrations. Titration Equipment. Electronic Balance -used to accurately weigh solute. Volumetric Flask - used to make exact volumes of solution.

saber
Télécharger la présentation

Titrations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

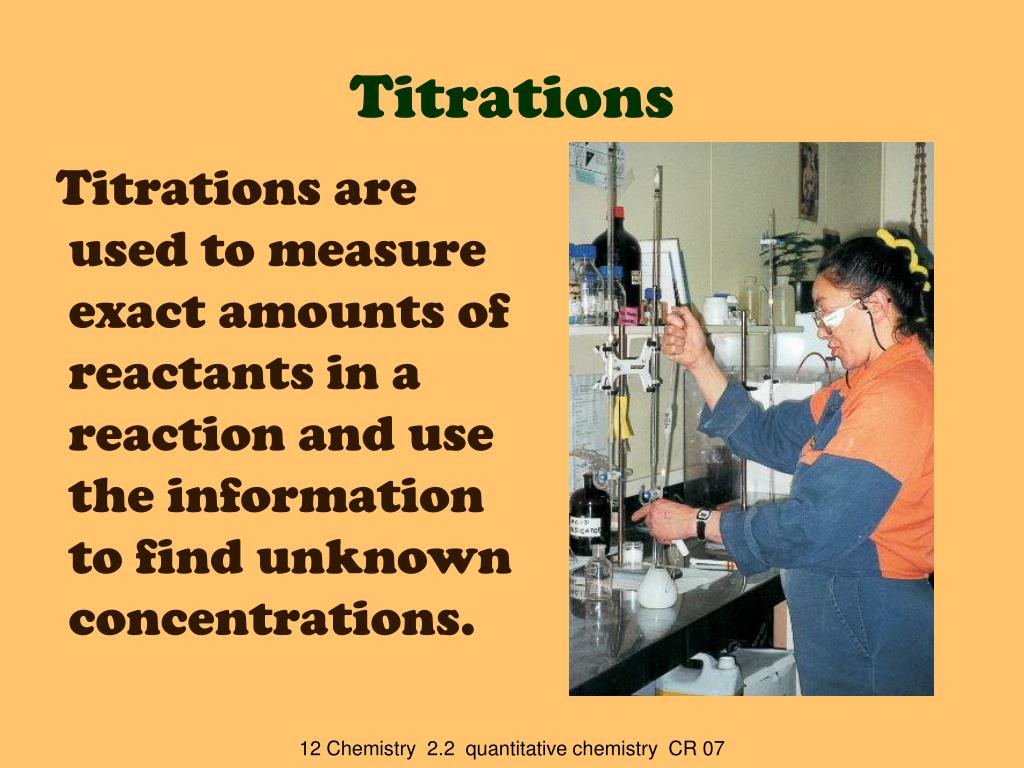

  1. Titrations • Titrations are used to measure exact amounts of reactants in a reaction and use the information to find unknown concentrations. 12 Chemistry 2.2 quantitative chemistry CR 07

  2. Titration Equipment • Electronic Balance • -used to • accurately • weigh • solute 12 Chemistry 2.2 quantitative chemistry CR 07

  3. Volumetric Flask • - used to make exact volumes of solution 12 Chemistry 2.2 quantitative chemistry CR 07

  4. Pipette • -used to measure and transfer a known volume of solution 12 Chemistry 2.2 quantitative chemistry CR 07

  5. Conical flask • - used to mix solutions • (reaction vessel) 12 Chemistry 2.2 quantitative chemistry CR 07

  6. Burette • - used to exactly measure the volume of solution that has reacted –this is known as the titre 12 Chemistry 2.2 quantitative chemistry CR 07

  7. From known to unknown • In a titration a knownvolume • of solution with a known • concentration is used to react • with a solution of unknown • concentration. • Using c = n/v the unknown • concentration can be calculated. 12 Chemistry 2.2 quantitative chemistry CR 07

  8. The known – standard solution • Making a solution of known • concentration is done by • Measuring an exact mass of • solute and mixing it with an • exact volume of water in a • volumetric flask. 12 Chemistry 2.2 quantitative chemistry CR 07

  9. Making a Standard Solution • Weigh solute exactly • Mix in beaker with distilled water • Pour into volumetric flask 12 Chemistry 2.2 quantitative chemistry CR 07

  10. Rinse beaker into volumetric flask with distilled water • 5. Mix by swirling volumetric flask 12 Chemistry 2.2 quantitative chemistry CR 07

  11. 6. Make the volume up to the exact amount by adding water drop by drop • The volumetric flask must be • on a flat surface and at eye level. • AND the bottom of the meniscus • must sit on the line. 12 Chemistry 2.2 quantitative chemistry CR 07

  12. Standard solution • If the solution level goes over • the line on the neck of the • volumetric flask then the • solution is no longer a standard • solution and the whole process • must start again. 12 Chemistry 2.2 quantitative chemistry CR 07

  13. Transferring • A pipette is used to transfer • the set volume of the solution • to the reaction vessel • (conical flask). • *eye level 12 Chemistry 2.2 quantitative chemistry CR 07

  14. Emptying the pipette • Touch end of pipette on side of vessel • There should be some liquid left in the bottom 12 Chemistry 2.2 quantitative chemistry CR 07

  15. Aliquots • The measured amount of • solution that is transferred to the • conical flask is called an aliquot. • Indicator is added to the • aliquot so that end pointof the • reaction can be determined. 12 Chemistry 2.2 quantitative chemistry CR 07

  16. Burette • The burette is rinsed with the solution it will contain and then filled and read at eye level 12 Chemistry 2.2 quantitative chemistry CR 07

  17. The Reaction • The reaction occurs in the conical flask, which is swirled gently under the tap. After a ‘rough’ titration has been done solution is added drop-wise when near the end point. 12 Chemistry 2.2 quantitative chemistry CR 07

  18. Titrations • Known usually goes into burette and unknown into conical flask 12 Chemistry 2.2 quantitative chemistry CR 07
