Ch.9 Sinusoids and Phasors. 1. Introduction. AC is more efficient and economical to transmit over long distance Sinusoid is a signal that has the form of the sine or cosine function Sinusoidal current = alternating current (ac) Nature is sinusoidal Easy to generate and transmit

Télécharger la présentation
## Ch.9 Sinusoids and Phasors

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

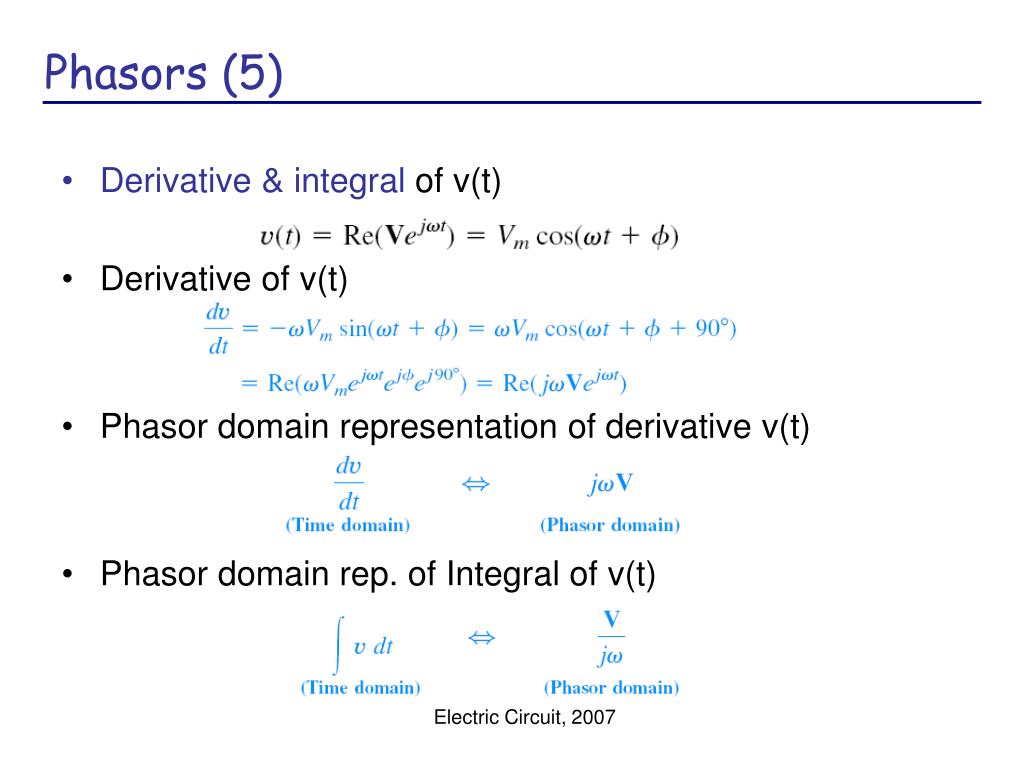

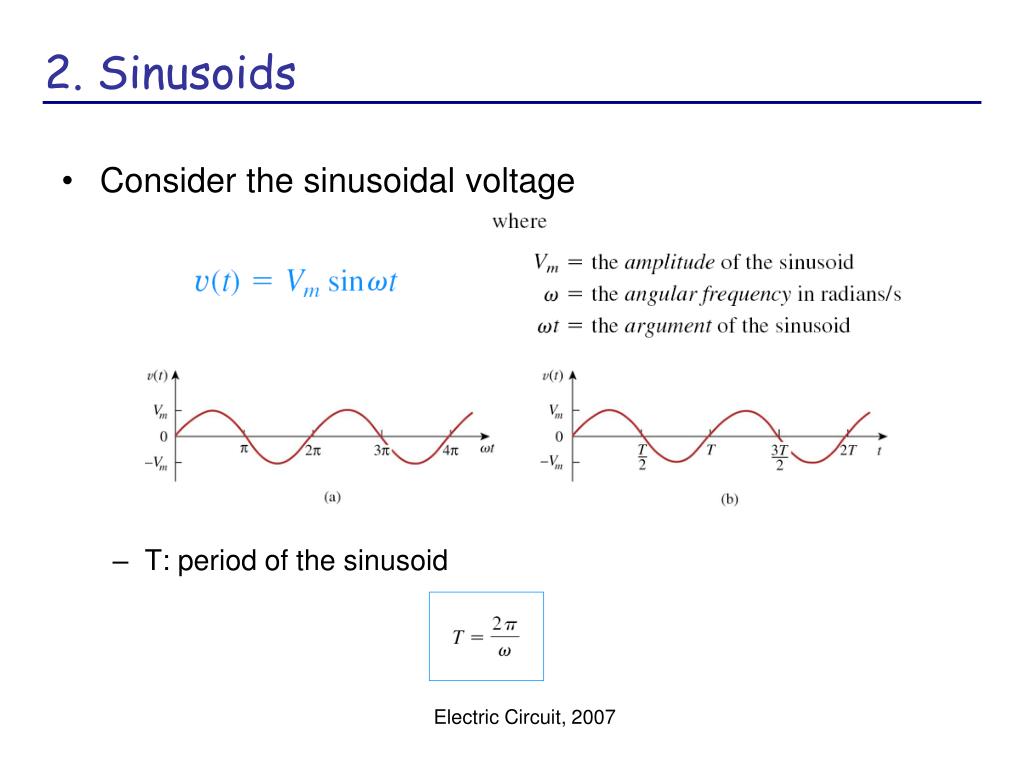

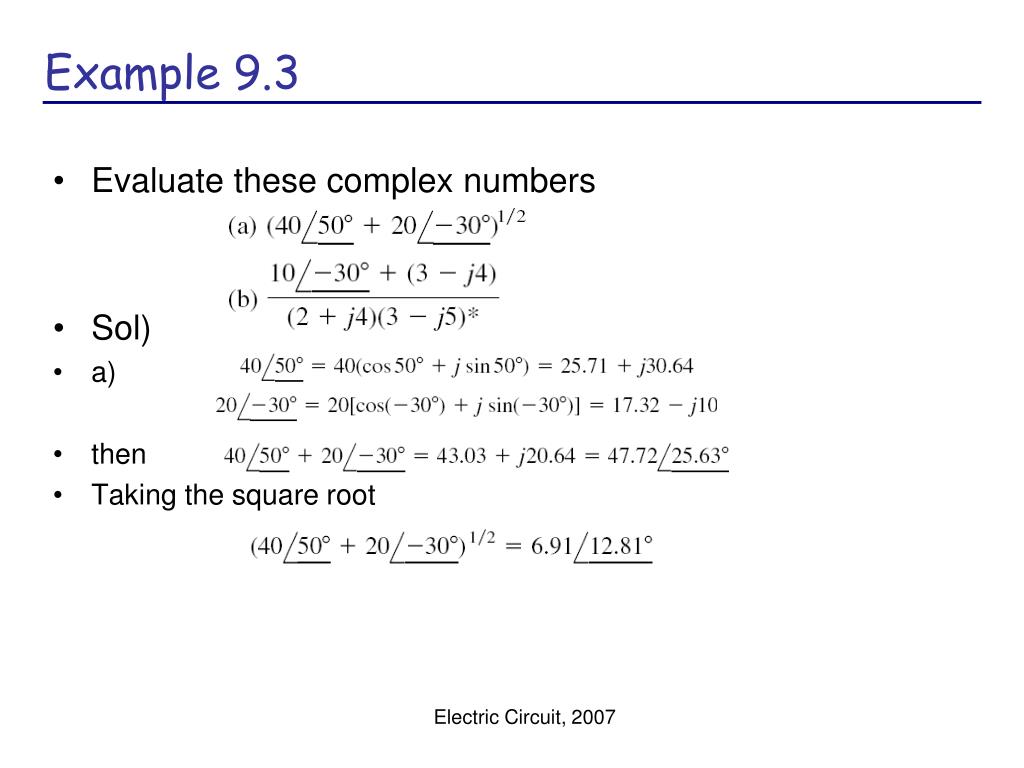

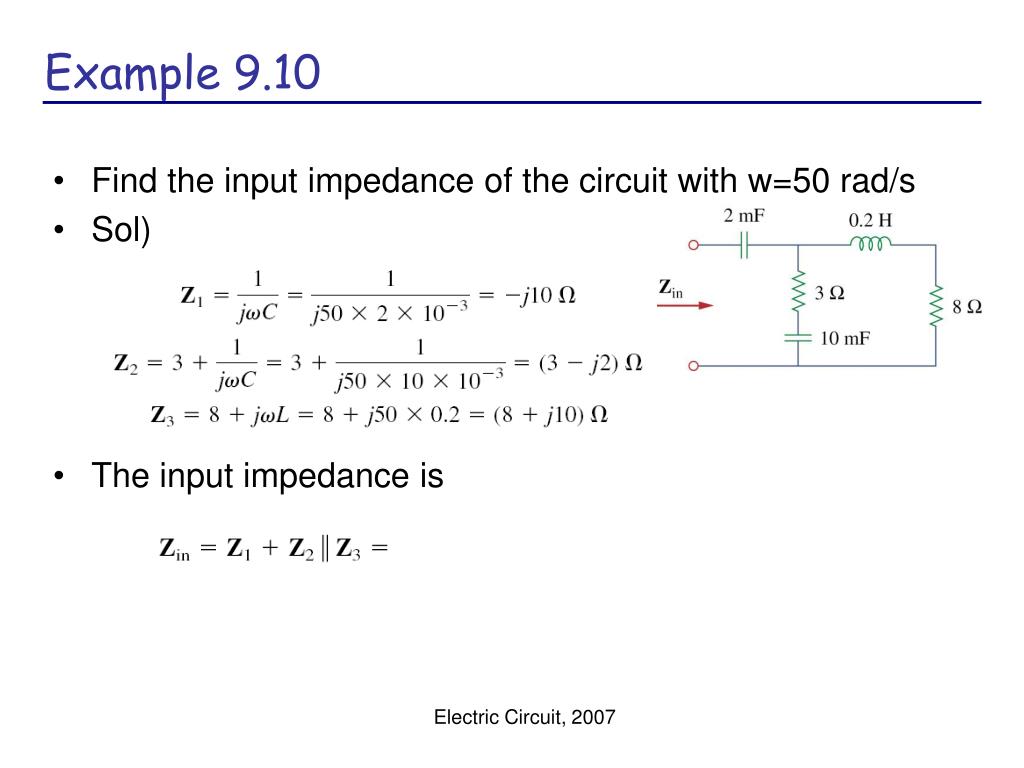

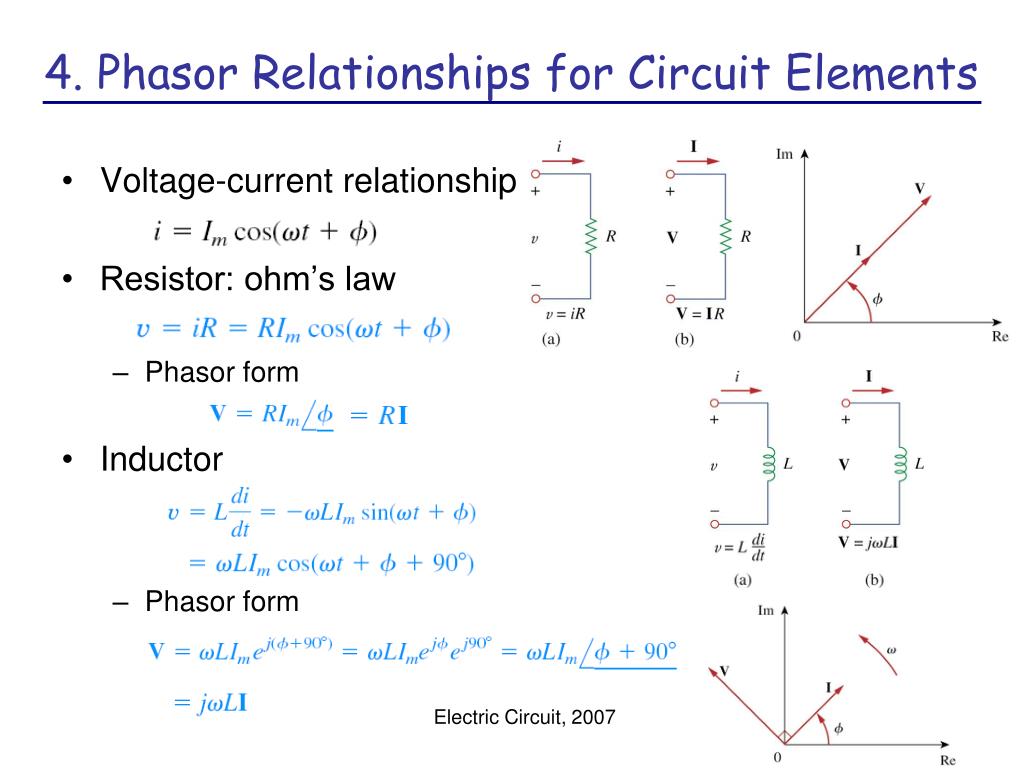

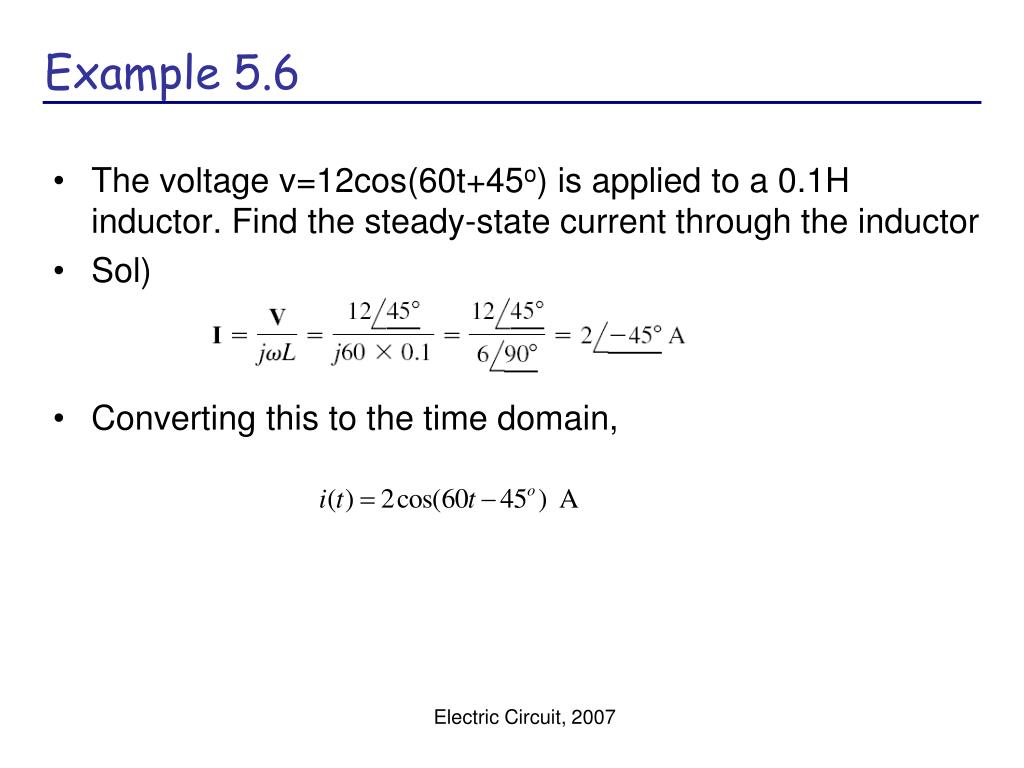

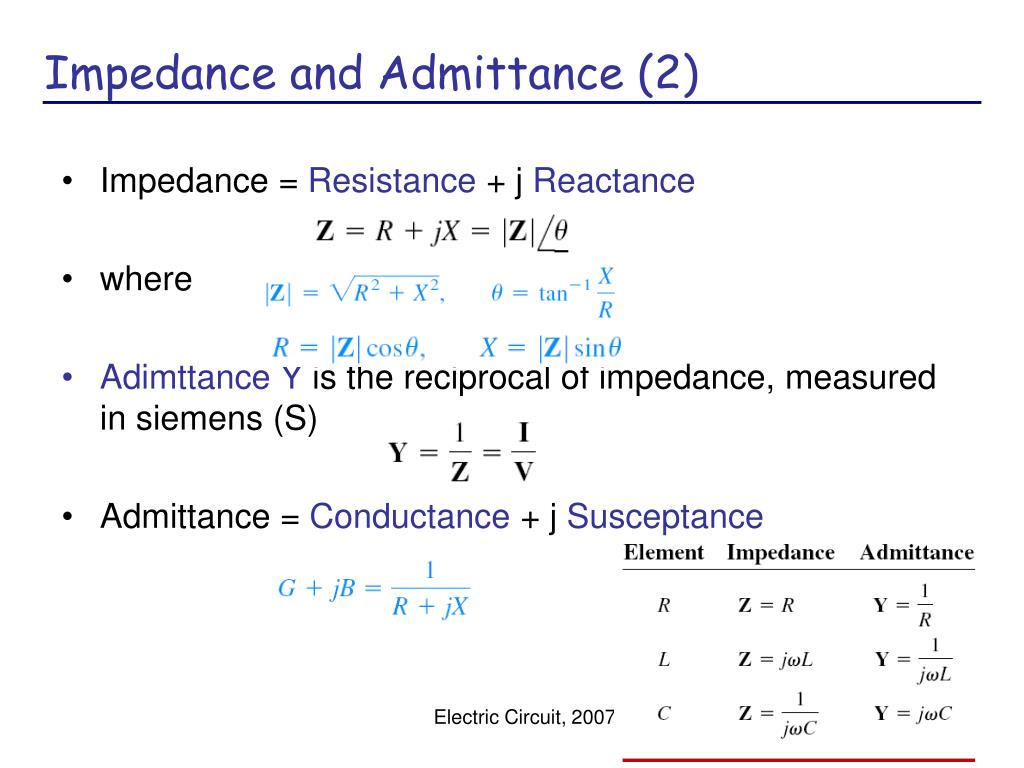

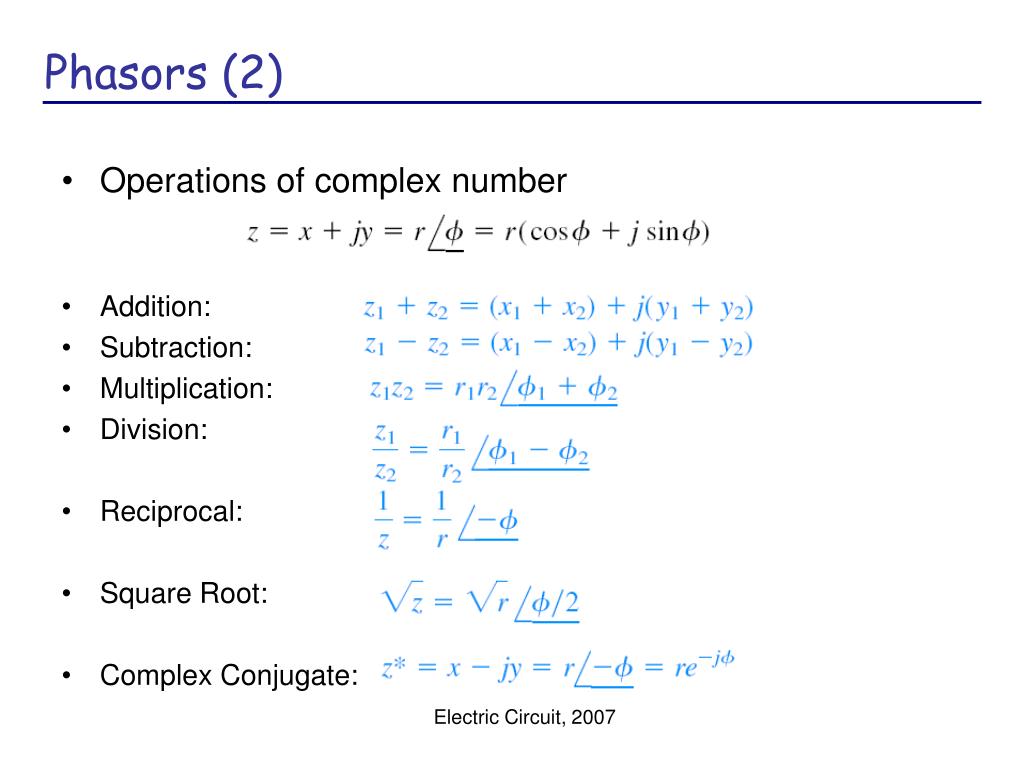

**1. Introduction**• AC is more efficient and economical to transmit over long distance • Sinusoid is a signal that has the form of the sine or cosine function • Sinusoidal current = alternating current (ac) • Nature is sinusoidal • Easy to generate and transmit • Any practical periodic signal can be represented by a sum of sinusoids • Easy to handle mathematically Electric Circuit, 2007**2. Sinusoids**• Consider the sinusoidal voltage • T: period of the sinusoid Electric Circuit, 2007**Sinusoids (2)**• Periodic function • Satisfies f(t) = f(t+nT), for all t and for all integers n • Hence • Cyclic frequency f of the sinusoid Electric Circuit, 2007**Sinusoids (3)**• Let us examine the two sinusoids • Trigonometric identities Electric Circuit, 2007**Sinusoids (4)**• Graphical approach • Used to add two sinusoids of the same frequency where Electric Circuit, 2007**Example 9.1**• Find the amplitude, phase, period, and frequency of the sinusoid Electric Circuit, 2007**Example 9.2**• Sol) Electric Circuit, 2007**3. Phasors**• Phasor is a complex number that represents the amplitude and phase of a sinusoid • Provides a simple means of analyzing linear circuits excited by sinusoidal sources • Complex number with Electric Circuit, 2007**Phasors (2)**• Operations of complex number • Addition: • Subtraction: • Multiplication: • Division: • Reciprocal: • Square Root: • Complex Conjugate: Electric Circuit, 2007**Phasors (3)**• Euler’s identity with • Given a sinusoid • Thus, where • Plot of the Electric Circuit, 2007**Phasors (4)**• Phasor representation of the sinusoid v(t) Electric Circuit, 2007**Phasors (5)**• Derivative & integral of v(t) • Derivative of v(t) • Phasor domain representation of derivative v(t) • Phasor domain rep. of Integral of v(t) Electric Circuit, 2007**Phasors (6)**• Summing sinusoids of the same frequency • Differences between v(t) and V • v(t) is time domain representation, while V is phasor domain rep. • v(t) is time dependent, while V is not • v(t) is always real with no complex term, while V is generally complex • Phasor analysis • Applies only when frequency is constant • Applies in manipulating two or more sinusoidal signals only if they are of the same frequency Electric Circuit, 2007**Example 9.3**• Evaluate these complex numbers • Sol) • a) • then • Taking the square root Electric Circuit, 2007**Example**• Example 9.4 • Transform these sinusoids to phasors • Example 9.5 • Find the sinusoids represented by these phasors Electric Circuit, 2007**Example**• Example 9.6 • Example 9.7 • Using the phasor approach, determine the current i(t) Electric Circuit, 2007**4. Phasor Relationships for Circuit Elements**• Voltage-current relationship • Resistor: ohm’s law • Phasor form • Inductor • Phasor form Electric Circuit, 2007**Phasor Relationships for Circuit Elements(2)**• Inductor • The current lags the voltage by 90o. • Capacitor: • Phasor form • The current leads the voltage by 90o. Electric Circuit, 2007**Example 5.6**• The voltage v=12cos(60t+45o) is applied to a 0.1H inductor. Find the steady-state current through the inductor • Sol) • Converting this to the time domain, Electric Circuit, 2007**5. Impedance and Admittance**• Voltage-current relations for three passive elements • Ohm’s law in phasor form • Imdedance Z of a circuit is the ratio of the phasor voltage to the phasor current I, measured in ohms • When , • When , Electric Circuit, 2007**Impedance and Admittance (2)**• Impedance = Resistance + j Reactance • where • Adimttance Y is the reciprocal of impedance, measured in siemens (S) • Admittance = Conductance + j Susceptance Electric Circuit, 2007**Example 9.9**• Find v(t) and i(t) in the circuit • Sol) • From the voltage source • The impedance • Hence the current • The voltage across the capacitor Electric Circuit, 2007**6. Kirchhoff’s law in the frequency domain**• For KVL, • Then, • KVL holds for phasors • KCL holds for phasors • Time domain • Phasor domain • KVL & KCL holds in frequency domain Electric Circuit, 2007**7. Impedance Combinations**• Consider the N series-connected impedances • Voltage-division relationship Electric Circuit, 2007**Impedance Combinations (2)**• Consider the N parallel-connected impedances • Current-division relationship Electric Circuit, 2007**Example 9.10**• Find the input impedance of the circuit with w=50 rad/s • Sol) • The input impedance is Electric Circuit, 2007**Example 9.11**• Determine vo(t) in the circuit • Sol) • Time domain frequency domain • Voltage-division principle Electric Circuit, 2007
