Presentation Transcript

  1. W E L C O M E

  2. Griffith University School Of Computing and Information Technology CIT 505 – Master of Information and Communication Technology presented by Ovidiu S. Noran MIEAust PEng Mapping of ISO12207 and ISO15288 on ISO15704 http://www.cit.gu.edu.au/~noran

  3. ’Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards Used in the Mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  4. ’Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards Used in the Mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  5. ’Introduction’ The Standards. • ISO 15288 – Systems Life Cycle Processes. • ISO 12207 – Software Life Cycle Processes. • ISO 15704 – Requirements for Generalised Enterprise Reference • Architectures and Methodologies. Tasks. • Identify the problems, propose solutions. • Review the life cycle architectures and standards under consideration. • Provide the solutions and justify them. • Draw some conclusions.

  6. ’The Problems and Solutions’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards Used in the Mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  7. Process 1 Activity 1 Activity 2 Process 2 Activity 1 Activity 2 ‘To-Do list’ ’The Problems and Solutions’ Problems. • Enterprise, software and systems engineering need a common terminology. Aims: Avoid misunderstandings. Provide a common base for discussion. Promote cooperation, compatibility and concept / other resources sharing. • System and software life cycle engineering domains are lacking a suitable architecture. The current Standards resemble process repositories. Solutions. • Provide unique, concise explanations for the common terms. • Use a generalised ref. life cycle architecture and methodology: • holds models and modelling methods from all domains • allows to identify missing modules

  8. ’Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards Used in the Mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  9. Dedicated phase 2 4 O R I 1 (MF) F Req. Des. Impl. European CIM Architecture Commission of the European Community Research Program 3 Simulation Execution ‘Life Cycle Architectures’ CIMOSA : CIM Open System Architecture. Developed by the AMICE Consortium (a series of ESPRIT projects).

  10. Human Role ‘ility’ lines ‘Life Cycle Architectures’ PERA : The Purdue Enterprise Reference Architecture. • Developed at the Purdue Laboratory of Applied Control, University of Purdue by a team led by Prof. Williams, since 1989. • It is a complete (Purdue) methodology. • Innovative: Models human aspects.

  11. ‘Life Cycle Architectures’ PERA : The Purdue Enterprise Reference Architecture.

  12. GRAI Conceptual Model ‘Life Cycle Architectures’ GRAI - GIM : GRAI Integrated Methodology. Origins: GRAI – Graphs with Results Activities Interrelated – Univ. of Bordeaux – France 1987 (automated manuf. systems modelling / analysis); Merise – IS design and analysis methodology – 1983.

  13. Integrated Manufacturing Planning and Control System (ESPRIT project) ‘Life Cycle Architectures’ GRAI - GIM : GRAI Integrated Methodology. GRAI – GIM provides a modelling methodology … … of which the latest representation is the IMPACS model.

  14. Content, Purpose, Implementation, Manifestation ‘Life Cycle Architectures’ GERA : The Generalised Enterprise Reference Architecture. • Developed by the IFIP / IFAC Task Force (1994 -). • Generalisation of the other architectures. • Models human aspects, enterprise life cycle and life history.

  15. (Life History) ‘Life Cycle Architectures’ GERA : The Generalised Enterprise Reference Architecture. • The life cycle / life history relation in GERA.

  16. ‘Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards Used in the Mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  17. Project management ‘Standards Used in the Mapping’ ISO 15288: System Life Cycle Processes. • Life cycle is partitioned into processes, which consist of activities. • Systems life cycle composed of a set of essential stages. • Tailoring is allowed for a particular system. • Stages = milestones -> associated temporal dimension.

  18. ‘Standards Used in the Mapping’ ISO 15288: System Life Cycle Processes. • The life cycle stages, objectives and decisions.

  19. ‘Standards Used in the Mapping’ ISO 12207: Software Life Cycle Processes. • Software life cycle composed of a set of primary, supporting and organisational processes. • Uses the concept of views for processes relationships. • Tailoring is allowed for a particular software system. • There is a proposed amendment which is heavily influenced by the systems life cycle ISO 15288.

  20. ISO 12207 Tailoring Example ‘Standards Used in the Mapping’ ISO 12207: Software Life Cycle Processes.

  21. ‘Standards Used in the Mapping’ ISO 15704: Requirements for Enterprise Reference Architectures. • Generally applicable (reference methodology, architecture, supporting toolset). • Must be a type 2 (life cycle) architecture. • Must offer a reference base containing methodologies and supporting technologies. • Specified requirements build (among others) on:  CIMOSA: modelling framework (F I R O views);  GRAI-GIM: mission fulfilment vs. mission control;  PERA: info vs. manufacturing, human role.

  22. ‘GERAM’ GERAM: Generalised Enterprise Reference Architecture and Methodology. • Introduced as an Annex of ISO15704 (a reference architecture example) • The life cycle / life history distinction. • Aimed at designing and maintaining enterprises for their entire life history. • Role of human, views, economic and project management aspects.

  23. The GERA view categories ‘GERA’ GERA: Generalised Enterprise Reference Architecture. • Views – used as filters, complementary, grouped in categories. • Not all views must be present… • … But all aspects have to be modelled in one view or another.

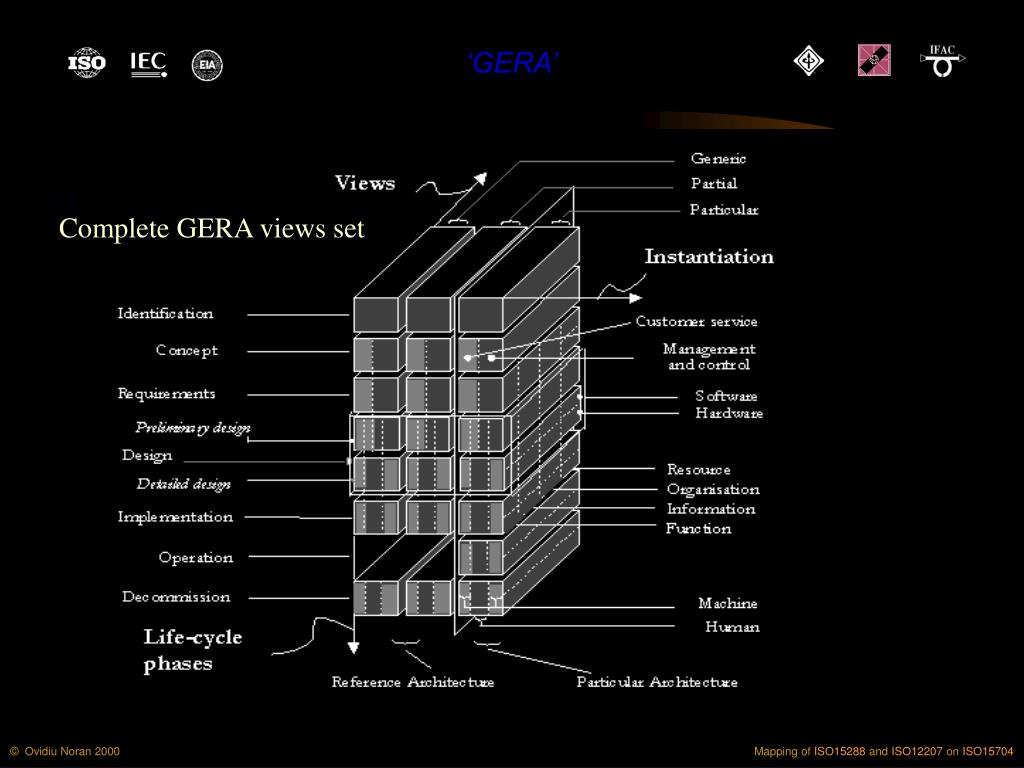

  24. Complete GERA views set ‘GERA’

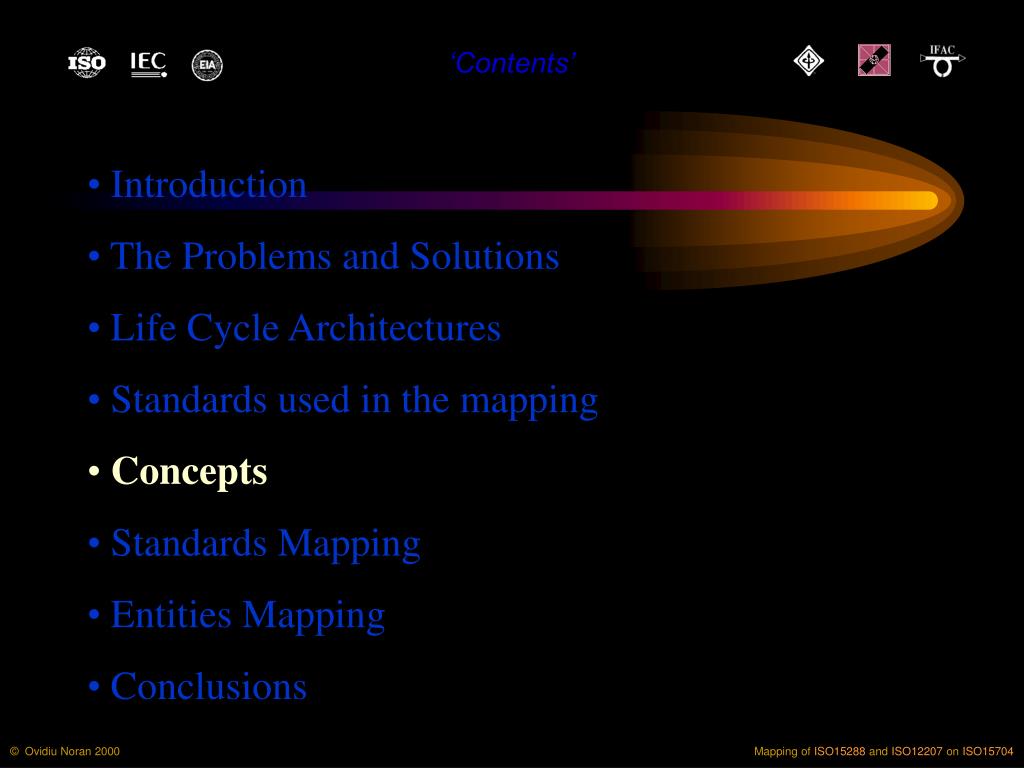

  25. ‘Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards used in the mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  26. ‘Concepts’ Concepts. 1. Milestone: used for life cycle stages implies a temporal dimension. Solution: use stage  temporal, process / functions within  non-temporal. 1. Milestone: used for life cycle stages implies a temporal dimension. Solution: use stage  temporal, process / functions within  non-temporal. 2. View: ISO15288: - used for system dynamics rather than architectural ISO12207: - used to group processes by purpose Solution: use the GERA view categories covering all aspects: Content (F I R O),Implementation, Purpose, Physical Manifestation. 2. View: ISO15288: - used for system dynamics rather than architectural ISO12207: - used to group processes by purpose Solution: use the GERA view categories covering all aspects: Content (F I R O),Implementation, Purpose, Physical Manifestation. 3. Model: ISO15288: enterprise, project, technical, etc (similar to views) ISO12207: none (or uses view concept instead) Solution: GERA unique model levels: e.g. metamodel, partial, particular.

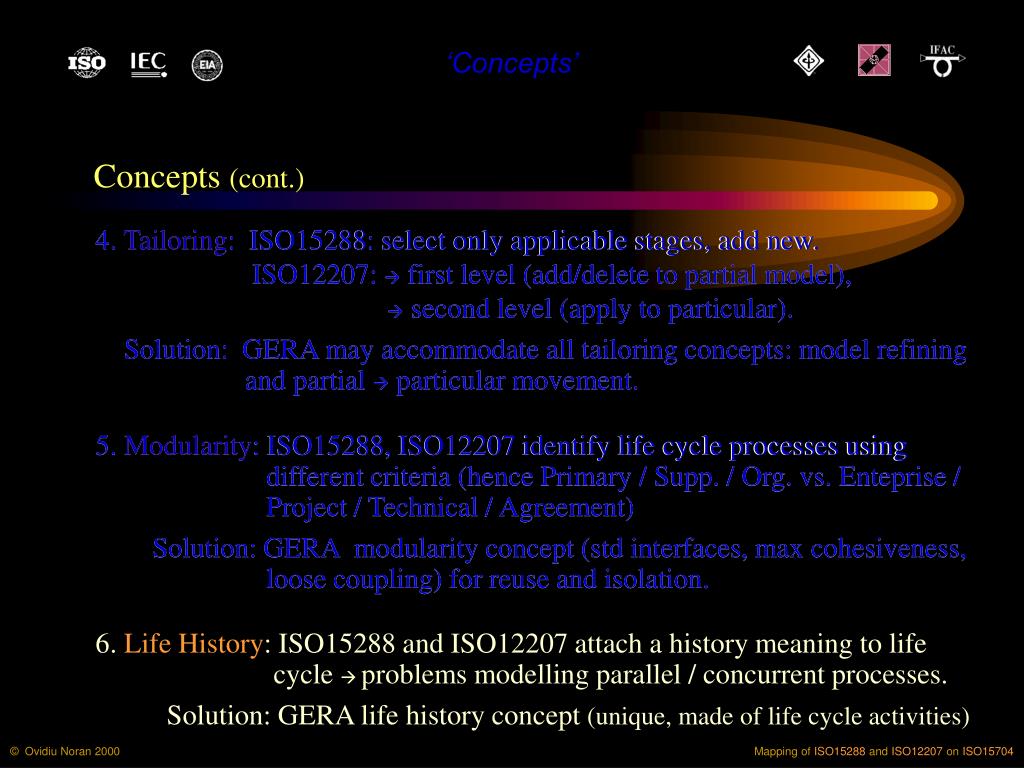

  27. ‘Concepts’ Concepts (cont.) 4. Tailoring: ISO15288: select only applicable stages, add new. ISO12207:  first level (add/delete to partial model),  second level (apply to particular). Solution: GERA may accommodate all tailoring concepts: model refining and partial  particular movement. 4. Tailoring: ISO15288: select only applicable stages, add new. ISO12207:  first level (add/delete to partial model),  second level (apply to particular). Solution: GERA may accommodate all tailoring concepts: model refining and partial  particular movement. 5. Modularity: ISO15288, ISO12207 identify life cycle processes using different criteria (hence Primary / Supp. / Org. vs. Enteprise / Project / Technical / Agreement) Solution: GERA modularity concept (std interfaces, max cohesiveness, loose coupling) for reuse and isolation. 5. Modularity: ISO15288, ISO12207 identify life cycle processes using different criteria (hence Primary / Supp. / Org. vs. Enteprise / Project / Technical / Agreement) Solution: GERA modularity concept (std interfaces, max cohesiveness, loose coupling) for reuse and isolation. 6. Life History: ISO15288 and ISO12207 attach a history meaning to life cycle  problems modelling parallel / concurrent processes. Solution: GERA life history concept (unique, made of life cycle activities)

  28. ‘Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards used in the mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

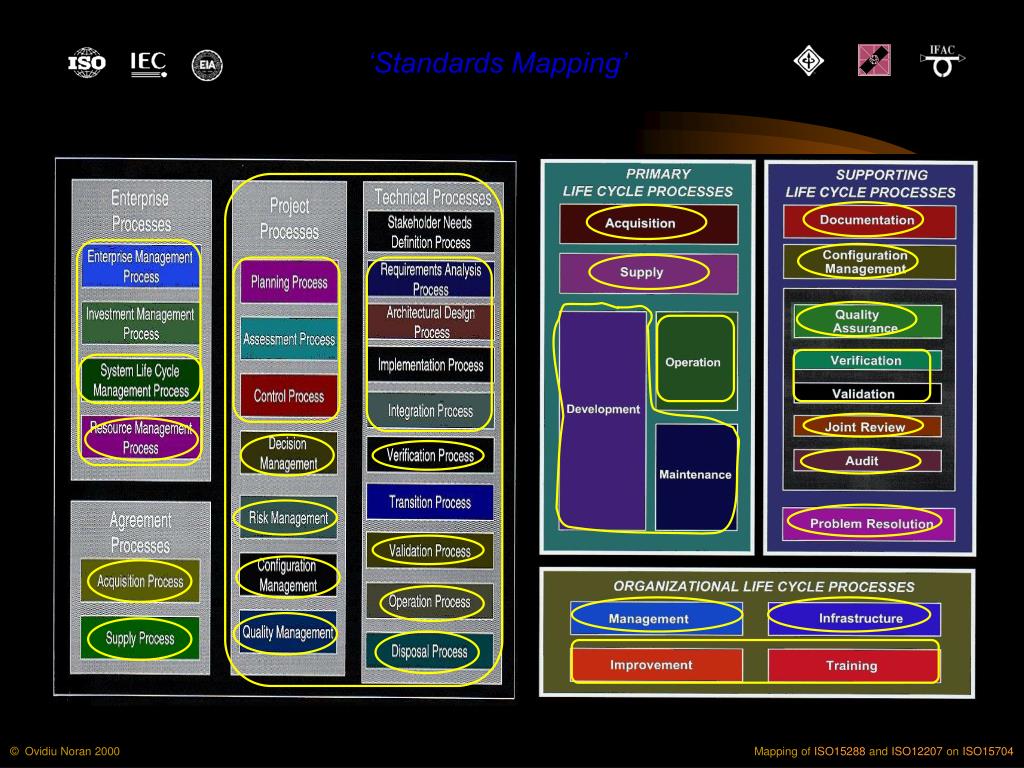

  29. ‘Standards Mapping’ Direct Mapping of ISO15288 and ISO12207. • ISO12207 is a specialisation of ISO15288. • Processes are classified in the two Standards using different criteria. • Some technical processes in ISO15288 are supporting in ISO12207.

  30. ‘Standards Mapping’ Mapping of ISO15288 onto GERA. • A Stage / Phase Mapping. Observations: • Stages in ISO15288 have a temporal implication; GERA phases do not. • Difference in expresiveness: GERA can show concurrent / parallel activities. • Difference in granularity – one GERA phase may cover several stages.

  31. F C ‘Standards Mapping’ Mapping of ISO15288 onto GERA (cont.) • A Mapping using a combination of views. Observations: • Functional view in GERA has a broad coverage. • Use ‘scoping’ views in combination with Functional view. • Example: Entity Purpose view (mission fulfilment vs control)

  32. ‘Standards Mapping’ Mapping of ISO15288 onto GERA (cont.) • There are no information / resources / organisation models provided… • … However there are usable facts about purposes, outcomes, objectives. • Therefore some mappings may be attempted.

  33. ISO15288 Process Organisation ‘Standards Mapping’

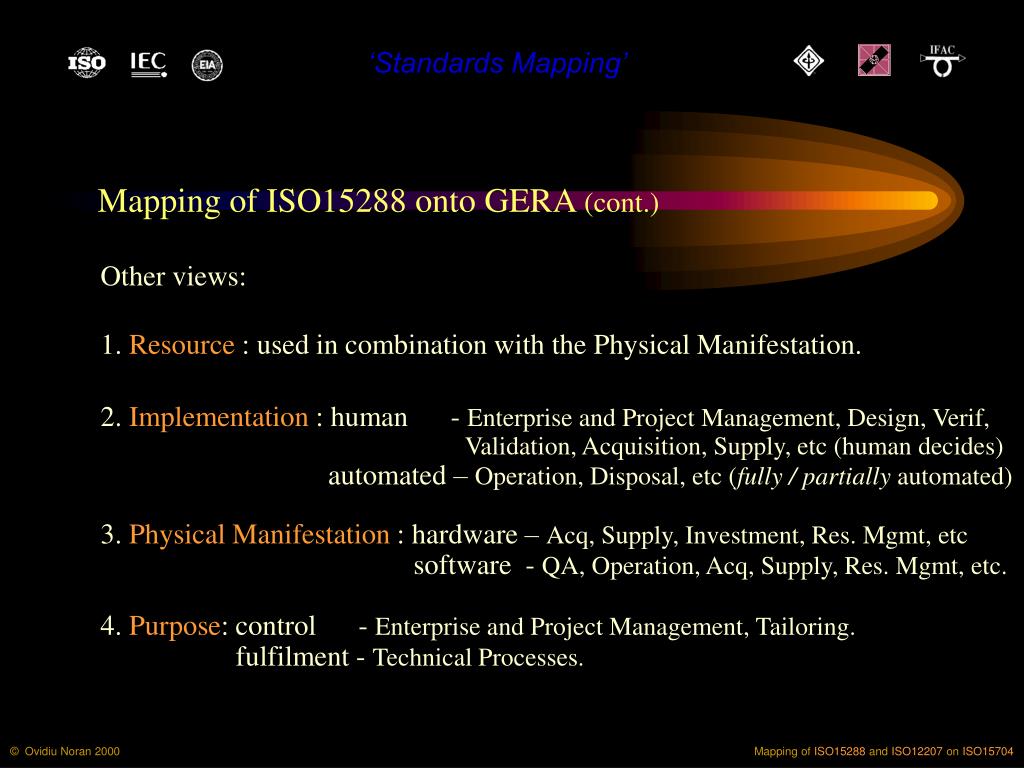

  34. ‘Standards Mapping’ Mapping of ISO15288 onto GERA (cont.) Other views: 1. Resource : used in combination with the Physical Manifestation. 2. Implementation : human - Enterprise and Project Management, Design, Verif, Validation, Acquisition, Supply, etc (human decides) automated – Operation, Disposal, etc (fully / partially automated) 3. Physical Manifestation : hardware – Acq, Supply, Investment, Res. Mgmt, etc software - QA, Operation, Acq, Supply, Res. Mgmt, etc. 4. Purpose: control - Enterprise and Project Management, Tailoring. fulfilment - Technical Processes.

  35. ‘Standards Mapping’ Mapping of ISO12207 onto GERA. • A partial process model. • No explicit life cycle provided (e.g. like ISO15288) • Basic Functional and Organisational structures provided. • Information and Resource mappings may be attempted from available info.

  36. Information mapping derived from facts provided by ISO12207 Annex H ‘Standards Mapping’

  37. ‘Standards Mapping’ ISO12207 Functional model with organisational and mngment aspects

  38. ‘Standards Mapping’ Mapping of ISO12207 onto GERA (cont.) Other views: 1. Resource : used in combination with the Physical Manifestation. 2. Implementation : human - Joint Rev, Acq, Supply, Mgmt Improvement automated - Development, Prob Res, ConfMgmt, Maint, Mgmt (partially automated / support from machine) 3. Physical Manifestation : hardware - Training, Infrastructure software - Development, Maintenance, Documentation. 4. Purpose: control - Management, Conf Mgmt, QA, Audit. fulfilment - Operation, Maintenance, Prob Res, Development.

  39. ‘Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards used in the mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  40. Manufacturing Entity (Type 3) Identification Strategic Management Entity (Type 1) Product: Enterprise Concept Engineering Entity (Type 2) Product: Enterprise Design Construction Entity (Type 2) Product: Enterprise Installation Manufacturing Entity (Type 3) Operation All Enterprise Entity Types Enterprise Product(Type 4) ‘Standards Mapping’ A Mapping on Entity Types. • Processes belong to different organisations (entities) . • ISO15288 and ISO12207 use different concepts to identify these entities. • Unify the approach by using the GERA entity types:

  41. Customer / Acquirer Infrastructure Providers Product may be an enterprise F Product Define Product C Engineering Project Enterprise Issue Tender Provide Logistic / Infrastructure Services Create Project Enterprise Do Engineering Design Engineering Contractor Build Product Contribute to Project Engineering Construction Company Engineering Subcontractors ‘Standards Mapping’ Enterprise Entities Contributions to a Product’s Life Cycle. • A project enterprise may be formed (VE) for the purpose of the product. • The product may be an enterprise, having products of its own … • … or it can simply be an e.g. software product.

  42. C/A EC, ES EPE ECC EPE, P(E) EPE, P(E) C/A C/A EPE, P(E) EC, ES, ECC, EPE P(E), EC ‘Standards Mapping - 15288’ ISO 15288 Entities Mapping. • Shows what processes may belong to which entity. • Some processes involve all participants. • Some involve only the participants in the VE.

  43. C/A EPE EC, ES, ECC, IP EPE,ECC EC, ECC EC C/A P, IP ECC,EPE EC EC,EPE ECC,EPE IP, ECC EPE EPE EPE ‘Standards Mapping - 12207’ ISO12207 Entities Mapping. • Uses the GERA entity types definition – consistent with the ISO15288 Entities mapping. • The product may considered to be a large software project. • Contractor / subcontractors may be designing / implementing modules for the final software system. • Infrastructure provider may provide dedicated / optimised hardware for the design / implementation and operation of the final software product.

  44. ‘Contents’ • Introduction • The Problems and Solutions • Life Cycle Architectures • Standards used in the mapping • Concepts • Standards Mapping • Entities Mapping • Conclusions

  45. GERAM may be used as an unifying platform for ISO15288 and ISO12207 • GERAM is able to cover all aspects of the two Standards, including • essential concepts, tailoring, life cycle / life history, etc. • The GERA ‘main’ content (F I R O) view used for ‘the big picture’. • Purpose, Implementation, Physical Manifestation ‘scoping’ views used for • emphasizing specific aspects. • Entities Mapping used to show the processes mapping on various entities contributing to the life cycle of a product ‘Conclusions’ Conclusions.

  46. ‘Conclusions’ Conclusions from the Mapping. • ISO15288 and ISO12207 are partial activity models (process  time, sequence). • No organisational, information or resources models are provided… • … however, mappings may be achieved using purposes, outcomes, objectives. • Two main issues must be resolved to promote consistency, sharing, reuse: 1. Unification of ISO15288 and ISO12207 terms and classification criteria 2. An architecture for both standards – maybe a how-to use guide using GERA(M). • This work has aimed to show what could be achieved by using a generalised • reference life cycle architecture covering both standards.

  47. ‘The End’ T H E E N D
