This technical document details the engineering specifications for the assembly of the Mini Cylinder, designed for module placement tools. Manufactured in four parts from CFRP or aluminum to optimize cost and weight, the cylinder measures 110mm in length with an inner diameter of 1150mm and an outer diameter of 1170mm. It features four flanges for connection to the index ring and utilizes eight NIKHEF disc fixings. Additional components like BeCu wavey washers for torque applications are included, with manufacturers organized for key elements like nuts and oversize washers.

senwe
Télécharger la présentation

Module Assembly

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

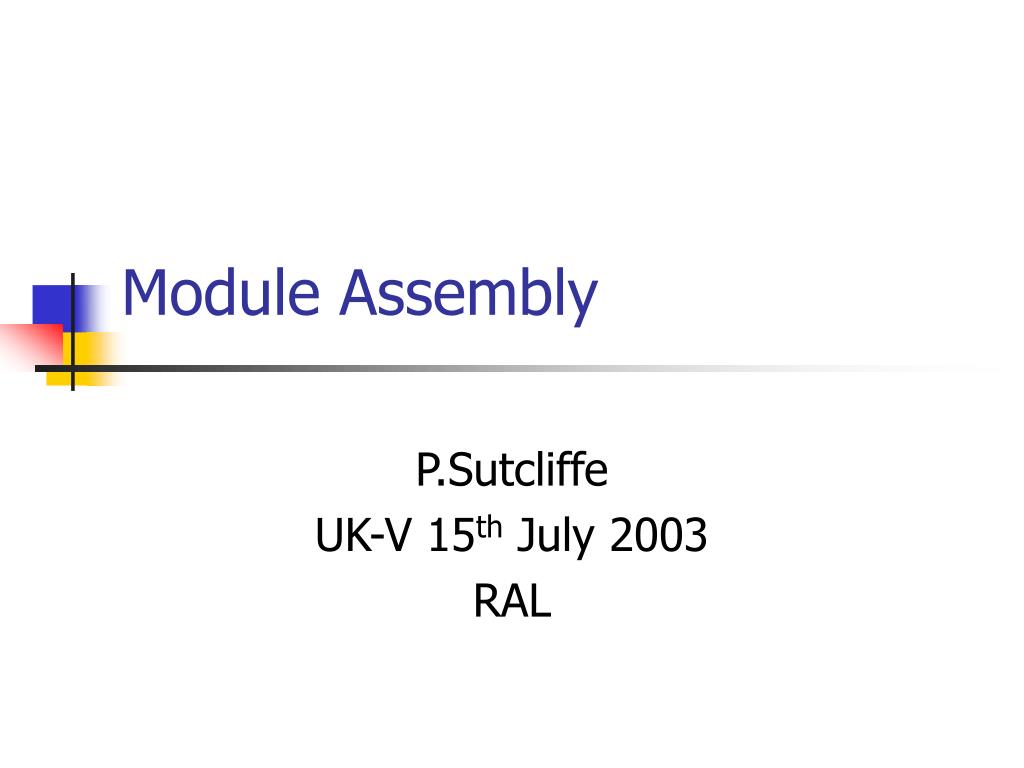

  1. Module Assembly P.Sutcliffe UK-V 15th July 2003 RAL

  2. Disc Mini Cylinder • Manufactured in 4 parts. • Material CFRP or Alum (cost and weight) • Length 110mm • ID 1150 OD 1170 • 4 Flanges connecting to Index Ring • Uses 8 NIKHEF Disc Fixings (AFU 06). In manufacture.

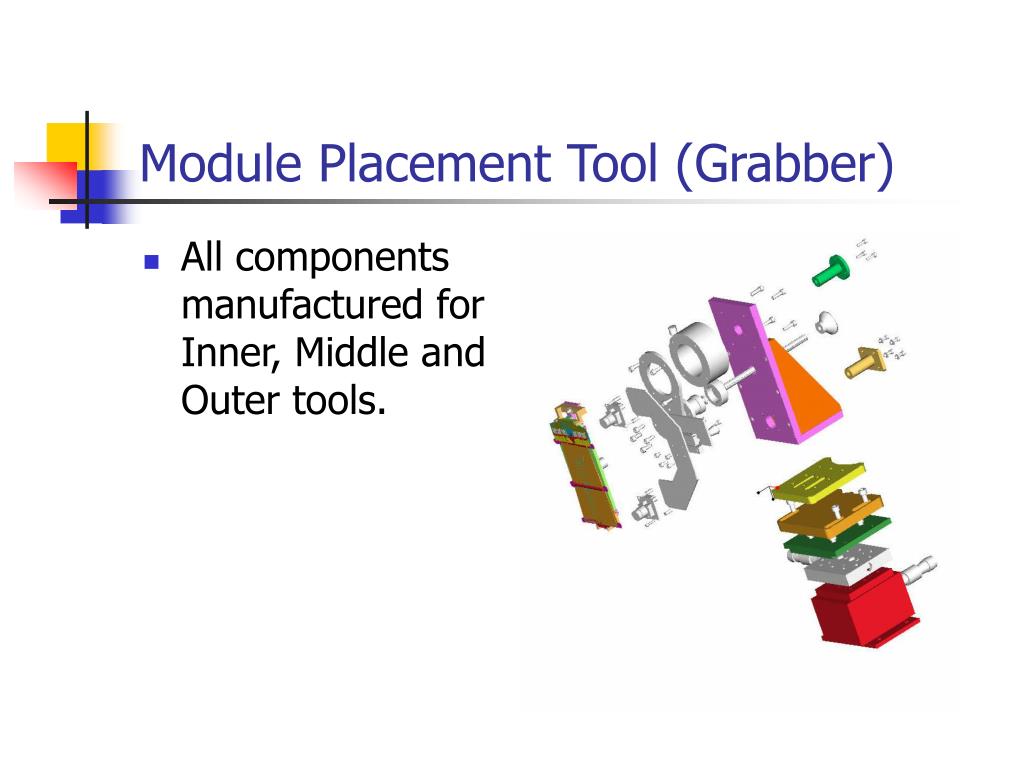

  3. Module Placement Tool (Grabber) • All components manufactured for Inner, Middle and Outer tools.

  4. Disc & Cylinder in AssemblyFrame • New ring manufactured • Module holding jig to be manufactured at Liverpool.

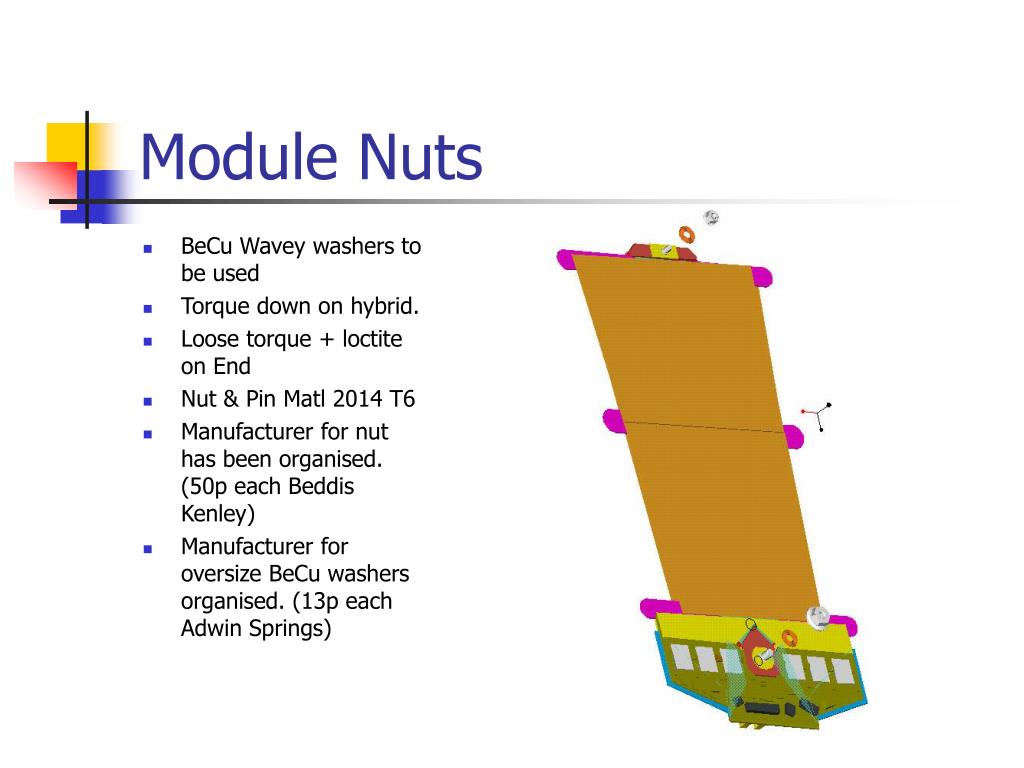

  5. Module Nuts • BeCu Wavey washers to be used • Torque down on hybrid. • Loose torque + loctite on End • Nut & Pin Matl 2014 T6 • Manufacturer for nut has been organised. (50p each Beddis Kenley) • Manufacturer for oversize BeCu washers organised. (13p each Adwin Springs)
