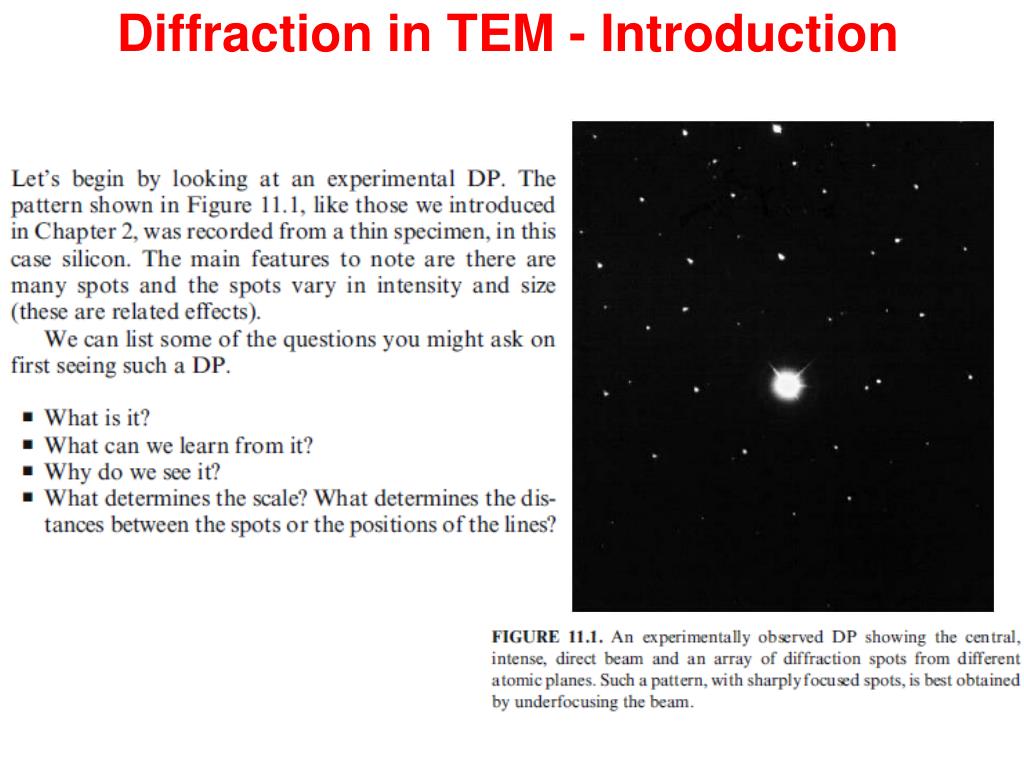

  1. Diffraction in TEM - Introduction

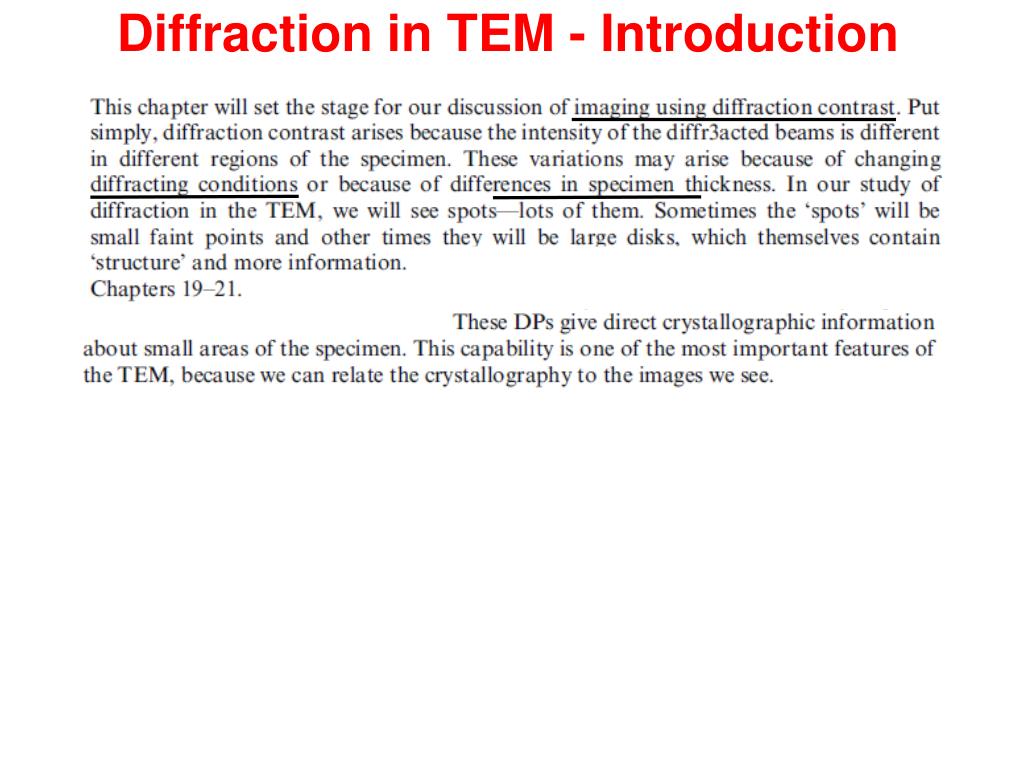

  2. Diffraction in TEM - Introduction

  3. Diffraction in TEM - Introduction

  4. Diffraction in TEM - Introduction

  5. Wave Propagation Vector, K

  6. Wave Propagation Vector, K

  7. Wave Propagation Vector, K or

  8. Scattering From A Crystal

  9. Scattering From A Crystal

  10. Defects in GaAs/InGaAs Laser Note that the laser looks to have a perfect crystal structure when using g=200[011], electron diffraction vector at the zone axis [011], but actually has dislocations, which moved into the active region by creep, when viewed using different diffraction contrast imaging conditions using g=220[110] diffraction vector at the [110] zone axis.

  11. Diffraction From Planes

  12. Diffraction From Planes

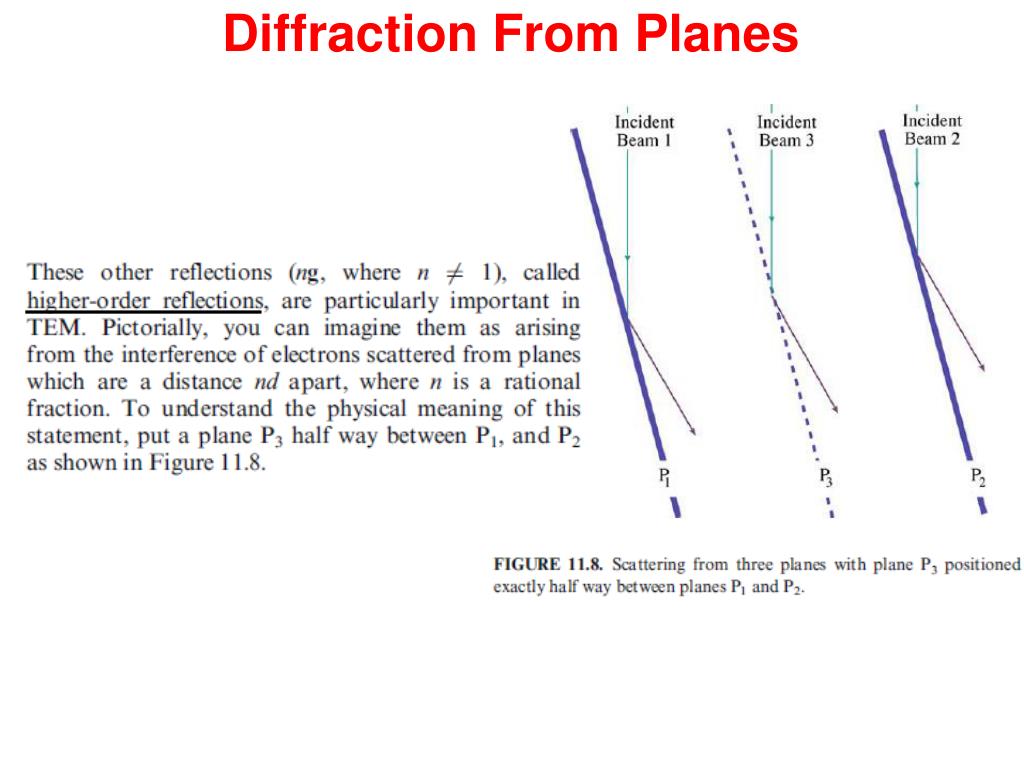

  13. Diffraction From Planes

  14. Diffraction From Planes

  15. Diffraction From Planes

  16. Diffraction From Planes

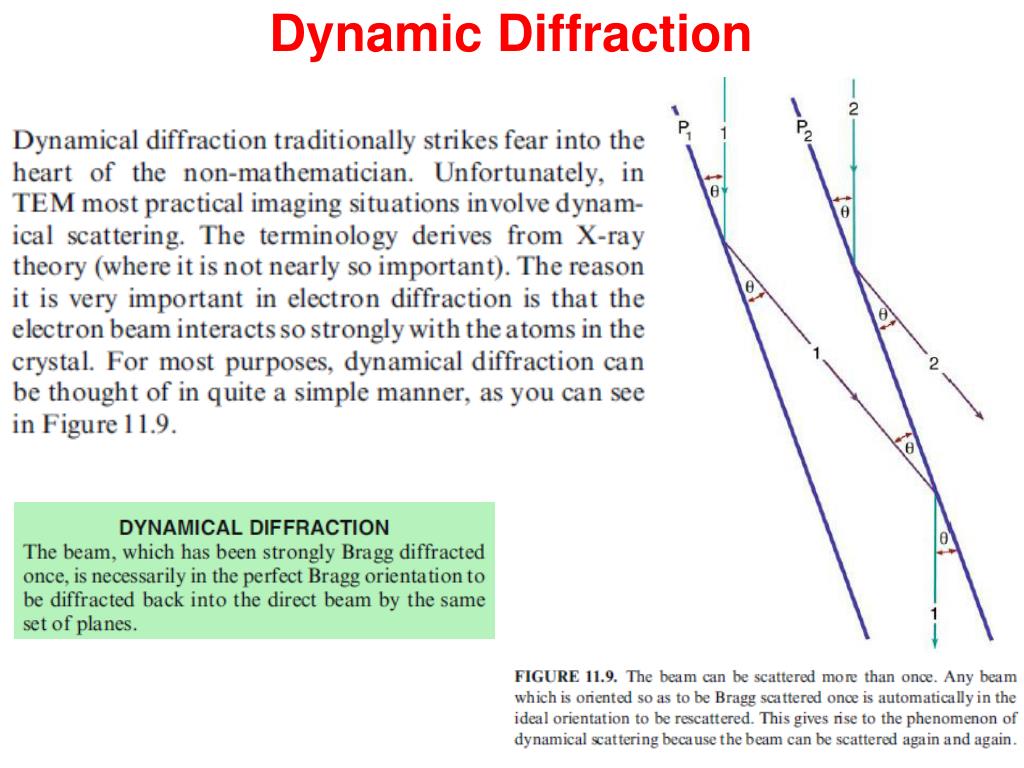

  17. Dynamic Diffraction

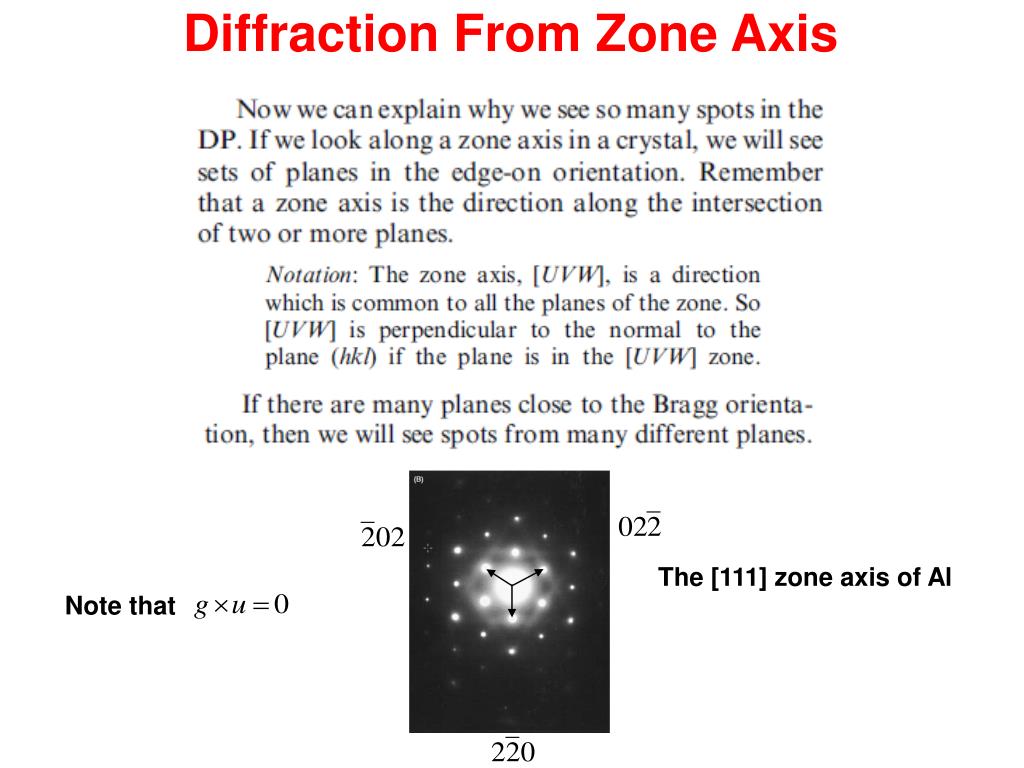

  18. Diffraction From Zone Axis The [111] zone axis of Al Note that

  19. Selected Area Diffraction

  20. Selected Area Diffraction

  21. Selected Area Diffraction

  22. Selected Area Diffraction

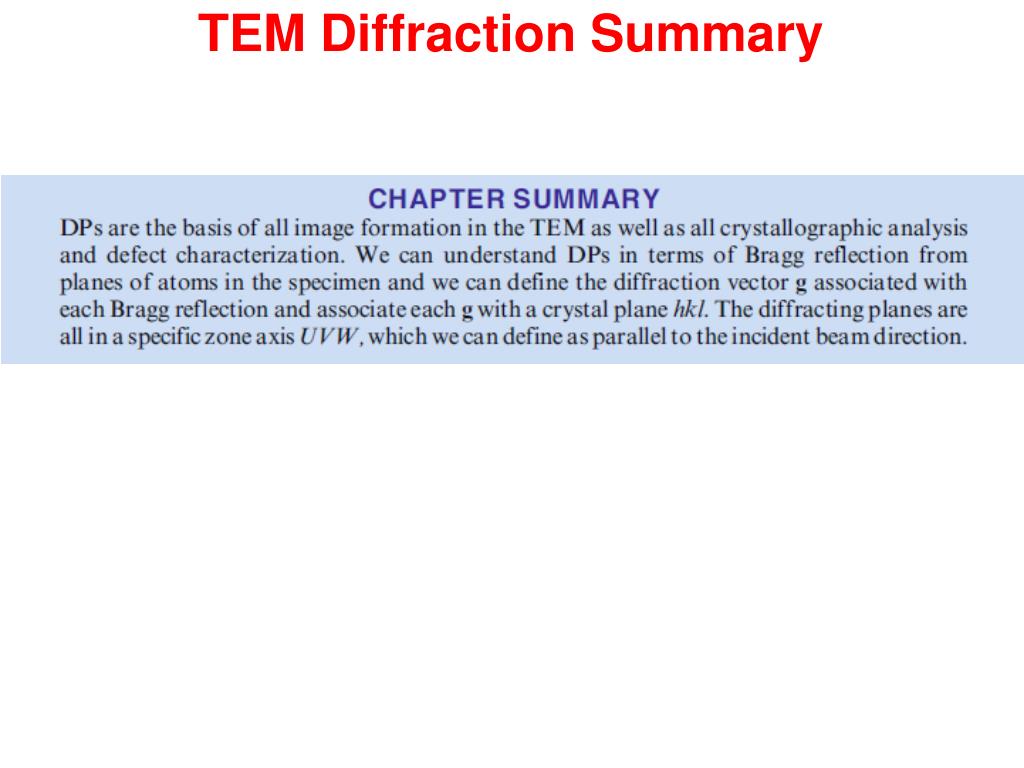

  23. TEM Diffraction Summary
