Static Analysis of String Values

1. Static Analysis of String Values

2. Strings • Strings are everywhere: • SQL queries • Reflection • Wrong use could have catastrophic effects

3. Sound static analysis • Prove properties • at compile time (static) • respected by all executions (sound) • Abstract interpretation • Cousot&Cousot 77/79 • Mathematical framework to • Define the semantics • Soundly approximate it • Ideal goal: fast and precise abstraction

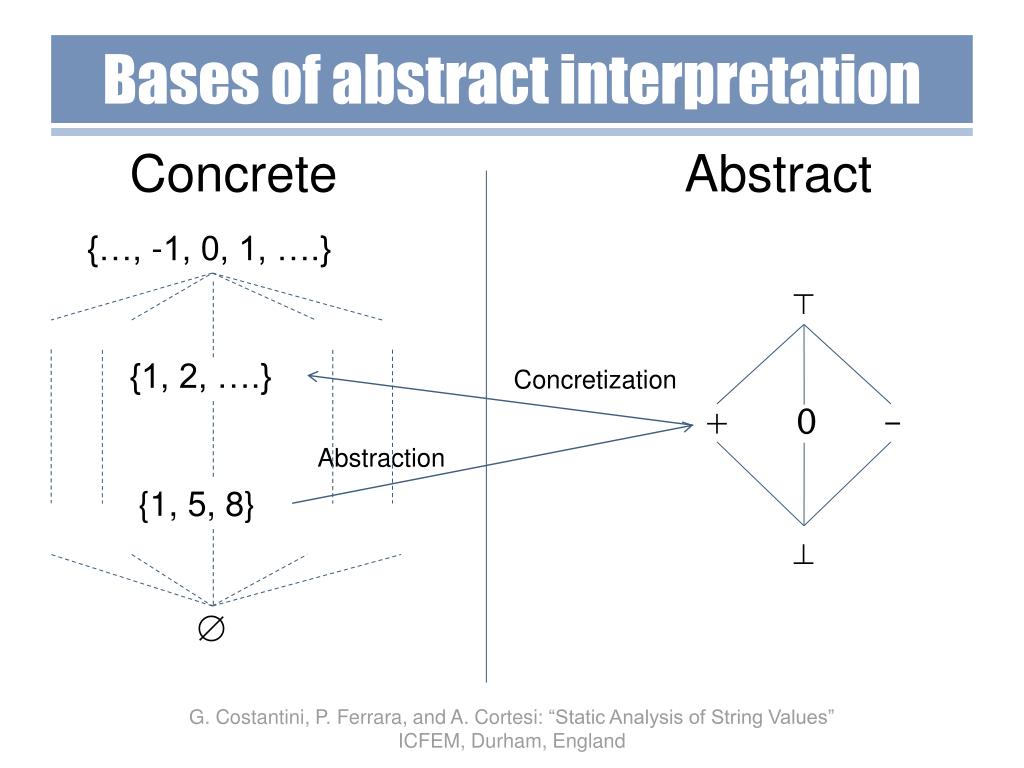

4. Bases of abstract interpretation Concrete Abstract {…, -1, 0, 1, ….} ⊤ {1, 2, ….} Concretization + 0 - Abstraction {1, 5, 8} ⊥ ∅

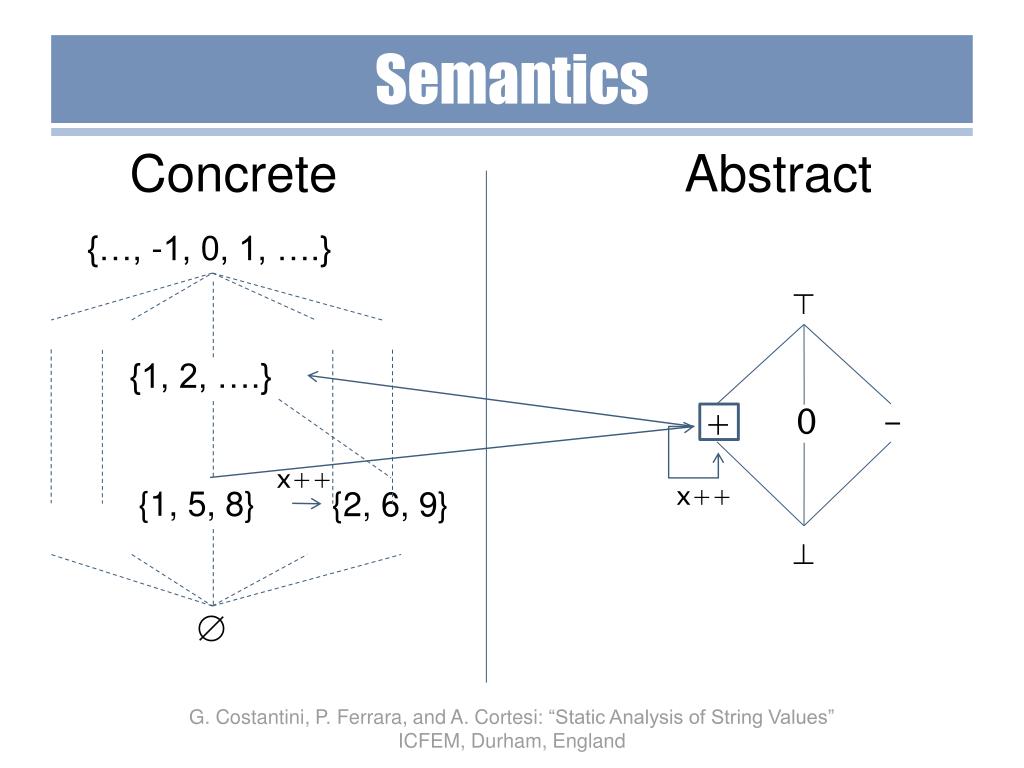

5. Semantics Concrete Abstract {…, -1, 0, 1, ….} ⊤ {1, 2, ….} 0 - + x++ {1, 5, 8} {2, 6, 9} x++ ⊥ ∅

6. Upper bound Concrete Abstract if(…) x=0; else x=1; {…, -1, 0, 1, ….} ⊤ {0, 1} 0 - + {0} {1} ⊥ ∅

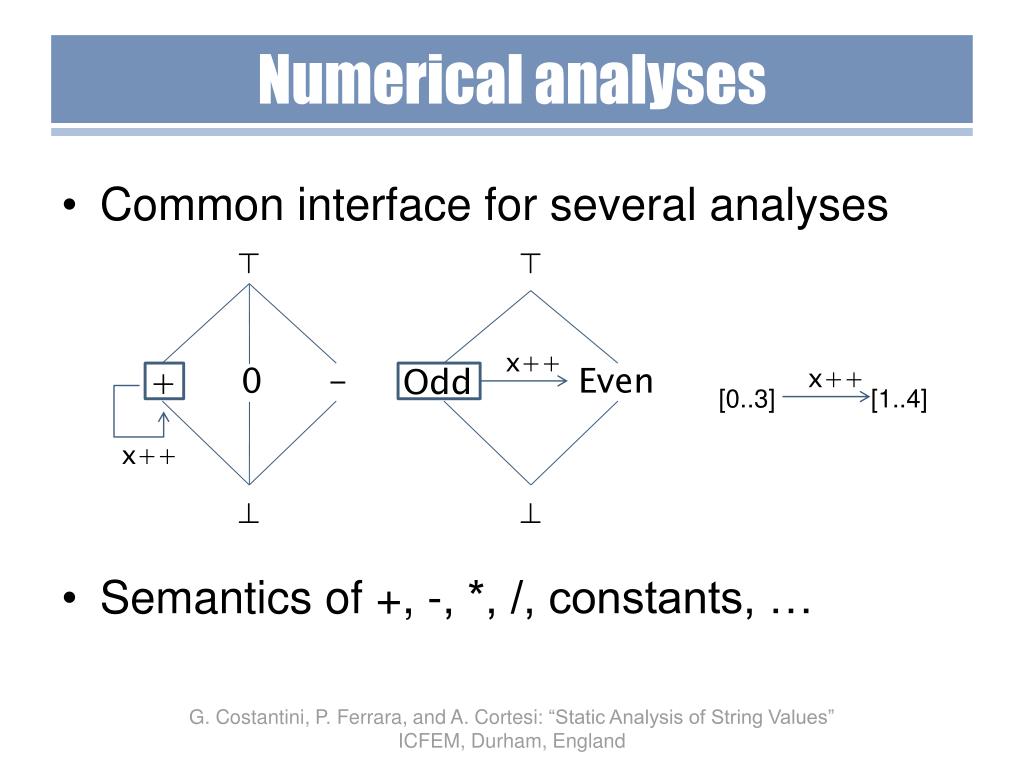

7. Numerical analyses • Common interface for several analyses • Semantics of +, -, *, /, constants, … ⊤ ⊤ x++ 0 - Even + Odd x++ [0..3] [1..4] x++ ⊥ ⊥

8. Outline • Introduction • Generic framework for string analysis • String domains • Character inclusion • Prefix and suffix • Bricks • String graphs • Conclusion

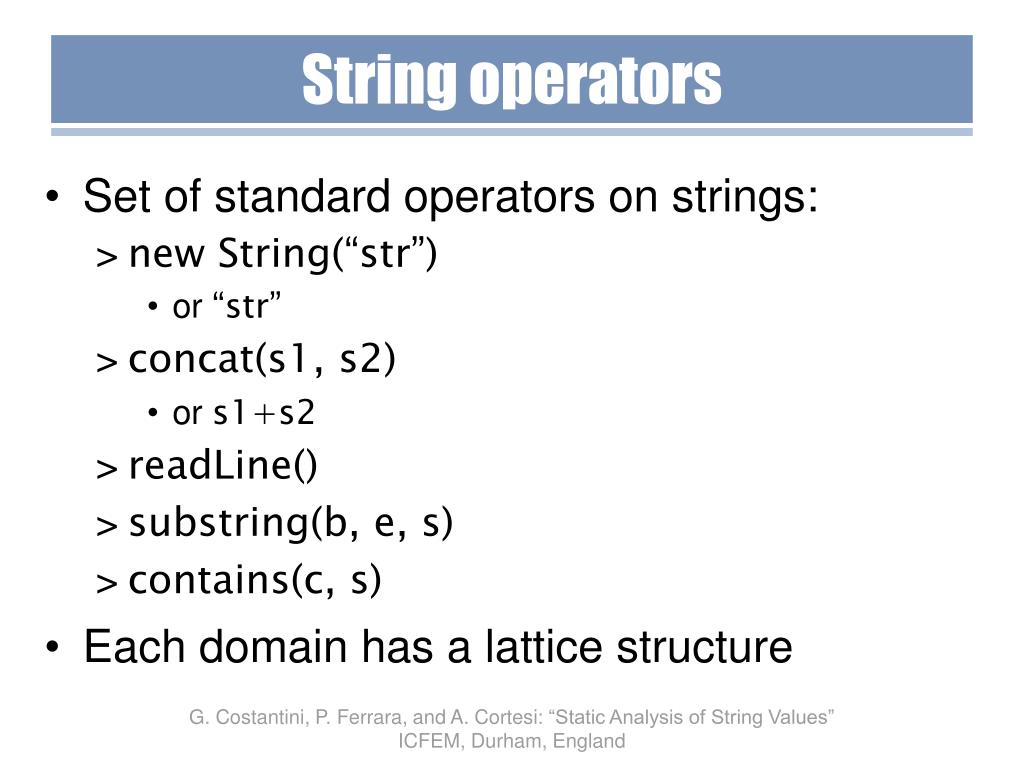

9. String operators • Set of standard operators on strings: • new String(“str”) • or “str” • concat(s1, s2) • or s1+s2 • readLine() • substring(b, e, s) • contains(c, s) • Each domain has a lattice structure

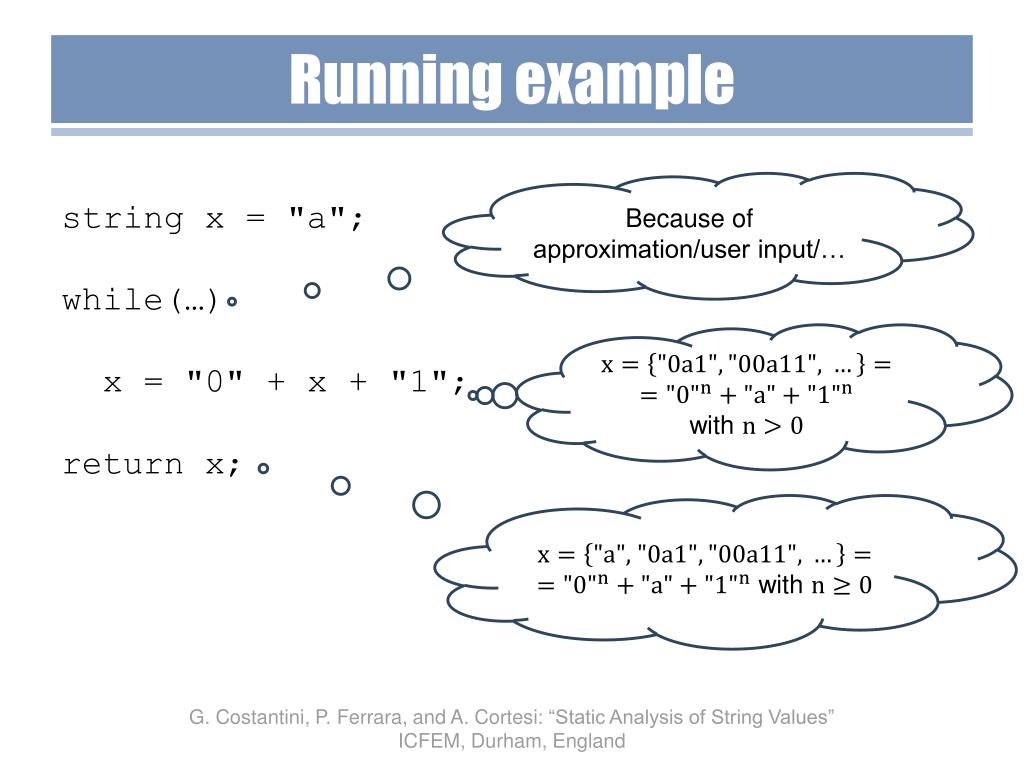

10. Running example Because of approximation/user input/… string x = "a"; while(…) x = "0" + x + "1"; return x; with with

11. Outline • Introduction • Generic framework for string analysis • String domains • Character inclusion • Prefix and suffix • Bricks • String graphs • Conclusion

12. Character inclusion • Strings approximated through • C: characters surely contained • MC: characters possibly contained Concrete Abstract C MC

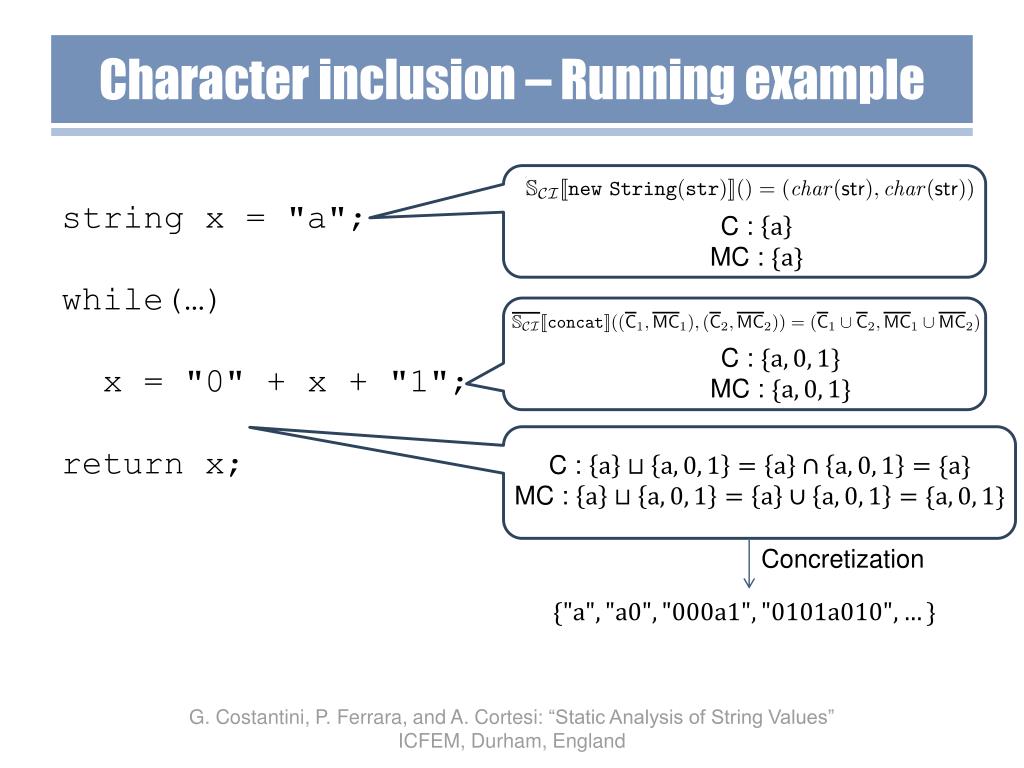

13. Character inclusion – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; C : MC : C : MC : C : MC : Concretization

14. Prefix & Suffix • Strings approximated through • PR: prefix of the string • SU: suffix of the string Concrete Abstract PR SU

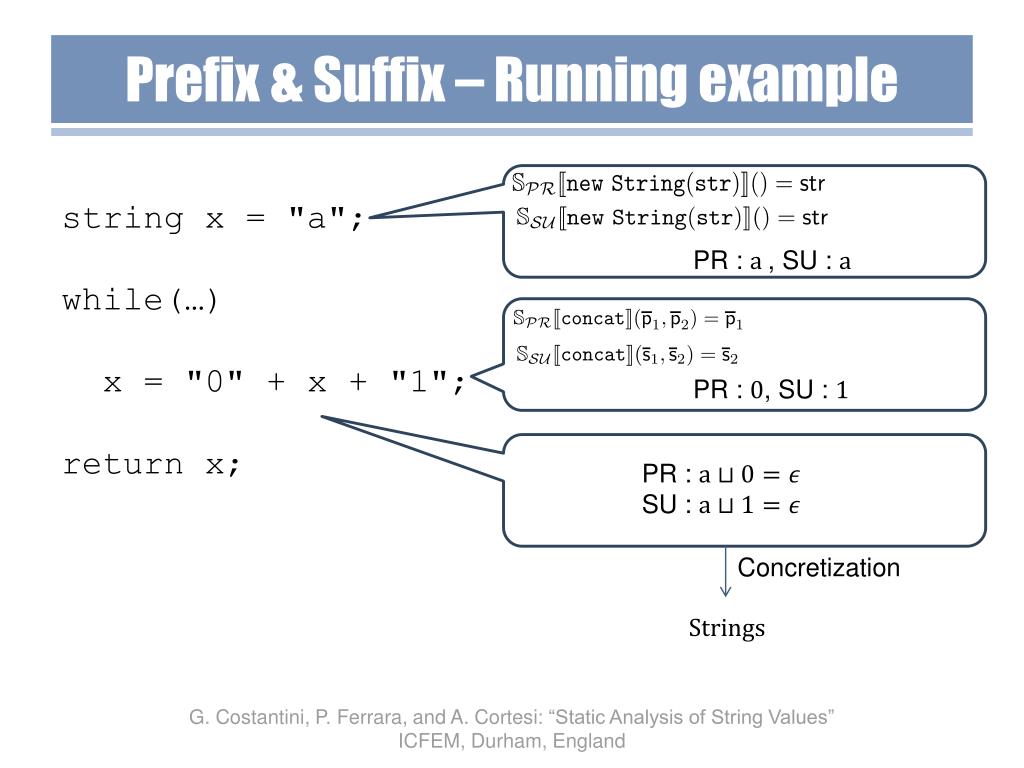

15. Prefix & Suffix – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; PR : , SU : PR : , SU : PR : SU : Concretization

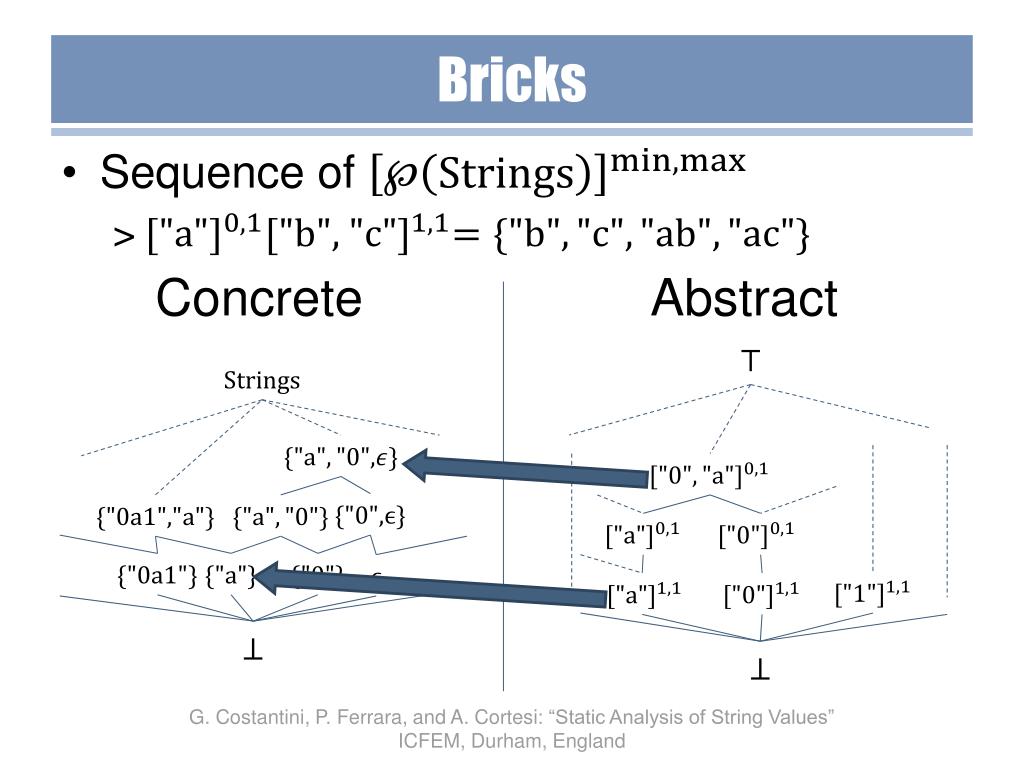

16. Bricks • Sequence of Concrete Abstract

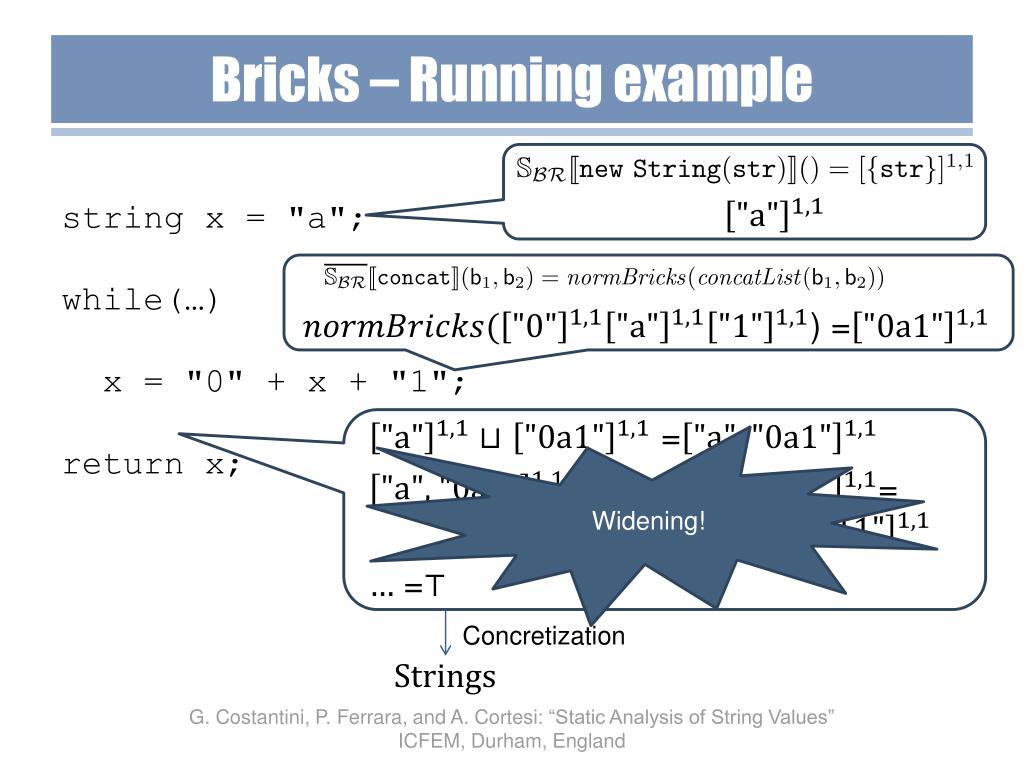

17. Bricks – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; ) = = Widening! = = = Concretization

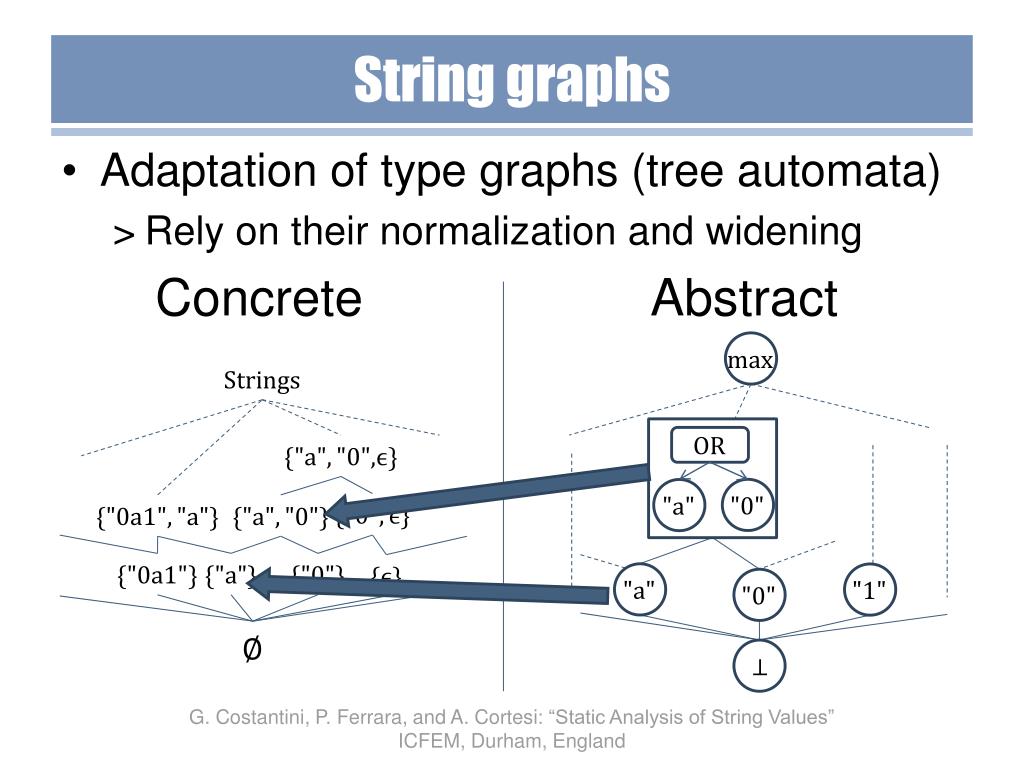

18. String graphs • Adaptation of type graphs (tree automata) • Rely on their normalization and widening Concrete Abstract

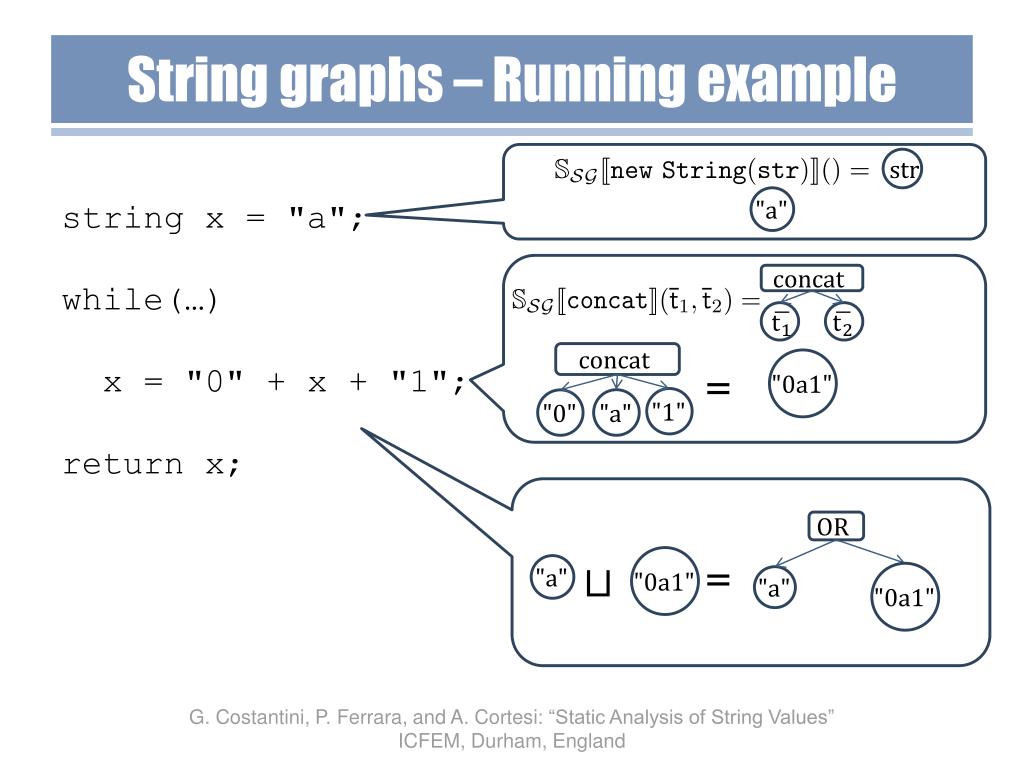

19. String graphs – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; = =

20. String graphs – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; =

21. String graphs – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; Normalization

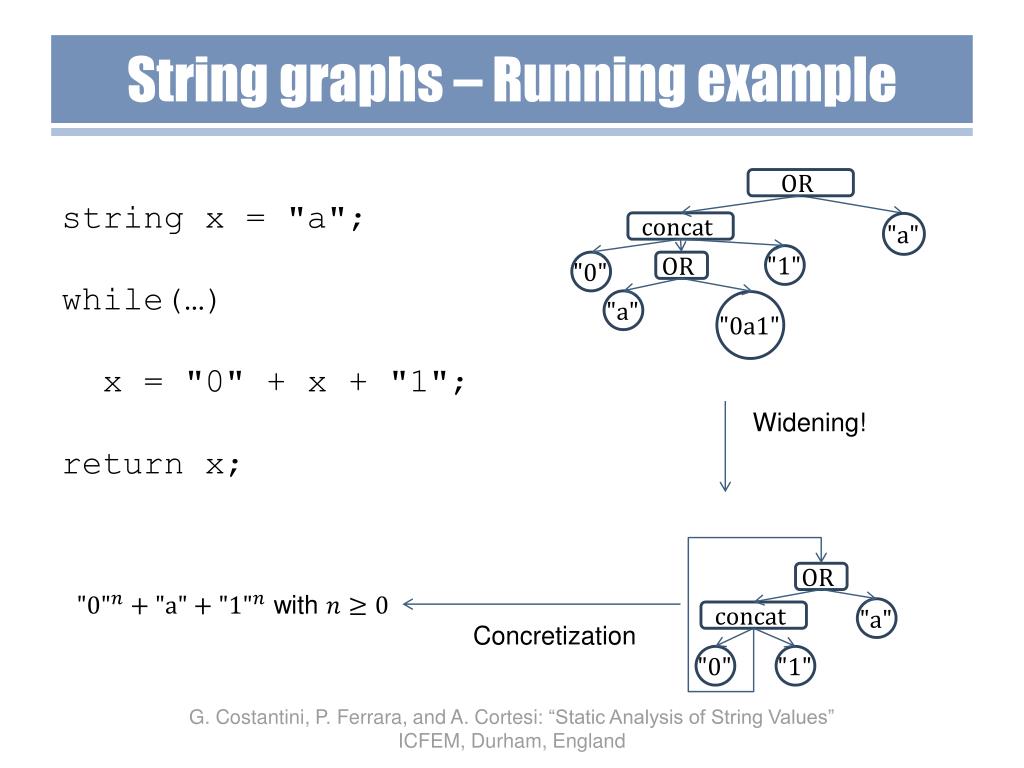

22. String graphs – Running example string x = "a"; while(…) x = "0" + x + "1"; return x; Widening! with Concretization

23. Outline • Introduction • Generic framework for string analysis • String domains • Character inclusion • Prefix and suffix • Bricks • String graphs • Conclusion

24. Conclusion
