RF Components & Circuits VE3KL Session 1

Dive into the world of RF components & circuits with ferrite and powdered iron toroids, transformers, SWR bridges, and low-pass filters. This kit includes parts, tools, and software for filter design. Explore ferrite and iron core inductance formulas for DIY circuits. End of session: ferrite and iron coil creation.

shelley-reese
Télécharger la présentation

RF Components & Circuits VE3KL Session 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

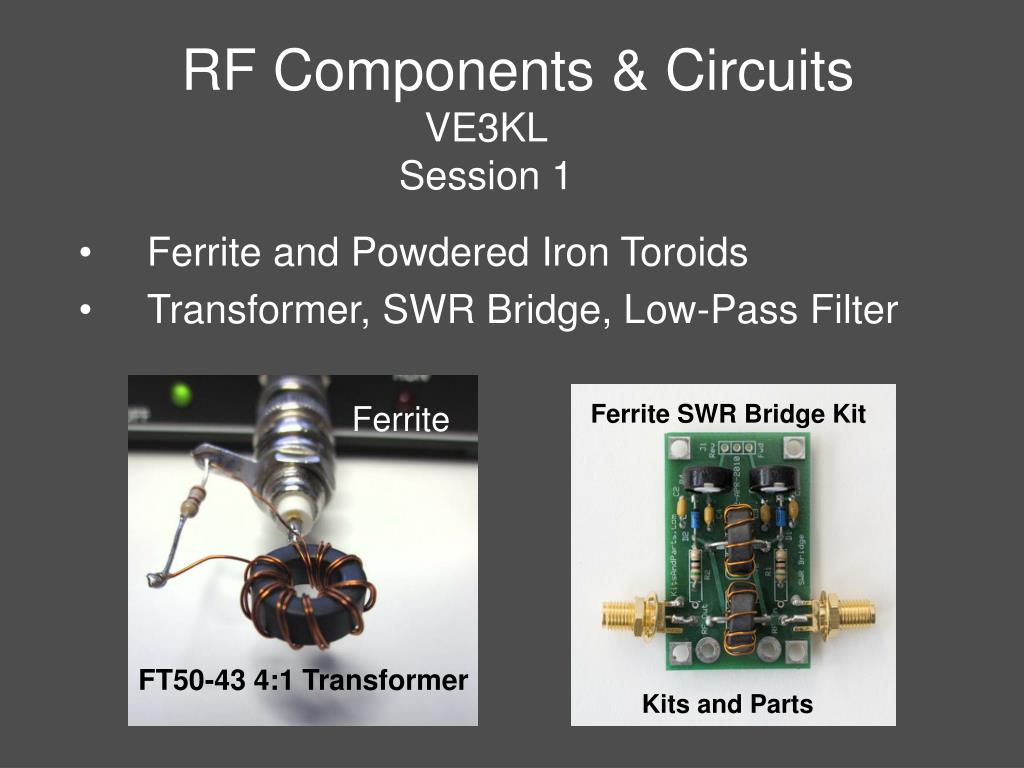

  1. RF Components & CircuitsVE3KLSession 1 Ferrite Ferrite SWR Bridge Kit Ferrite and Powdered Iron Toroids Transformer, SWR Bridge, Low-Pass Filter FT50-43 4:1 Transformer Kits and Parts

  2. Low-Pass Filter… Powdered Iron Cores T50-6 9 Turns 8 Turns Input Output 8 Turns #24 9 Turns #24 Circuit Board and BNC Connectors in Kit Two T50-6 Toroids 9 and 8 Turns

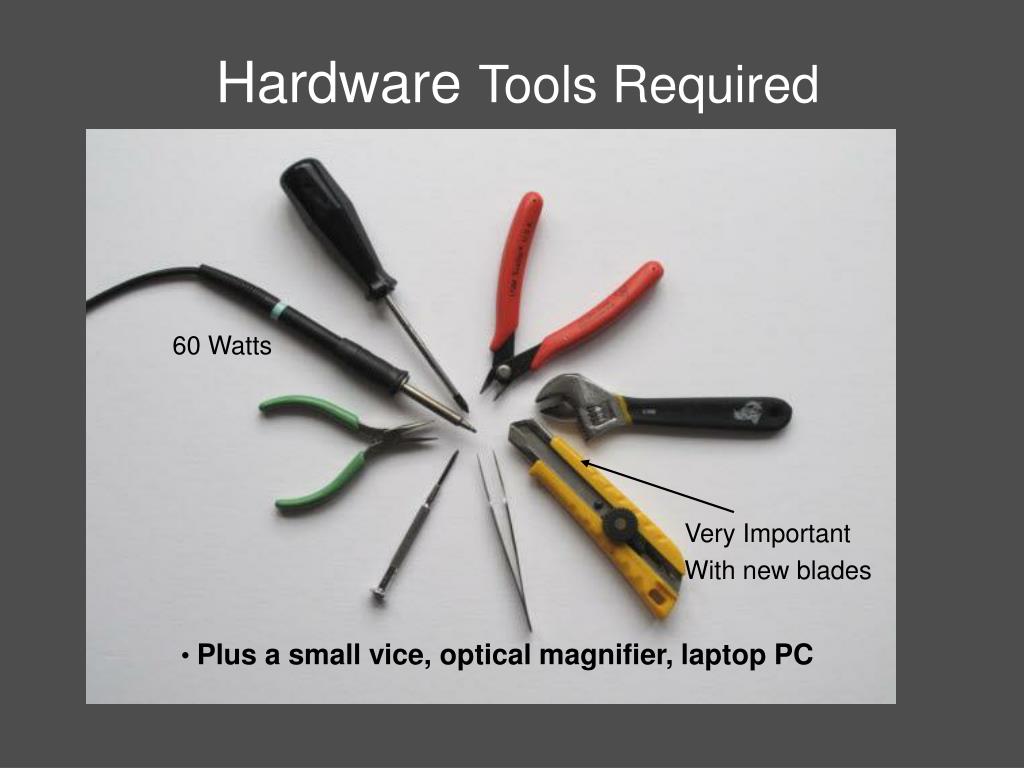

  3. Hardware Tools Required 60 Watts Very Important With new blades Plus a small vice, optical magnifier, laptop PC

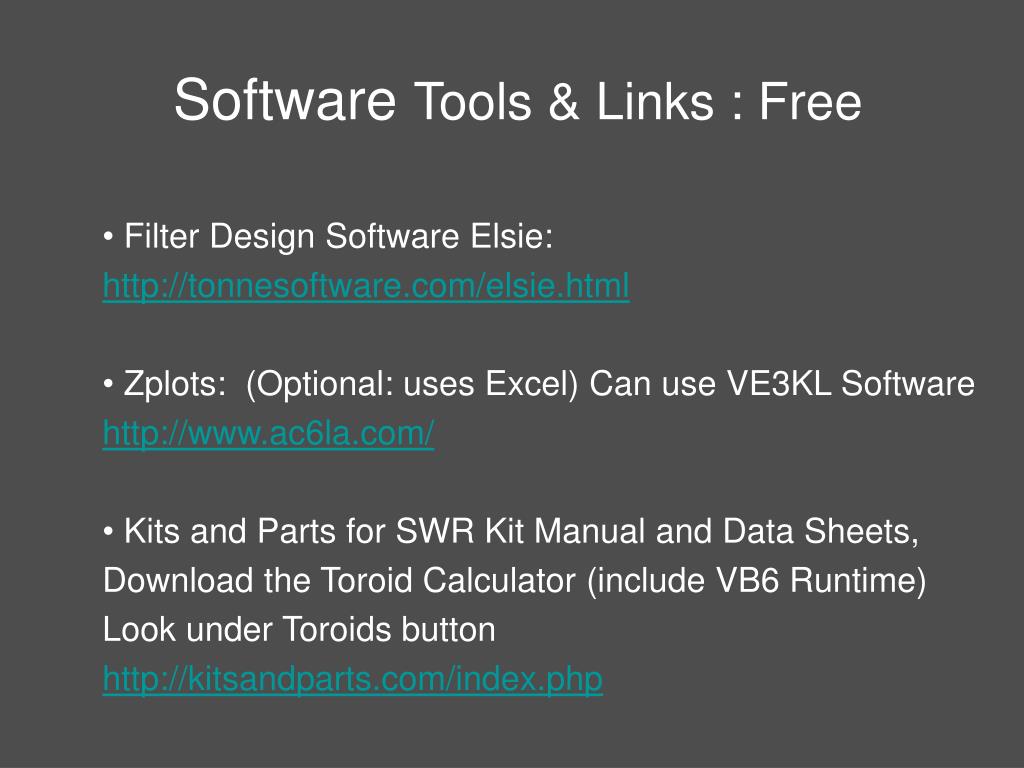

  4. Software Tools & Links : Free • Filter Design Software Elsie: http://tonnesoftware.com/elsie.html • Zplots: (Optional: uses Excel) Can use VE3KL Software http://www.ac6la.com/ • Kits and Parts for SWR Kit Manual and Data Sheets, Download the Toroid Calculator (include VB6 Runtime) Look under Toroids button http://kitsandparts.com/index.php

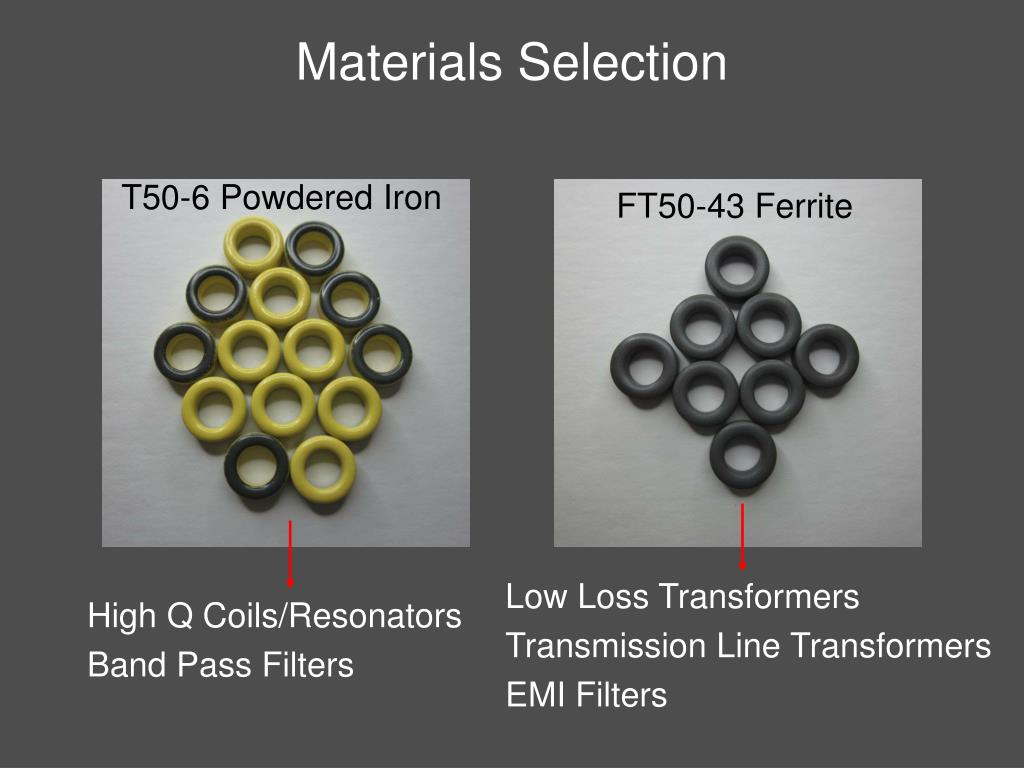

  5. Materials Selection T50-6 Powdered Iron FT50-43 Ferrite Low Loss Transformers Transmission Line Transformers EMI Filters High Q Coils/Resonators Band Pass Filters

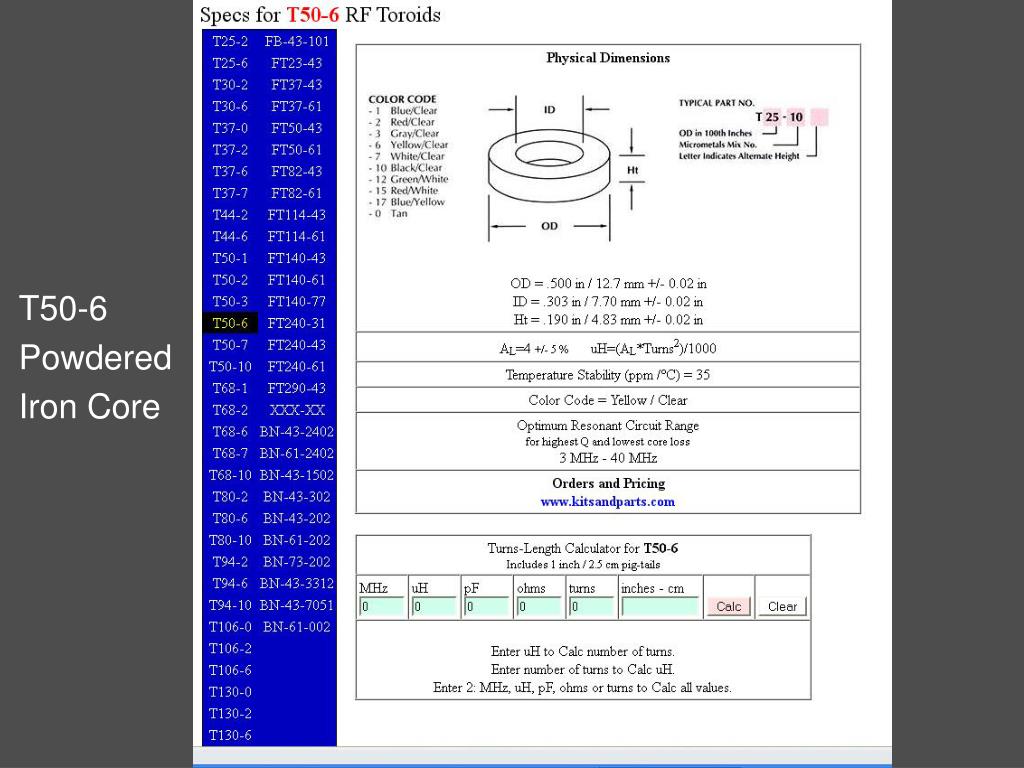

  6. T50-6 Powdered Iron Core

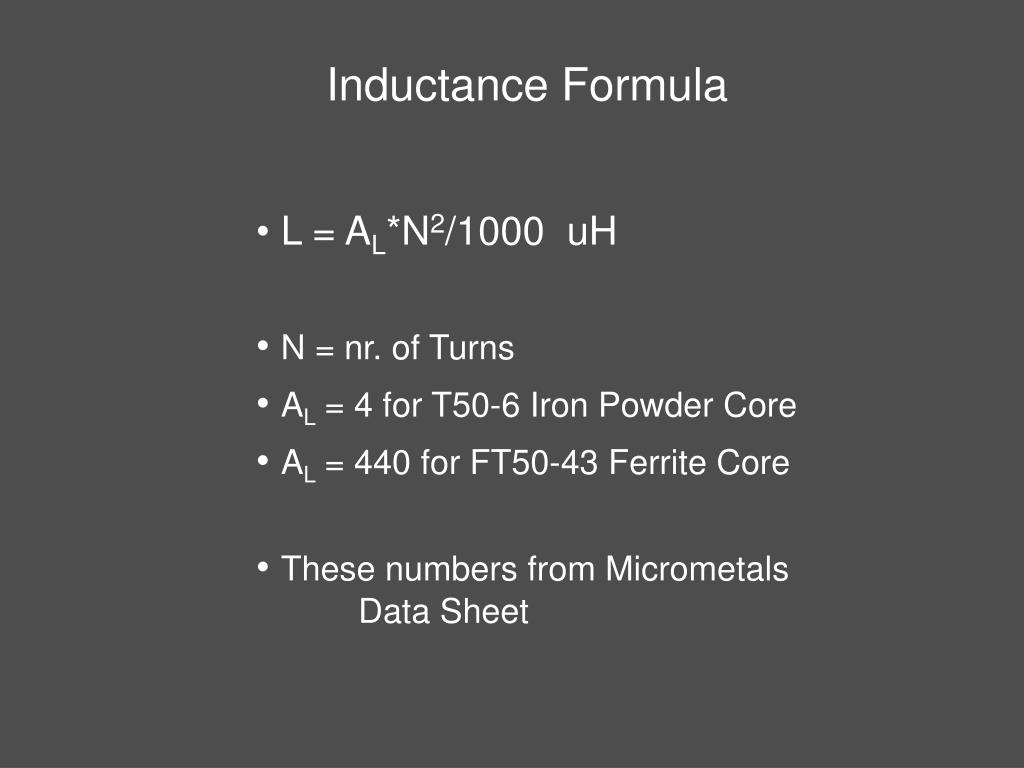

  7. Inductance Formula • L = AL*N2/1000 uH • N = nr. of Turns • AL = 4 for T50-6 Iron Powder Core • AL = 440 for FT50-43 Ferrite Core • These numbers from Micrometals Data Sheet

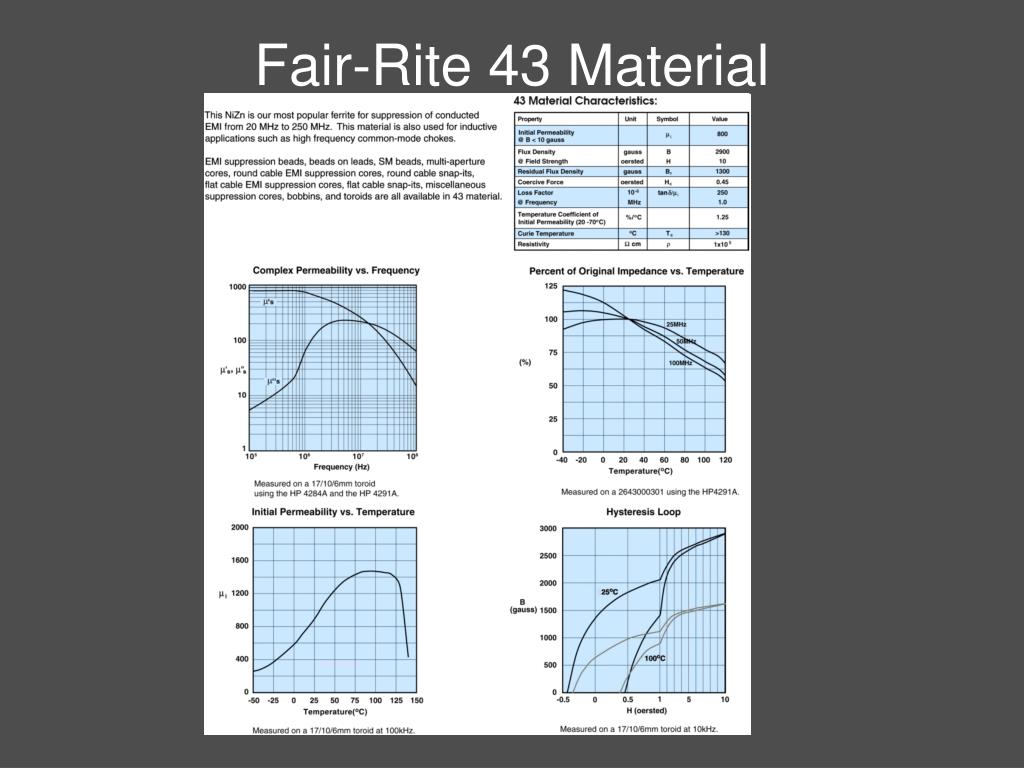

  8. Fair-Rite 43 Material

  9. Micrometals Powdered Iron Cores

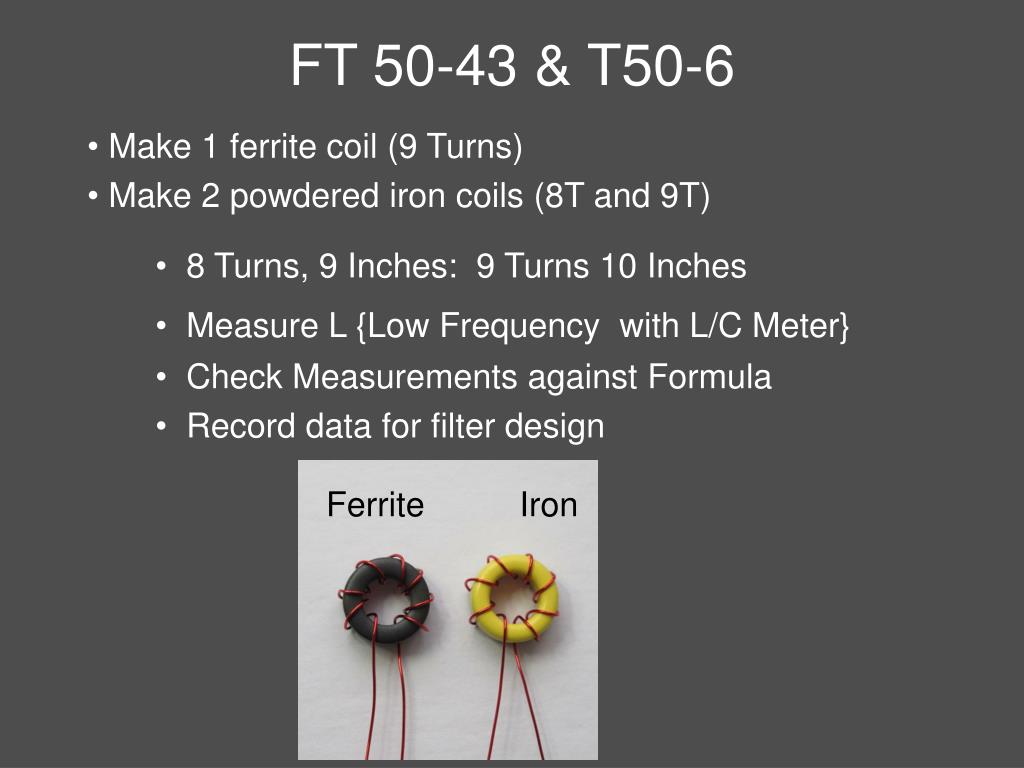

  10. FT 50-43 & T50-6 Make 1 ferrite coil (9 Turns) Make 2 powdered iron coils (8T and 9T) 8 Turns, 9 Inches: 9 Turns 10 Inches Measure L {Low Frequency with L/C Meter} Check Measurements against Formula Record data for filter design Ferrite Iron

  11. End of Session 1 Clockwise Ferrite Iron
