  1. ECE 448: Spring 13 Lab 3 Sequential Logic for Synthesis Simulation using ModelSim

  2. Agenda for today • Part 1: Introduction to Lab 3 • Top-level circuit • LFSR • MISR • Debouncer • Edge Detector • Part 2: Hands-on Session: • Simulation Using ModelSim • Part 3: Demos of Lab 2

  3. Part 1 Introduction to Lab 3 ECE 448 – FPGA and ASIC Design with VHDL

  4. Top-Level Circuit

  5. step run loadA IVA loadB IVB loadA loadB 8 8 OR cnz en en nexti nexti ld ld OR OR LFSR LFSR next clk clk rst rst rst rst clk clk AND not done AND X”00” X”00” 8 8 en CNTR UP next 0 0 1 1 rst rst cnz cnz clk clk 8 8 k 10 A B = X”3FF” 10 k9..8 sel 2 8 done k7..0 LAB2 ≠ 0 En ‘0’ cnz X Y 8 8 en next en next rst rst rst MISR rst MISR clk clk clk clk 8 8 XSGN YSGN

  6. Source of Inputs & Display of Outputs (to be experimentally tested in Lab 4) Used to display XSGN, YSGN Used to enter IVA, IVB Used to generate loadA, loadB, step, run

  7. Connection of Buttons to the Pins of FPGA

  8. Generation of Inputs Using Buttons RESET rst rst rst rst rst rst rst rst BTNL loadA Debouncer RED clk clk clk clk clk clk clk BTNR loadB Debouncer RED BTNU step Debouncer RED rst run rst ‘1’ Q D BTNS en Debouncer RED clk clk RED = Rising Edge Detector

  9. Pseudo-Random Number Generators Implemented Using LFSRs

  10. PRNG • Generates a sequence of numbers that approximates the properties of random numbers. • The sequence is fully deterministic, i.e., it can be repeated based on an initial state of PRNG. • The period of the sequence may be made very large (typically, 2n-1, where n is an internal state size)

  11. PRNG • Random Numbers are often important • Testing of VLSI circuits • Cryptography • Monte Carlo simulations • Noise addition • Bit error detection, and many other applications

  12. Linear Feedback Shift Register (LFSR) Each stage = D flip-flop  L, C(D)  Length Connection polynomial, C(D) C(D) = 1 + c1D + c2D2 + . . . + cLDL

  13. Sj-1 Sj-2 Sj-(L-1) Sj-L Initial state [sL-1, sL-2, . . . , s1, s0] LSFR recursion: sj = c1sj-1 c2sj-2 . . .  cL-1sj-(L-1) cLsj-L for j  L

  14. Example of LFSR  4, 1+D+D4 Length Connection polynomial, C(D) C(D) = 1 + 1D + 0D2 + 0D3 +1D4 c1=1 c2=0 c4=1 c3=0

  15. LFSR State Sequence s4 s3 s2 s1 s0 s4 = c1s3c2s2 c3s1  c4s0 = s3 s0

  16. LFSR to be used in Lab 3  8, 1+D4+D5+D6+D8 Length Connection polynomial, C(D) Selected to make a period = 28-1 = 255

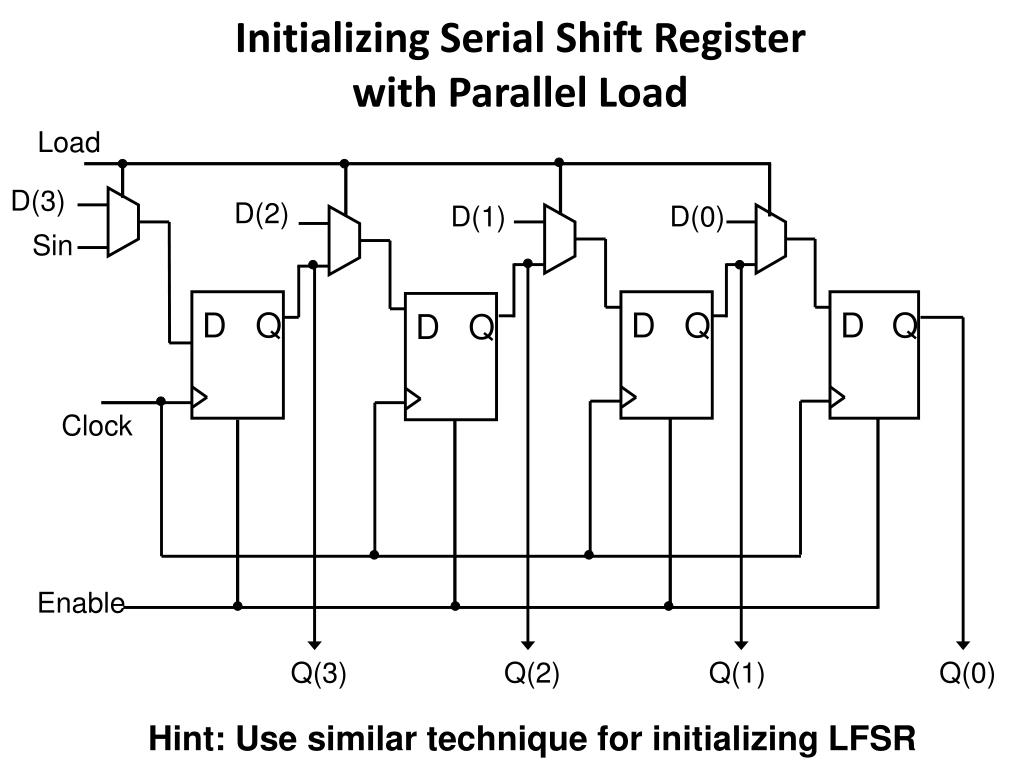

  17. D D D D Q Q Q Q Initializing Serial Shift Register with Parallel Load Load D(3) D(2) D(1) D(0) Sin Clock Enable Q(3) Q(2) Q(1) Q(0) Hint: Use similar technique for initializing LFSR

  18. Multiple Input Signature Register MISR

  19. MISR - Multiple Input Signature Register D7 D6 D5 D4 D3 D2 D1 D0 rst rst rst rst rst rst rst rst rst rst rst rst rst rst rst rst D D D D D D D D Q Q Q Q Q Q Q Q en en en en en en en en en Q7 en Q6 en Q5 en Q4 en Q3 en Q2 en Q1 en Q0 AND AND AND AND AND AND AND AND C7 C6 C5 C4 C3 C2 C1 C0 MISR is used to compress multiple inputs D to a single signature Q C=C7..C0 should be declared as a generic in VHDL code For the purpose of testing set C=X”B8”

  20. Debouncer

  21. Debouncer Capacitance in the button and contacts “bouncing” causes spurs that cause false positives. A debouncing circuit removes these spurs. This graphs shows releasing a button.

  22. Debouncer When the first change is detected, we ignore all subsequent changes for some period of time, preferably until all of the bouncing would have occurred. This is usually in the order of ms.

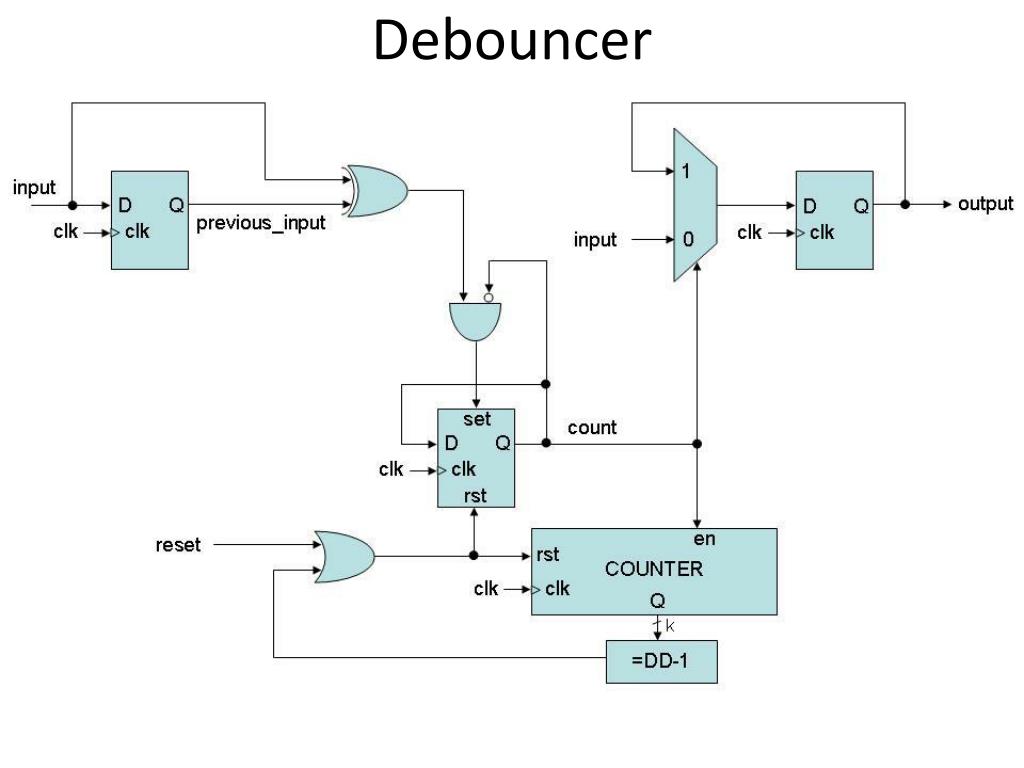

  23. Debouncer Debouncer reset output input clk

  24. Debouncer

  25. Rising Edge Detector RED

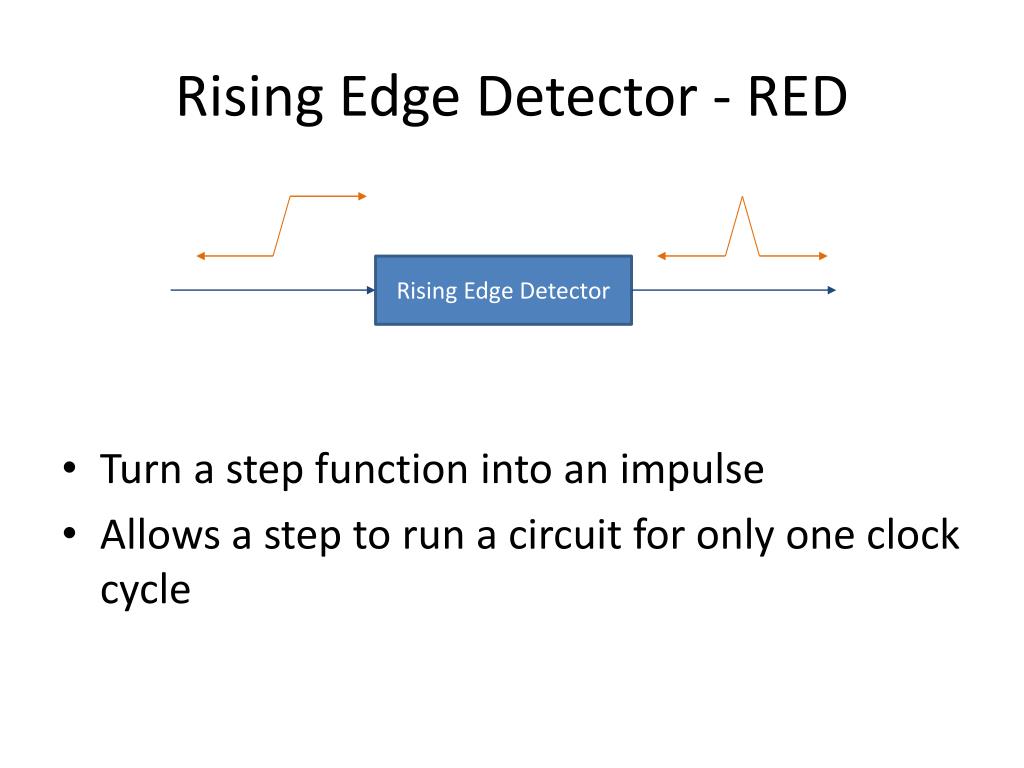

  26. Rising Edge Detector - RED • Turn a step function into an impulse • Allows a step to run a circuit for only one clock cycle Rising Edge Detector

  27. Rising Edge Detector reset rising edge detector input output clk clk input output

  28. Part 2 Hands-on Session Simulation Using ModelSim ECE 448 – FPGA and ASIC Design with VHDL

  29. Hands-on Session on ModelSim using four_bit_counter based on JK flip-flops

  30. Part 3 Lab 2 Demos ECE 448 – FPGA and ASIC Design with VHDL
