  1. ® FSS System Overview PCC Workshop-in-a-Box Module 2

  2. Stand-Alone Mail Prep Overview ACTs Dolly Bundles and flat tubs are prepped into Automation Compatible Trays (ACTs) and then loaded onto Dollies

  3. Dolly Induct Process Dolly Induct Dolly In-Feed Line ACTs

  4. Infeed Line: Automated Feeder • Infeed Line Facts: • 2 Infeed Lines per machine • 2 Feeders per Infeed Line • 3 Flats per Second per Feeder • 6 Flats per Second per Infeed • 12 Flats per second total Automated Feeder

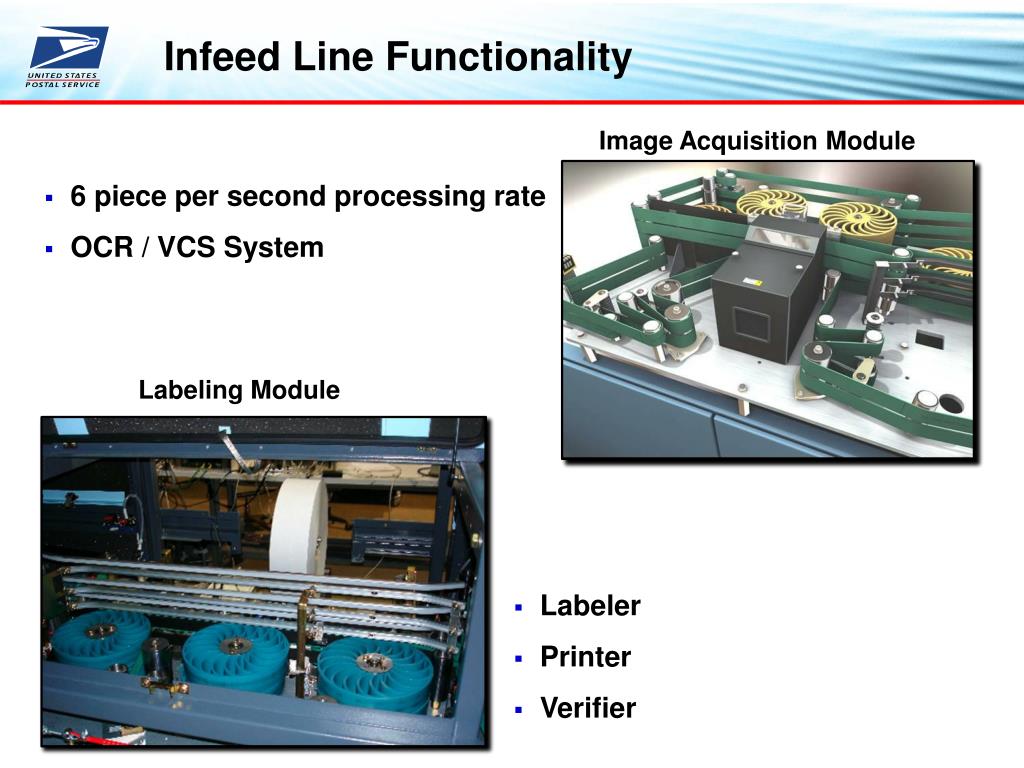

  5. Infeed Line Functionality Image Acquisition Module • 6 piece per second processing rate • OCR / VCS System Labeling Module • Labeler • Printer • Verifier

  6. TOP 2000 Sorter • Sorter Facts: • 2 levels, 2 sides • 360 bins • Automated empty tray supply • Automated tray exchange • Automated full tray takeaway • Rigid Captive Tray (RCT) • Improves stack quality • Maintains mail sequence • Used within FSS only

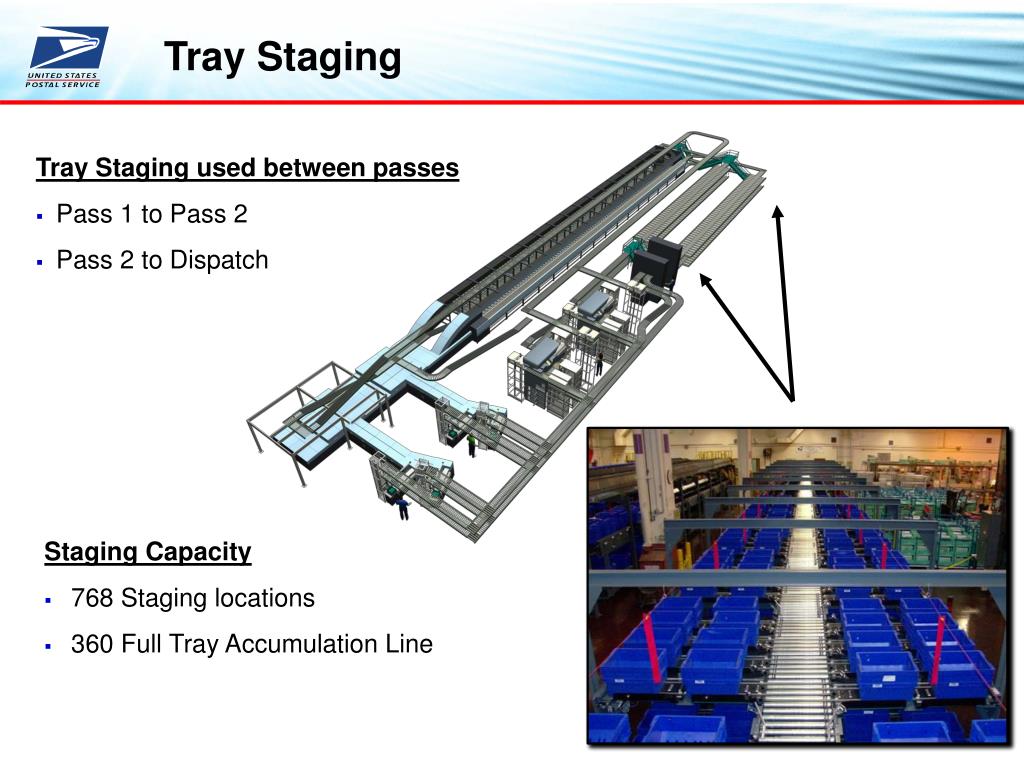

  7. Tray Staging • Tray Staging used between passes • Pass 1 to Pass 2 • Pass 2 to Dispatch • Staging Capacity • 768 Staging locations • 360 Full Tray Accumulation Line

  8. Integrated Tray Converter Automating Second Pass Feeding 1st Pass Mail In RCTs ACTs Integrated Tray Converter (ITC)

  9. Integrated Tray Convert Verticalizing Flats for Dispatch Sequenced Mail In Rigid Trays Street Trays Integrated Tray Converter (ITC)

  10. Tray Labeling and Container Loading Street Trays are loaded automatically into rolling carts Carrier Automated Street Tray Rack (CASTR)

  11. 17 Hour Run Day (Operating Window) 280,500 Sequenced Pieces Per Day Per Machine 1st and 2nd Pass are Run Consecutively Each Zone Will be Run Once a Day One Dispatch Per Day Per Zone (other than FCM) FCM May Not be in DPS based on FSS Operating Window and Mail Availability FSS Processing Strategy

  12. Questions
