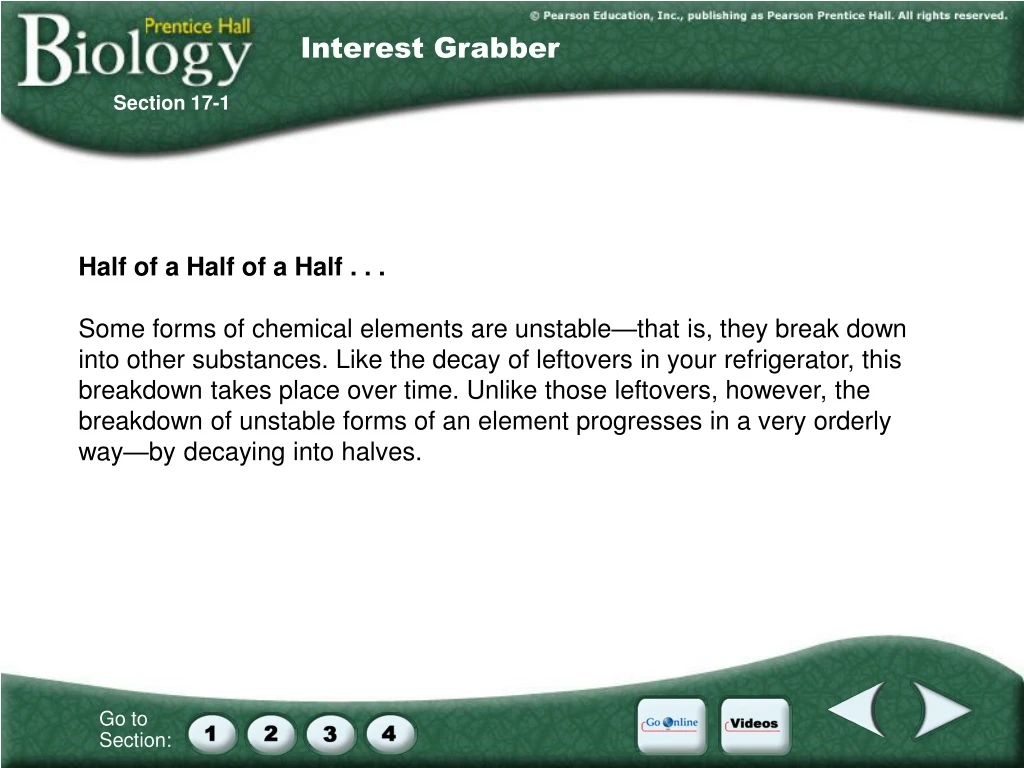

1. Interest Grabber Section 17-1 Half of a Half of a Half . . . • Some forms of chemical elements are unstable—that is, they break down into other substances. Like the decay of leftovers in your refrigerator, this breakdown takes place over time. Unlike those leftovers, however, the breakdown of unstable forms of an element progresses in a very orderly way—by decaying into halves.

2. Interest Grabber continued Section 17-1 • 1. Using your ruler, draw a line 24 cm in length on a sheet of paper. Make a mark at the halfway point (12 cm). • 2. Then, divide this 12-cm segment in half, making a mark at 6 cm. Continue in this way, dividing each progressively smaller segment in half (ignoring all of the other segments) until it becomes too small to accurately measure. • 3. Now count each progressively smaller half-segment. How many segments did you count?

3. Section Outline Section 17-1 • 17–1 The Fossil Record A. Fossils and Ancient Life B. How Fossils Form C. Interpreting Fossil Evidence 1. Relative Dating 2. Radioactive Dating D. Geologic Time Scale 1. Eras 2. Periods

4. Age of fossil with respect to another rock or fossil (that is, older or younger) Age of a fossil in years Comparing depth of a fossil’s source stratum to the position of a reference fossil or rock Determining the relative amounts of a radioactive isotope and nonradioactive isotope in a specimen Imprecision and limitations of age data Difficulty of radioassay laboratory methods Compare/Contrast Table Section 17-1 Comparing Relative and Absolute Dating of Fossils Relative Dating Absolute Dating Can determine Is performed by Drawbacks

5. Figure 17-2 Formation of a Fossil Section 17-1 Water carries small rock particles to lakes and seas. Dead organisms are buried by layers of sediment, which forms new rock. The preserved remains may later be discovered and studied.

6. Figure 17-5 Geologic Time Scale Section 17-1 (millions of years ago) (millions of years ago) Era Period Time (millions of years ago) Era Period Time Era Period Time Permian Carboniferous Devonian Silurian Ordovician Cambrian 290 – 245 360–290 410–360 440–410 505–440 544–505 Quaternary Tertiary Cretaceous Jurassic Triassic 1.8–present 65–1.8 145–65 208–145 245–208 Vendian 650–544

7. Figure 17-5 Geologic Time Scale Section 17-1 (millions of years ago) (millions of years ago) Era Period Time (millions of years ago) Era Period Time Era Period Time Permian Carboniferous Devonian Silurian Ordovician Cambrian 290 – 245 360–290 410–360 440–410 505–440 544–505 Quaternary Tertiary Cretaceous Jurassic Triassic 1.8–present 65–1.8 145–65 208–145 245–208 Vendian 650–544

8. Figure 17-5 Geologic Time Scale Section 17-1 (millions of years ago) (millions of years ago) Era Period Time (millions of years ago) Era Period Time Era Period Time Permian Carboniferous Devonian Silurian Ordovician Cambrian 290 – 245 360–290 410–360 440–410 505–440 544–505 Quaternary Tertiary Cretaceous Jurassic Triassic 1.8–present 65–1.8 145–65 208–145 245–208 Vendian 650–544

9. Interest Grabber Section 17-2 Mystery Detective • Earth is billions of years old. There were not any witnesses to those early years. How, then, can scientists determine the conditions on Earth long before there were any scientists? • Think about how you draw conclusions about occurrences that you did not witness. If you saw the charred remains of a house, for example, you could infer that it burned down.

10. Interest Grabber continued Section 17-2 • 1. On a sheet of paper, list things that you can observe around you that lead you to infer about events you did not see. For example, what do skid marks in the roadway tell you? • 2. Now, think about and list the evidence all around you that scientists might analyze when trying to piece together a history of Earth. How would finding the fossil of a sea animal in the middle of a desert tell a scientist something about the past?

11. Section Outline Section 17-2 • 17–2 Earth’s Early History A. Formation of Earth B. The First Organic Molecules C. How Did Life Begin? 1. Formation of Microspheres 2. Evolution of RNA and DNA D. Free Oxygen E. Origin of Eukaryotic Cells F. Sexual Reproduction and Multicellularity

12. Concept Map Section 17-2 Evolution of Life Early Earth was hot; atmosphere contained poisonous gases. Earth cooled and oceans condensed. Simple organic molecules may have formed in the oceans.. Small sequences of RNA may have formed and replicated. First prokaryotes may have formed when RNA or DNA was enclosed in microspheres. Later prokaryotes were photosynthetic and produced oxygen. An oxygenated atmosphere capped by the ozone layer protected Earth. First eukaryotes may have been communities of prokaryotes. Multicellular eukaryotes evolved. Sexual reproduction increased genetic variability, hastening evolution.

13. Figure 17-8 Miller-Urey Experiment Section 17-2 Mixture of gases simulating atmospheres of early Earth Spark simulating lightning storms Cold water cools chamber, causing droplets to form Condensation chamber Water vapor Liquid containing amino acids and other organic compounds

14. Figure 17-12 Endosymbiotic Theory Section 17-2 Chloroplast Plants and plantlike protists Aerobic bacteria Ancient Prokaryotes Photosynthetic bacteria Nuclear envelope evolving Mitochondrion Primitive Photosynthetic Eukaryote Animals, fungi, and non-plantlike protists Primitive Aerobic Eukaryote Ancient Anaerobic Prokaryote

15. Interest Grabber Section 17-3 Team, Team, Team! • The first living things were unicellular. You, however, are multicellular. Is there an advantage to being multicellular?

16. Interest Grabber continued Section 17-3 • 1. Make a list of at least six different organs in your body, and next to each, write the main function of that organ. • 2. Now, examine your list. Do any main functions overlap? Do two or more organs do exactly the same thing? • 3. Use your list to jog your memory, and write down the functions that must be performed by a unicellular organism. For example, you may have written that your nerves help you sense your environment. Doesn’t a cell need to sense its environment, too?

17. Section Outline Section 17-3 • 17–3 Evolution of Multicellular Life A. Precambrian Time B. Paleozoic Era 1. Cambrian Period 2. Ordovician and Silurian Periods 3. Devonian Period 4. Carboniferous and Permian Periods C. Mesozoic Era 1. Triassic Period 2. Jurassic Period 3. Cretaceous Period D. Cenozoic Era 1. Tertiary Period 2. Quaternary Period

18. Geologic Time Scale with Key Events Section 17-3 (millions of years ago) Era Period Time Key Events Cenozoic Mesozoic Paleozoic Precambrian Time Quaternary Tertiary Cretaceous Jurassic Triassic Permian Carboniferous Devonian Silurian Ordovician Cambrian 1.8–present 65–1.8 145–65 208–145 245–208 290–245 363–290 410–363 440–410 505–440 544–505 650–544 Glaciations; mammals increased; humans Mammals diversified; grasses Aquatic reptiles diversified; flowering plants; mass extinction Dinosaurs diversified; birds Dinosaurs; small mammals; cone-bearing plants Reptiles diversified; seed plants; mass extinction Reptiles; winged insects diversified; coal swamps Fishes diversified; land vertebrates (primitive amphibians) Land plants; land animals (arthropods) Aquatic arthropods; mollusks; vertebrates (jawless fishes) Marine invertebrates diversified; most animal phyla evolved Anaerobic, then photosynthetic prokaryotes; eukaryotes, then multicellular life

19. Interest Grabber Section 17-4 Birds of a Feather • Darwin was surprised by the number of similar but not identical species that he observed. Look around you–can you make the same observation?

20. Interest Grabber continued Section 17-4 • 1. Choose a type of animal in your area that is represented by several species, such as songbirds. • 2. Make a list of examples of this type of animal. If you don’t know the name of an animal, write a brief description instead. • 3. Count the number of different examples you have identified. Then, write down characteristics found in all of the examples. Do the examples in your list seem to be more closely related to each other or to other types of animals?

21. Section Outline Section 17-4 • 17–4 Patterns of Evolution A. Extinction B. Adaptive Radiation C. Convergent Evolution D. Coevolution E. Punctuated Equilibrium F. Developmental Genes and Body Plans

22. Unrelated Related Intense environmental pressure Similar environments Inter-relationshiops Small populations Different environments Convergent evolution Punctuated equilibrium Adaptive radiation Coevolution Extinction Flowchart Section 17-4 Species that are form in under under in in can undergo can undergo can undergo can undergo can undergo

23. Videos Video Contents • Click a hyperlink to choose a video. • Geologic Time • Evolution of Cells

24. Video 1 Geologic Time Video 1 • Click the image to play the video segment.

25. Video 2 Evolution of Cells Video 2 • Click the image to play the video segment.

26. Go Online Internet • Career links on fossil preparators • Interactive test • For links on the fossil record, go to www.SciLinks.org and enter the Web Code as follows: cbn-5171. • For links on eukaryotic cells, go to www.SciLinks.org and enter the Web Code as follows: cbn-5172. • For links on extinction, go to www.SciLinks.org and enter the Web Code as follows: cbn-5174.

27. Interest Grabber Answers Section 1 Answers • 1. Using your ruler, draw a line 24 cm in length on a sheet of paper. Make a mark at the halfway point (12 cm). • 2. Then, divide this 12-cm segment in half, making a mark at 6 cm. Continue in this way, dividing each progressively smaller segment in half (ignoring all of the other segments) until it becomes too small to accurately measure. • 3. Now count each progressively smaller half-segment. How many segments did you count? • Student answers will vary. Have students retain their paper and refer to it when the half-life of radioactive isotopes is discussed.

28. Interest Grabber Answers Section 2 Answers • 1. On a sheet of paper, list things that you can observe around you that lead you to infer about events you did not see. For example, what do skid marks in the roadway tell you? • Students’ lists will vary. Remind those having trouble that they can list everyday events, such as finding a half-eaten pizza in their refrigerator. Skid marks tell you that a car stopped or started very quickly. • 2. Now, think about and list the evidence all around you that scientists might analyze when trying to piece together a history of Earth. How would finding the fossil of a sea animal in the middle of a desert tell a scientist something about the past? • Students may say that a trained observer can see the remains of a past event, and some may know that geology provides many clues to Earth’s past. For example, finding a fossil of a fish in a desert would indicate that the area had once been under water.
