Sparse Matrix Computations

stash avatar
stash
25 diapositives · 506 Views · Jul 27, 2014

Sparse Matrix Computations. CSCI 317 Mike Heroux. Matrices. Matrix (defn): (not rigorous) An m -by- n , 2 dimensional array of numbers. Examples: . 1.0 2.0 1.5 A = 2.0 3.0 2.5 1.5 2.5 5.0. a 11 a 12 a 13 A = a 21 a 22 a 23 a 31 a 32 a 33. Sparse Matrices.

Sparse Matrix Computations - slide 1
01 / 25Sparse Matrix Computations
1 / 17

Télécharger la présentation

Sparse Matrix Computations
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Sparse Matrix Computations CSCI 317 Mike Heroux CSCI 317 Mike Heroux

  2. Matrices • Matrix (defn): (not rigorous) An m-by-n, 2 dimensional array of numbers. • Examples: 1.0 2.0 1.5 A = 2.0 3.0 2.5 1.5 2.5 5.0 a11a12a13 A = a21a22a23 a31a32a33 CSCI 317 Mike Heroux

  3. Sparse Matrices • Sparse Matrix (defn): (not rigorous) An m-by-n matrix with enough zero entries that it makes sense to keep track of what is zero and nonzero. • Example: a11a120 0 0 0 a21a22a23 0 0 0 A = 0 a32a33 a34 0 0 0 0 a43 a44a45 0 0 0 0 a54a55a56 0 0 0 0 a65a66 CSCI 317 Mike Heroux

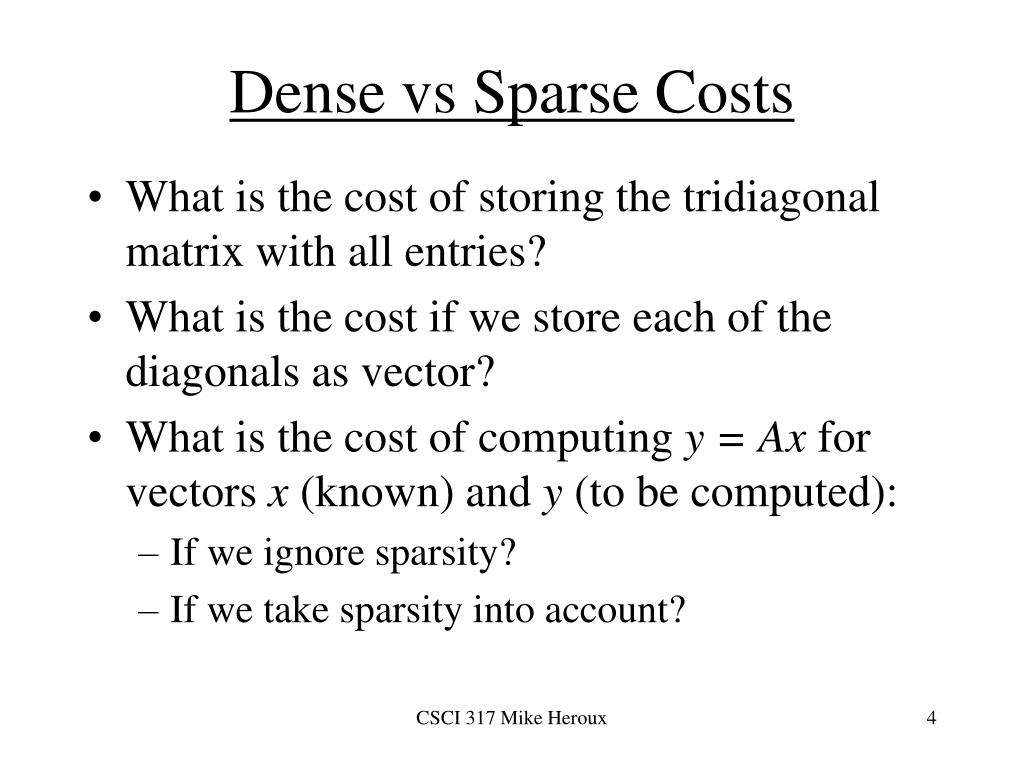

  4. Dense vs Sparse Costs • What is the cost of storing the tridiagonal matrix with all entries? • What is the cost if we store each of the diagonals as vector? • What is the cost of computing y = Ax for vectors x (known) and y (to be computed): • If we ignore sparsity? • If we take sparsity into account? CSCI 317 Mike Heroux

  5. Origins of Sparse Matrices • In practice, most large matrices are sparse. Specific sources: • Differential equations. • Encompasses the vast majority of scientific and engineering simulation. • E.g., structural mechanics. • F = ma. Car crash simulation. • Stochastic processes. • Matrices describe probability distribution functions. • Networks. • Electrical and telecommunications networks. • Matrix element aij is nonzero if there is a wire connecting point i to point j. • And more… CSCI 317 Mike Heroux

  6. Example: 1D Heat Equation (Laplace Equation) • The one-dimensional, steady-state heat equation on the interval [0,1] is as follows: • The solution u(x), to this equation describes the distribution of heat on a wire with temperature equal to a and b at the left and right endpoints, respectively, of the wire. CSCI 317 Mike Heroux

  7. Finite Difference Approximation • The following formula provides an approximation of u”(x) in terms of u: • For example if we want to approximate u”(0.5) with h = 0.25: CSCI 317 Mike Heroux

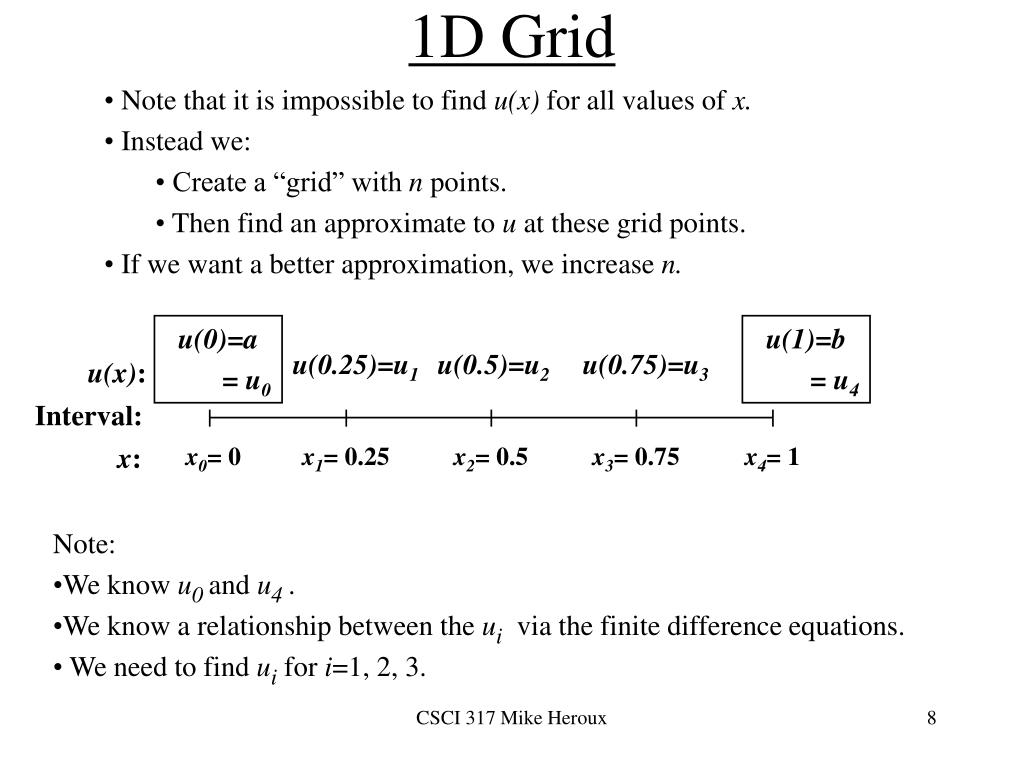

  8. 1D Grid • Note that it is impossible to find u(x) for all values of x. • Instead we: • Create a “grid” with n points. • Then find an approximate to u at these grid points. • If we want a better approximation, we increase n. u(0)=a = u0 u(1)=b = u4 u(0.25)=u1 u(0.5)=u2 u(0.75)=u3 u(x): Interval: x: x0= 0 x1= 0.25 x2= 0.5 x3= 0.75 x4= 1 Note: • We know u0 and u4 . • We know a relationship between the ui via the finite difference equations. • We need to find uifor i=1, 2, 3. CSCI 317 Mike Heroux

  9. What We Know CSCI 317 Mike Heroux

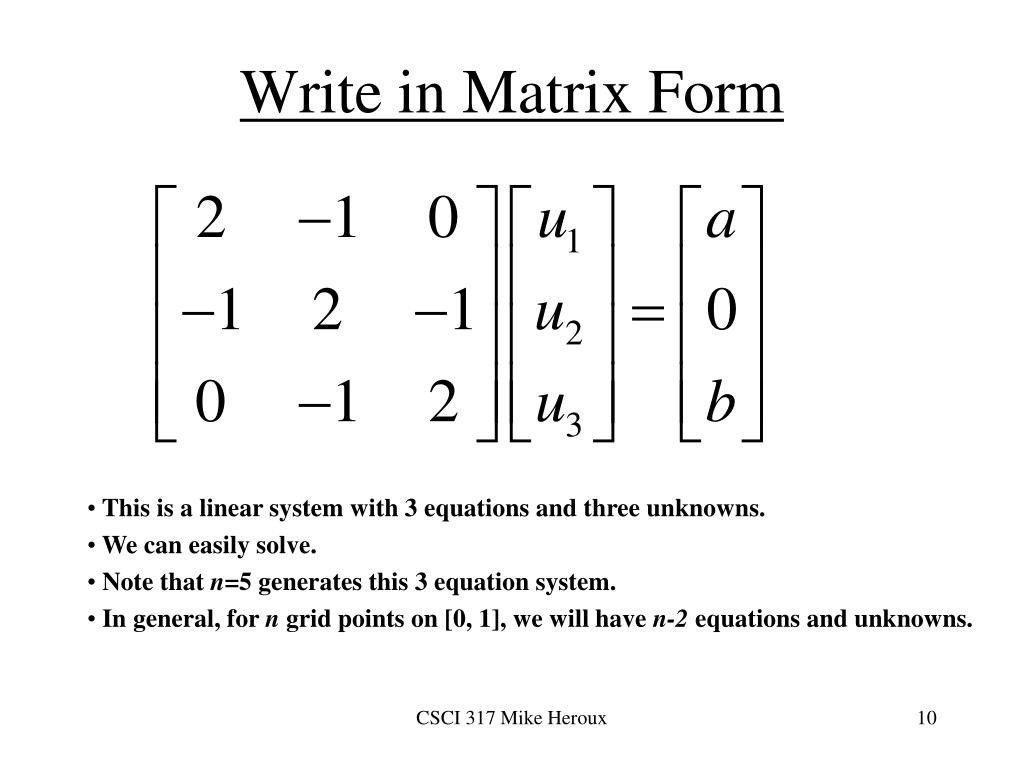

  10. Write in Matrix Form This is a linear system with 3 equations and three unknowns. We can easily solve. Note that n=5 generates this 3 equation system. In general, for n grid points on [0, 1], we will have n-2 equations and unknowns. CSCI 317 Mike Heroux

  11. General Form of 1D Finite Difference Matrix CSCI 317 Mike Heroux

  12. A View of More Realistic Problems • The previous example is very simple. • But basic principles apply to more complex problems. • Finite difference approximations exist for any differential equation. • Leads to far more complex matrix patterns. • For example… CSCI 317 Mike Heroux

  13. “Tapir” Matrix (John Gilbert) CSCI 317 Mike Heroux

  14. Corresponding Mesh CSCI 317 Mike Heroux

  15. Sparse Linear Systems:Problem Definition • A frequent requirement for scientific and engineering computing is to solve: Ax = b where A is a known large (sparse) matrix a linear operator, b is a known vector, x is an unknown vector. NOTE:We are using x differently than before. Previous x: Points in the interval [0, 1]. New x: Vector of u values. • Goal: Find x. • Method: We will look at two different methods: Jacobi and Gauss-Seidel. CSCI 317 Mike Heroux

  16. Iterative Methods • Given an initial guess for x, called x(0), (x(0) = 0 is acceptable) compute a sequence x(k), k = 1,2, … such that each x(k) is “closer” to x. • Definition of “close”: • Suppose x(k) = x exactly for some value of k. • Then r(k) = b – Ax(k) = 0 (the vector of all zeros). • And norm(r(k)) = sqrt(<r(k), r(k)>) = 0 (a number). • For any x(k), let r(k) = b – Ax(k) • If norm(r(k)) = sqrt(<r(k), r(k)>) is small (< 1.0E-6 say) then we say that x(k) is close to x. • The vector r is called the residual vector. CSCI 317 Mike Heroux

  17. linear operator applications vector-vector operations Scalar operations scalar product <x,y> defined by vector space Linear Conjugate Gradient Methods Types of operations Types of objects Linear Conjugate Gradient Algorithm CSCI 317 Mike Heroux

  18. General Sparse Matrix • Example: a110 0 0 0 a16 0 a22a23 0 0 0 A = 0 a32a33 0 a35 0 0 0 0 a440 0 0 0 a53 0 a55a56 a61 0 0 0 a65a66 CSCI 317 Mike Heroux

  19. Compressed Row Storage (CRS) Format Idea: • Create 3 length m arrays of pointers 1 length m array of ints : double ** values = new double *[m]; double ** diagonals = new double*[m]; int ** indices = new int*[m]; int * numEntries = new int[m]; CSCI 317 Mike Heroux

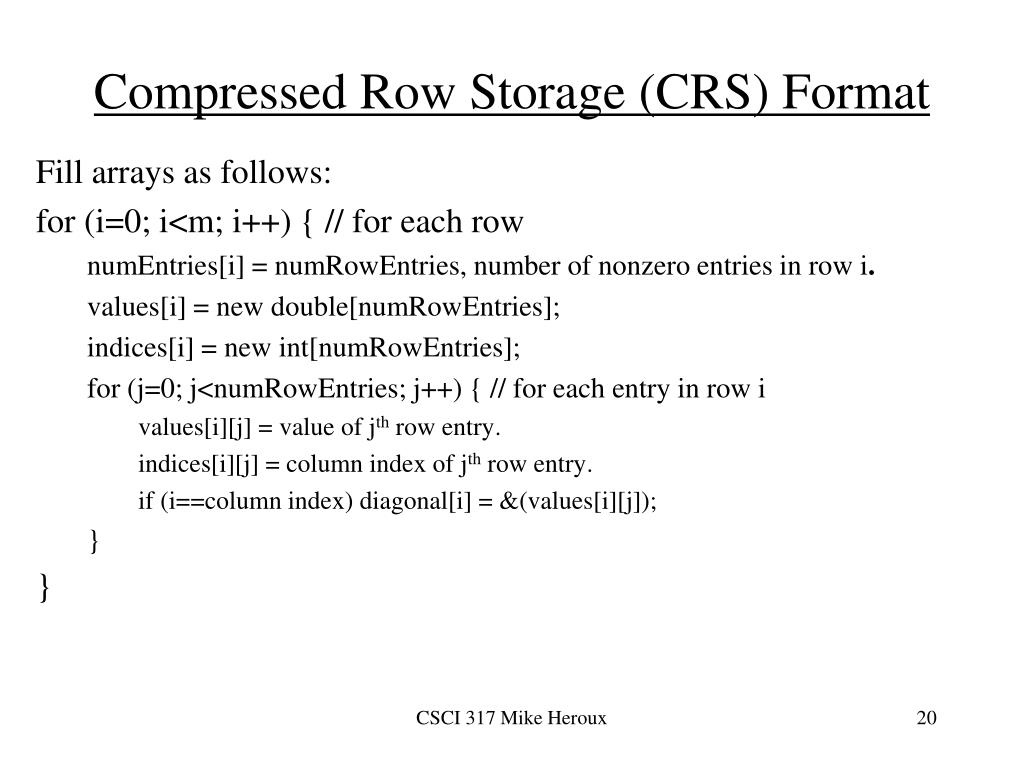

  20. Compressed Row Storage (CRS) Format Fill arrays as follows: for (i=0; i<m; i++) { // for each row numEntries[i] = numRowEntries, number of nonzero entries in row i. values[i] = new double[numRowEntries]; indices[i] = new int[numRowEntries]; for (j=0; j<numRowEntries; j++) { // for each entry in row i values[i][j] = value of jth row entry. indices[i][j] = column index of jth row entry. if (i==column index) diagonal[i] = &(values[i][j]); } } CSCI 317 Mike Heroux

  21. CRS Example (diagonal omitted) CSCI 317 Mike Heroux

  22. Matrix, Scalar-Matrix andMatrix-Vector Operations • Given vectors w, x and y, scalars alpha and beta and matrices A and B we define: • matrix trace: • alpha = tr(A)α= a11 + a22 + ...+ ann • matrix scaling: • B = alpha * Abij = α aij • matrix-vector multiplication (with update): • w = alpha * A * x + beta * y wi = α(ai1 x1 + ai2 x2 + ...+ ainxn) + βyi CSCI 317 Mike Heroux

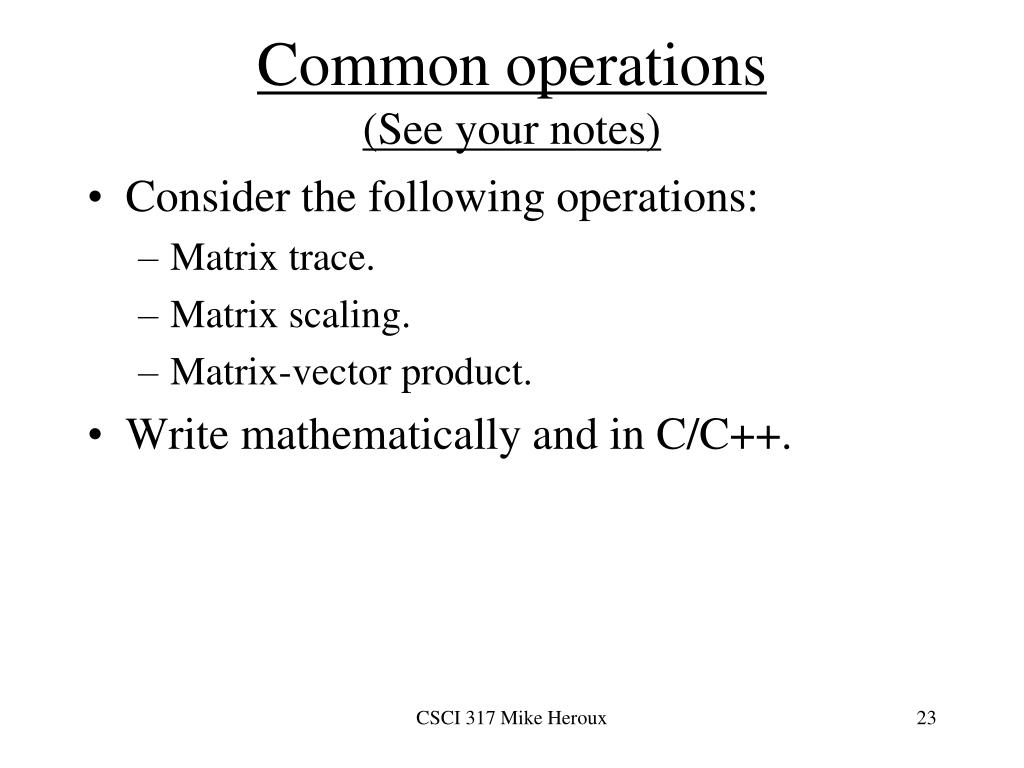

  23. Common operations (See your notes) • Consider the following operations: • Matrix trace. • Matrix scaling. • Matrix-vector product. • Write mathematically and in C/C++. CSCI 317 Mike Heroux

  24. Complexity • (arithmetic) complexity (defn) The total number of arithmetic operations performed using a given algorithm. • Often a function of one or more parameters. • parallel complexity(defn) The number parallel operations performed assuming an infinite number of processors. CSCI 317 Mike Heroux

  25. Complexity Examples (See your notes) • What is the complexity of: • Sparse Matrix trace? • Sparse Matrix scaling. • Sparse Matrix-vector product? • What is the parallel complexity of these operations? CSCI 317 Mike Heroux
