  1. Design of a 32-Bit Hybrid Prefix-Carry Look-Ahead Adder By Sulabh Vidyarthi

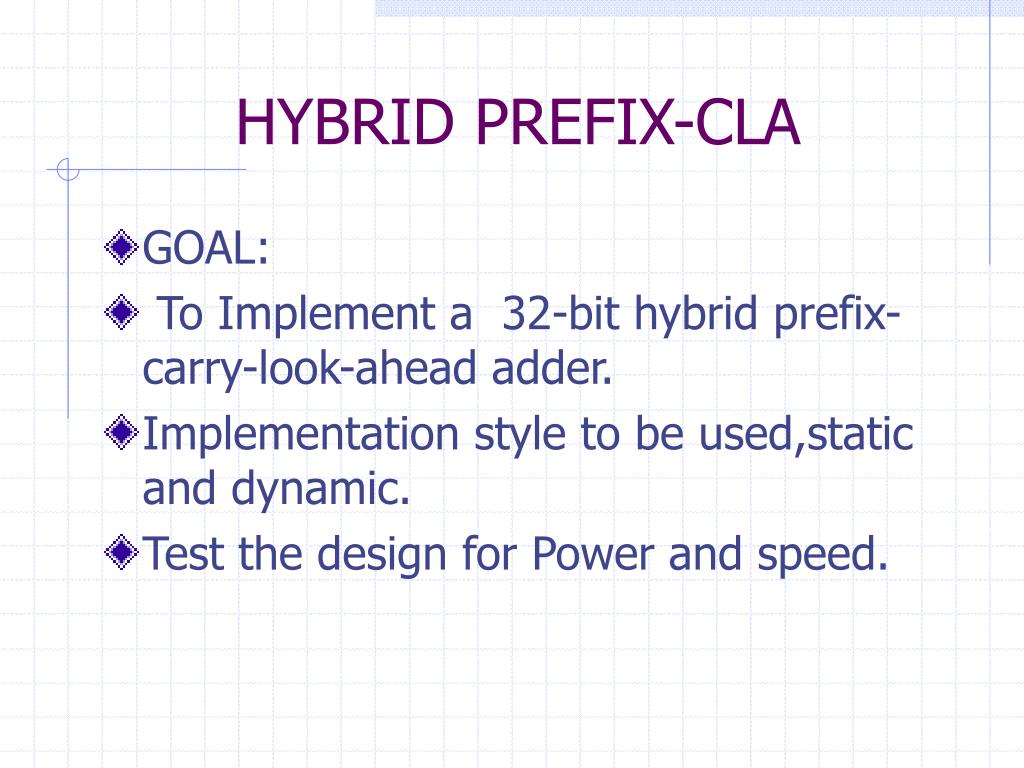

  2. HYBRID PREFIX-CLA • GOAL: • To Implement a 32-bit hybrid prefix-carry-look-ahead adder. • Implementation style to be used,static and dynamic. • Test the design for Power and speed.

  3. BACKGROUND • Parallel Prefix Adders(PPA): • Carry operator “O” on (g,p) signal pairs where, g=g”+p”g’ p=p’p” Operator “O” is associative => [(g”’,P”’) O(g”,p”)]O(g’,p’)=(g”’,p”’)O[(g”,p”)O(g’,p’)] g’,p’ g”,p” “O” g,p

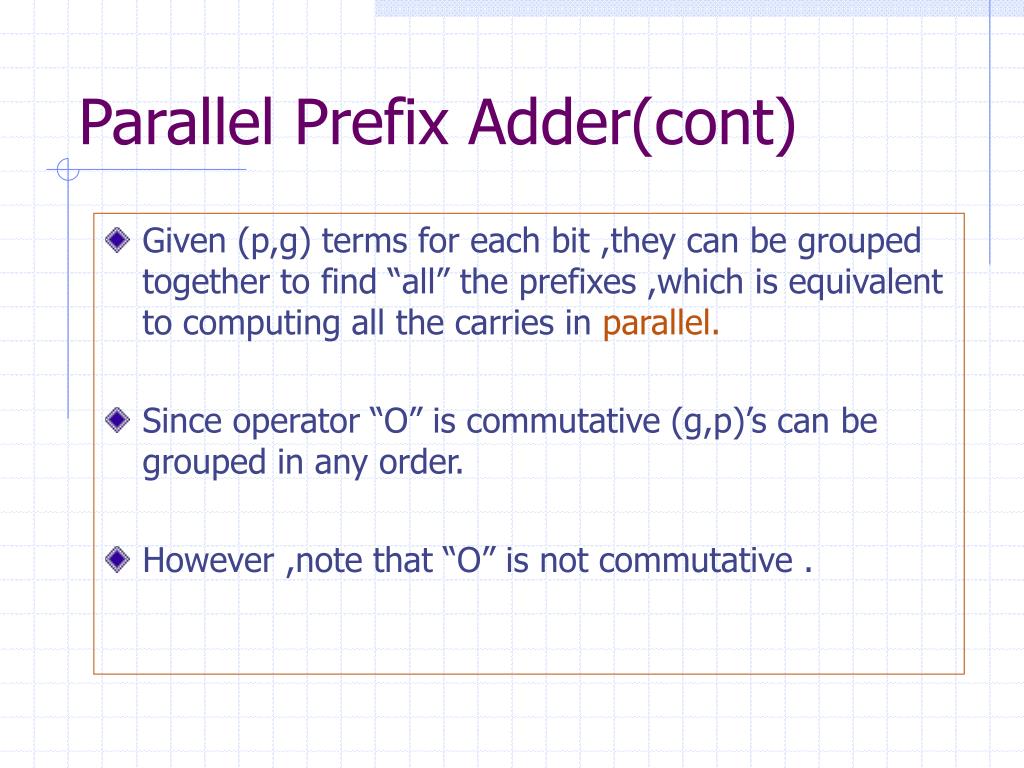

  4. Parallel Prefix Adder(cont) • Given (p,g) terms for each bit ,they can be grouped together to find “all” the prefixes ,which is equivalent to computing all the carries in parallel. • Since operator “O” is commutative (g,p)’s can be grouped in any order. • However ,note that “O” is not commutative .

  5. Conventional Prefix Adder(Brent-kung Adder)

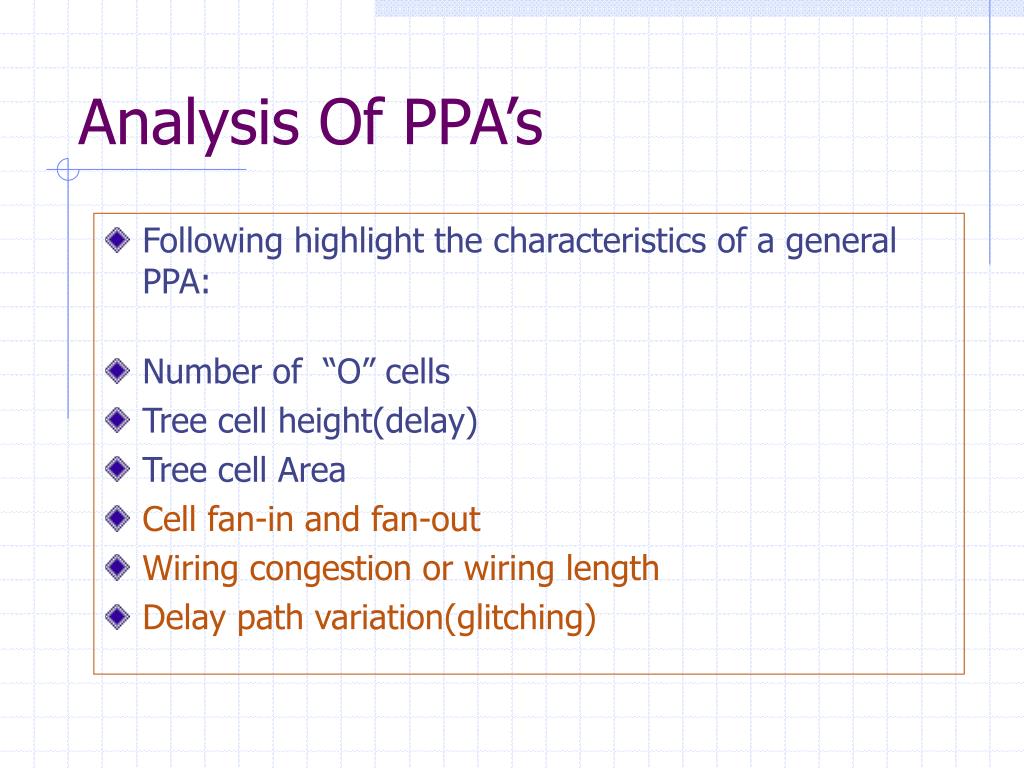

  6. Analysis Of PPA’s • Following highlight the characteristics of a general PPA: • Number of “O” cells • Tree cell height(delay) • Tree cell Area • Cell fan-in and fan-out • Wiring congestion or wiring length • Delay path variation(glitching)

  7. Hybrid Prefix Carry Look-Ahead • Use of 4-bit Carry-look-ahead blocks to group g’s and p’s. • Reduces the fan-in and fan-out of any operator “o” block to 2,which in turn reduces input capacitance and as a result faster carry propagation path. • The wiring overhead is greatly reduced,which is very important at deep sub-micron levels as it reduces wiring capacitance and thus low power dissipation. • Balanced Delay path (don’t want glitching).

  8. HYBRID PREFIX-CLA(cont)

  9. Analysis of Design • L1: g,p generation using inputs A and B • L2:Grouping of g and p to generate group carry G and P( G0 G4---G28,P0 P4---P28) • L3:Using Operator “O” on the group G and P to generate Gr4 and Pr4 eg:Gr4=G4+P4.G0,Pr4=P0P4 • L4: Carry generator.eg C4=Gr4+Pr4.C0 • L5:Sum generation using 4-bit carry look-ahead generator

  10. Analysis(cont) Delay Analysis: • L1(1T) + L2(3T) + L3(2T) + L4(2T)+L5(2T)=10T • The critical path is through L1-L4 + One CLA Adder unit in L5. • T=one gate delay

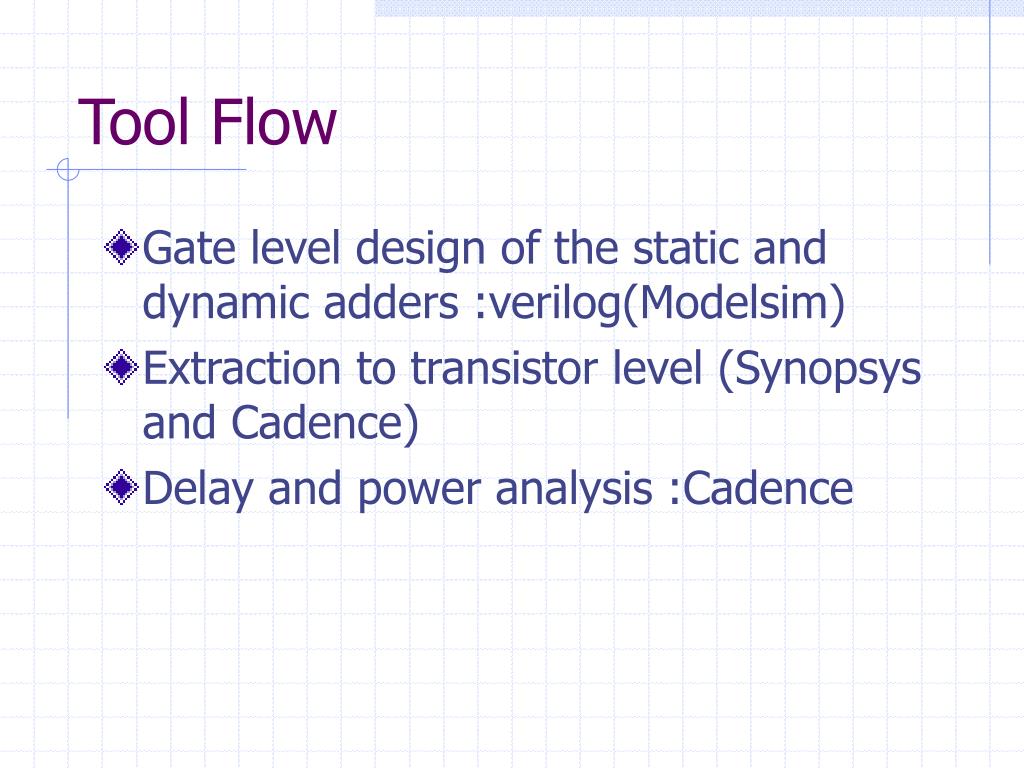

  11. Tool Flow • Gate level design of the static and dynamic adders :verilog(Modelsim) • Extraction to transistor level (Synopsys and Cadence) • Delay and power analysis :Cadence

  12. Result Worst case delay and power estimate

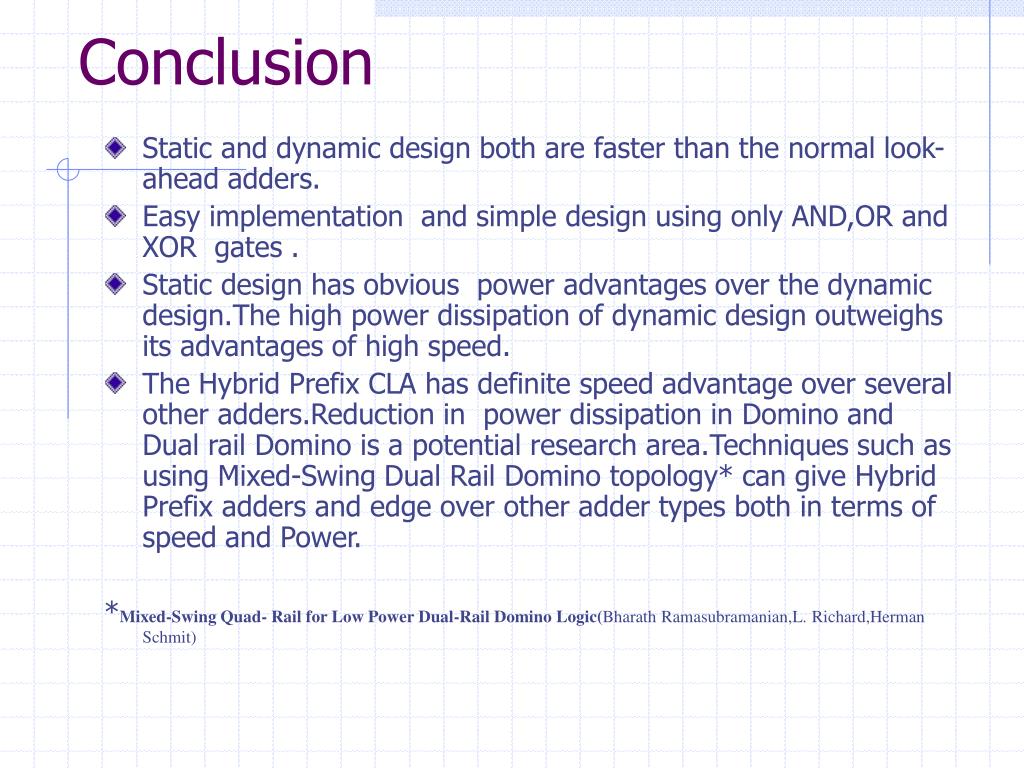

  13. Conclusion • Static and dynamic design both are faster than the normal look-ahead adders. • Easy implementation and simple design using only AND,OR and XOR gates . • Static design has obvious power advantages over the dynamic design.The high power dissipation of dynamic design outweighs its advantages of high speed. • The Hybrid Prefix CLA has definite speed advantage over several other adders.Reduction in power dissipation in Domino and Dual rail Domino is a potential research area.Techniques such as using Mixed-Swing Dual Rail Domino topology* can give Hybrid Prefix adders and edge over other adder types both in terms of speed and Power. *Mixed-Swing Quad- Rail for Low Power Dual-Rail Domino Logic(Bharath Ramasubramanian,L. Richard,Herman Schmit)

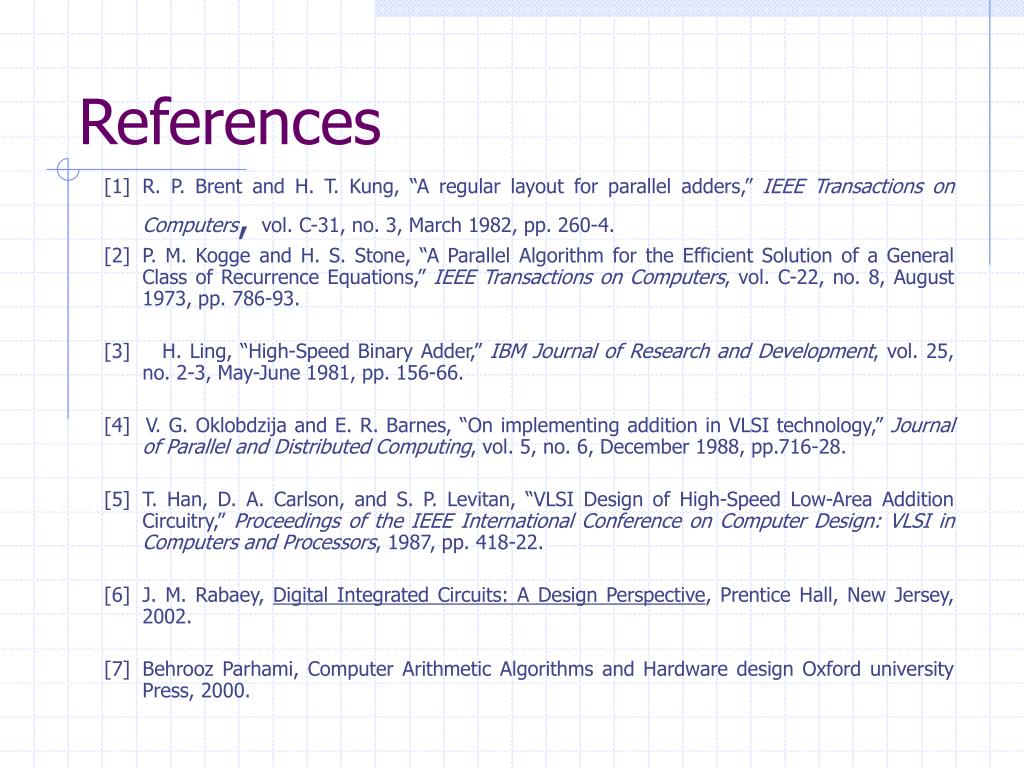

  14. References [1] R. P. Brent and H. T. Kung, “A regular layout for parallel adders,” IEEE Transactions on Computers, vol. C-31, no. 3, March 1982, pp. 260-4. [2] P. M. Kogge and H. S. Stone, “A Parallel Algorithm for the Efficient Solution of a General Class of Recurrence Equations,” IEEE Transactions on Computers, vol. C-22, no. 8, August 1973, pp. 786-93. [3] H. Ling, “High-Speed Binary Adder,” IBM Journal of Research and Development, vol. 25, no. 2-3, May-June 1981, pp. 156-66. [4] V. G. Oklobdzija and E. R. Barnes, “On implementing addition in VLSI technology,” Journal of Parallel and Distributed Computing, vol. 5, no. 6, December 1988, pp.716-28. [5] T. Han, D. A. Carlson, and S. P. Levitan, “VLSI Design of High-Speed Low-Area Addition Circuitry,” Proceedings of the IEEE International Conference on Computer Design: VLSI in Computers and Processors, 1987, pp. 418-22. [6] J. M. Rabaey, Digital Integrated Circuits: A Design Perspective, Prentice Hall, New Jersey, 2002. [7] Behrooz Parhami, Computer Arithmetic Algorithms and Hardware design Oxford university Press, 2000.
