Analysis of Class A Power Amplifier Characteristics

Dec 31, 2025

10 likes | 120 Vues

This document provides a detailed analysis of a Class A power amplifier using a given schematic. With a base-emitter voltage (VBE) of 0.7V, and resistances RB = 1kΩ and RE = 10Ω, we will determine the quiescent output voltage (VCEQ) and current (ICQ). Additionally, it includes the sketching of direct current (DC) and alternating current (AC) load lines, as well as calculating the maximum output compliance for the amplifier to understand its operational limits.

sumi

Télécharger la présentation

Analysis of Class A Power Amplifier Characteristics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

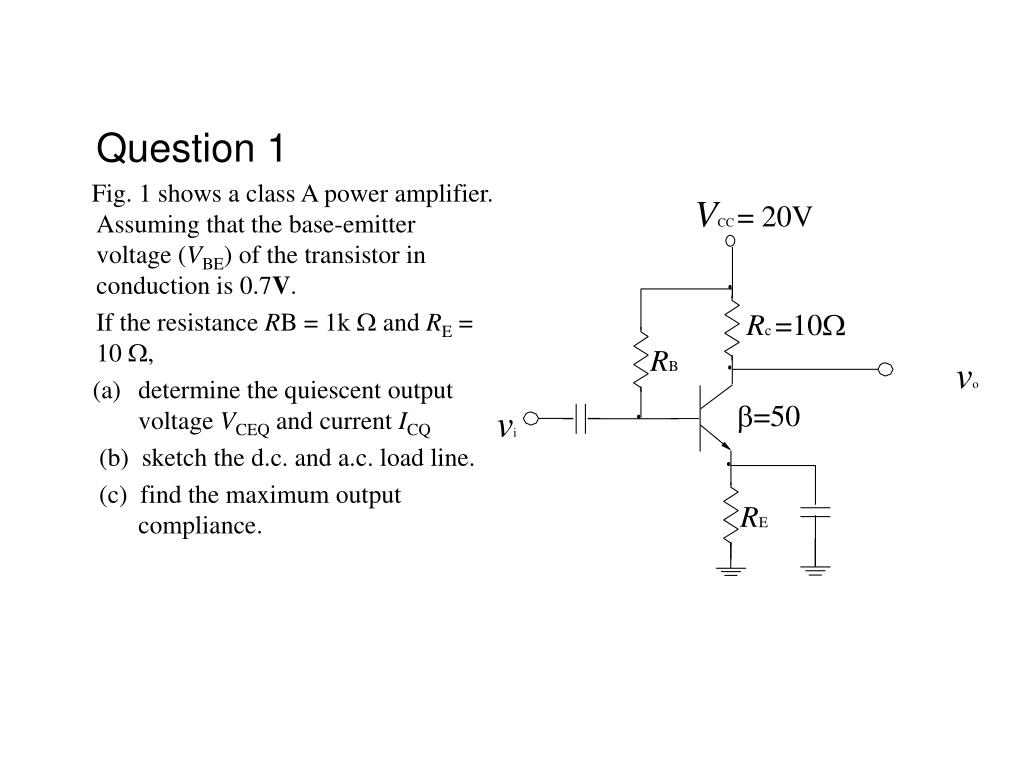

Question 1 Fig. 1 shows a class A power amplifier. Assuming that the base-emitter voltage (VBE) of the transistor in conduction is 0.7V. If the resistance RB = 1k  and RE = 10 , (a) determine the quiescent output voltage VCEQ and current ICQ (b) sketch the d.c. and a.c. load line. (c) find the maximum output compliance.
