  1. Chapter 16 Introduction to Ajax

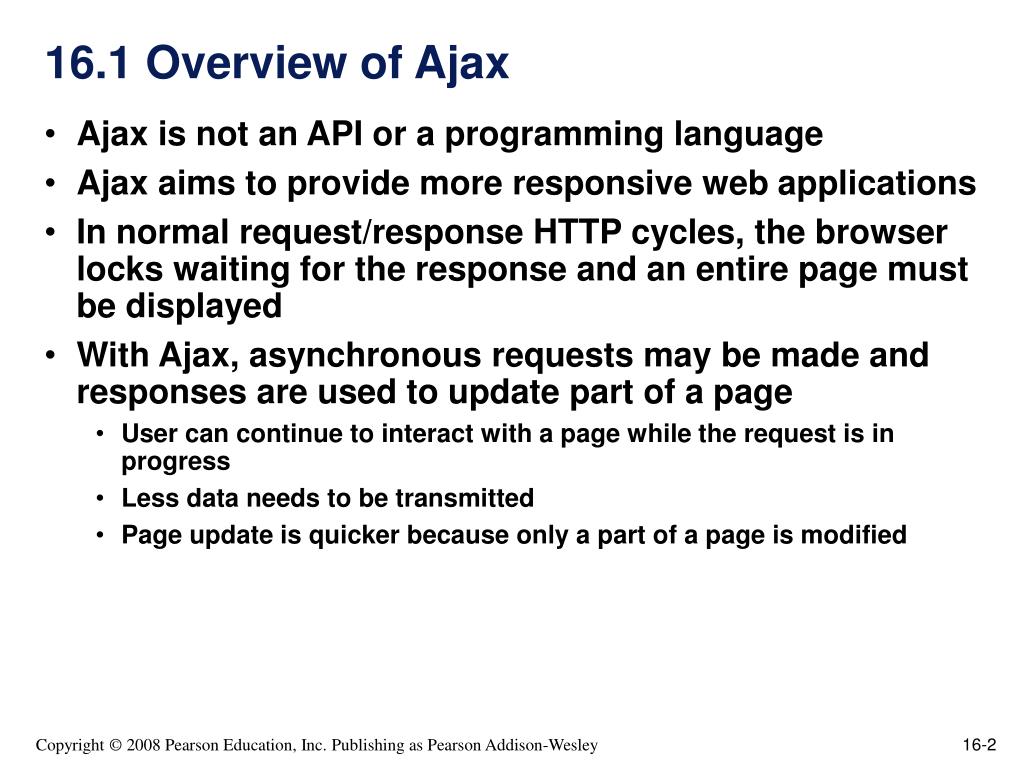

  2. 16.1 Overview of Ajax • Ajax is not an API or a programming language • Ajax aims to provide more responsive web applications • In normal request/response HTTP cycles, the browser locks waiting for the response and an entire page must be displayed • With Ajax, asynchronous requests may be made and responses are used to update part of a page • User can continue to interact with a page while the request is in progress • Less data needs to be transmitted • Page update is quicker because only a part of a page is modified

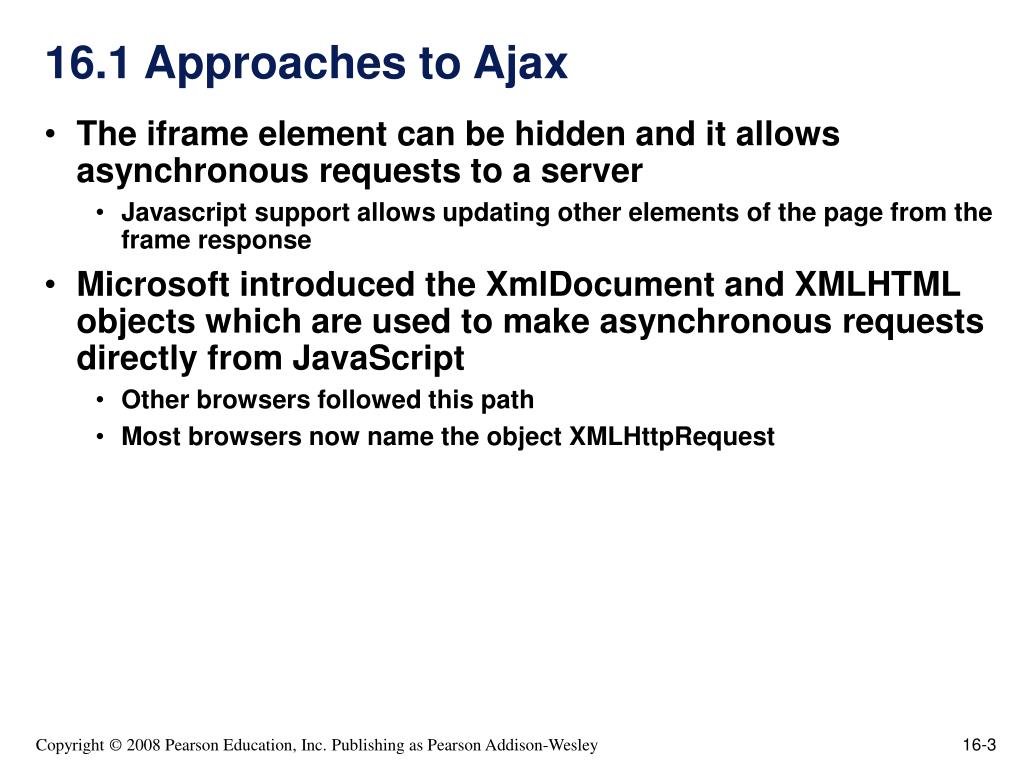

  3. 16.1 Approaches to Ajax • The iframe element can be hidden and it allows asynchronous requests to a server • Javascript support allows updating other elements of the page from the frame response • Microsoft introduced the XmlDocument and XMLHTML objects which are used to make asynchronous requests directly from JavaScript • Other browsers followed this path • Most browsers now name the object XMLHttpRequest

  4. 16.2 The Application • The example application uses the customer information part of the popcorn application • As the user enters the zip code information, a request for the corresponding city and state will be made to the server • If successful, the information will be filled in the text widgets

  5. 16.2 The Form Document • The trigger for the request is a blur event on the zip code widget • this.value is used by the handler to get the zip code value entered • All relevant widgets have the id attribute set for easy access in the JavaScript

  6. 16.2 The Request Phase • Two functions • blur event handler • Response processor • An XMLHttpRequest object is used to create the request • A callback is a function called when a response is received • Function receivePlace is the callback • The function name is assigned to a property of XMLHttpRequest • The open method sets up the request • Method parameter, either “GET” or “POST” • URL parameter with zip code in the URL • A parameter signifying asynchronous or not • The send method sends the request • The getPlace method implements this

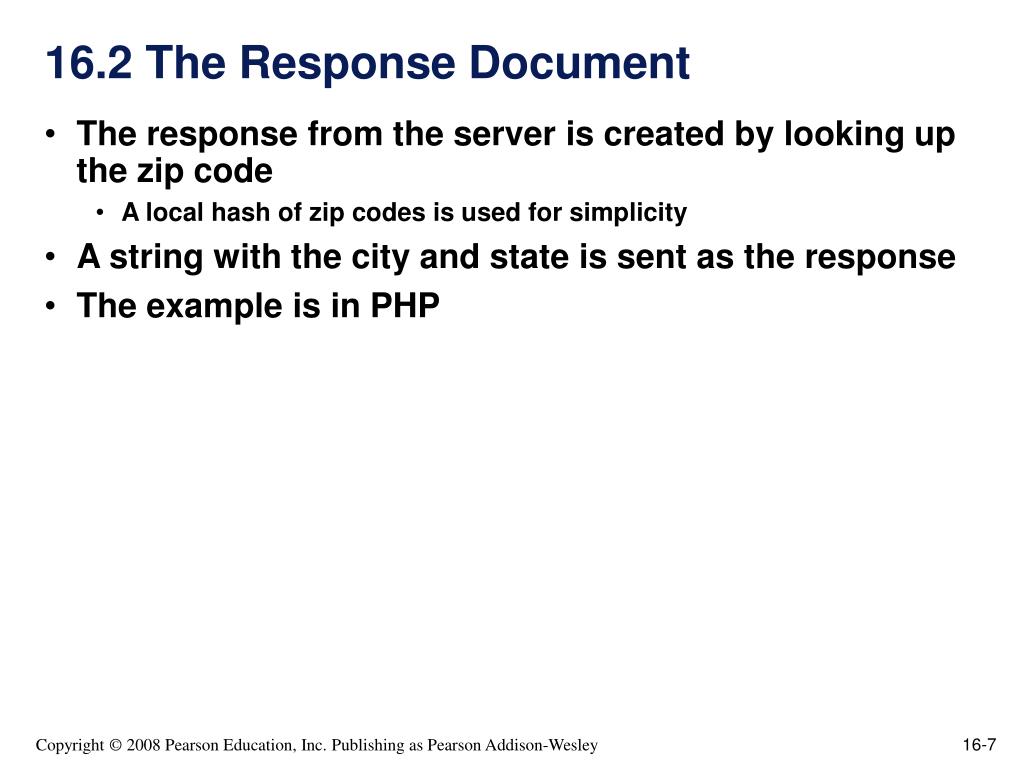

  7. 16.2 The Response Document • The response from the server is created by looking up the zip code • A local hash of zip codes is used for simplicity • A string with the city and state is sent as the response • The example is in PHP

  8. 16.2 The Receiver Phase • The function that parses the response must have access to the XMLHttpRequest object • This cannot be global since there may be multiple outstanding requests at any time • The callback becomes an anonymous function which is defined in the getPlace method and keeps references to the XMLHttpRequest object held in a local variable • The response handler only acts if the readyState is 4, meaning the response is complete

  9. 16.2 Cross-Browser Support • Older Microsoft browsers uses a different approach to getting the request object • Testing the existence of window.XMLHttpRequest differentiates the browsers • In the older browsers new ActiveXObject(“Microsoft.XMLHTTP”) • creates the object needed

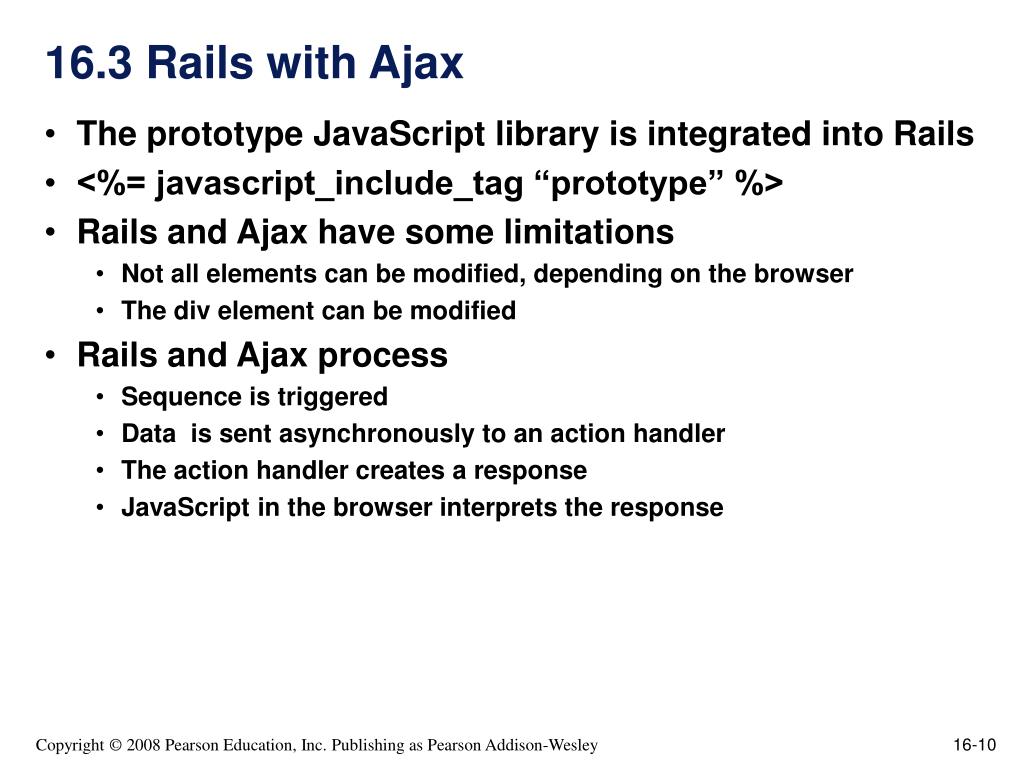

  10. 16.3 Rails with Ajax • The prototype JavaScript library is integrated into Rails • <%= javascript_include_tag “prototype” %> • Rails and Ajax have some limitations • Not all elements can be modified, depending on the browser • The div element can be modified • Rails and Ajax process • Sequence is triggered • Data is sent asynchronously to an action handler • The action handler creates a response • JavaScript in the browser interprets the response

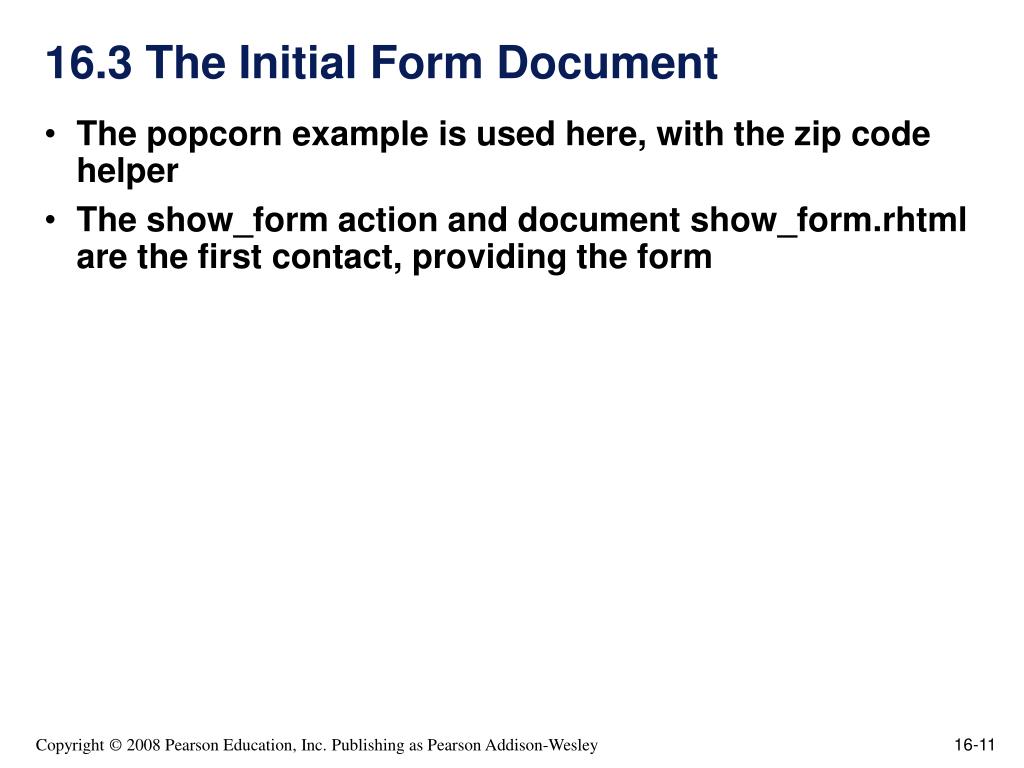

  11. 16.3 The Initial Form Document • The popcorn example is used here, with the zip code helper • The show_form action and document show_form.rhtml are the first contact, providing the form

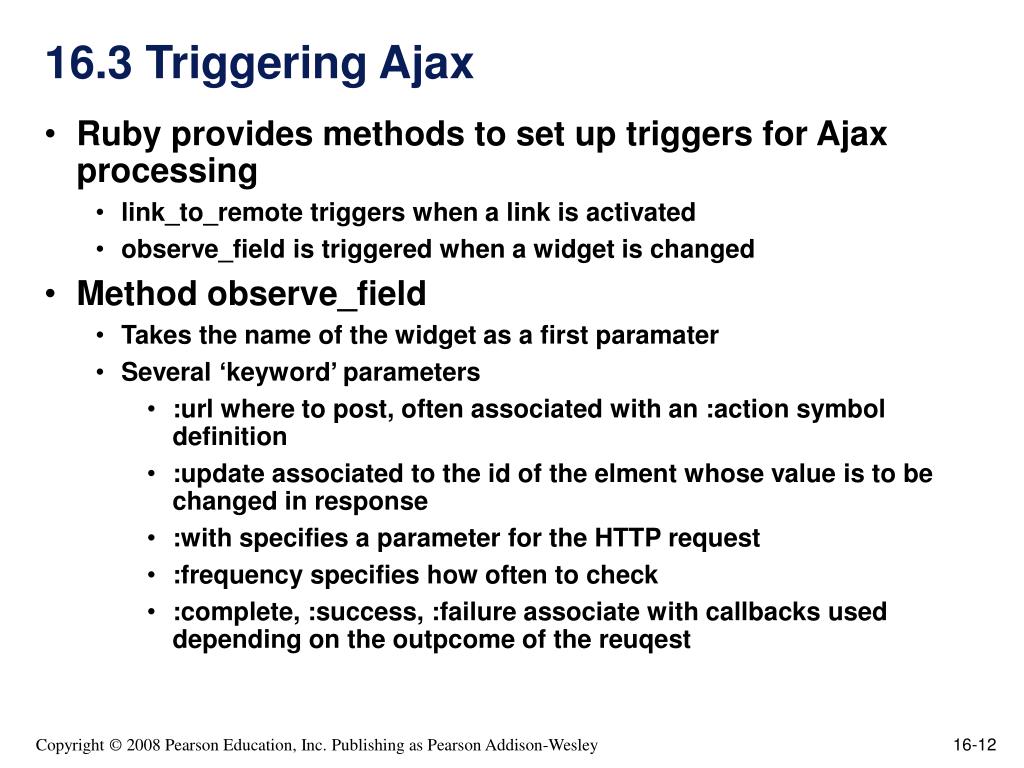

  12. 16.3 Triggering Ajax • Ruby provides methods to set up triggers for Ajax processing • link_to_remote triggers when a link is activated • observe_field is triggered when a widget is changed • Method observe_field • Takes the name of the widget as a first paramater • Several ‘keyword’ parameters • :url where to post, often associated with an :action symbol definition • :update associated to the id of the elment whose value is to be changed in response • :with specifies a parameter for the HTTP request • :frequency specifies how often to check • :complete, :success, :failure associate with callbacks used depending on the outpcome of the reuqest

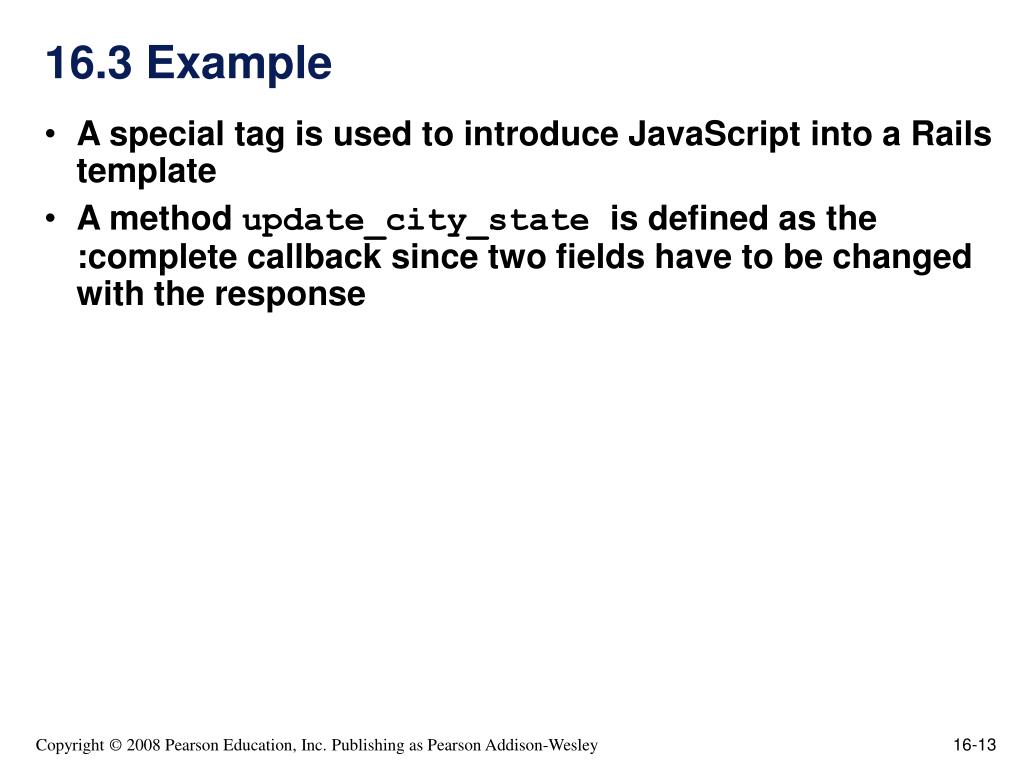

  13. 16.3 Example • A special tag is used to introduce JavaScript into a Rails template • A method update_city_state is defined as the :complete callback since two fields have to be changed with the response

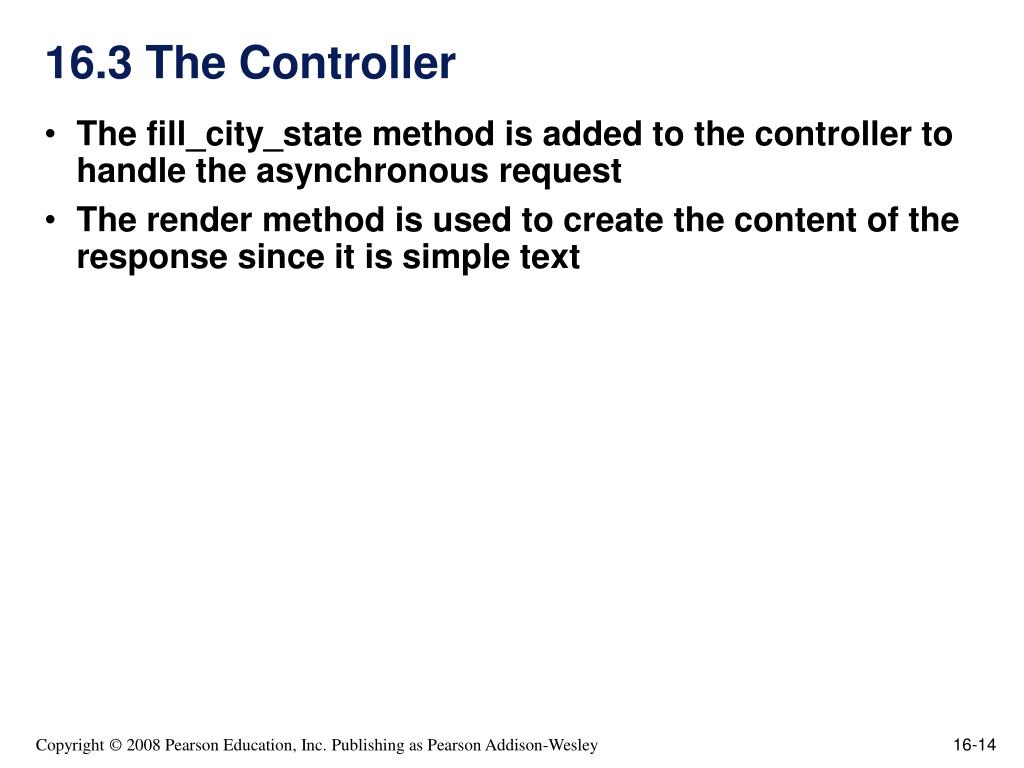

  14. 16.3 The Controller • The fill_city_state method is added to the controller to handle the asynchronous request • The render method is used to create the content of the response since it is simple text
