The Circulatory System

The Circulatory System. by Heidi Boland, Kate Stewart, Noah Siedman, and Kip Clark. Blood Flow In Body. Blue = Deoxygenated Blood Red = Oxygenated Blood. (Source 4). The Heart.  -Pumps blood throughout the body. -The heart is divided into: Right and Left Ventricles, Right and Left Atriums.

tawana
Télécharger la présentation

The Circulatory System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Circulatory System by Heidi Boland, Kate Stewart, Noah Siedman, and Kip Clark

  2. Blood Flow In Body Blue = Deoxygenated Blood Red = Oxygenated Blood (Source 4)

  3. The Heart  -Pumps blood throughout the body. -The heart is divided into: Right and Left Ventricles, Right and Left Atriums. -Deoxygenated blood from body --> right atrium --> right ventricle --> lungs. Oxygenated blood from lungs--> left atrium --> left ventricle --> body. (Source 11)

  4. (Source 3)

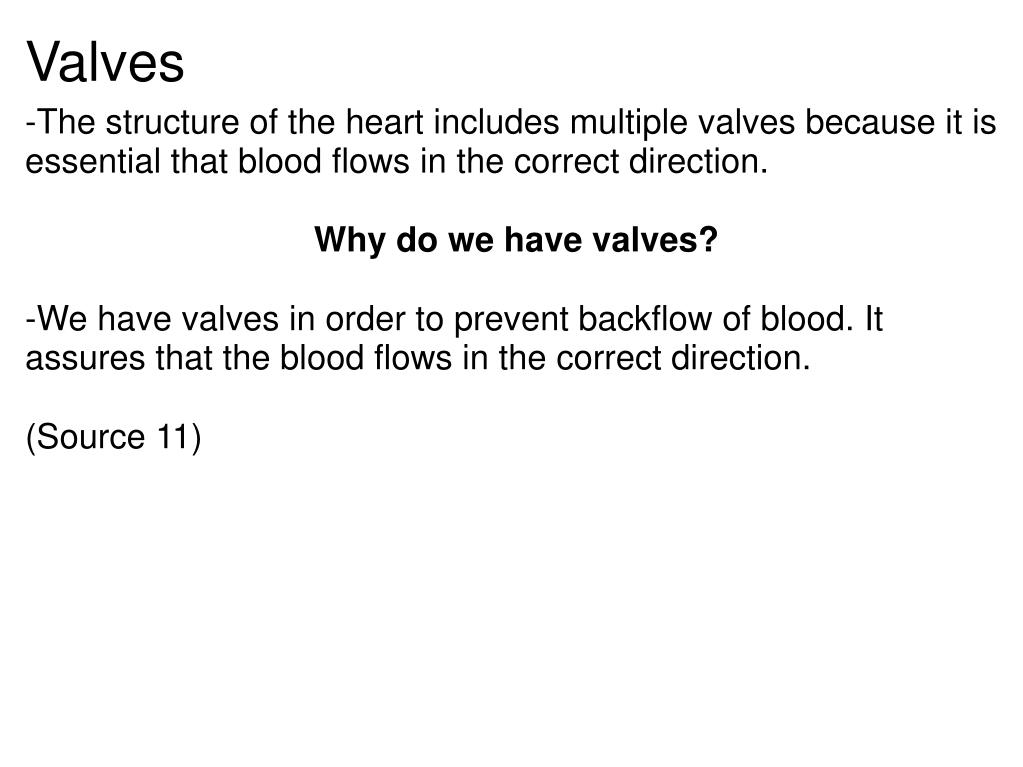

  5. Valves -The structure of the heart includes multiple valves because it is essential that blood flows in the correct direction. Why do we have valves? -We have valves in order to prevent backflow of blood. It assures that the blood flows in the correct direction. (Source 11)

  6. (Source 5)

  7. BLOOD VESSELS Blood vessels are intricate networks of hollow tubes that transport blood throughout the entire body.

  8. Cells Lining Blood Vessels   Endothelial cells line all of the blood vessels in the circulatory system. These cells reduce friction and allow blood to flow farther, faster. (Source 9)

  9. Structure -The walls (outer structure) of arteries contain smooth muscle fibres -Very thick to withstand pressure -Source 13 Function -Transports oxygenated blood around the body, mostly away from the heart. Arteries (Source 7)

  10. Structure -Thick walls like the arteries,  -Veins have valves that aid the return of blood to the heart by preventing blood from flowing in the reverse direction. -Source 13 Function -Transport blood towards the heart. -Thick walls to withstand pressure -Transport deoxygenated blood only (except in the case of the pulmonary vein). Veins (Source 2)

  11. Structure -Venules are minute vessels.  -Many venules unite to form a vein. (Source 13) Function -Drains blood from capillaries into veins, for return to the heart Venules (Source 8)

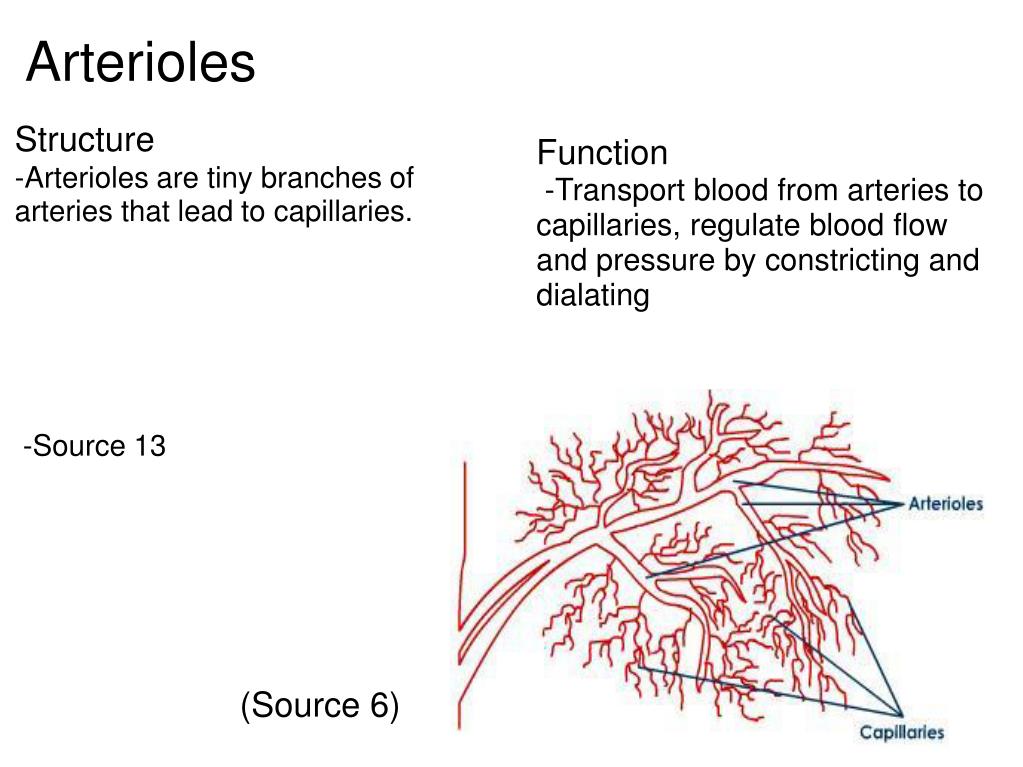

  12. Structure -Arterioles are tiny branches of arteries that lead to capillaries.   -Source 13 Function  -Transport blood from arteries to capillaries, regulate blood flow and pressure by constricting and dialating Arterioles (Source 6)

  13. Structure: Branch off from arterioles. Tiny and one cell thick which permits exchanges of material between the contents of the capillary and the surrounding tissue. Red blood cells go through one at a time. -Source 13 Function: Responsible for diffusion between blood and various cells. Supply organs with blood, to remove waste from surrounding cells, exchange of gases and water between the blood and surrounding tissues. Capillaries  (Source 1)

  14. Deep Vein Thrombosis -While arteries pump blood through smooth muscle contraction, veins rely on skeletal muscle movement for continuous blood flow. -Deep Vein Thrombosis occurs in a long, stationary situation, when blood can clot in veins deep within the body. -If the blood clots in a deep vein, it has the potential to travel to the lungs and can be fatal. (Source 12).

  15. Gas Diffusion at the Cellular Level -In the lungs, capillaries receive oxygen -Between capillaries and body cells, oxygen, carbon dioxide (as a form of waste) diffuse to and from the cells.  -Carbon Dioxide is later exhaled -Gas diffusion happens when capillaries are in close contact with red blood cells. If the the red bloods are not close to capillaries they will not give off gas. Therefore the optimal place for gas diffusion to happen is when red blood cells are in contact with capillaries. (Source 9)

  16. Bibliography Images 1. Biomed 108. Capilarry Diagram. 2000. Biological Sciences Biomed 108. SBCC, 17 Sept. 1999. Web. 1 Nov. 2010. <http://www.biosbcc.net/doohan/sample/htm/COandMAPhtm.htm>.2. Harun Yahya. Vein Diagram. N.d. Harun Yahya: An Invitation To The Truth. N.p., 2008. Web. 2 Nov. 2010. <http://www.harunyahya.com/books/science/blood_heart/blood_heart_12.php>.3. Health.com. Ventricles and Atriums Within the Heart. N.d. Health.Com. N.p., 2010. Web. 1 Nov. 2010. <http://www.health.com/health/library/mdp/0,,tp10241,00.html>.4. NOVA. Circulation of Blood. 2000. Nova Online. PBS, 2000. Web. 1 Nov. 2010. <http://www.pbs.org/wgbh/nova/denali/extremes/oxygen.html>.5. Stars and Seas. Heart Valves. 2010. Stars and Seas. N.p., 2010. Web. 1 Nov. 2010. <http://www.starsandseas.com/SAS%20Physiology/Cardiovascular/Cardiovascular.htm>.6. St. Charles Community College. Arterioles. 2009. Bio Journey. St. Carles Community College, 2001. Web. 2 Nov. 2010. <http://www.biojourney.org/cardiovascular.htm>.7. Texas Heart Institute. Arteries Diagram. N.d. Texas Heart Institute, 2010. Web. 1 Nov. 2010. <http://www.texasheart.org/hic/topics/cond/coronaryarteryspasm.cfm>.8. Webster’s Online Dictionary. Venules. 2005. Webster’s Dictionary. N.p., 2006. Web. 1 Nov. 2010. <http://www.websters-online-dictionary.org/definitions/Venules?cx=partner-pub-0939450753529744%3Av0qd01-tdlq&cof=FORID%3A9&ie=UTF-8&q=Venules&sa=Search#906>. 9.Starr, Cecie, and Ralph Taggar, "Biology: The Unity and Diversity of Life." Circulation. Pacific Grove, CA: Brooks/Cole, 2001. Print.

  17. Bibliography 10.http://www.ivy-rose.co.uk/HumanBody/Blood/Blood_Vessels.php http://web.buddyproject.org/web019/web019/heart.html http://www.youtube.com/watch?v=UztBWnRY8l0&feature=fvw 11."Nature Reviews Molecular Cell Biology." Nature Publishing Group. 11.11 (2010): Print.  12. Wedro, Benjamin C. "Deep Vein Thrombosis." Medicine Net. Medicine Net Inc., 10 Mar. 2010. Web. 2 Nov. 2010. <www.medicinenet.com>. 13.Ivy Rose. "Blood Vessels - Vascular System." IvyRose Holistic : Holistic Health, Alternative Medicine, Human Biology and Anatomy & Physiology Study Pages. 2010. Web. 1 Nov. 2010. <http://www.ivy-rose.co.uk/HumanBody/Blood/Blood_Vessels.php>
