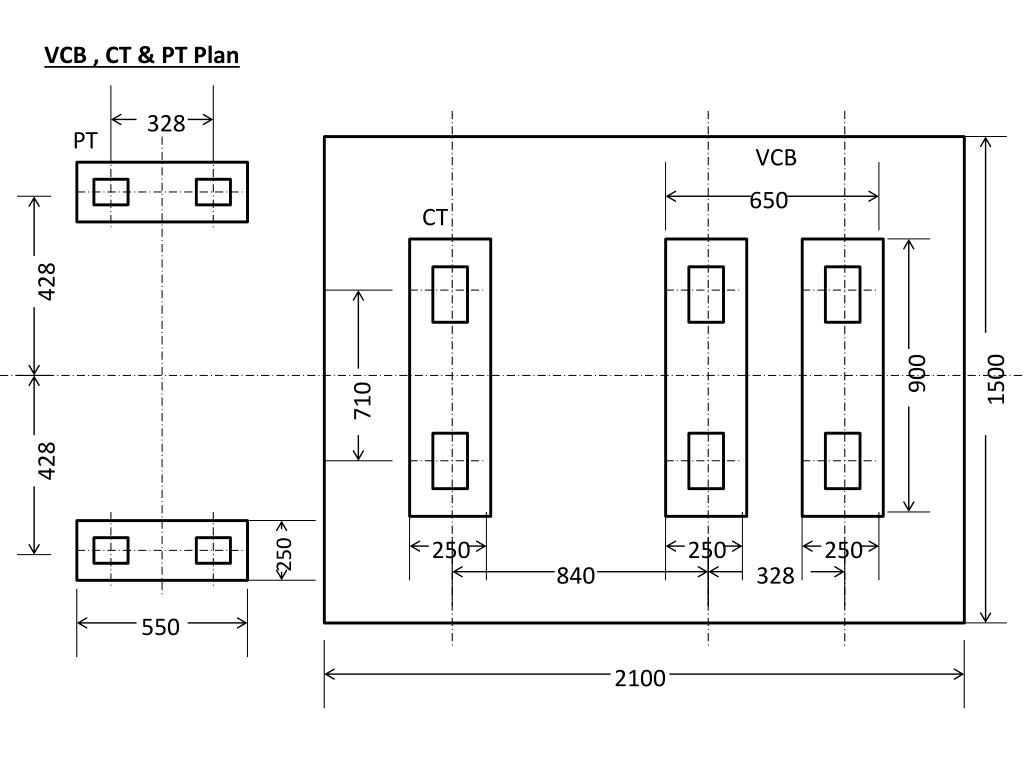

  1. VCB , CT & PT Plan PT VCB CT 900 250 710 250 250 250 550 328 328 840 650 2100 1500 428 428

  2. VCB & CT Sectional Elevation 100x100x250 PL 8 mm TOR A A 6 mm TOR (150 mm C/C both sides) Ground Level 10 mm TOR (200 mm C/C both sides) PCC 1:3:6 Sand 300 500 150 Section at - AA 900 250 2100 75

  3. PT Sectional Elevation B B PCC 1:3:6 Ground Level 75 Section at - BB 375 300 600 300
