Optimizing SVD2 and SVD2.5 Readout Performance for High-Speed Data Processing

topper avatar
topper
9 diapositives · 241 Views · Oct 12, 2014

This document outlines the requirements and solutions for the SVD2 and SVD2.5 readout systems, focusing on achieving data processing speeds exceeding 1 kHz and 3 kHz, respectively. It highlights key performance metrics such as manageable data sizes (~10MB/s), dead times (

#optimizing svd2 and svd2.5 readout performance for high-speed data processing #optimizing svd2 and svd2.5 readout performance for high-speed data processing ppt #powerpoint #presentation
Optimizing SVD2 and SVD2.5 Readout Performance for High-Speed Data Processing - slide 1
01 / 9Optimizing SVD2 and SVD2.5 Readout Performance for High-Speed Data Processing
1 / 17

Télécharger la présentation

Optimizing SVD2 and SVD2.5 Readout Performance for High-Speed Data Processing
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

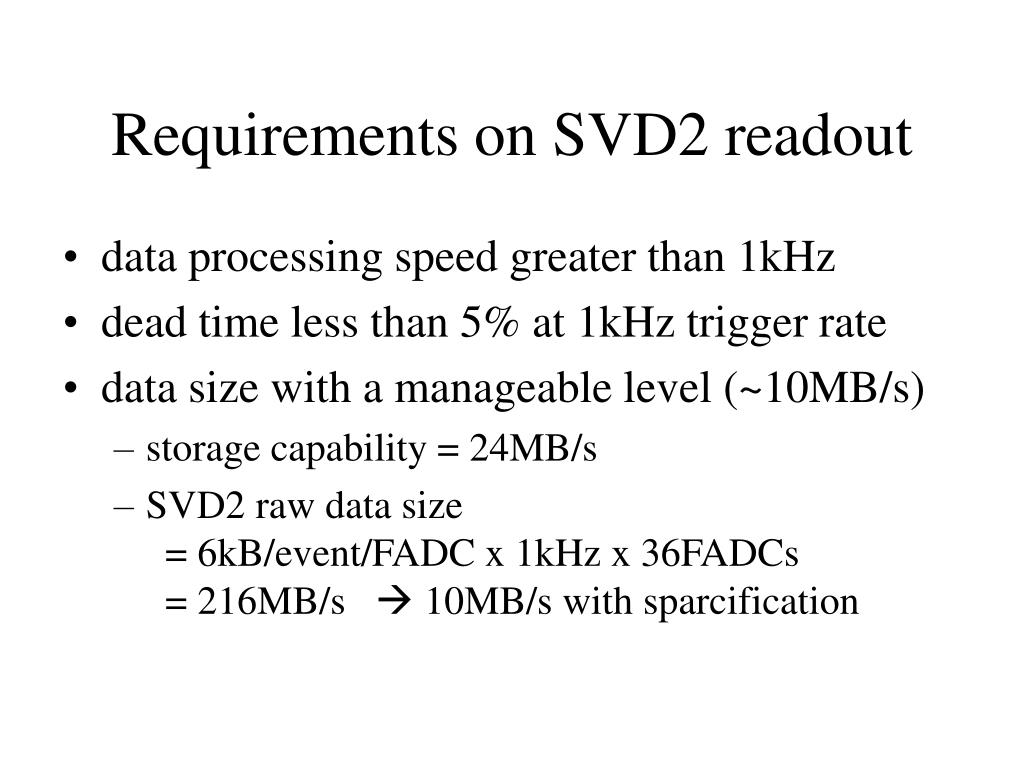

  1. Requirements on SVD2 readout • data processing speed greater than 1kHz • dead time less than 5% at 1kHz trigger rate • data size with a manageable level (~10MB/s) • storage capability = 24MB/s • SVD2 raw data size = 6kB/event/FADC x 1kHz x 36FADCs = 216MB/s  10MB/s with sparcification

  2. Solutions for SVD2 readout • 54 (6+12+18+18) ladders • 216 Cat 5 cables (4ch/cable) • 36 FADCs (24ch/FADC) • 6kB raw data/FADC • 12 PCs (3 PCI cards/PC) • dual XEON 2.4GHz • intel compiler • software using Posix thread • PCI: 25MB/s max.  up to 4kHz for 6kB/FADC

  3. Overview of the data flow Cat. 5 cables x 216 One Cat. 5 cable transmits four VA1TA chip analog data The detector and frontend electronics FADC x 36 Read-out PC x 12 PCI card x 3 sparsification and data reformat ~6kB/event LVDS 24 VA1TA chip analog data (128 x 24 = 3072 strips) are digitized. The Belle Event builder

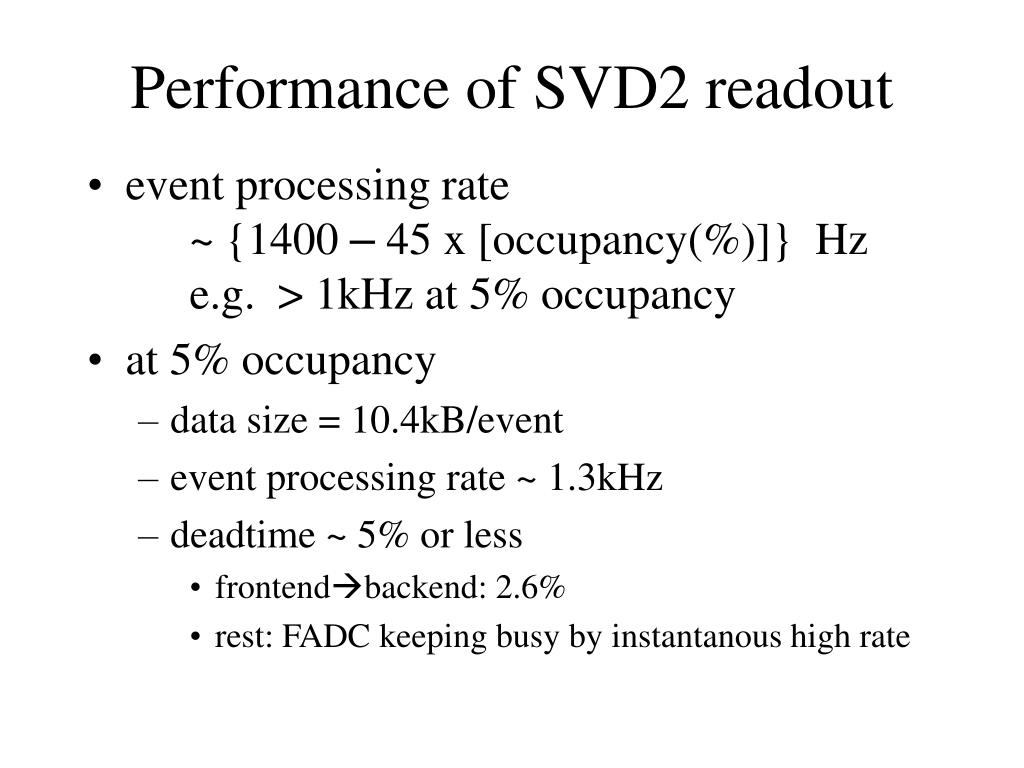

  4. Performance of SVD2 readout • event processing rate ~ {1400 – 45 x [occupancy(%)]} Hz e.g. > 1kHz at 5% occupancy • at 5% occupancy • data size = 10.4kB/event • event processing rate ~ 1.3kHz • deadtime ~ 5% or less • frontendbackend: 2.6% • rest: FADC keeping busy by instantanous high rate

  5. processing speed (Hz) Performances (processing speed) • We measured the processing speed by changing sparsification thresholds to vary the occupancy: • the speed : ~1.3kHz data size: 10.4kB measured dead time: ≲5% @ 5% occupancy. occupancy The SVD2 occupancy is estimated to be roughly 5% from the experience of the SVD1. data processing speed of the DAQ system including not only read-out PCs but also the Belle event builder

  6. Requirements on SVD2.5 readout • data processing speed greater than 3 kHz • dead time less than 5% ? at 3 kHz trigger rate • data size with a manageable level (~Y MB/s) • storage capability = 250MB/s (max) • SVD2.5 VA1TA raw data size = 6kB/event/FADC x 3 kHz x 32FADCs = 576MB/s  86MB/s with sparcification • occupancy ~ 15% • SVD2.5 APV25 raw data size (no-striplet option) = (6-18)kB/event/FADC x 3 kHz x 4FADCs = (72-216)MB/s  3 MB/s with sparcification • occupancy ~ 10% x 3 / 8 = 4% • assuming

  7. Solution for SVD2.5 readout1) VA part • 48 VA ladders • 192 Cat 5 cables (4ch/cable) • 32 FADCs (24ch/FADC) • 6kB raw data/FADC • 32 PCs (1 PCI card/PC) • dual XEON 3.6GHz • intel compiler • software using Posix thread • PCI: 75MB/s max.  up to 12kHz for 6kB/FADC

  8. Expected performance of SVD2.5 readout: 1) VA part • event processing rate ~ {6300 – 200 x [occupancy(%)]} Hz e.g. > 3kHz at 15% occupancy • at 15% occupancy • data size = 31.2kB/event • event processing rate ~ 3.3 kHz • deadtime ~ ? • frontendbackend: 7.8% • rest: FADC keeping busy by instantanous high rate

  9. Solution for SVD2.5 readout2) APV part coming soon
