Innovative Ankle Positioning Device: Enhancing Mobility with Advanced Joint Control

DESCRIPTION

This paper presents the development of a state-of-the-art Ankle Positioning Device designed to optimize full-range motion, enabling comprehensive movement across inversion/eversion and plantar flexion/dorsiflexion. Emphasizing user-friendliness and cost-effectiveness, the device operates on principles involving multiple degrees of freedom (5DOF) while incorporating horizontal and vertical load applications. Our progress includes design prototypes featuring layered framed plates and a gimbal mechanism. Key objectives include refining the control algorithm, improving joint design, and conducting a thorough cost analysis.

1 / 10

Télécharger la présentation

Innovative Ankle Positioning Device: Enhancing Mobility with Advanced Joint Control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ankle Positioning Device Marc DeAngelis Paul Hauris Katherine Leshkow Jennifer Moore Spring 2013

  2. Background Complex Joint Full Range of Motion • Inversion/Eversion • Plantar Flexion/Dorsiflexion • Internal/External Rotaton

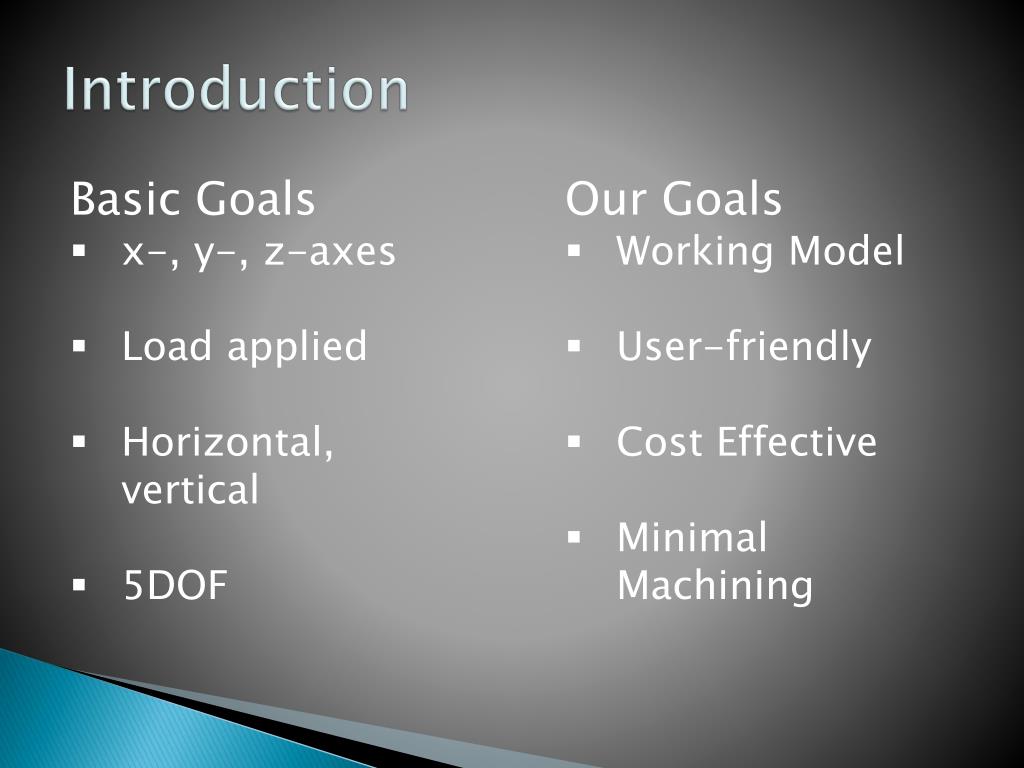

  3. Introduction • Basic Goals • x-, y-, z-axes • Load applied • Horizontal, vertical • 5DOF • Our Goals • Working Model • User-friendly • Cost Effective • Minimal Machining

  4. Designs Pin Pin Layered Framed Plates Gimbal • 4DOF

  5. 3DOF • 3 DOF Layered Framed Plate

  6. Gimbal • 4 DOF • Built upon earlier ideas

  7. Semester Accomplishments Inventor Model Designed 4th DOF

  8. Semester Accomplishments Clamp Design (Tibia)

  9. Midterm Goal • Control Algorithm • Joint Design • Cost Analysis • Motor Selection

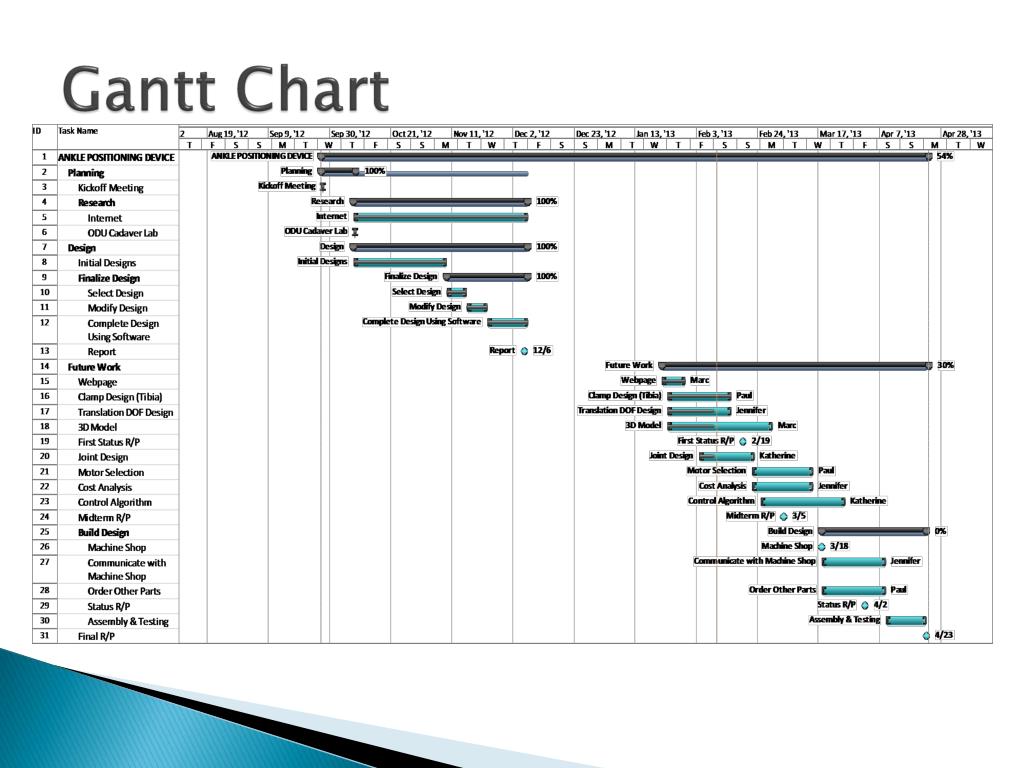

  10. Gantt Chart
