  1. SUNRISE The NEW ENERGY

  2. NES Ltd content: • Kinds of solar systems • Thermo-siphon systems • Year-round solar systems • Heat-supporting systems • Products withSUNRISE • Panel collectors • Boilers • Elements of solar system • Project program • Mounting of solar system

  3. NES Ltd Thermo-siphon systemsSUNRISE Insulation layer Water holder with heat carrier Water container The heat carrier goes into the lower part of PC-[4],absorbs the sun energy accumulated by the copper absorber and upper part of the panel-collector, goes into the upper part of the boiler, flows over the water holder and provides its heat to the water inside. There are two outputs on the upper part of the boiler. The first one is used for filling the system with heat carrier [PG],an expansion vessel [6] is fixed on the second one.

  4. NES Ltd All-year solar system-boiler with 0ne serpentineSUNRISE Elements: • Water holder • Panel collector • Pump group • FilterRAW • Digital control • Expansion vessel • Back valve • Spherical tap • Filling taps • Thermo-sensor 5

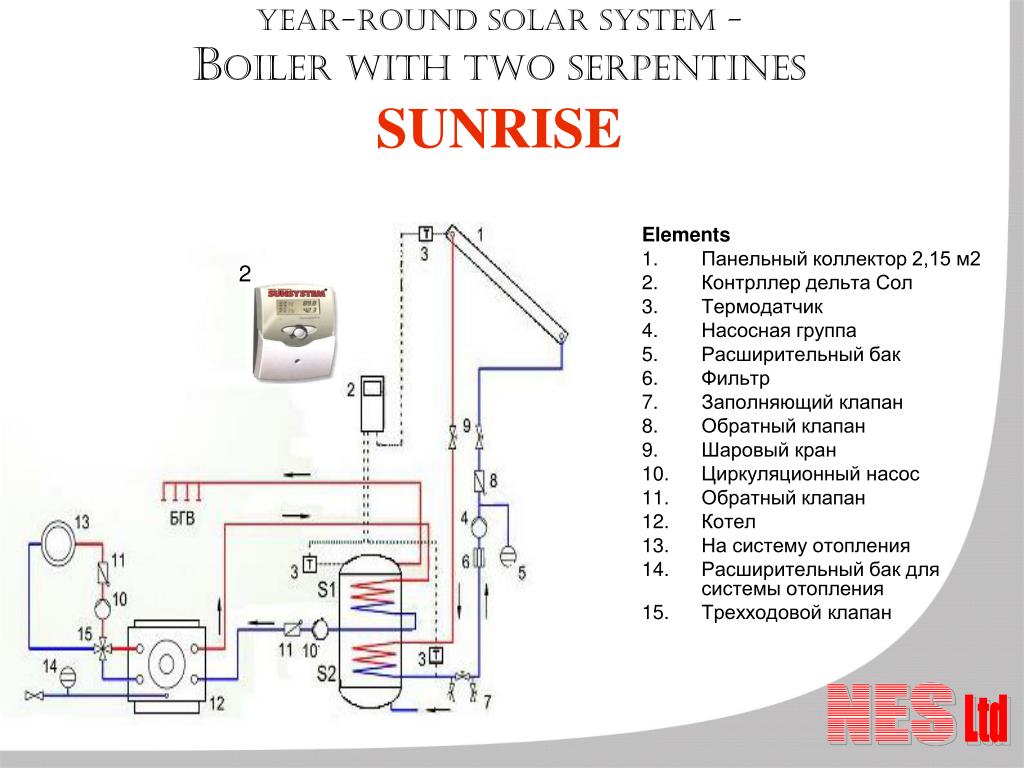

  5. NES Ltd Year-round solar system -boiler with two serpentinesSUNRISE Elements • Панельный коллектор 2,15 м2 • Контрллер дельта Сол • Термодатчик • Насосная группа • Расширительный бак • Фильтр • Заполняющий клапан • Обратный клапан • Шаровый кран • Циркуляционный насос • Обратный клапан • Котел • На систему отопления • Расширительный бак для системы отопления • Трехходовой клапан 2

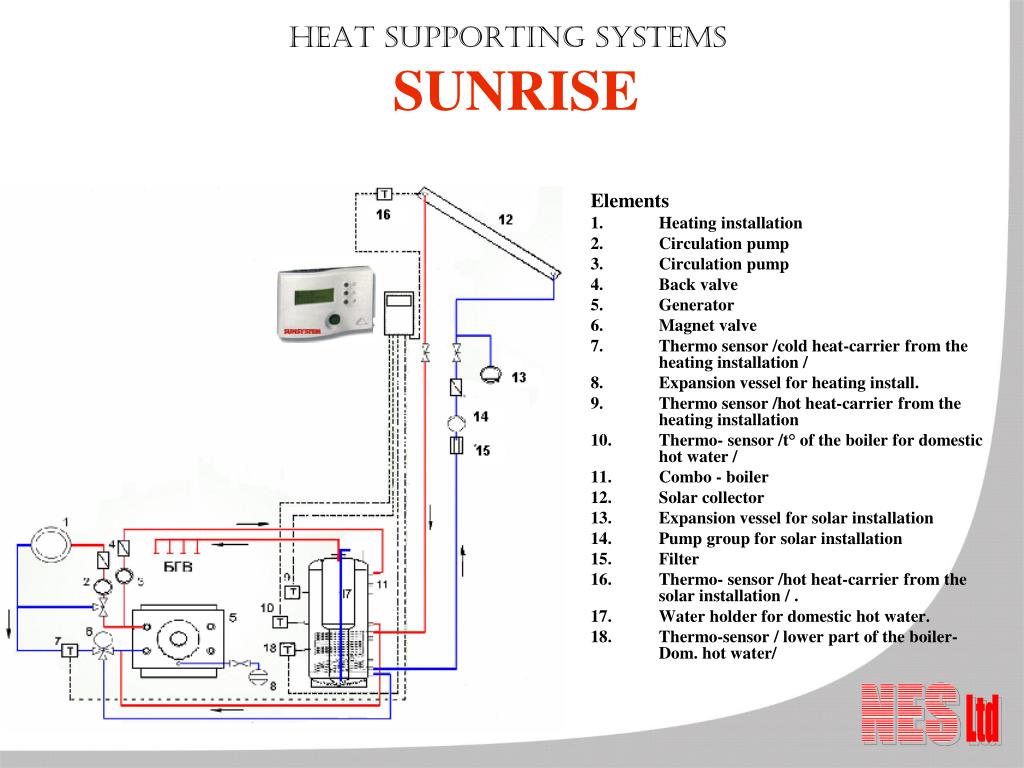

  6. NES Ltd Heat supporting systemsSUNRISE Elements • Heating installation • Circulation pump • Circulation pump • Back valve • Generator • Magnet valve • Thermo sensor /cold heat-carrier from the heating installation / • Expansion vessel for heating install. • Thermo sensor /hot heat-carrier from the heating installation • Thermo- sensor /t° of the boilerfor domestic hot water / • Combo - boiler • Solar collector • Expansion vessel for solar installation • Pump group for solar installation • Filter • Thermo- sensor /hot heat-carrier from the solar installation / . • Water holder for domestic hot water. • Thermo-sensor / lower part of the boiler-Dom. hot water/ 13 14

  7. Panel collectors Select Advantages of panel collector SELECT: - special polymeric coating of the carrying aluminum construction, reducing the heat loss. - the absorber material made of copper tin -TINOX coating.   Characteristics of absorber TINOX Classic:   -solar coefficient of Absorbing : 95 % ± 2 %    -heat coefficient of Emitting : 5% ± 3 % TINOX Art-Line:  - solar coefficient of Absorbing : 95 % ± 1 %    -heat coefficient of Emitting :   5 % ± 1 % - heat carrier – liquid :PG - transformation capacity degree: 600 kWh/ м² Annually - Absorber :copper - Coating :TINOX Classic and Art-Line

  8. Panel collectorStandard • panel collectors Standard are mainly designed for domestic hot water seasonal systems and for the period April-October are able to cover the needs of warm water up to 80 - 100 %. • The absorber is made of copper elements. • The special black coating absorbs maximum sun rays. • The frame is made of special aluminum profile. • The collector glass is designed for maximal omission of the sum rays. • The insulation is of mineral wadding. • Technical data of panel collectorsStandard Absorber: copper Coefficient of absorbing : 95% Reflection : 5% Transformation degree : 364 kWh/m2 annually Coating: solar lacquer Hollander connection

  9. Panel collectorsSelect / Standard Select Standard

  10. Vacuum tube collector SUNRISE • The used materials provide long and efficient work for min. 20 years. • The strength of the connections between the glass tubes and absorber allow better vacuum field for better insulation. • The highly selective layer is sealed in high quality vacuum field, protected from outer influence and oxidation which improves its efficiency. • The vacuum tubes are changeable. The double glass tubes are without metal coating for absolute density.The hollowness of the absorbing tube allow maximal unobstructed heat flowing. • Technical data: size: 1 684 х 765 х 100 мм weight 20 kg. surface 1,29м². pressure resistance - мах. 6 bar heat – carrier Tyfocor HTL - 3,2 liters. transformation capacity of 4 collector system : 730kWh/ м². heating energy and safety /EN 129752 hailstorm resistance DIN/EN 129752 coefficient efficiency > 99 % Curve of effectiveness at 800W/m2 emission Efficiency h • Mounting: • -Roof mounting • Flat roof or wall mounting • Min. inclination angle of the panel collector to be - 150

  11. NES Ltd Mounting scheme SUNRISE 1.Solar stations. 2. Flexible joining connection. 3. Hand pump. 4. Flow-meter. 5. Filling element. 6. Draining element. 7. Air vent. 8. Filter. 9. Joining tee. 10. Filling tap. 11. Mixing valve. 12. Back valve. 13. Stainless flexible tube. 14. Stainless flexible tube. 15. Nipple straight /female-outer/ 16. Capillary welding connection. 17. Nipple double ¾`` /outer threading/ 18. Expansion vessel

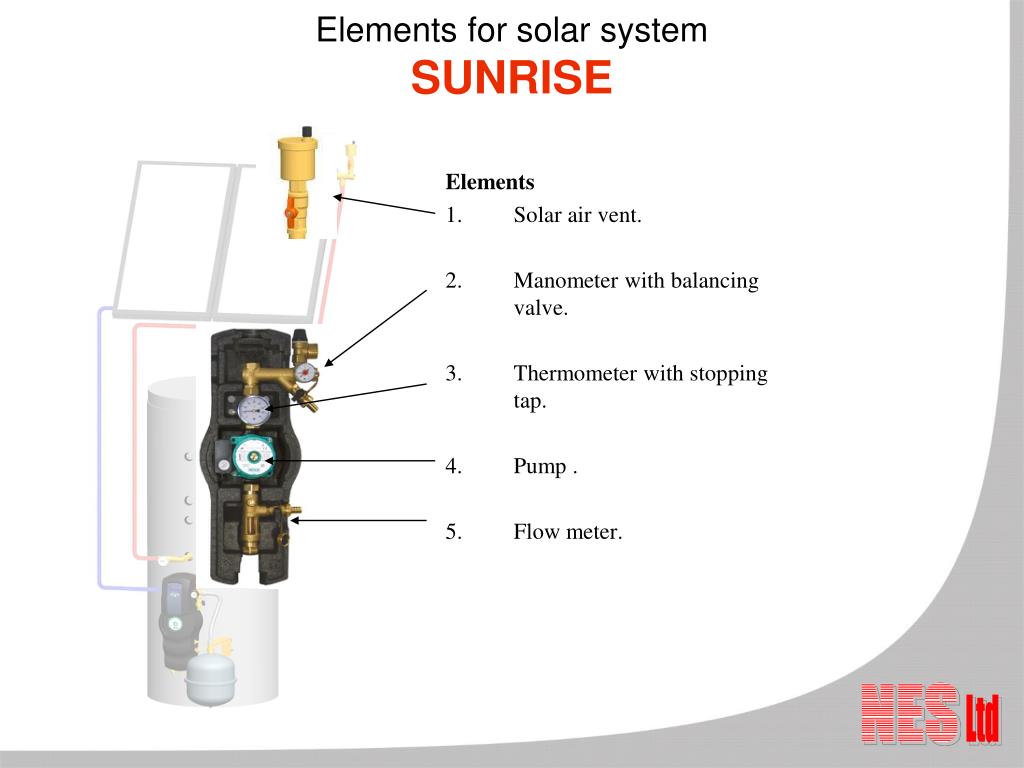

  12. NES Ltd Elements for solar systemSUNRISE Elements • Solar air vent. • Manometer with balancing valve. • Thermometer with stopping tap. • Pump . • Flow meter.

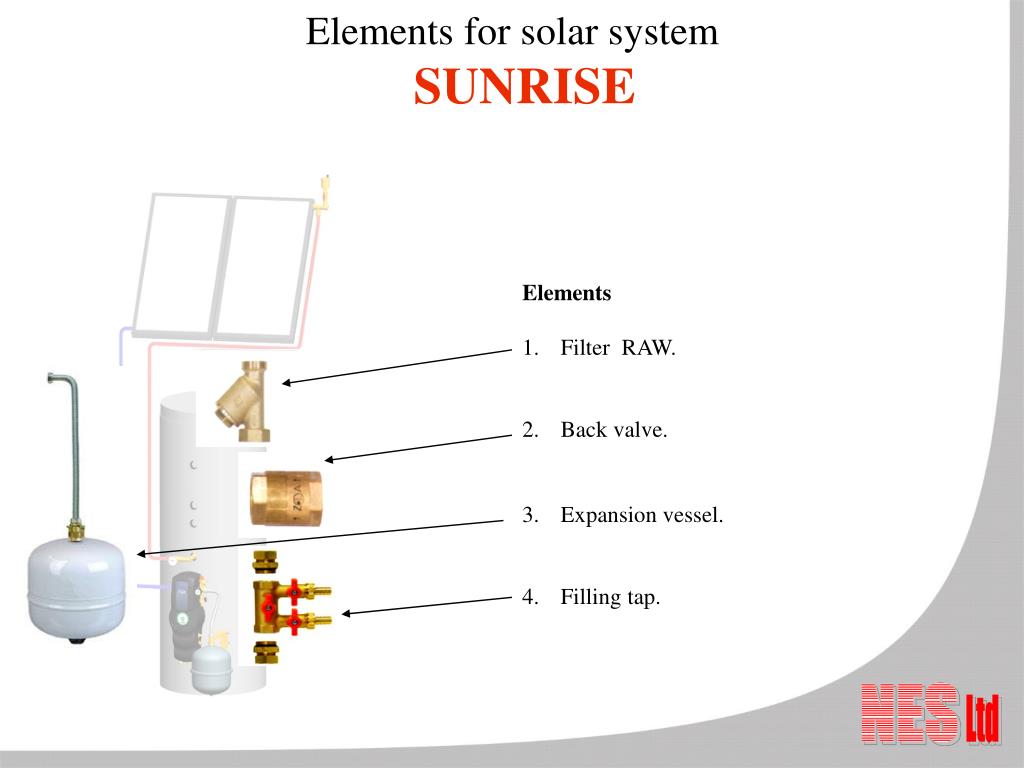

  13. NES Ltd Elements for solar systemSUNRISE • Elements • Filter RAW. • Back valve. • Expansion vessel. • Filling tap.

  14. NES Ltd Sample connection scheme SUNRISE

  15. NEW ENERGY SYSTEMS
