Break-Even Chart

Break-Even Chart. A Business supplies the following figures about its activities: Fixed Costs: = €300,000 Variable Cost: = €20 per unit Forecast output (Sales): = €20,000 units Selling Price: = €50 per unit Illustrate by means of a break-even chart: The break-even point

uta
Télécharger la présentation

Break-Even Chart

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

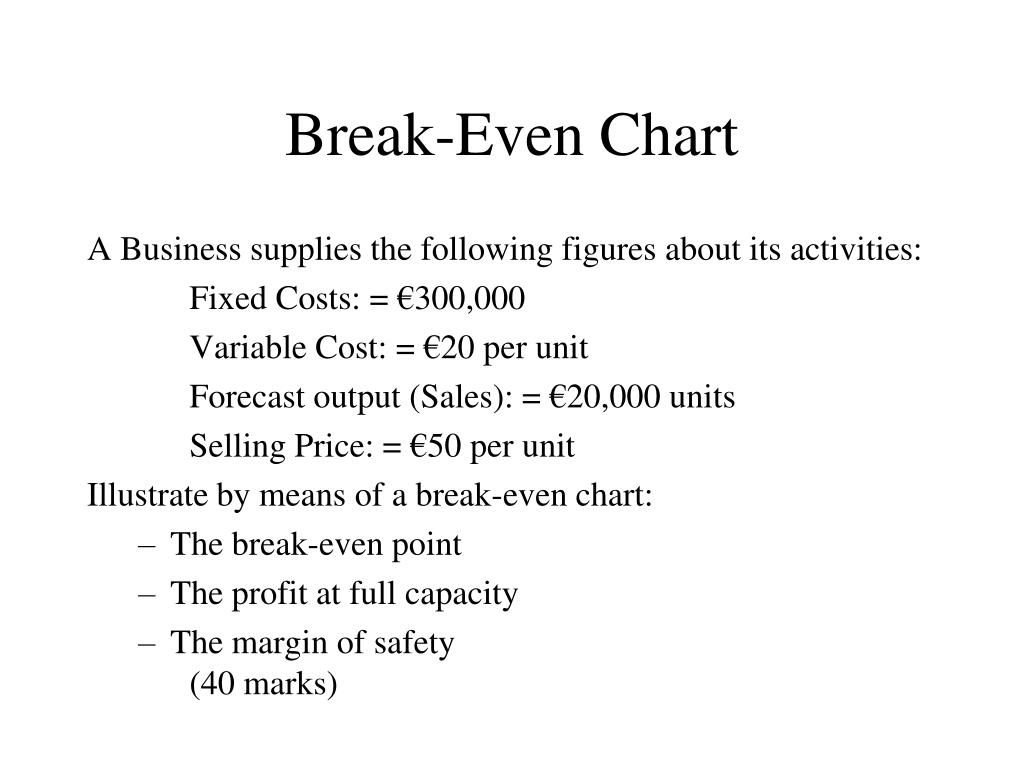

  1. Break-Even Chart A Business supplies the following figures about its activities: Fixed Costs: = €300,000 Variable Cost: = €20 per unit Forecast output (Sales): = €20,000 units Selling Price: = €50 per unit Illustrate by means of a break-even chart: • The break-even point • The profit at full capacity • The margin of safety (40 marks)

  2. Answer Units 20,000 Fixed Costs: €300,000 Variable Costs (20,000 x €20) = €400,000 Total Costs: €300,000 + €400,000 = €700,000 Total Revenue: (20,000 x €50) = €1,000,000 Profit = €1,000,000 - €700,000 = €300,000

  3. Answer  Break-even formula: Fixed Costs Selling Price(SP) per unit – Variable Cost(VC) per unit = 300,000 50 – 20 = 10,000 units

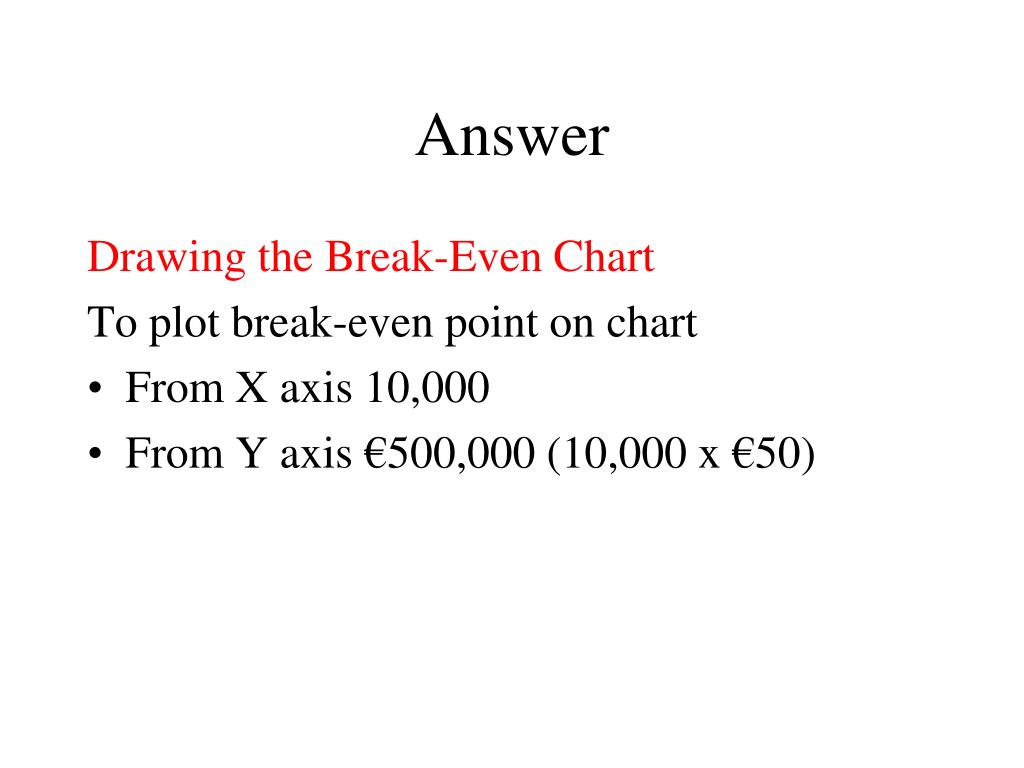

  4. Answer Drawing the Break-Even Chart To plot break-even point on chart • From X axis 10,000 • From Y axis €500,000 (10,000 x €50)

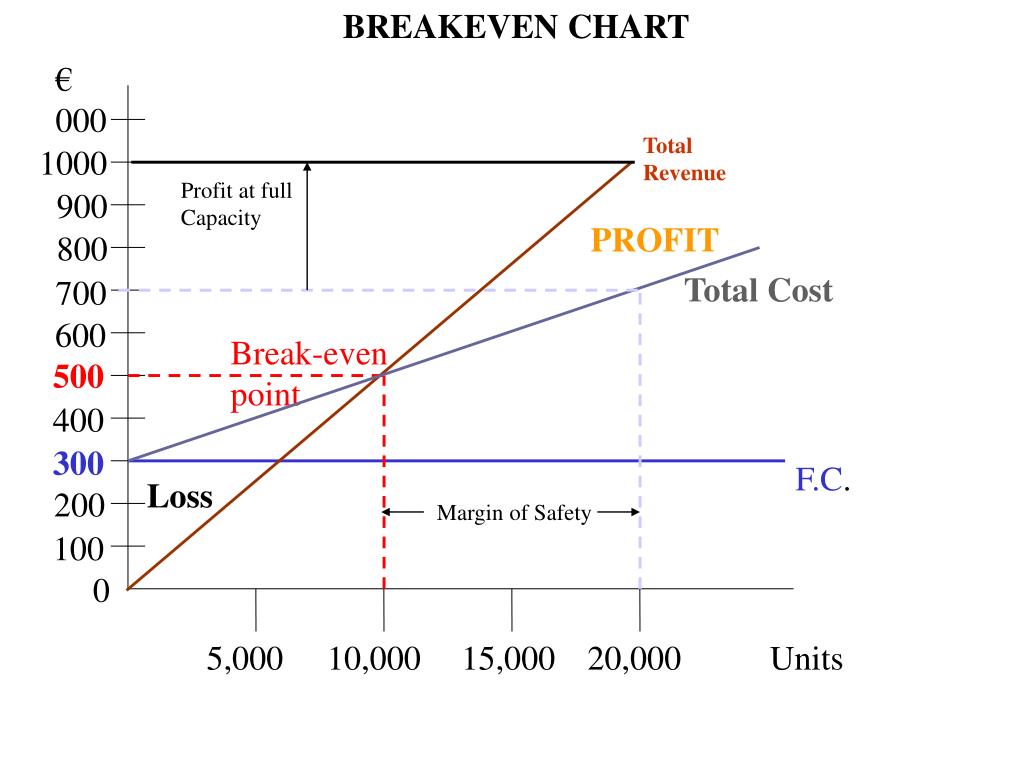

  5. BREAKEVEN CHART € 000 Total Revenue 1000 Profit at full Capacity 900 PROFIT 800 Total Cost 700 600 Break-evenpoint 500 400 300 F.C. Loss 200 Margin of Safety 100 0 5,000 10,000 15,000 20,000 Units
