Performance Analysis of Thin Pixel Detector Assemblies with Timepix ASICs for CLIC Vertex Detectors

This paper presents a study on thin pixel detector assemblies for the proposed CLIC vertex detectors, detailing sensor production, assembly, calibration, and test beam analysis. Various sensor technologies and edge terminations were evaluated using Timepix readout ASICs. Experimental results were compared to GEANT4 simulations to assess performance in detecting and tracking ionizing particles. The outline covers sensor production, assembly characterization, test beam setup, analysis results, and conclusion. A collaborative approach via SVN is suggested for contribution to specific sections. Submission to NIMA, JINST, or TNS journals is recommended.

vera
Télécharger la présentation

Performance Analysis of Thin Pixel Detector Assemblies with Timepix ASICs for CLIC Vertex Detectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Outline for paper on Test Beam Analysis Mathieu Benoit, DominikDannheim

  2. Abstract Characterization of thin pixel detector assemblieswith Timepix ASICs The requirements for the vertex detectors at the proposed Compact LinearCollider (CLIC) implies a verysmallmaterial budget (lessthan 0.2 % X0 per detection layer, includingcable and mechanical supports). Wepresenthere a studyusing Timepix readoutASICshybridized to pixel sensorswiththicknessesspanningfrom 50 to 500 μm, includingassemblieswith 100 μmsensorbonded to a 100 μm ASIC. Sen- sors fromvariousproducers (Advacam,MicronSemiconductor Ltd, Canberra) withvariousedgetermination technologies (Active-edge, Guard Rings) werebonded to the Timepix ASIC by IZM (AgPb solder) or Advacam (SnPbeutectic solder). The detectors werecalibratedwithγ sources and X-ray Fluorescence photons and char- acterizedwith the EUDET telescopeat DESY using 2-5.6 GeVelectrons. Their performance for the detection and tracking of minimum ionizingparticleswereevaluated in terms of single-point resolution, charge sharing and cluster formation, detectionefficiency and acceptance. Experimentalresults are thencompared to a detailed GEANT4 simulation of the telescope and sensors.

  3. Outline • Introduction to CLIC • Sensor Production : • Details of the production with Advacam and Micron, brief description of Active-edge and thin assemblies production technology • Assembly characterization and calibration • QA Table for tested sensors • Calibration methods and some selected results

  4. Outline (2) • Test Beam experimental setup • MiMTLU, FITPixProducer state machine • Tracking resolution optimization • Reconstruction methodology • Eta Correction methodology • Simulation of Test Beam Setup • Methodology • Allpix, telescope simulation details • Digitization methodology

  5. Outline (3) • Test Beam Analysis results vsSimulation results • Comparative results for different Thickness • Cluster Size • Charge Sharing • Efficiency scans, edge efficiency • Resolution + Eta Correction effects • Landau fits • Conclusion

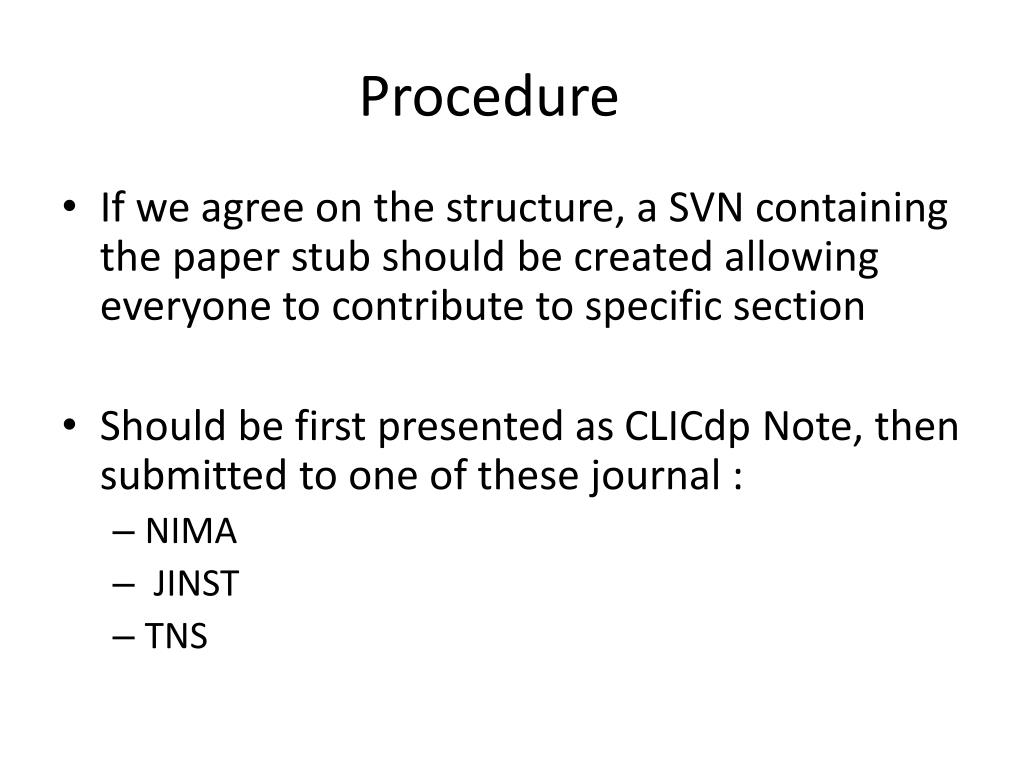

  6. Procedure • If we agree on the structure, a SVN containing the paper stub should be created allowing everyone to contribute to specific section • Should be first presented as CLICdp Note, then submitted to one of these journal : • NIMA • JINST • TNS
