  1. Automated Detection of Transition Segments for Intensity and Time-Scale Modification for Speech Intelligibility Enhancement by A. R. Jayan, P. C. Pandey, P. K. Lehana EE Dept, IIT Bombay 5th January, 2008

  2. PAPER OUTLINE • 1. Introduction • 2. Acoustic Properties of Clear Speech • Automated Detection of Transition Segments • Intensity and Time-Scale Modification • 5. Experimental Results • 6. Summary and Conclusion

  3. Intro. 1/2 INTRODUCTION Speech landmarks  Regions in speech containing important information for speech perception  Associated with spectral transitions  Most of the landmarks coincide with phoneme boundaries • Landmarks types • 1. Abrupt-consonantal (AC) –Tight constrictions of primary articulators • 2. Abrupt (A) -Fast glottal or velum activity • 3. Non-abrupt (N) - Semi-vowel landmarks, less vocal tract constriction • 4. Vocalic (V) - Vowel landmarks, oral cavity maximally open, maximum energy, F1 • Abrupt (~68%)  Vocalic (~29%)  Non-abrupt (~3%)

  4. Objective To improve speech intelligibility in quiet and noisy environments Automated detection of landmarks Speech modificationusingacoustic properties of clear speech Intro. 2/2 Landmarks

  5. Clear speech 1/5 ACOUSTIC PROPERTIS OF CLEAR SPEECH • Clear speech: speech produced with clear articulation • when talking to a hearing impaired listener, or in noisy environments • Examples -http://www.acoustics.org/press/145th/clr-spch-tab.htm Conversational Clear ‘the book tells a story’ ‘the boy forgot his book’ Intelligibility of clear speech ▪ More intelligible for different classes of listeners & listening conditions ▪ Picheny et al. (1985): ~17% more intelligible than conversational speech

  6. Clear speech 2/5 • Acoustic properties of clear speech • Picheny et al. (1986) • Sentence level • Reduced speaking rate (conv: 200 wpm, clr: 100 wpm) • Larger variation in fundamental frequency • Increased number of pauses, more pause durations •  Word level • Less sound deletions • More sound insertions  Phonetic level • Context dependent, non-linear increase in segment durations • More targeted vowel formants • Increase in consonant intensity

  7. Clear speech 3/5 • Acoustic cues in clear speech are more robust and discriminable • Speech intelligibility of conversational speech can be improved by incorporating properties of clear speech • Consonant-vowel intensity ratio (CVR) enhancement • Increasing the ratio of rms energy of consonant segment to nearby vowel •  Consonant duration enhancement • Increasing VOT, burst duration, formant transition duration • Difficulties •  Detection of regions for modification •  Performing modification with low signal processing artifacts

  8. Clear speech 4/5 • Earlier studies on CVR enhancement • House et al. (1965): MRT, high scores for high consonant level •  Gordon-Salant (1986): CVR +10dB, 19 CV, Elderly SNHI, +16% • Guelke (1987): Burst intensity +17 dB, stop CV, NH, +40% • Montgomery et al. (1987): CVR -20 dB to +9 dB, CVC, • NH, SNHI, no significant loudness increase • Freyman & Nerbonne (1989): Equated consonant levels across talkers, CV syllables, NH, +12% • Thomas & Pandey (1996): CVR +3 to +12 dB, CV & VC, NH, +16% • Kennedy et al. (1997): CE 0-24 dB, VC, SNHI, max CE: 8.3 dB (voiced), 10.7 dB (unvoiced) • Hazan & Simpson (1998): Burst +12 dB, fric. +6 dB, nas. +6 dB filtering, VCV, SUS, NH,+12%

  9. Clear speech 5/5 • Earlier studies on duration enhancement • Gordon-Salant (1986): DUR +100%, marginal improvement • Thomas & Pandey (1996): BD +100%, FTD +50%, VOT +100% BD, FTD → improved scores, VOT → degraded • Vaughan et al. (2002): Unvoiced consonants expanded by1.2, 1.4 1.4 effective in noisy condition Nejime & Moore (1998): Voiced segments expanded by 1.2, 1.5 Degraded performance • Liu & Zeng (2006): Temporal envelope (2-50 Hz) contributes at positive SNRs • Fine structure (> 500 Hz) contributes at lower SNRs • Hodoshima et al. (2007): Slowed down, steady-state suppressed speech more intelligible in reverberant environments

  10. Auto.Trans. 1/3 AUTOMATED DETECTION OF TRANSITION SEGMENTS • Identifying regions for enhancement - segmentation / landmark detection • Manual segmentation •  accurate  high detection rate •  time consuming subjective • useful only for research & not for actual application • Automated detection of segments •  low detection rate  less accurate  consistent • Segmentation based on Spectral Transition Measures • maximum spectral transitions coincide with segment boundaries

  11. Auto.Trans. 2/3 • Earlier studies on automated segmentation • Mermelstien (1975): based on loudness variation, low detection rate, slow carefully uttered speech • Glass & Zue (1988): based on auditory critical bands, detection rate 90%, ± 20ms  Sarkar & Sreenivas (2005): based on level crossing rate, adaptive level allocation, detection rate 78.6%, ± 20ms •  Alani & Deriche (1999): wavelet transform based, energy in different bands,detection rate 90.9%, ± 20ms • Liu (1996): landmark detection algorithm, energy variation in spectral bands, detection rate 83%, ±20 ms

  12. Auto.Trans. 3/3 • Earlier studies onautomated intelligibility enhancement • Colotte & Laprie (2000) • Segmentation by spectral variation function (82%) • Stops and unvoiced fricatives amplified by +4 dB • Time-scaled by 1.8, 2.0 (TD-PSOLA) •  Missing word identification, TIMIT sentences •  Improved performance •  Skowronski & Harris (2006) • Spectral transition measure based voiced/unvoiced classification •  Energy redistribution in voiced / unvoiced segments (ERVU) •  Amplifying low energy temporal regions critical to intelligibility •  Confusable words TI-46 corpus, 16 talkers, 25 subjects •  Improved performance for 9 talkers, no degradation for others •  Enhancement useful for native & non-native listeners

  13. PROPOSED METHOD FOR INTELLIGIBILITY ENHANCEMENT Intel. Enh. 1/15 • VC and CV transition segments expanded, steady-state segments compressed, • overall speech duration kept unaltered • Intensity scaling of transition segments (CVR enhancement) •  Objective: reducing the masking of consonantal segments by vowel segments

  14. Intel. Enh. 2/15 Liu’s Landmark detection algorithm ▪ Based on energy variation in 6 spectral bands ▪ Segment duration, articulatory, and phonetic class constraints ▪ Glottal, sonorant closures, releases, stop closures, releases ▪ Peak picking based on convex-hull algorithm ▪ Matching of peaks across bands for locating boundaries ▪ Detection rate 83%, accuracy ±20ms Observations  Assumptions in the method Spectral prominence represented by peak energy in the band One spectral prominence per band Information regarding frequency location of peak energy not used

  15. Intel. Enh. 3/15 Landmark detection using spectral peaks and centroids Spectrum divided into five non-overlapping bands 0–0.4, 0.4–1.2, 1.2–2.0, 2.0–3.5, 3.5–5.0 kHz Spectral peak and centroid estimated in each band & used for calculating transition index • Peak energy • Centroid frequency • Rate-of-rise functions • Transition index

  16. Intel. Enh. 4/15 Spectral peak & centroid variation in bands Example: /aka/ 0-0.4 kHz 0.4-1.2 kHz 1.2-2.0 kHz 2.0-3.5 kHz 3.5-5.0 kHz Centroid variation not necessarily in phase with energy variation Transitions: Some of energy peaks and centroids undergo change

  17. Intel. Enh. 5/15 Peak & centroid ROR contours Example: /aba/ 0-0.4 kHz 0.4-1.2 kHz 1.2-2.0 kHz 2.0-3.5 kHz 3.5-5.0 kHz Observation: Product of two RORs near-to-zero during steady-states & peaks during transition segments

  18. Intel. Enh. 6/15 Detection of transition segments /aba/ waveform spectrogram transition index boundaries (a) Signal waveform for VCV syllable /aka/ (b) Spectrogram, (c) Transition index (d) transition boundaries detected.

  19. Intel. Enh. 7/15 Evaluation using sentences (a) (b) (c) sentence ‘put the butcher block table’, (b) TIMIT land­marks, and (c) detected landmarks. Manual anno­tation: “bcl”- /b/ closure onset, “b”- /b/ release burst, etc. Automatic detection: landmarks numbered as 5, 6,..etc.

  20. Intel. Enh. 8/15 • Evaluation using sentences • 50 manually annotated sentences from TIMIT database •  5 speakers: 3 female, 2 male Detection rates ST-stop FR-fricative NAS-nasal V-vowel SV-semivowel

  21. Intel. Enh. 9/15 • Harmonic plus noise model (HNM) (Stylianou 1996) • Harmonic part / Deterministic part (quasi periodic components of speech) • modeled by harmonics of fundamental frequency • Noise part /stochastic part (non periodic components) • modeled by LPC coefficients, energy envelope

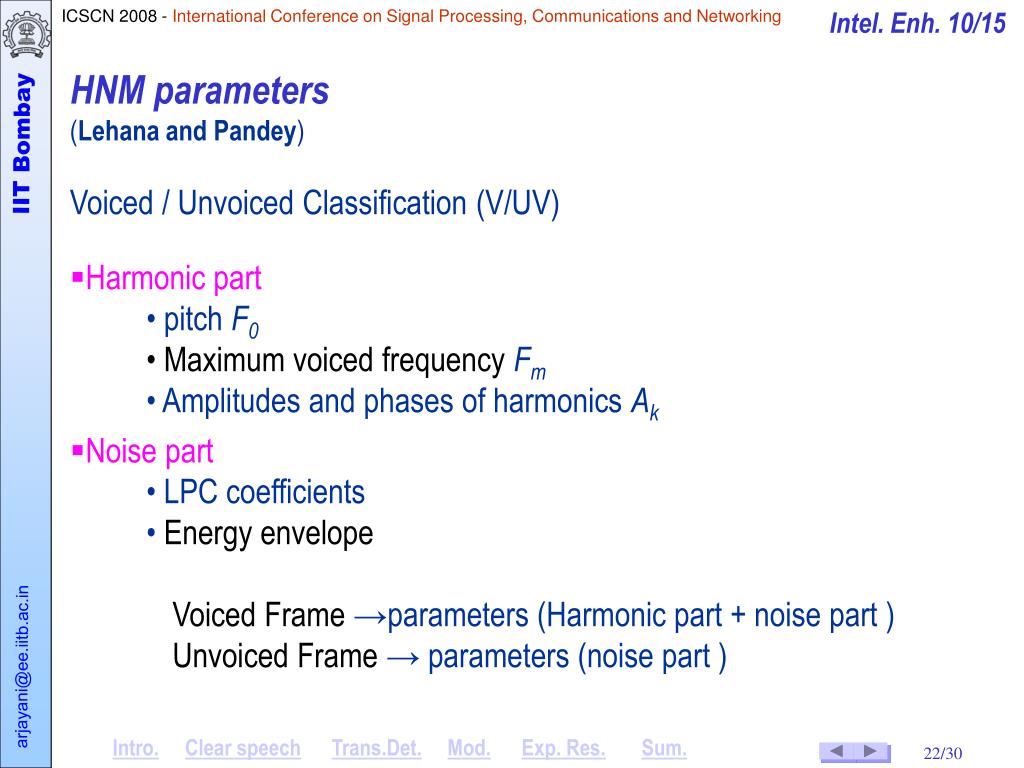

  22. Intel. Enh. 10/15 • HNM parameters • (Lehana and Pandey) Voiced / Unvoiced Classification (V/UV) • Harmonic part • pitch F0 • Maximum voiced frequency Fm • Amplitudes and phases of harmonics Ak • Noise part • LPC coefficients • Energy envelope Voiced Frame →parameters (Harmonic part + noise part ) Unvoiced Frame → parameters (noise part )

  23. Intel. Enh. 11/15 HNM based analysis stage • Modification using a small parameter set • Low perceptual distortions, preserves naturalness and intelligibility HNM analysis stage

  24. Intel. Enh. 12/15 HNM based time-scale modification stage Scaling factors

  25. Intel. Enh. 13/15 Example: VCV syllable /aba/ Time scaling of consonant duration with steady-state compression

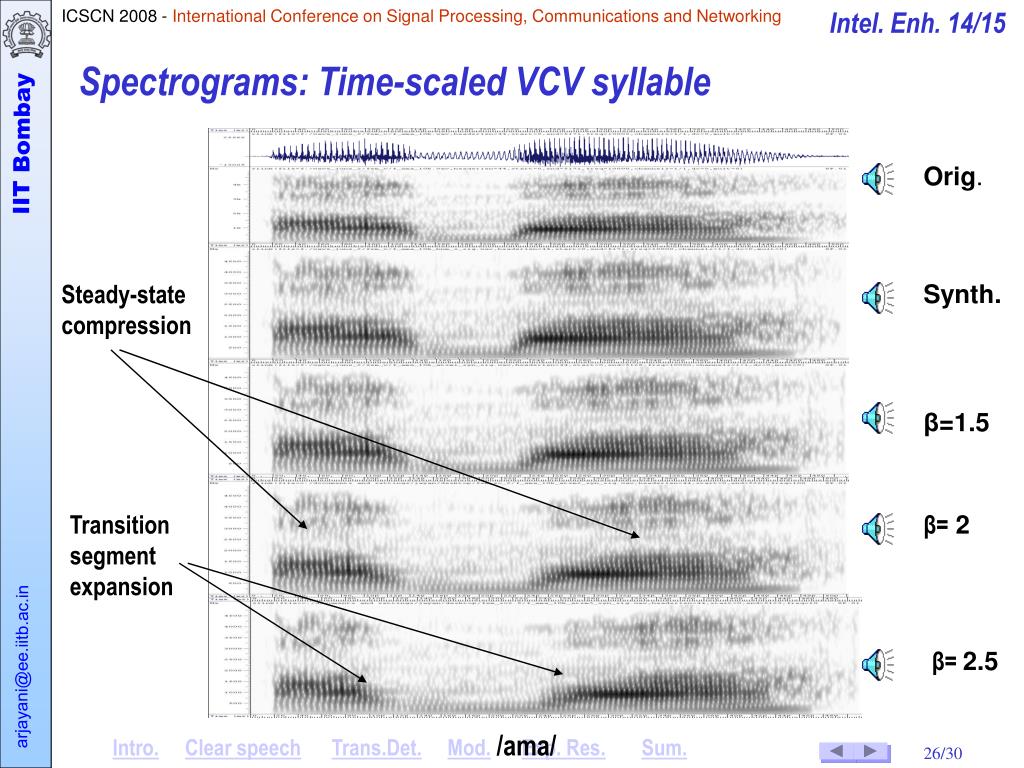

  26. Intel. Enh. 14/15 Spectrograms: Time-scaled VCV syllable Orig. Steady-state compression Synth. β=1.5 Transition segment expansion β= 2 β=2.5 /ama/

  27. Intel. Enh. 15/15 Time and Intensity scaling: VCV syllable Original Time-scaled Time-scaled Intensity enhanced +6dB /aba/

  28. Exp. Res. 1/2 • EXPERIMENTAL RESULTS • Test material - VCV syllables /aba/, /ada/, /aga/, /apa/, /ata/, /aka/ • Time scaling factors : 1.0, 1.2, 1.5, 1.8, 2.0 •  CVR enhancement : +6 dB • 12 processing conditions •  Unprocessed: UP •  Enhanced CVR without time-scaling: E •  Time scaled: TS-1.0, TS-1.2, TS-1.5, TS-1.8, TS‑2.0 • Enhanced CVR , time scaled: ETS-1.0, ETS-1.2, ETS-1.5, ETS‑1.8, ETS-2.0 • Simulated hearing impairment (adding broadband noise) • 6 different SNR levels (inf, 0, -3, -6, -9, and -12 dB) • 72 test conditions • 60 presentations, 5 tests for each condition,1 subject

  29. Exp. Res. 2/2 Results • Time-scaling factors 1.2-1.5 appears to be optimum • Time-scaling improves performance at lower SNR levels •  Consonant intensity enhancement more effective

  30. SUMMARY & CONCLUSION • Processing improved recognition scores for stop consonants • Without increasing overall speech duration • Method found more effective at lower SNR levels • Place feature identification improved significantly by processing • Intensity enhancement found more effective than duration enhancement • To be investigated • Optimum scaling factors for different speech material • Testing using different speech material • Testing on more number of subjects & subjects with • sensorineural impairment • Analysis in terms of vowel context, consonant category • Quantitative analysis of Intelligibility enhancement - MRT
