  1. Analysis code for KEK Test-Beam M. Ellis Daresbury Tracker Meeting 30th August 2005

  2. Requirements • Online: • Monitoring – higher level than that provided by UniDAQ (i.e. using reconstruction) • Event display • Offline: • Calibration • Alignment • Reconstruction (hits, points, tracks) • Event display • For the moment, only discussing the tracker.

  3. G4MICE • Software package for MICE. • Not just Simulation!!!! • Greatly extended in recent months to include: • Ability to create user applications that can use any components from the G4MICE libraries. • Ability to read in August cosmic ray data. Similar converter will be written for KEK data format. • Ability to produce and use calibration information for VLPCs (pedestals and gains). • Ability to decode electronic space to physical space for VLPC hits (incomplete at the moment).

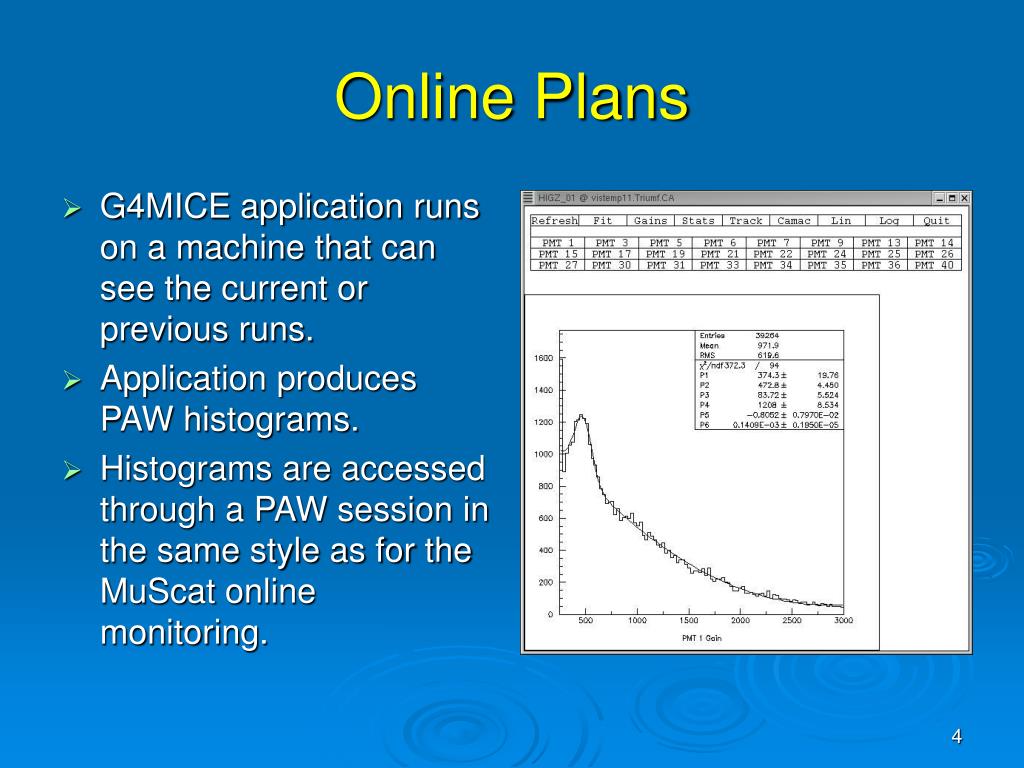

  4. Online Plans • G4MICE application runs on a machine that can see the current or previous runs. • Application produces PAW histograms. • Histograms are accessed through a PAW session in the same style as for the MuScat online monitoring.

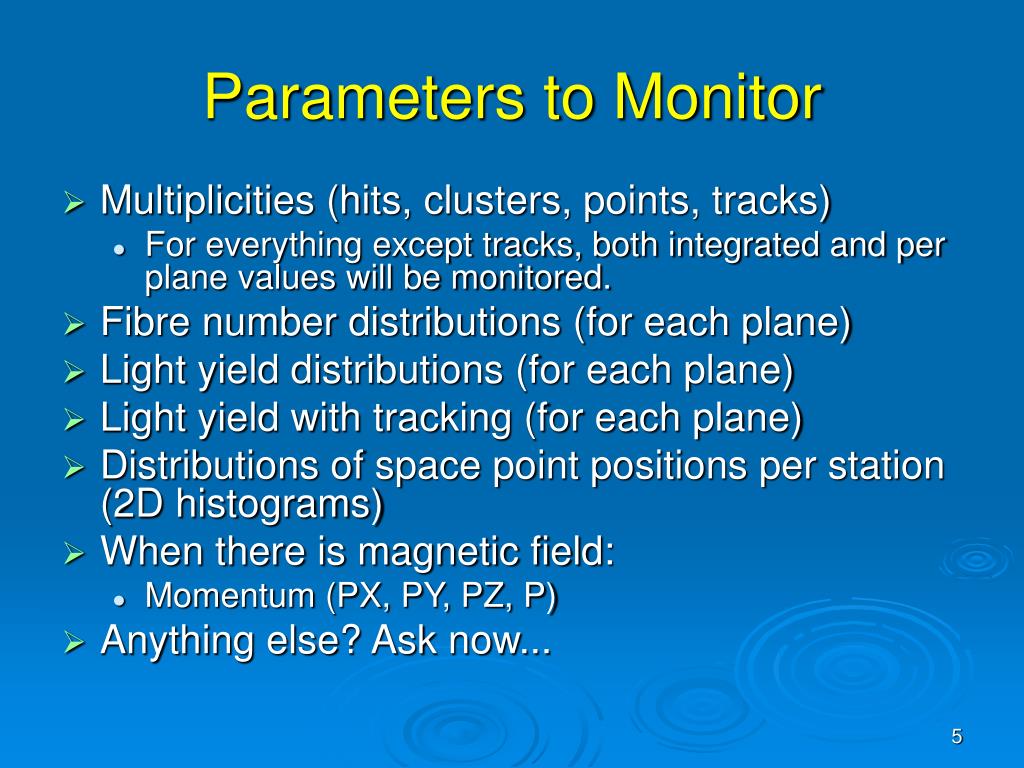

  5. Parameters to Monitor • Multiplicities (hits, clusters, points, tracks) • For everything except tracks, both integrated and per plane values will be monitored. • Fibre number distributions (for each plane) • Light yield distributions (for each plane) • Light yield with tracking (for each plane) • Distributions of space point positions per station (2D histograms) • When there is magnetic field: • Momentum (PX, PY, PZ, P) • Anything else? Ask now...

  6. Event Display • Another G4MICE application. • Currently displays hardware and low level SciFi hits (doublet clusters). • Will be extended to show space points and tracks.

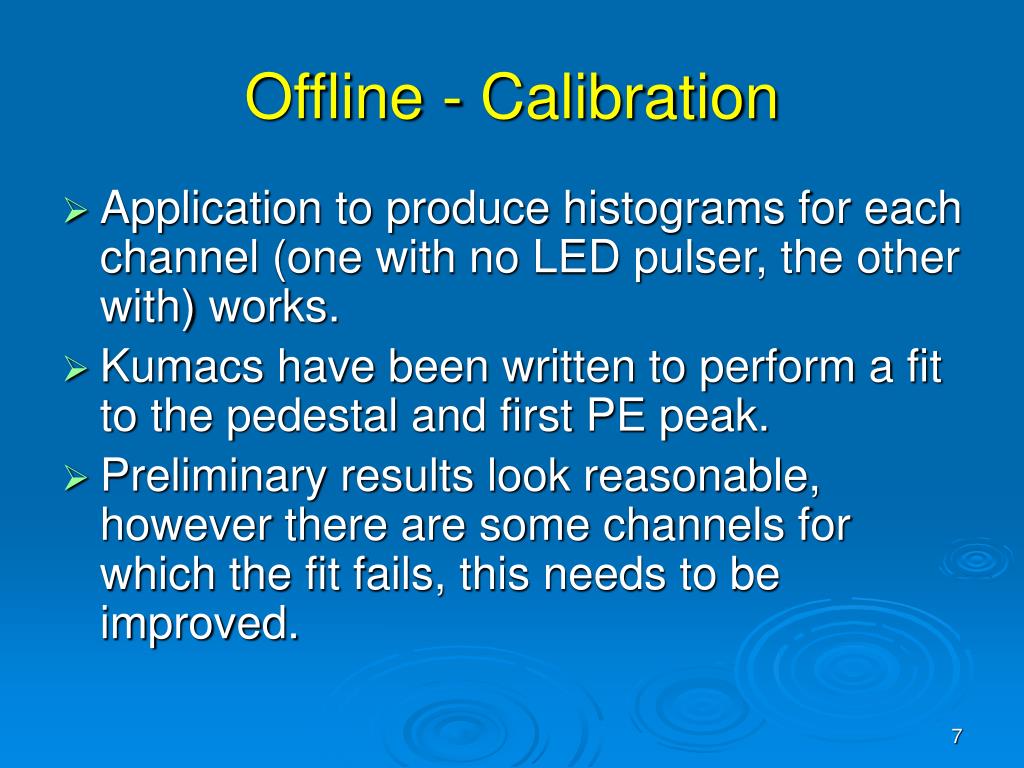

  7. Offline - Calibration • Application to produce histograms for each channel (one with no LED pulser, the other with) works. • Kumacs have been written to perform a fit to the pedestal and first PE peak. • Preliminary results look reasonable, however there are some channels for which the fit fails, this needs to be improved.

  8. Offline - Alignment • Requires CMM information for first version and as a minimum space point reconstruction. • In principle will not be too difficult for the no-field case.

  9. Offline - Reconstruction • Low level classes are separated (raw hit on a VLPC channel versus simulated Monte Carlo hit). • Both classes can be used to make a “SciFiDigit”. • Reconstruction from Digits to Clusters, Space Points and Tracks is independent of data type. • Once raw data reading, decoding of cable information and calibration is validated, then the rest of the code will work without modification.

  10. Work done and Needed - 1 • Read raw data (cosmic ray format) • Read raw data (KEK format) • Produce calibration information • Use calibration information • Produce decoding information for old stations • Produce decoding information for new stations • Use decoding information on old stations • Use decoding information on new stations √ X √ √ √ X √ X

  11. Work done and Needed - 2 • Create user applications • Write PAW HBOOK files • Reconstruct higher level objects from raw data classes • Visualise experimental setup • Visualise clusters • Visualise points, tracks, etc... • PR and Track Fit (Straight Line) • PR and Track Fit (Helix) √ √ √ √ √ X √ √

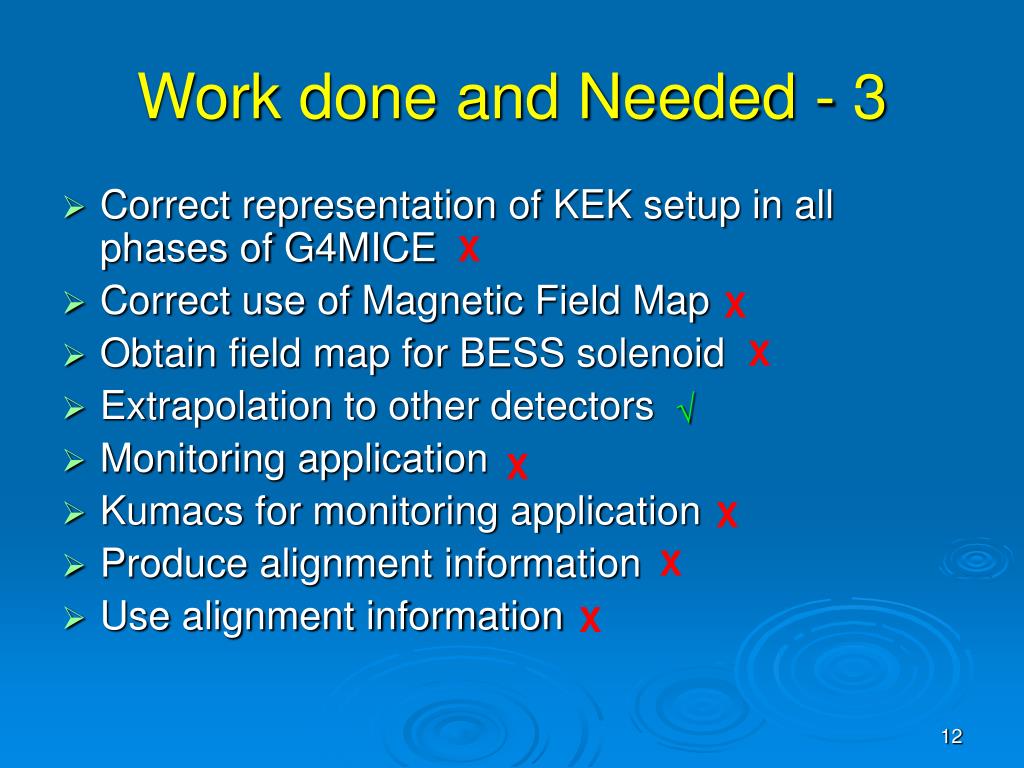

  12. Work done and Needed - 3 • Correct representation of KEK setup in all phases of G4MICE • Correct use of Magnetic Field Map • Obtain field map for BESS solenoid • Extrapolation to other detectors • Monitoring application • Kumacs for monitoring application • Produce alignment information • Use alignment information X X X √ X X X X

  13. TOF and CKOV • G4MICE code for TOF and CKOV far less developed than that for the tracker. • Aron Fish has taken over G4MICE responsibilities for the TOF. • Need to develop all levels of reconstruction in G4MICE for TOF and CKOV data. • Unless deemed urgent, I’ve assumed that it can be done at a “relaxed” pace once the tracker code is ready. UniDAQ monitoring should be sufficient to ensure correct operation of TOF and CKOV detectors.

  14. Conclusions • Much progress in the past few months. • Still a LOT to be done in the remaining weeks...
