This presentation by Conny Andersson explores the intricacies of hearing loop systems as addressed by international standards, specifically IEC 60118-4. It discusses the impact of reverberation time, speaker positioning, noise interference, and amplifier strength on sound quality. Key factors include the importance of magnetic field strength and background noise levels in achieving optimal speech intelligibility. The presentation emphasizes the necessity of adhering to standardized measurements and recommends critical evaluations of hearing loop system installations for enhanced performance.

#ensuring high-quality hearing loop systems: standards and sound performance #ensuring high-quality hearing loop systems: standards and sound performance ppt #powerpoint #presentation
Ensuring High-Quality Hearing Loop Systems: Standards and Sound Performance - slide 1
01 / 21Ensuring High-Quality Hearing Loop Systems: Standards and Sound Performance
1 / 17

Télécharger la présentation

Ensuring High-Quality Hearing Loop Systems: Standards and Sound Performance
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Hearing Loop System Conny Andersson Standards IEC 60118-4 Sound examples Conny.Andersson@edin.se

  2. Hearing Instrument • Reverberation time = 2 sec • Speaker @ 4m distance • Babble noise (other speakers) • Output from a Hearing Aid (artificial ear)

  3. International Standards, IEC American National Standard Institute • Harmonized world wide • Hearing Instrument (HI) • Hearing Loop system International Electrotechnical Commission

  4. IEC 60118-4, “Loop Standard” Magnetic Field Strength = 400mA/m. Relates directly to the output level of the Hearing Instrument Coverage area/space (sitting and standing), +-3dB

  5. Field distribution – level/coverage Level: 400mA/m Fluctuation: within +-3dB

  6. Field distribution – level/coverage (This slide contains the notes for the previous slide)

  7. Frequency response High frequency damping or metal loss is increased as a function of the distance to the loop wire. It cannot be fully compensated by the loop amplifier. It can be compensated by the loop figuration.

  8. No frequency limitations 100 200 300 500 1k 2k 3k 5k Hz 9 seconds

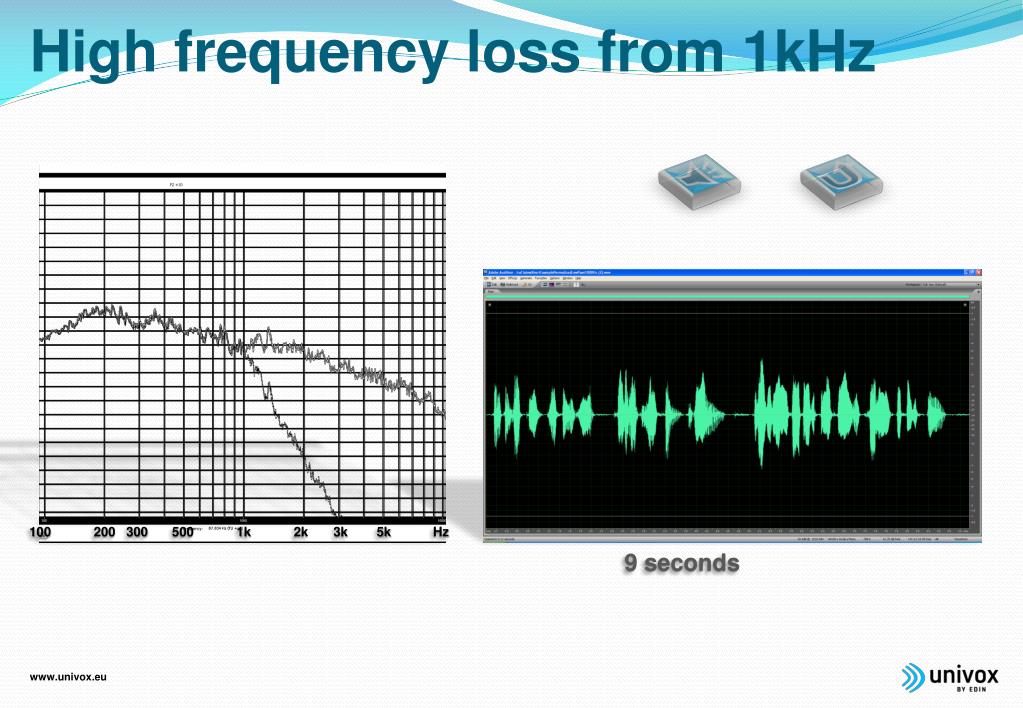

  9. High frequency loss from 1kHz 100 200 300 500 1k 2k 3k 5k Hz 9 seconds

  10. High frequency loss from 500Hz 100 200 300 500 1k 2k 3k 5k Hz 9 seconds

  11. No frequency limitations 100 200 300 500 1k 2k 3k 5k Hz 9 seconds

  12. Surrounding noise (hum) Background noise (hum) from electrical appliances creates noise directly into the Hearing Instrument Standard: less than -32dBA (-47dBA) Level, Magnetic Field Strength 400mA/m

  13. Background Noise (hum) • High background noise: -12dBA • Tiresome

  14. Adding a weak amplifier • Low Field Strength: -12dB (100mA/m) • Very low speech intelligibility

  15. Stronger amplifier – same noise • Accepted Field Strength: 0dB (400mA/m) • Enhanced speech intelligibility

  16. Approved field strength– same noise • Accepted Field Strength: +3dB (560mA/m) • Further enhanced speech intelligibility

  17. Complies to standard • Correct Field Strength: 0dB (400mA/m) • Noise complies to the standard, -32dBA

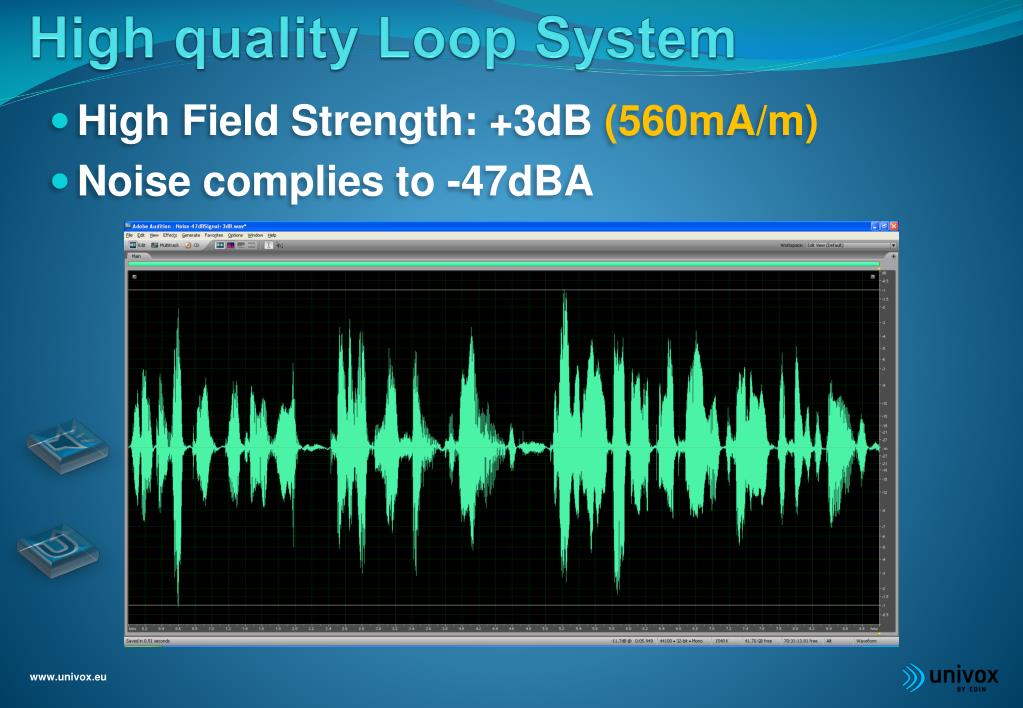

  18. High quality Loop System • High Field Strength: +3dB (560mA/m) • Noise complies to -47dBA

  19. Conclusions of sound examples • Systems that sounds “noisy” is often a reflection of a weak hearing loop amplifier. • Loop systems could often easily be updated to comply with the level requirements (with increased Signal to Noise ratio and speech intelligibility).

  20. Conclusion and advise • Follow the international standard • Do not trust the manufacturers coverage area as they are highly overstated for practical installations. Trust real measurements. • A hearing instrument cannot be used to certify a hearing loop system.

  21. Thank you for your attention! Conny.Andersson@edin.se
