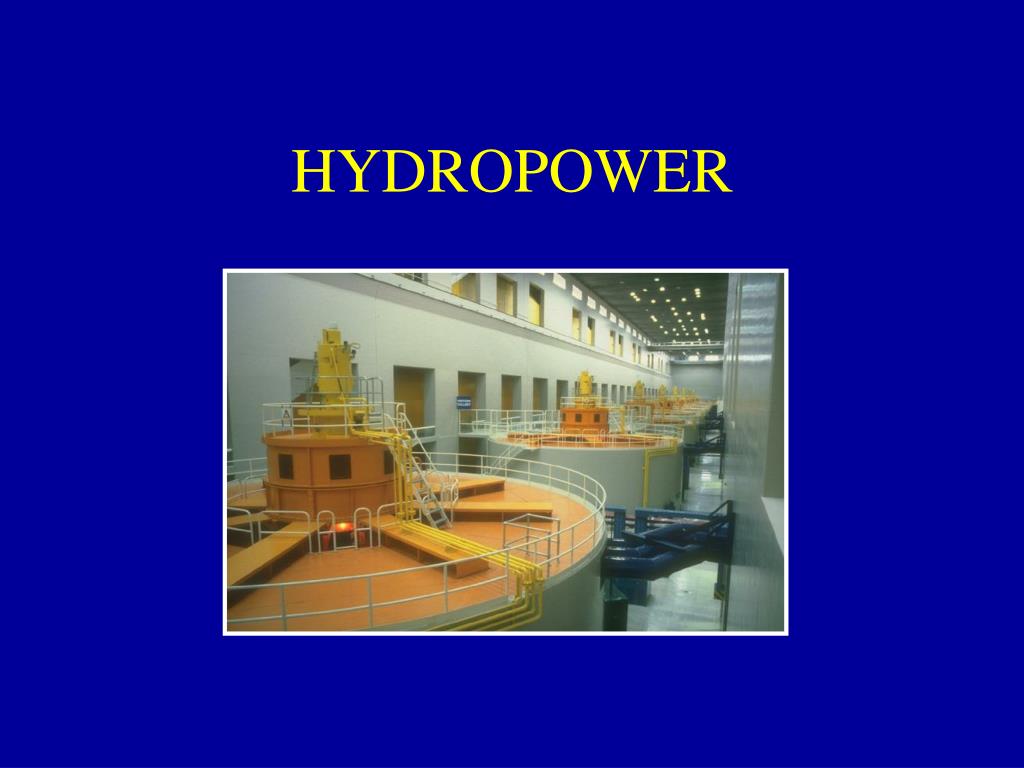

HYDROPOWER. Objective:. The student will be become familiar with the Corps policy for hydropower development. The student will be have a basic understanding of economic evaluation concepts. US Sources of Electrical Power. Other 6%. Hydro 13%. Nuclear 14%. Fossil Steam 62%.

Télécharger la présentation


An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript


  2. Objective: • The student will be become familiar with the Corps policy for hydropower development. • The student will be have a basic understanding of economic evaluation concepts.

  3. US Sources of Electrical Power Other 6% Hydro 13% Nuclear 14% Fossil Steam 62% Gas Turbine 5% Corps of Engineers 24% (21,000 megawatts) The Corps has an $18 billion investment in hydropower facilities. Generates $2 - $3 billion in annual revenue Big Business!! Others 51% Bureau of Reclamation 16% Commercial 3% Tennessee Valley Authority 6%

  4. Hydropower Statutes • River and Harbor Act of 1912 • Flood Control Act of 1917 • Federal Water Power Act of 1920 • Flood Control Act of 1938 • Flood Control Act of 1944 (Section 5) • Water Resources Development Act of 1976 • Water Resources Development Act of 1986

  5. Hydropower Guidance • ER 1105-2-100, Planning Guidance • EP 1165-2-1, Digest of Water Resources Policies and Authorities • EM 1110-2-1701, Hydropower Manual • ER 1110-2-1454, Corps Responsibilities for Non-Federal Hydroelectric Power Development

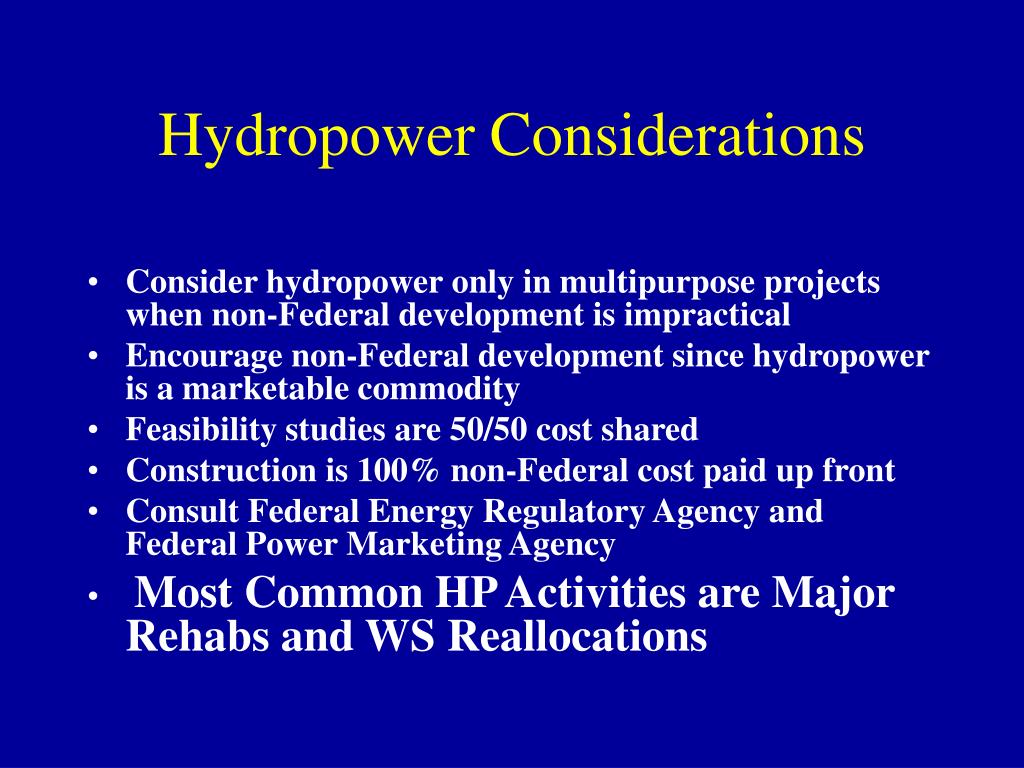

  6. Hydropower Considerations • Consider hydropower only in multipurpose projects when non-Federal development is impractical • Encourage non-Federal development since hydropower is a marketable commodity • Feasibility studies are 50/50 cost shared • Construction is 100% non-Federal cost paid up front • Consult Federal Energy Regulatory Agency and Federal Power Marketing Agency • Most Common HP Activities are Major Rehabs and WS Reallocations

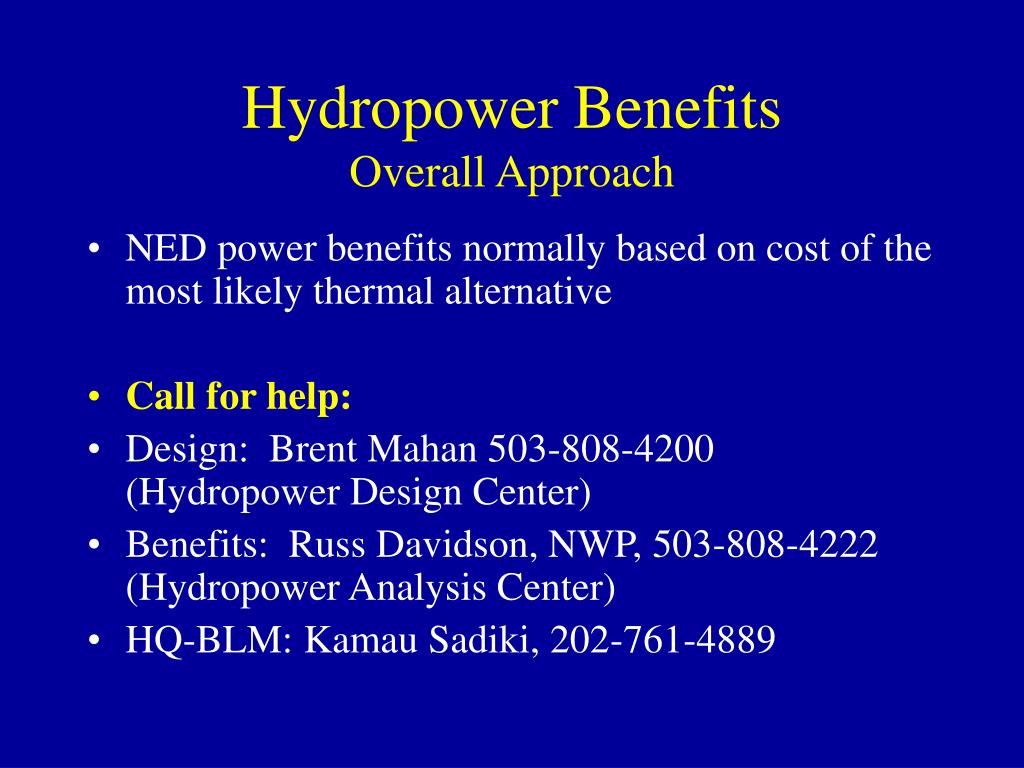

  7. Hydropower BenefitsOverall Approach • NED power benefits normally based on cost of the most likely thermal alternative • Call for help: • Design: Brent Mahan 503-808-4200 (Hydropower Design Center) • Benefits: Russ Davidson, NWP, 503-808-4222 (Hydropower Analysis Center) • HQ-BLM: Kamau Sadiki, 202-761-4889

  8. Alternative Thermal Plants • Base load (20-24 hours per day) • coal fired steam • nuclear • Intermediate load (4-10 hours per day) • cycling coal • combined cycle • Peaking/reserve (< 4 hours per day) • combustion turbines

  9. Elements of Power Benefit Computation • Capacity benefits • Energy benefits

  10. Capacity Value • Fixed costs associated with the increment of alternative thermal power plant capacity that would be displaced by the hydro plant • Primarily construction costs but also includes fuel inventory and fixed O&M costs • Unit Value is ($/MW-yr) • MW of Installed Capacity • Developed by FERC and Hydropower Analysis Center (NWP)

  11. Energy Value • Variable costs associated with the thermal power plant generation displaced if the hydro plant is added to the system instead of the thermal alternative • Primarily fuel costs, but includes variable O&M costs • Unit Value is $/MwH • MwH/yr of annual energy • Usually Done With System Production Cost Model • Developed by Hydropower Analysis Center • PLATTS

  12. System Production Cost Analysis • Define the system demand • Usually done by working with regional PMAs and Utilities • Define the generating resources needed in each hour to meet the demand • Done with optimizing production cost models assuming the lowest cost resource mix will be used to meet demand • Estimate the system cost of production in without project condition • Estimate the system cost of production in with project condition • Compare system costs in without and with condition

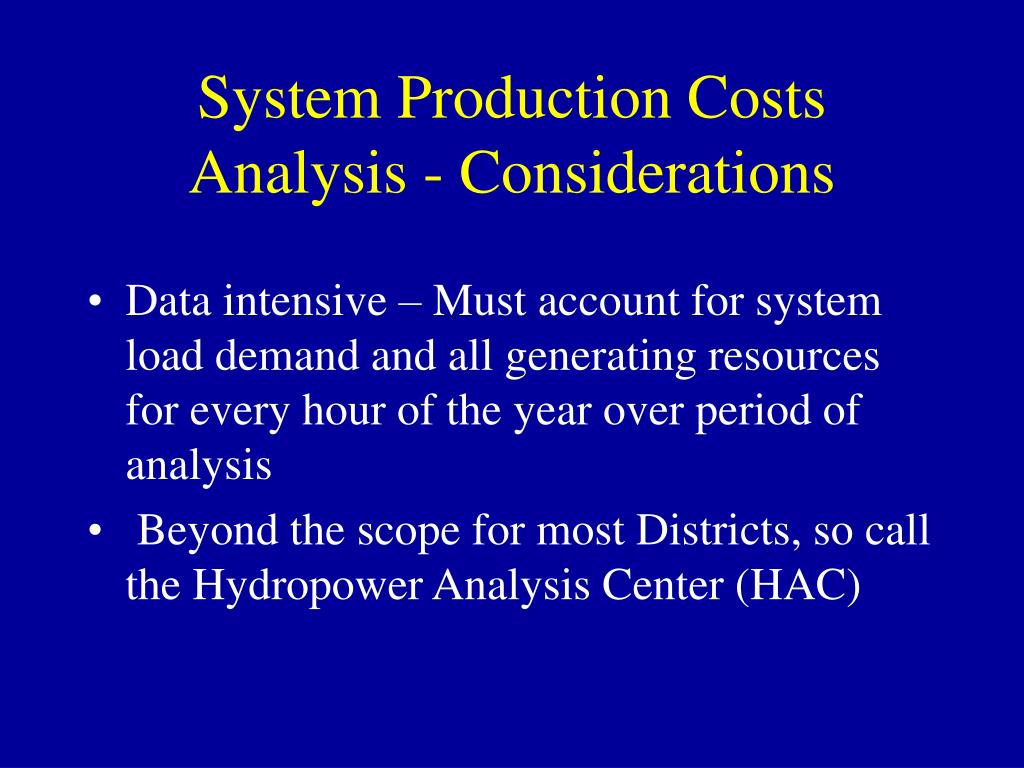

  13. System Production Costs Analysis - Considerations • Data intensive – Must account for system load demand and all generating resources for every hour of the year over period of analysis • Beyond the scope for most Districts, so call the Hydropower Analysis Center (HAC)

  14. HP Challenges • Aging infrastructure • Major Rehabilitation • Up-Rate potential • Alternative financing • Competition with WS and other purposes

  15. Summary • Corps policy on new hydropower development – Encourage Non-Federal • Primary HP activities are Major Rehab and WS Reallocations • Economic evaluation based on alternative projects and system costs with and without hydropower project • Contact HDC/HAC - NWP
