  1. Electronic System Design GroupDAQ Projects Group Meeting CR13/R68 2nd June 2005 10:00-12:00 Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

  2. Future of GDAQ? DIAMOND & DL main users? Complete new hardware? Commercial Modules? Opto DAQ? RH & SQ to meet with Richard Farrow next week Talk to Tim /Gareth about DIAMOND Generic DAQ Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

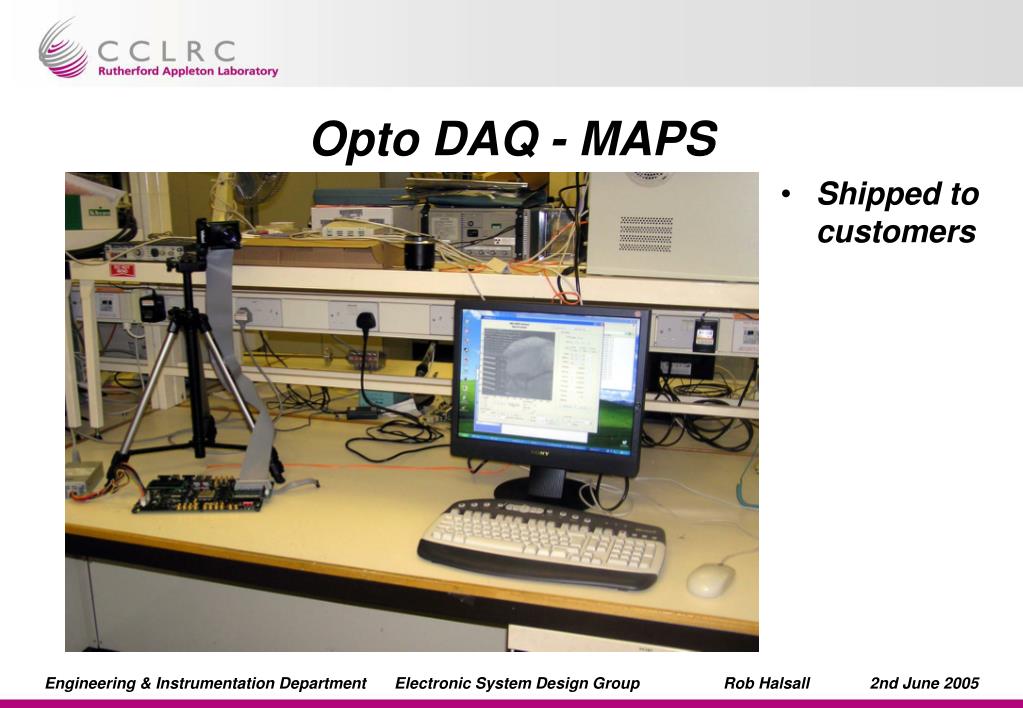

  3. Opto DAQ - MAPS • Shipped to customers Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

  4. DIFFEX • Based on Opto DAQ engine used in CIQE • Next Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

  5. XDAS - Aladin versus Xchip CFI funded - funding cut almost immediately SGB, PS & RH Proved it worked LAD -> PENELOPE funded by DIAMOND CFI PIXEL PC VII Pro Dev Board Service board Detector hybrid Rx <- Clock & 3 x Data Tx -> Clock GBit E-Net I2C & Count enable Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

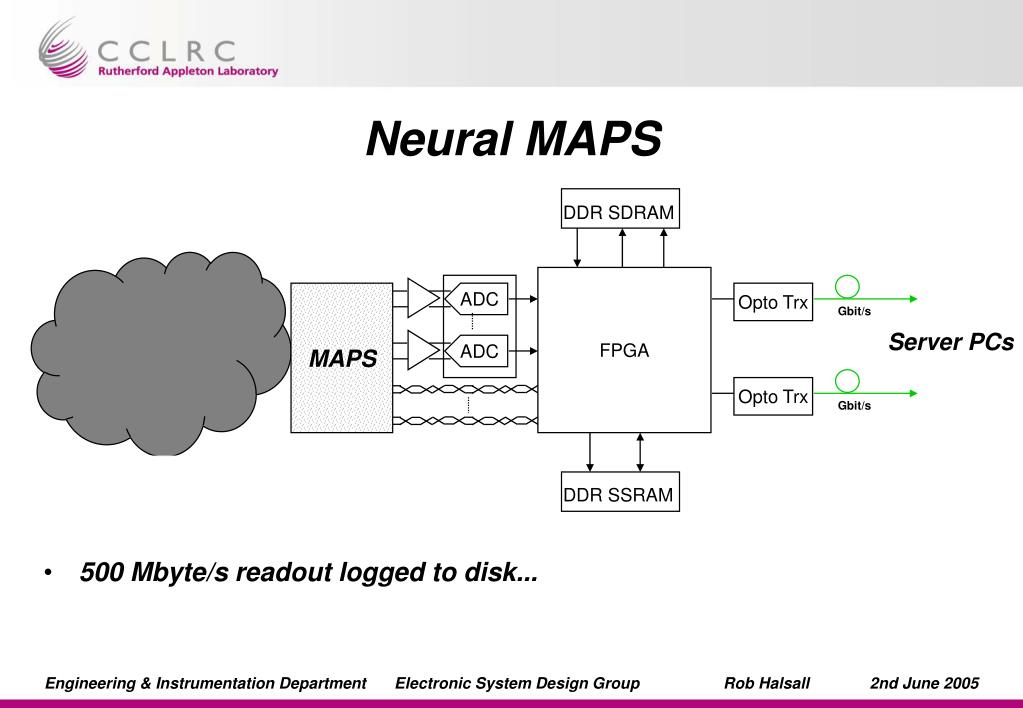

  6. 500 Mbyte/s readout logged to disk... Neural MAPS DDR SDRAM MAPS ADC Opto Trx Gbit/s Server PCs FPGA ADC Opto Trx Gbit/s DDR SSRAM Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

  7. MAPS - Laser Tweezers • 3 Staff Months of effort for design of FPGA engine • Invited to bid for more effort... Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

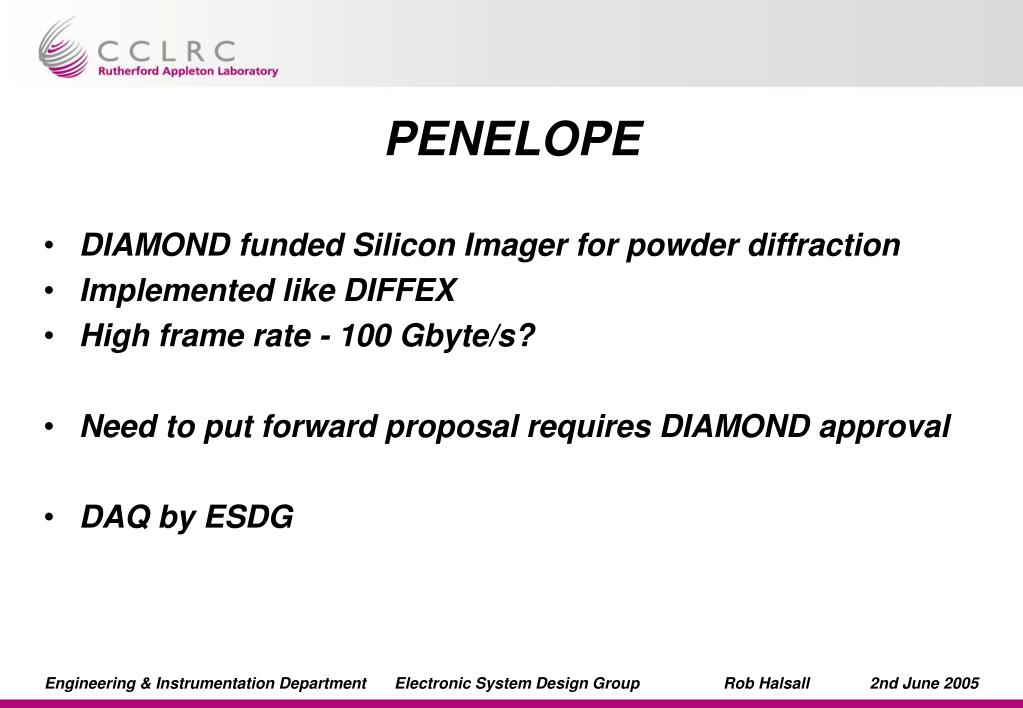

  8. PENELOPE • DIAMOND funded Silicon Imager for powder diffraction • Implemented like DIFFEX • High frame rate - 100 Gbyte/s? • Need to put forward proposal requires DIAMOND approval • DAQ by ESDG Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

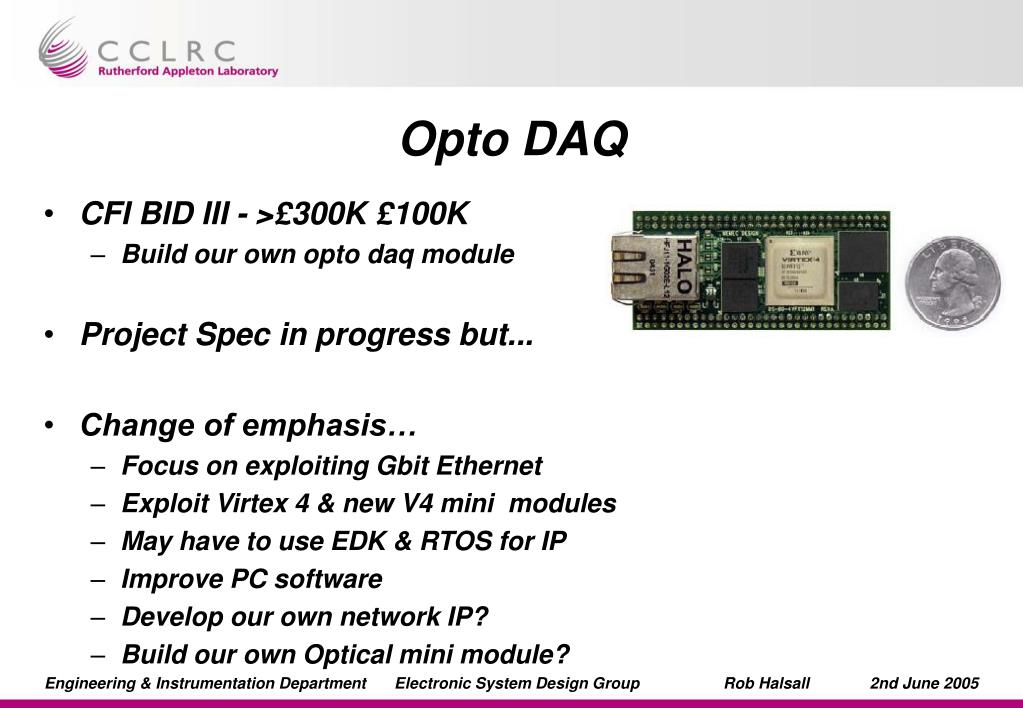

  9. Opto DAQ • CFI BID III - >£300K £100K • Build our own opto daq module • Project Spec in progress but... • Change of emphasis… • Focus on exploiting Gbit Ethernet • Exploit Virtex 4 & new V4 mini modules • May have to use EDK & RTOS for IP • Improve PC software • Develop our own network IP? • Build our own Optical mini module? Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

  10. Opto DAQ/Internal R&D - 10G Ethernet • VII Pro X loan • 10 G XFP • 10G EMAC eval • 10G NIC/PCs • Develop own packetiser • firmware & software • Apply to • 10/100/1000 etc Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

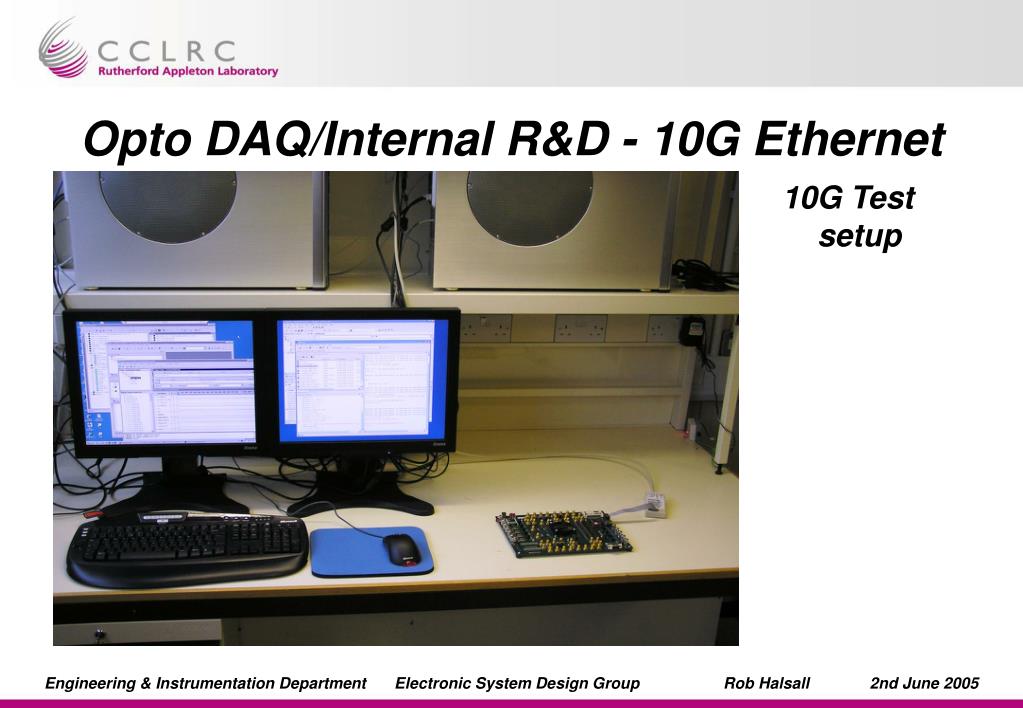

  11. Opto DAQ/Internal R&D - 10G Ethernet 10G Test setup Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005

  12. CFI - FPGA Computing • RH & SQ Meetings with • DL High Performance Computing Group • ISIS Computing Group • DIAMOND • CULHAM • Areas • Non RT Compute Power • RT Data processing &visualisation • RT Data processing & Control • Re-bid for more money... Engineering & Instrumentation Department Electronic System Design Group Rob Halsall 2nd June 2005
