Box and Whisker Plot

This guide walks you through the steps to create a Box and Whisker plot using a set of numerical data. You will learn how to order the numbers from least to greatest, identify the lower and upper extremes, and plot them on a number line. Additionally, you will find the median and the quartiles of the data set. The provided data includes a mixture of values, and by following the outlined steps, you will be able to visualize the distribution effectively via a Box and Whisker plot.

xanto
Télécharger la présentation

Box and Whisker Plot

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

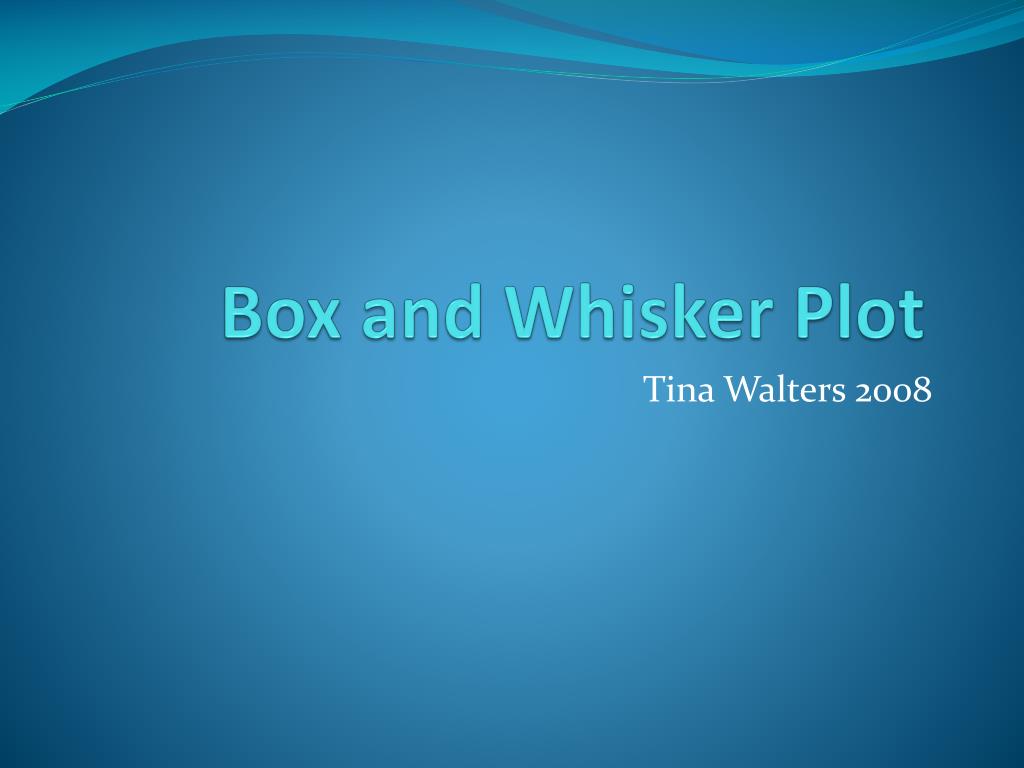

  1. Box and Whisker Plot Tina Walters 2008

  2. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 Create a Box and Whisker Plot for this set of data.

  3. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 1. Put numbers in order from least to greatest.

  4. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers).

  5. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme

  6. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27,39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme 3. Make a number line for the set of numbers.

  7. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. 10 90

  8. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. 10 90 14 84

  9. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. • Find the median of the data and plot below the number line. 10 90 14 84

  10. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. • Find the median of the data and plot below the number line. 10 90 14 47.5 84

  11. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27,39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. • Find the median of the data and plot below the number line. • Find the median of the upper half and the lower half. Plot below the number line. This is called the Upper and Lower Quartiles. 10 90 14 47.5 84

  12. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 27, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. • Find the median of the data and plot below the number line. • Find the median of the upper half and the lower half. This is called the Upper and Lower Quartiles. Plot below the number line. 10 90 14 27 47.5 64 84

  13. Box and Whisker 50, 80, 22, 64, 56, 14, 39, 45, 84, 27 14, 22, 39, 45, 50, 56, 64, 80, 84 • Put numbers in order from least to greatest. • Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme • Make a number line for the set of numbers. • Plot the Upper and Lower Extremes. • Find the median of the data and plot below the number line. • Find the median of the upper half and the lower half. Plot below the number line. This is the Upper and Lower Quartile. 10 90 14 27 47.5 64 84

  14. Box and Whisker Put numbers in order from least to greatest. Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme Make a number line for the set of numbers. Plot the Upper and Lower Extremes. Find the median of the data and plot below the number line. Find the median of the upper half and the lower half. Plot below the number line. Draw a box from Upper Quartile to Lower Quartile. 10 90 14 27 47.5 64 84

  15. Box and Whisker Put numbers in order from least to greatest. Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme Make a number line for the set of numbers. Plot the Upper and Lower Extremes. Find the median of the data and plot below the number line. Find the median of the upper half and the lower half. Plot below the number line. Draw a box from Upper Quartile to Lower Quartile. Draw lines from the Quartiles to the Extremes. 10 90 14 27 47.5 64 84

  16. Box and Whisker Put numbers in order from least to greatest. Identify the extremes (highest and lowest numbers). 14 Lower Extreme 84 Upper Extreme Make a number line for the set of numbers. Plot the Upper and Lower Extremes. Find the median of the data and plot below the number line. Find the median of the upper half and the lower half. Plot below the number line. Draw a box from Upper Quartile to Lower Quartile. Draw lines from the Quartiles to the Extremes. 10 90 14 27 47.5 64 84
