Presentation Transcript

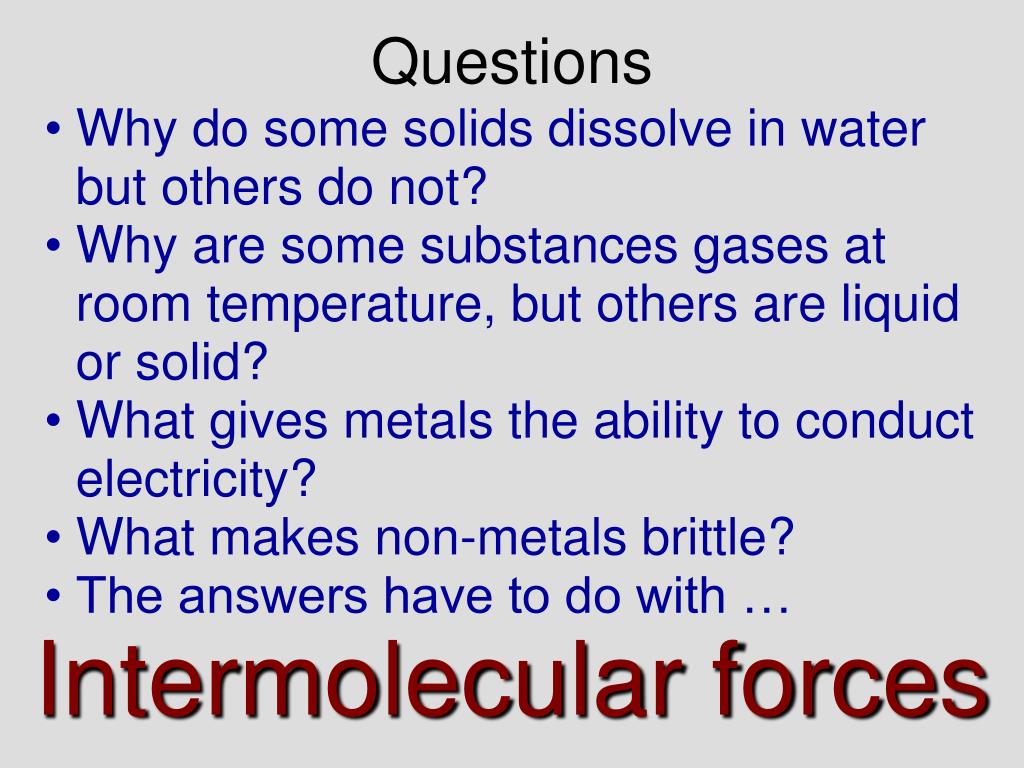

  1. Questions • Why do some solids dissolve in water but others do not? • Why are some substances gases at room temperature, but others are liquid or solid? • What gives metals the ability to conduct electricity? • What makes non-metals brittle? • The answers have to do with … Intermolecular forces

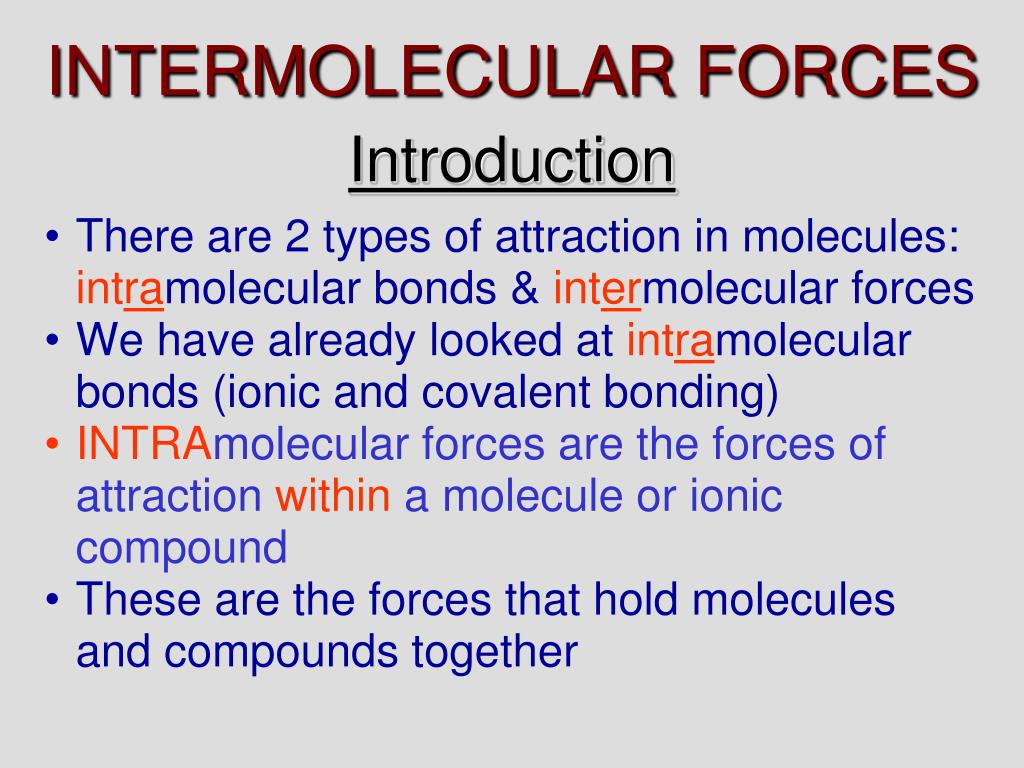

  2. INTERMOLECULAR FORCES Introduction • There are 2 types of attraction in molecules: intramolecular bonds & intermolecular forces • We have already looked at intramolecular bonds (ionic and covalent bonding) • INTRAmolecular forces are the forces of attraction within a molecule or ionic compound • These are the forces that hold molecules and compounds together

  3. INTERMOLECULAR FORCES • Intermolecular forces (IMF) have to do with the attraction betweenmolecules (vs. the attraction between atoms in a molecule) • These forces are weaker than intramolecular bonding forces • There are 3 types of IMF’s (from weakest to strongest) 1) van der Waal’s 2) dipole-dipole 3) hydrogen-bonding

  4. 1. Van der Waal’s forces • Non-polar molecules do not have dipoles like polar molecules. • How, then, can non-polar compounds form solids or liquids? • What holds the molecules close to one another when in the liquid or solid state?

  5. Van der Waal’s forces • Van der Waal’s forces are due to small temporary dipoles that exist in non-polar molecules • Because electrons are moving around in atoms there will be instants when the charge around an atom is not symmetrical ienot evenly distributed • The resulting tiny dipoles cause attractions between neighbouring atoms/molecules

  6. vanderWaal’s forces Induced dipole: Instantaneous dipole: Eventually electrons are situated so that tiny dipoles form A dipole forms in one atom or molecule, inducing a dipole in the other

  7. What trends do you notice? http://wps.prenhall.com/wps/media/objects

  8. The boiling points (and melting points) of the halogens DECREASES as their MOLAR MASS increases (ie DOWN the group)

  9. + – H Cl 2. Dipole - Dipole attractions • We have seen that bonds within molecules can have a separation of charge that creates dipole moments • If these dipoles combine in a non-symmetrical manner, then a polar molecule results.

  10. Polar and non-polar molecules wps.prenhall.com

  11. + – + – + – + – 2. Dipole - Dipole attractions • Neighbouring molecules are attracted to one another through dipole-dipole forces of attraction • The greater the ∆EN of the dipole moment, the stronger the dipole-dipole forces of attraction between molecules, and the higher the boiling point, because it takes more energy to move molecules apart.

  12. The greater the ∆EN of the dipole moment, the stronger the dipole-dipole forces of attraction between molecules

  13. Recall: the 3 states of matter www.chem.ufl.edu

  14. 3. Hydrogen-bonding • H-bonding is a special type of dipole - dipole attraction that is very strong • NOTE: it is not a “Bond” but actually an intermolecular force of attraction between neighbouring molecules • It only occurs between molecules that have an O-H, N-H or F-H bond which are all highly polar bonds with large EN values

  15. 3. Hydrogen-bonding • Compare the EN for H-Cl and O-H bond in H2O H-Cl = 2.9-2.1 = 0.8, O-H = 3.5-2.1 = 1.4 • The high EN of N-H, O-H, and H-F bonds cause hydrogen bonding forces to be the strongest IMF (about 5x stronger than normal dipole-dipole forces)

  16. The hydrogen-bonding attraction between molecules of water account for its high surface tension.

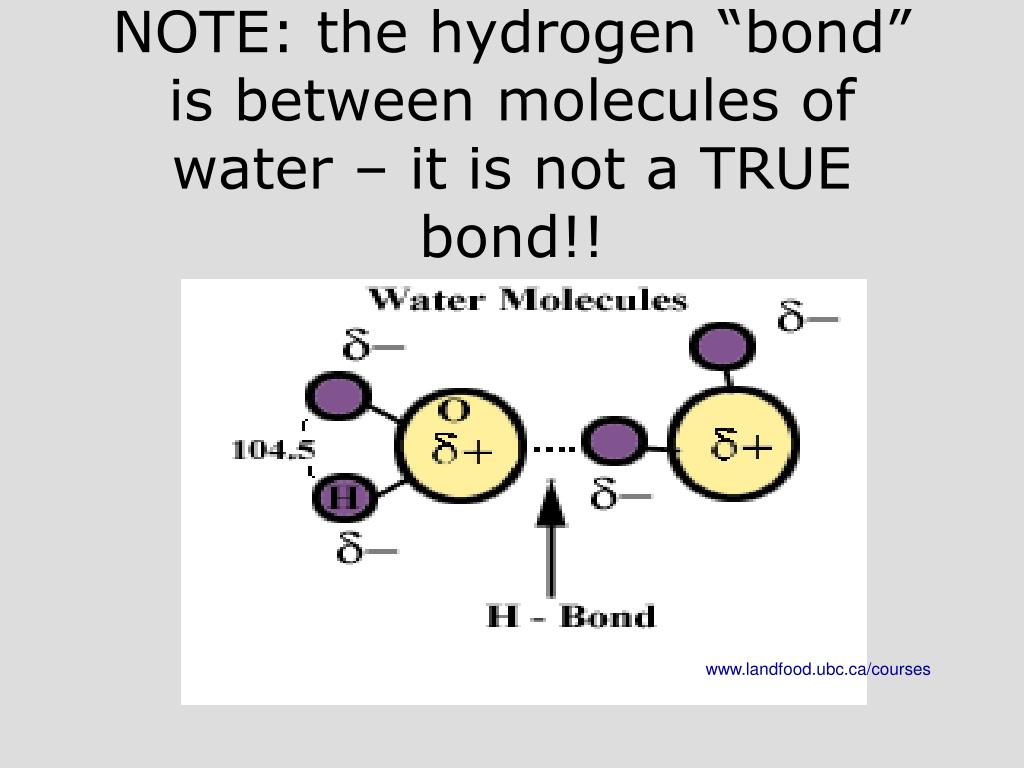

  17. NOTE: the hydrogen “bond” is between molecules of water – it is not a TRUE bond!! www.landfood.ubc.ca/courses

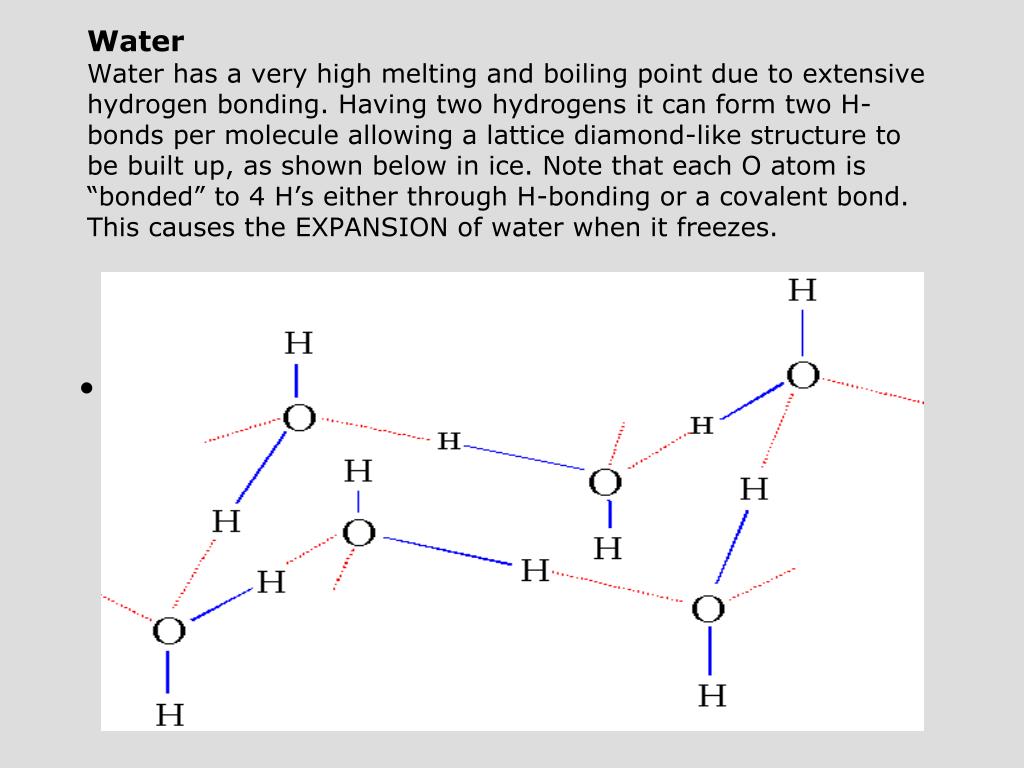

  18. Water Water has a very high melting and boiling point due to extensive hydrogen bonding. Having two hydrogens it can form two H- bonds per molecule allowing a lattice diamond-like structure to be built up, as shown below in ice. Note that each O atom is “bonded” to 4 H’s either through H-bonding or a covalent bond. This causes the EXPANSION of water when it freezes. • http://ibchem.com/IB/ibnotes/brief/bon-sl.htm

  19. www.goiit.com

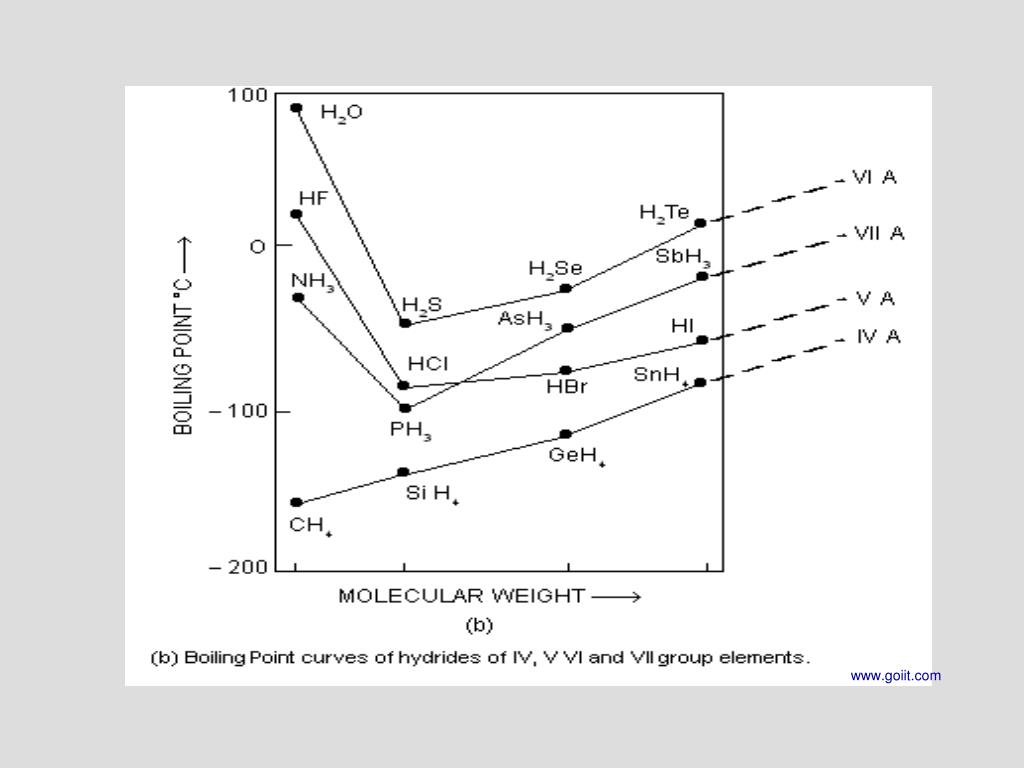

  20. H – bonding and boiling point

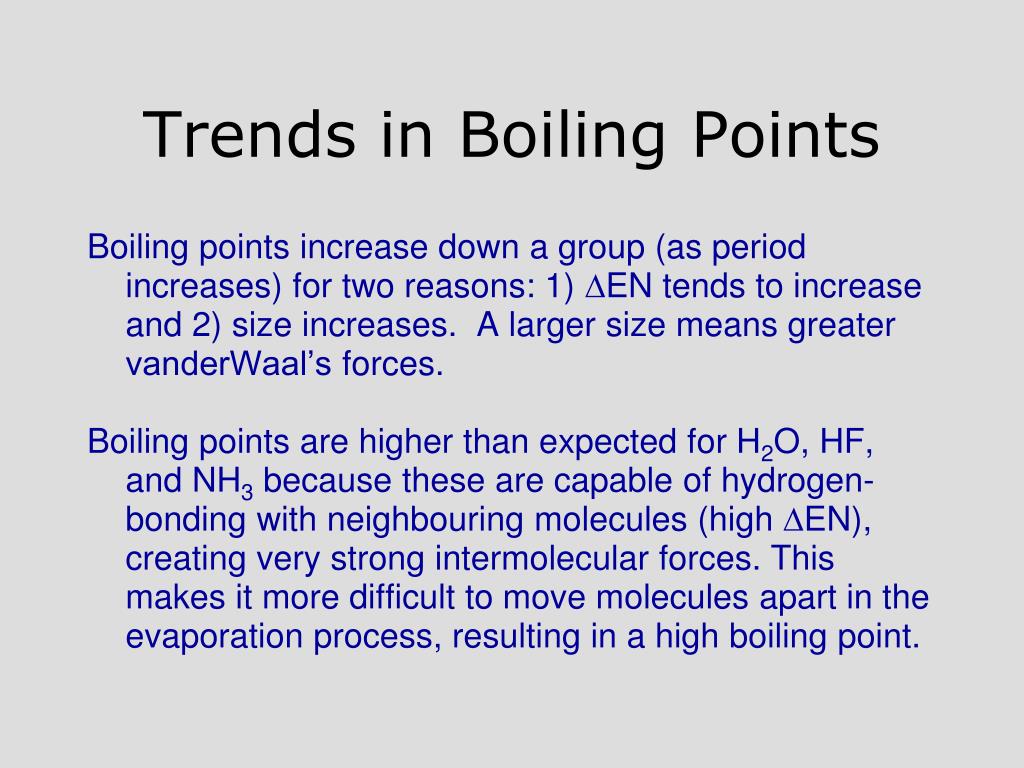

  21. Trends in Boiling Points Boiling points increase down a group (as period increases) for two reasons: 1) EN tends to increase and 2) size increases. A larger size means greater vanderWaal’s forces. Boiling points are higher than expected for H2O, HF, and NH3 because these are capable of hydrogen-bonding with neighbouring molecules (high EN), creating very strong intermolecular forces. This makes it more difficult to move molecules apart in the evaporation process, resulting in a high boiling point.

  22. Ionic-Dipole Attractive Forces • Positive and negative ions that are present in ionic compounds will be attracted to dipoles such as those of a polar molecule like water • This “ionic-dipole” attraction between positively and negatively charged centers accounts for the solubility of most ionic compounds in polar solvents

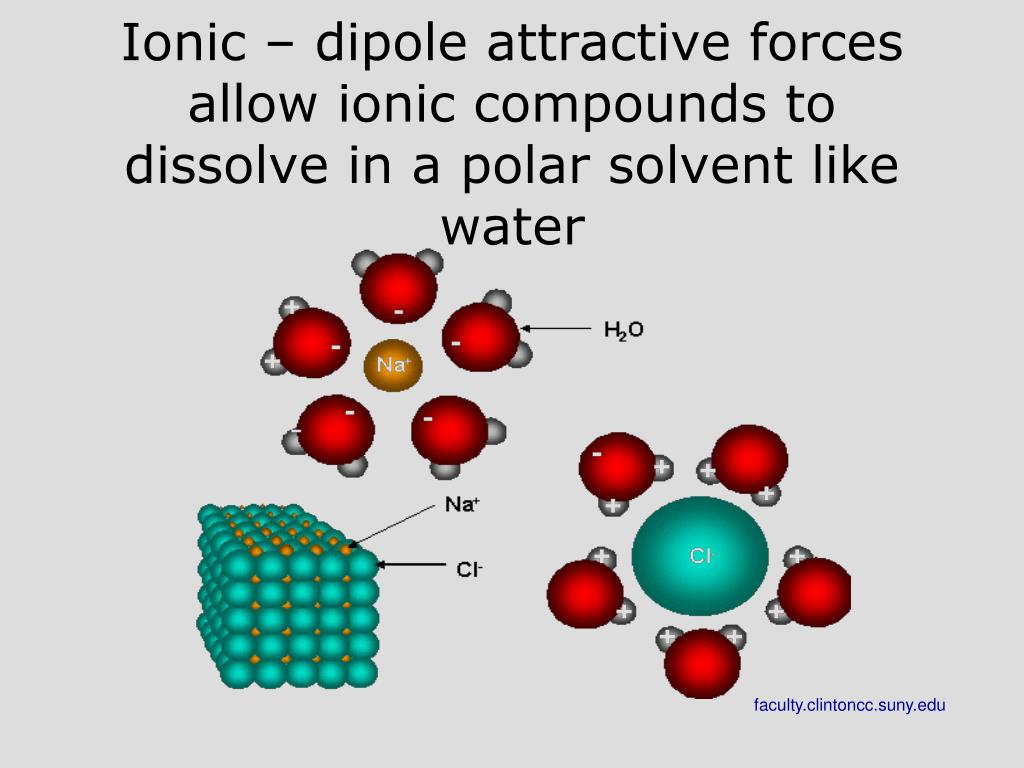

  23. Ionic – dipole attractive forces allow ionic compounds to dissolve in a polar solvent like water faculty.clintoncc.suny.edu

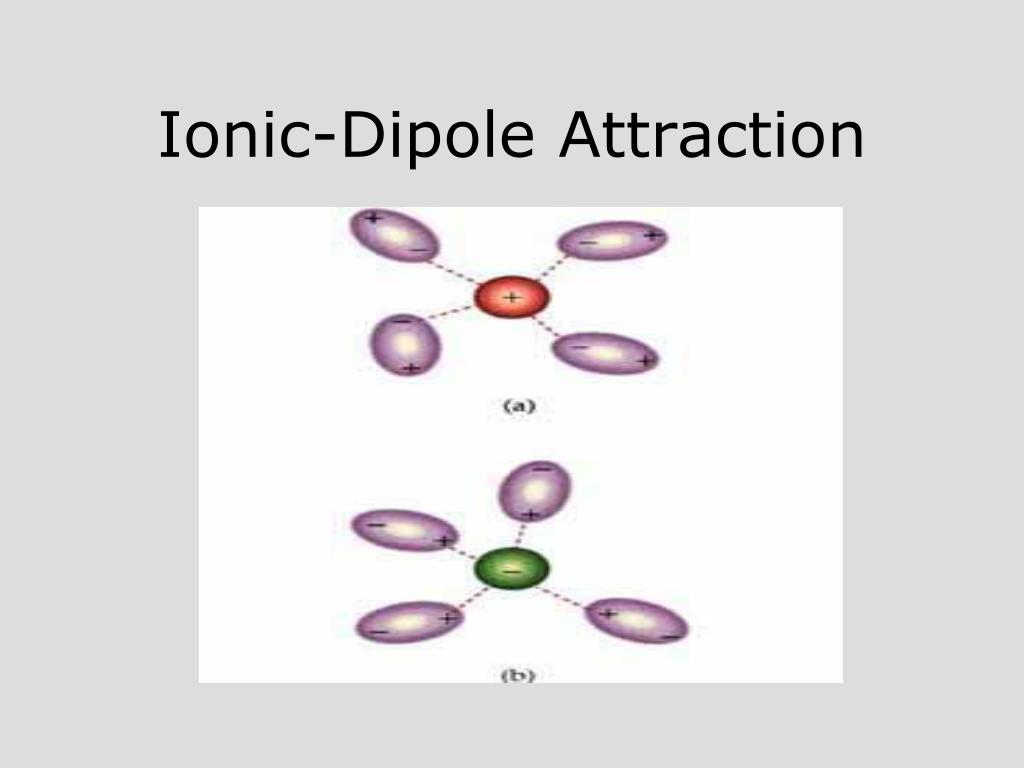

  24. Ionic-Dipole Attraction
