SPC-I and SPC-II Interrupts, APIC Interrupts and the NetBSD Interrupt Handling Code John DeHart

1. SPC-I and SPC-II Interrupts, APIC Interrupts and the NetBSD Interrupt Handling Code John DeHart Washington University jdd@arl.wustl.edu http://www.arl.wustl.edu/~jdd

2. Issue • There seems to be a bug in the system • Right now only shows up on SPC-II • In the past, has shown up on SPC-I • But this could be similar symptoms of different problems. • No recollection of it ever showing up on end hosts. • All these different systems have different timing • We ran into this problem in preparing for and doing the WU 150th anniversary demo. • Fred is having this problem in his kernel testing. • JohnD is having this problem in his final SPC-II performance testing.

3. Issue (continued) • Symptoms: • Transmit queue stalls for paced connections • when it stalls the descriptor chain looks like this: • ??? • Resuming connection as BE (then Paced) clears the queue most of the time • sometimes it then stalls again and eventually we can not resume it. • When it stalls and the APIC runs out of descriptors, we do get an ERROR interrupt for the out of descriptors state. • This seems to imply that the APIC and ICU are in a state such that they can generate an APIC interrupt to the CPU. • If the APIC had generated an interrupt that had been “lost” the APIC and/or ICU would probably not be in a state that would allow another APIC interrupt to reach the CPU.

4. Issue (continued) • Suspects: • “Lost” interrupt • APIC Hardware bug • interrupt handling • timing between two instances of INTR signal being asserted. • descriptor handling • pacer • flow control • other? • APIC driver bug • interrupt handling • descriptor handling • other? • NetBSD Interrupt handling bug • SPC-II FPGA flow control bug

5. Issue (continued) • Plan of Attack: • Analyze apic driver code: • compare MSR vs. end host driver code. • Get details of descriptor chain when it stalls: • dump APIC descriptor chain as it exists in memory • dump APIC current descriptor chain register for stalled channel • monitor interrupt counts on SPC-II and compare to packet counts • vmstat –I • Note what IRQs are assigned to what at boot time. • Turn off SPC-II FPGA flow control to APIC • change VHDL • rebuild bitfile • re-program SPC-II FPGA • retest

6. SPC-I System FPGA • Supported: • Four Interrupts supported and statically assigned: • PIT (IRQ 0) • APIC (IRQ 5) • COM1 (IRQ 4) • COM2 (IRQ 3) • Static fully-nested interrupt priority structure. • Specific End of Interrupt is the only EOI mode supported • Not Supported: • Special Mask Mode • Automatic End of Interrupt (AUTO_EOI_1, AUTO_EOI_2) • Special Fully Nested Mode

7. SPC-II Interrupts • Supported by a real Southbridge/ICU • FPGA provides flow control • but with the traffic patterns and rates we are using there should be no flow control asserted.

8. Hardware Interrupt Structure (Ignoring Bus) MASK/UNMASK CPU ACK INTR ICU ACK INTR APIC

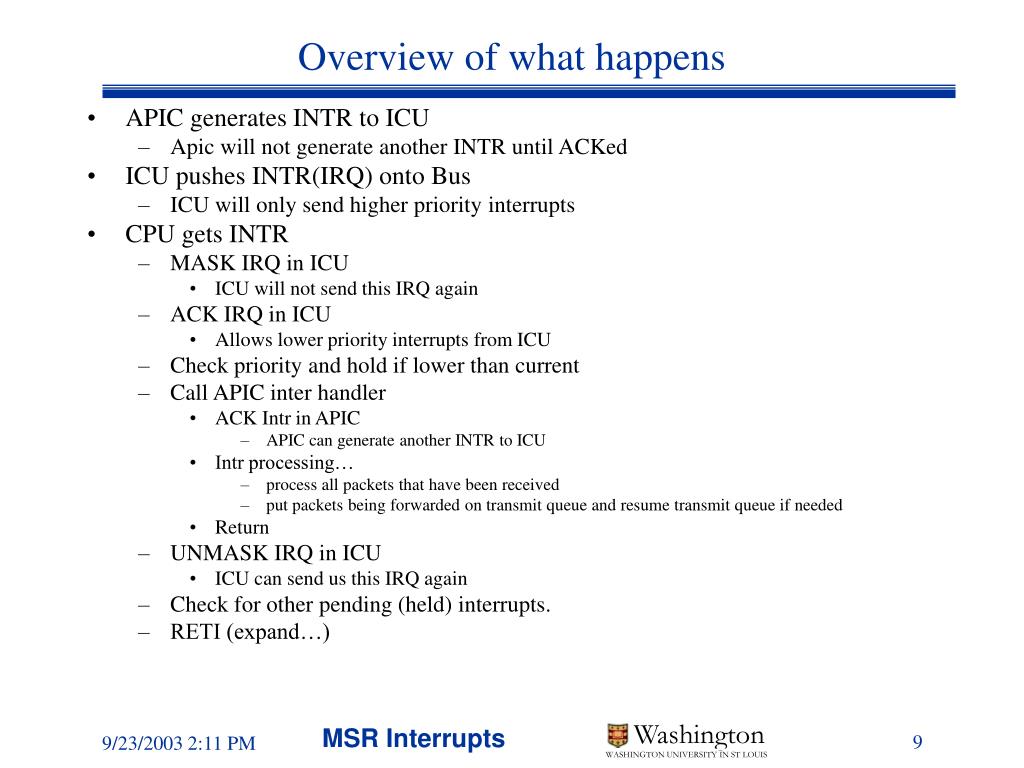

9. Overview of what happens • APIC generates INTR to ICU • Apic will not generate another INTR until ACKed • ICU pushes INTR(IRQ) onto Bus • ICU will only send higher priority interrupts • CPU gets INTR • MASK IRQ in ICU • ICU will not send this IRQ again • ACK IRQ in ICU • Allows lower priority interrupts from ICU • Check priority and hold if lower than current • Call APIC inter handler • ACK Intr in APIC • APIC can generate another INTR to ICU • Intr processing… • process all packets that have been received • put packets being forwarded on transmit queue and resume transmit queue if needed • Return • UNMASK IRQ in ICU • ICU can send us this IRQ again • Check for other pending (held) interrupts. • RETI (expand…)

10. sys/arch/i386/isa/vector.s #include "opt_ddb.h" #include <i386/isa/icu.h> #include <dev/isa/isareg.h> #define ICU_HARDWARE_MASK #define IRQ_BIT(irq_num) (1 << ((irq_num) % 8)) #define IRQ_BYTE(irq_num) ((irq_num) / 8) #ifdef ICU_SPECIAL_MASK_MODE // SPC System FPGA does not support SMM #define ACK1(irq_num) #define ACK2(irq_num) \ movb $(0x60|IRQ_SLAVE),%al /* specific EOI for IRQ2 */ ;\ outb %al,$IO_ICU1 #define MASK(irq_num, icu) #define UNMASK(irq_num, icu) \ movb $(0x60|(irq_num%8)),%al /* specific EOI */ ;\ outb %al,$icu

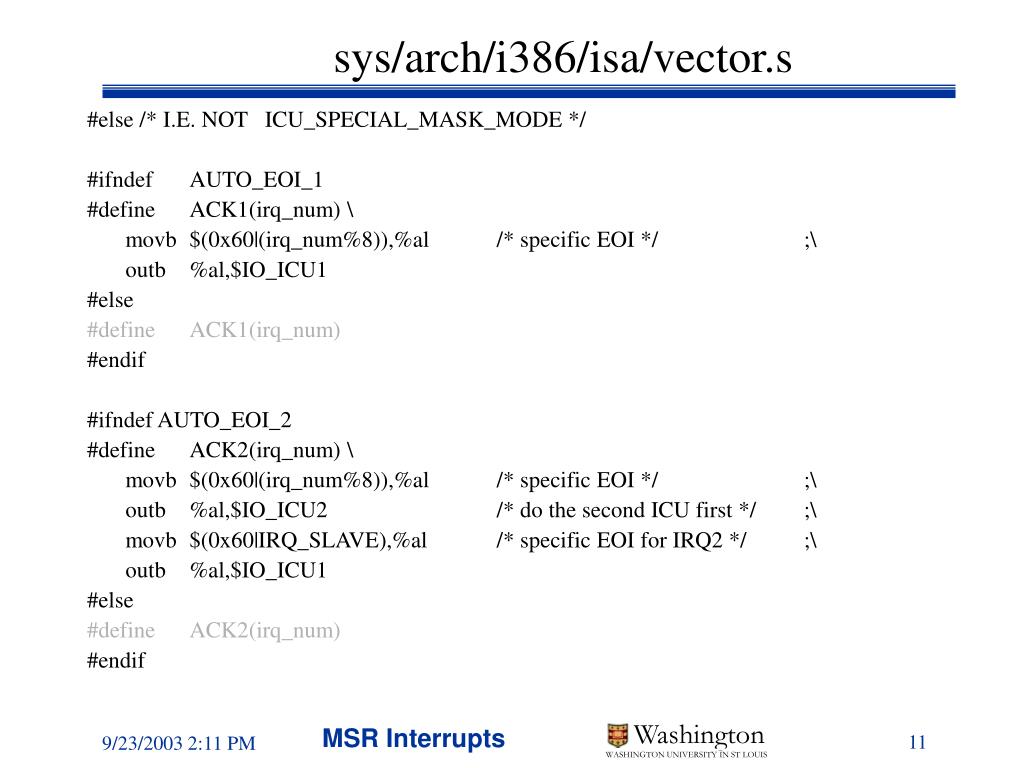

11. sys/arch/i386/isa/vector.s #else /* I.E. NOT ICU_SPECIAL_MASK_MODE */ #ifndef AUTO_EOI_1 #define ACK1(irq_num) \ movb $(0x60|(irq_num%8)),%al /* specific EOI */ ;\ outb %al,$IO_ICU1 #else #define ACK1(irq_num) #endif #ifndef AUTO_EOI_2 #define ACK2(irq_num) \ movb $(0x60|(irq_num%8)),%al /* specific EOI */ ;\ outb %al,$IO_ICU2 /* do the second ICU first */ ;\ movb $(0x60|IRQ_SLAVE),%al /* specific EOI for IRQ2 */ ;\ outb %al,$IO_ICU1 #else #define ACK2(irq_num) #endif

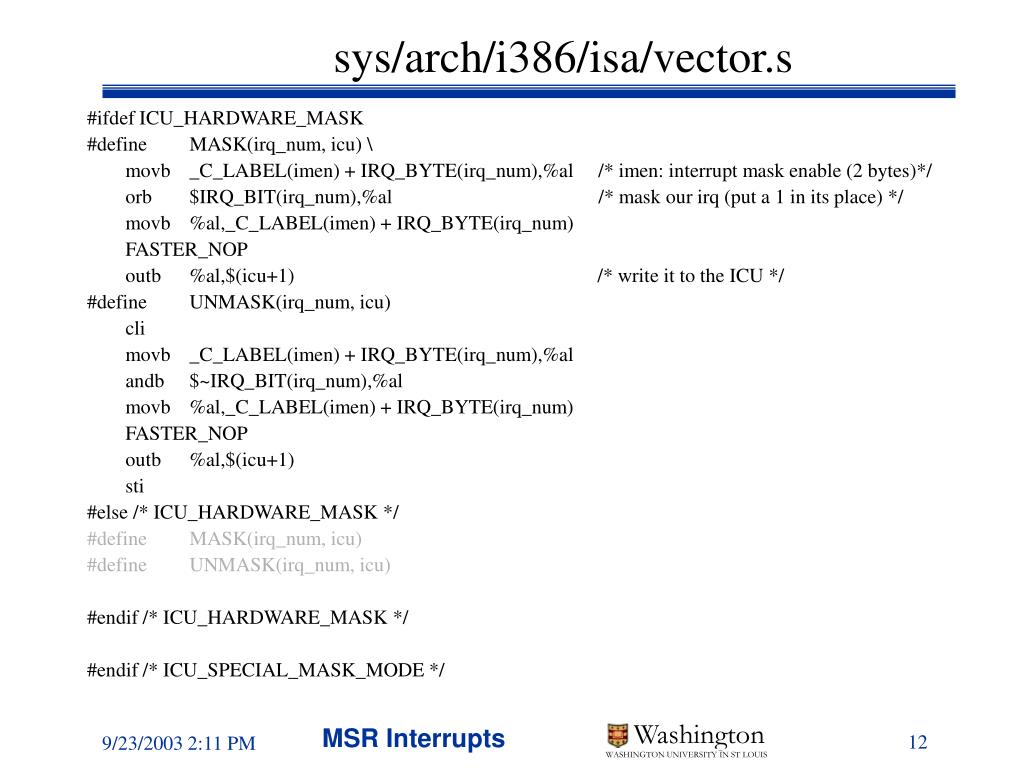

12. sys/arch/i386/isa/vector.s #ifdef ICU_HARDWARE_MASK #define MASK(irq_num, icu) \ movb _C_LABEL(imen) + IRQ_BYTE(irq_num),%al /* imen: interrupt mask enable (2 bytes)*/ orb $IRQ_BIT(irq_num),%al /* mask our irq (put a 1 in its place) */ movb %al,_C_LABEL(imen) + IRQ_BYTE(irq_num) FASTER_NOP outb %al,$(icu+1) /* write it to the ICU */ #define UNMASK(irq_num, icu) cli movb _C_LABEL(imen) + IRQ_BYTE(irq_num),%al andb $~IRQ_BIT(irq_num),%al movb %al,_C_LABEL(imen) + IRQ_BYTE(irq_num) FASTER_NOP outb %al,$(icu+1) sti #else /* ICU_HARDWARE_MASK */ #define MASK(irq_num, icu) #define UNMASK(irq_num, icu) #endif /* ICU_HARDWARE_MASK */ #endif /* ICU_SPECIAL_MASK_MODE */

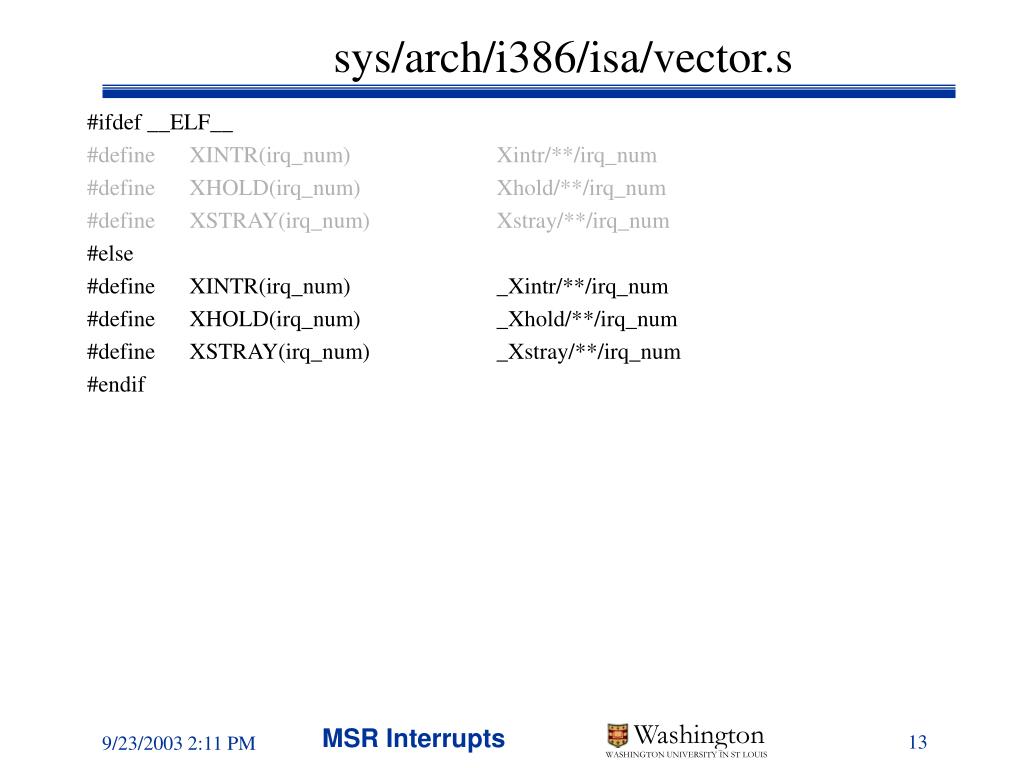

13. sys/arch/i386/isa/vector.s #ifdef __ELF__ #define XINTR(irq_num) Xintr/**/irq_num #define XHOLD(irq_num) Xhold/**/irq_num #define XSTRAY(irq_num) Xstray/**/irq_num #else #define XINTR(irq_num) _Xintr/**/irq_num #define XHOLD(irq_num) _Xhold/**/irq_num #define XSTRAY(irq_num) _Xstray/**/irq_num #endif

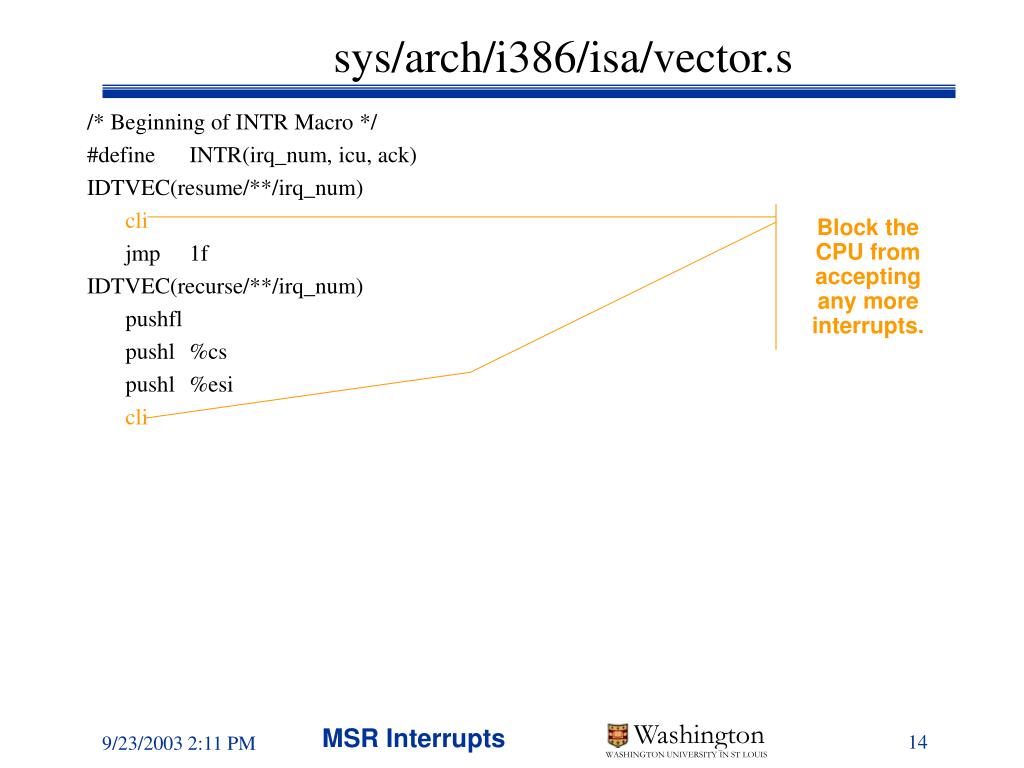

14. sys/arch/i386/isa/vector.s /* Beginning of INTR Macro */ #define INTR(irq_num, icu, ack) IDTVEC(resume/**/irq_num) cli jmp 1f IDTVEC(recurse/**/irq_num) pushfl pushl %cs pushl %esi cli Block the CPU from accepting any more interrupts.

15. sys/arch/i386/isa/vector.s XINTR(irq_num): pushl $0 /* dummy error code */ pushl $T_ASTFLT /* trap # for doing ASTs */ INTRENTRY MAKE_FRAME MASK(irq_num, icu) /* mask it in hardware */ ack(irq_num) /* and allow other intrs */ incl MY_COUNT+V_INTR /* statistical info */ ICU will not send us anymore of this IRQ ACK this IRQ to the ICU. Allows it to generate other interrupts. Without this the ICU would only generate higher priority interrupts When an interrupt occurs the CPU will clear the interrupt enable bit (equivalent of cli) An iret restores the bit.

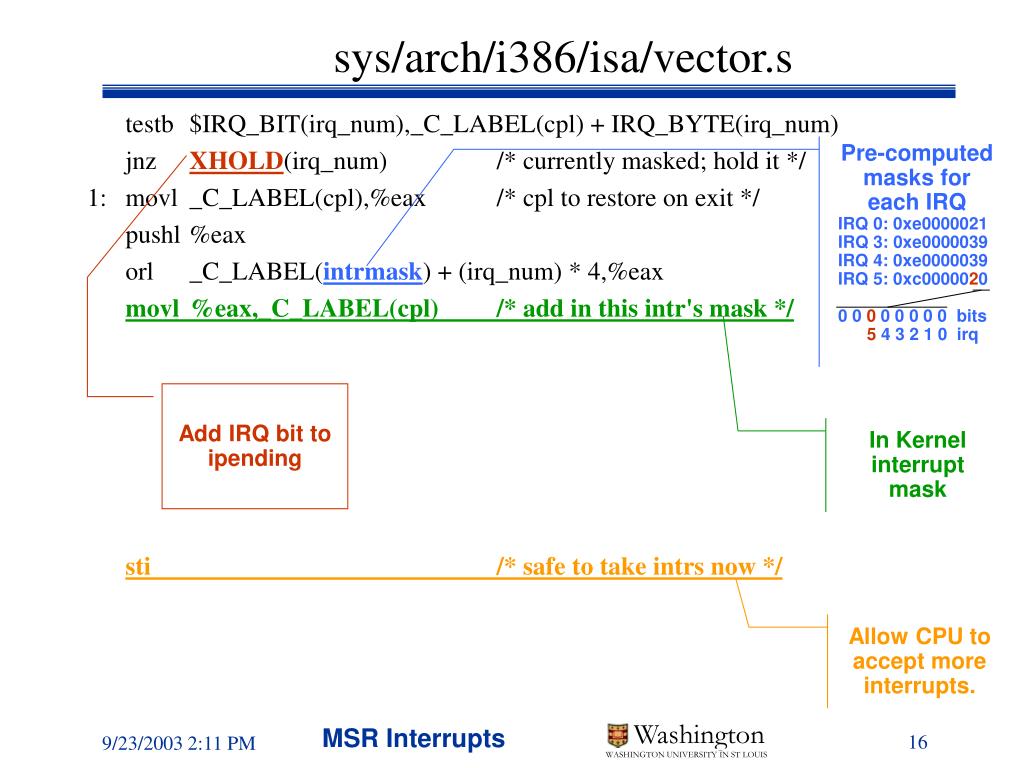

16. sys/arch/i386/isa/vector.s testb $IRQ_BIT(irq_num),_C_LABEL(cpl) + IRQ_BYTE(irq_num) jnz XHOLD(irq_num) /* currently masked; hold it */ 1: movl _C_LABEL(cpl),%eax /* cpl to restore on exit */ pushl %eax orl _C_LABEL(intrmask) + (irq_num) * 4,%eax movl %eax,_C_LABEL(cpl) /* add in this intr's mask */ sti /* safe to take intrs now */ Pre-computed masks for each IRQ IRQ 0: 0xe0000021 IRQ 3: 0xe0000039 IRQ 4: 0xe0000039 IRQ 5: 0xc0000020 0 0 0 0 0 0 0 0 bits 5 4 3 2 1 0 irq Add IRQ bit to ipending In Kernel interrupt mask Allow CPU to accept more interrupts.

17. sys/arch/i386/isa/vector.s movl _C_LABEL(intrhand) + (irq_num) * 4,%ebx /* head of chain */ testl %ebx,%ebx jz XSTRAY(irq_num) /* no handlers; we're stray */ STRAY_INITIALIZE /* nobody claimed it yet */ incl _C_LABEL(intrcnt) + (4*(irq_num)) /* XXX */

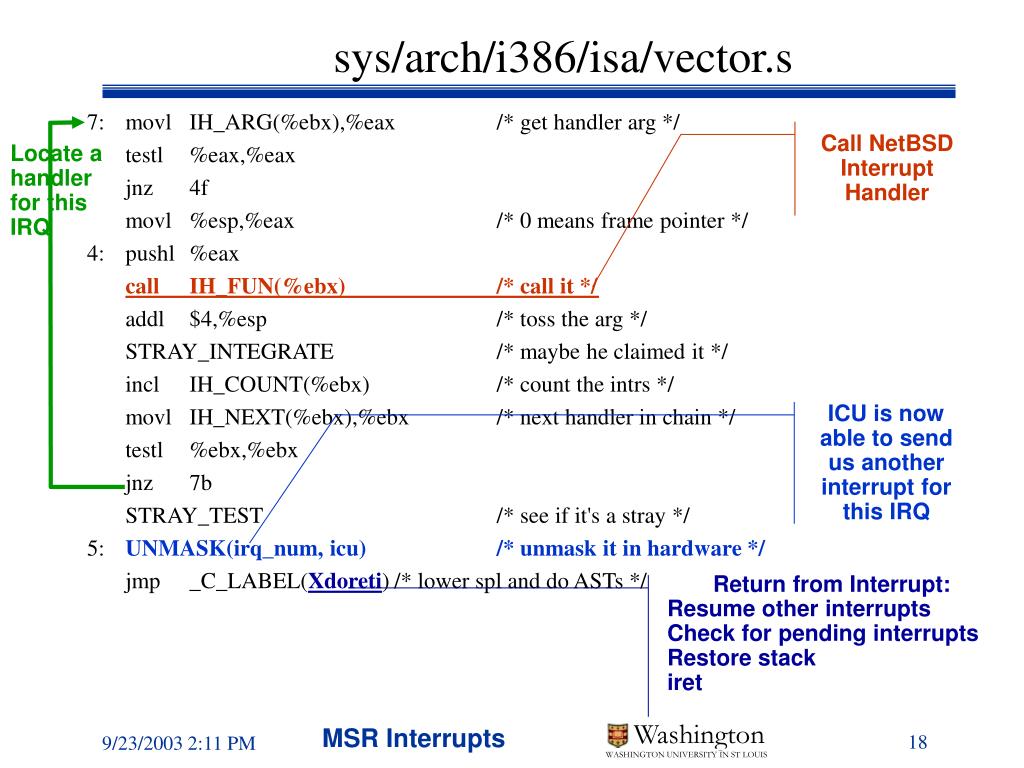

18. sys/arch/i386/isa/vector.s 7: movl IH_ARG(%ebx),%eax /* get handler arg */ testl %eax,%eax jnz 4f movl %esp,%eax /* 0 means frame pointer */ 4: pushl %eax call IH_FUN(%ebx) /* call it */ addl $4,%esp /* toss the arg */ STRAY_INTEGRATE /* maybe he claimed it */ incl IH_COUNT(%ebx) /* count the intrs */ movl IH_NEXT(%ebx),%ebx /* next handler in chain */ testl %ebx,%ebx jnz 7b STRAY_TEST /* see if it's a stray */ 5: UNMASK(irq_num, icu) /* unmask it in hardware */ jmp _C_LABEL(Xdoreti) /* lower spl and do ASTs */ Call NetBSD Interrupt Handler Locate a handler for this IRQ ICU is now able to send us another interrupt for this IRQ Return from Interrupt: Resume other interrupts Check for pending interrupts Restore stack iret

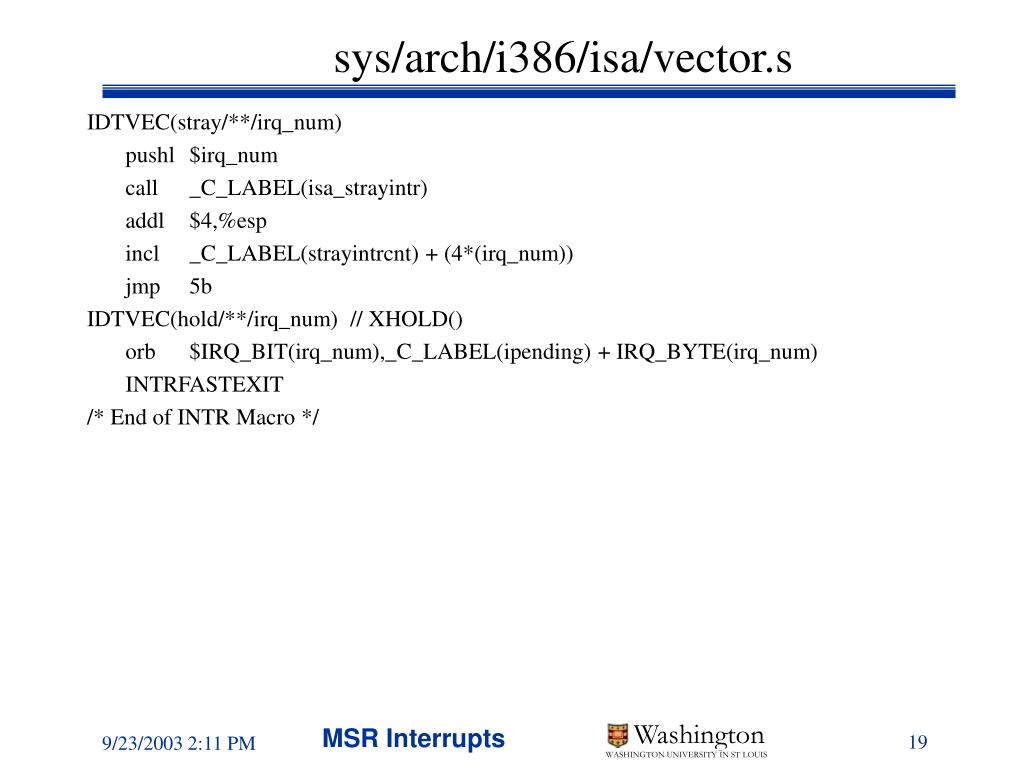

19. sys/arch/i386/isa/vector.s IDTVEC(stray/**/irq_num) pushl $irq_num call _C_LABEL(isa_strayintr) addl $4,%esp incl _C_LABEL(strayintrcnt) + (4*(irq_num)) jmp 5b IDTVEC(hold/**/irq_num) // XHOLD() orb $IRQ_BIT(irq_num),_C_LABEL(ipending) + IRQ_BYTE(irq_num) INTRFASTEXIT /* End of INTR Macro */

20. sys/arch/i386/isa/vector.s INTR(0, IO_ICU1, ACK1) /* Clock interrupt */ INTR(1, IO_ICU1, ACK1) INTR(2, IO_ICU1, ACK1) INTR(3, IO_ICU1, ACK1) /* COM 2 Interrupt */ INTR(4, IO_ICU1, ACK1) /* Com 1 Interrupt */ INTR(5, IO_ICU1, ACK1) /* APIC Interrupt */ INTR(6, IO_ICU1, ACK1) INTR(7, IO_ICU1, ACK1) INTR(8, IO_ICU2, ACK2) INTR(9, IO_ICU2, ACK2) INTR(10, IO_ICU2, ACK2) INTR(11, IO_ICU2, ACK2) INTR(12, IO_ICU2, ACK2) INTR(13, IO_ICU2, ACK2) INTR(14, IO_ICU2, ACK2) INTR(15, IO_ICU2, ACK2)

21. sys/arch/i386/isa/vector.s /*Add a mask to cpl, and return the old value of cpl.*/ static __inline int splraise(ncpl) register int ncpl; { register int ocpl = cpl; cpl = ocpl | ncpl; return (ocpl); } /* Restore a value to cpl (unmasking interrupts). * If any unmasked interrupts are pending, * call Xspllower() to process them.*/ static __inline void splx(ncpl) register int ncpl; { cpl = ncpl; if (ipending & ~ncpl) Xspllower(); } /*Same as splx(), but we return the old value of spl, for the * benefit of some splsoftclock() callers.*/ static __inline int spllower(ncpl) register int ncpl; { register int ocpl = cpl; cpl = ncpl; if (ipending & ~ncpl) Xspllower(); return (ocpl); } Call Xspllower if there is something pending that is higher priority then our new cpl

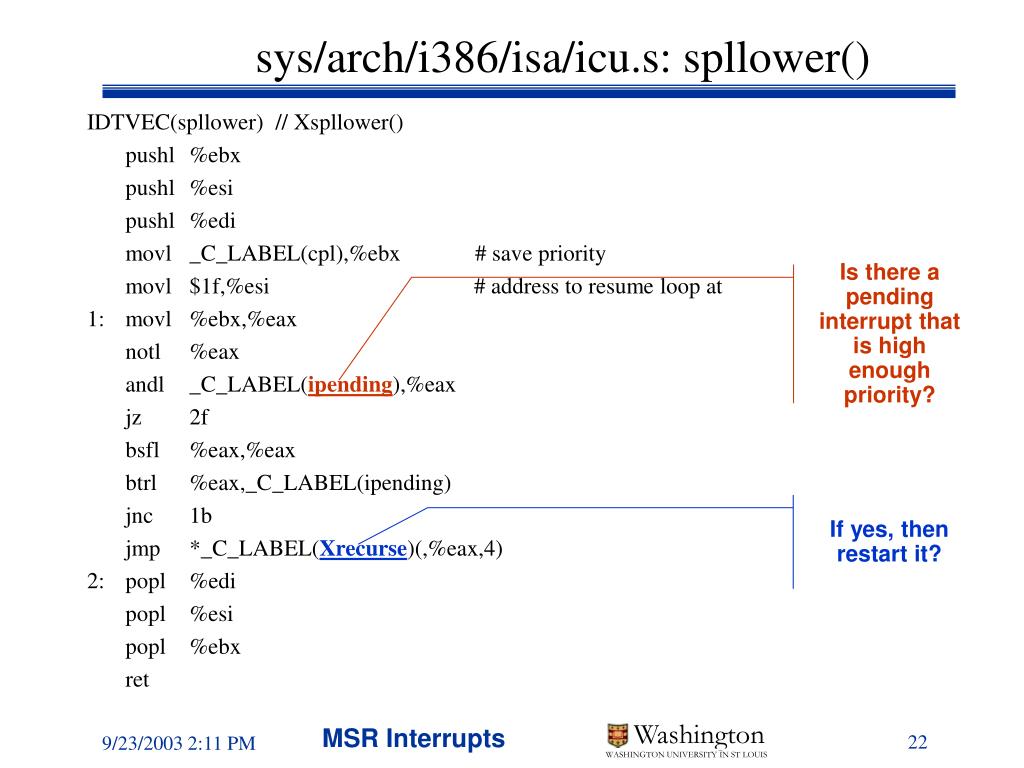

22. sys/arch/i386/isa/icu.s: spllower() IDTVEC(spllower) // Xspllower() pushl %ebx pushl %esi pushl %edi movl _C_LABEL(cpl),%ebx # save priority movl $1f,%esi # address to resume loop at 1: movl %ebx,%eax notl %eax andl _C_LABEL(ipending),%eax jz 2f bsfl %eax,%eax btrl %eax,_C_LABEL(ipending) jnc 1b jmp *_C_LABEL(Xrecurse)(,%eax,4) 2: popl %edi popl %esi popl %ebx ret Is there a pending interrupt that is high enough priority? If yes, then restart it?
