  1. Ch 10 Classification of Microorganisms

  2. Student Learning Outcomes Define taxonomy, taxon, and phylogeny. List the characteristics of the Bacteria, Archaea, and Eukarya domains. Differentiate among eukaryotic, prokaryotic, and viral species. Explain the scientific naming Differentiate between culture, clone, and strain. Compare and contrast classification and identification. Explain the purpose of Bergey’s Manual. Describe how staining and biochemical tests are used to identify bacteria. Explain how serological tests and phage typing can be used to identify an unknown bacterium. Describe how a newly discovered microbe can be classified by ribotyping, DNA fingerprinting, and PCR. Describe how microorganisms can be identified by nucleic acid hybridization, DNA chips, and FISH. Explain and apply a dichotomous key

  3. Taxonomy and Phylogeny Taxonmoy: Science of classifying organisms. Provides universal names for organisms. Taxonomic categories: Taxon / Taxa Phylogeny or Systematics: Evolutionary history of group of organisms. • Taxonomic hierarchy shows phylogenetic (evolutionary), relationships among organisms. • 1969: Living organisms divided into five kingdoms. • 1978: Two types of prokaryotic cells found. Prokaryotic relationships determined by rRNA sequencing. Domains! • All Species Inventory (2001–2025) Foundation Fig 10.1

  4. The Three-Domain System Foundation Fig 10.1

  5. Carl Woese 1978 Level Above Kindom: The Three-Domain System

  6. Endosymbiotic Theory: Origin of Eukaryotes Figs 10.2, 10.3 Cyanophora paradoxa: modern example of possible evolutionary process

  7. Scientific Nomenclature Common names • Vary with languages • Vary with geography Binomial Nomenclature: __________+ _______________ • Used worldwide • Escherichia coli • Homo sapiens

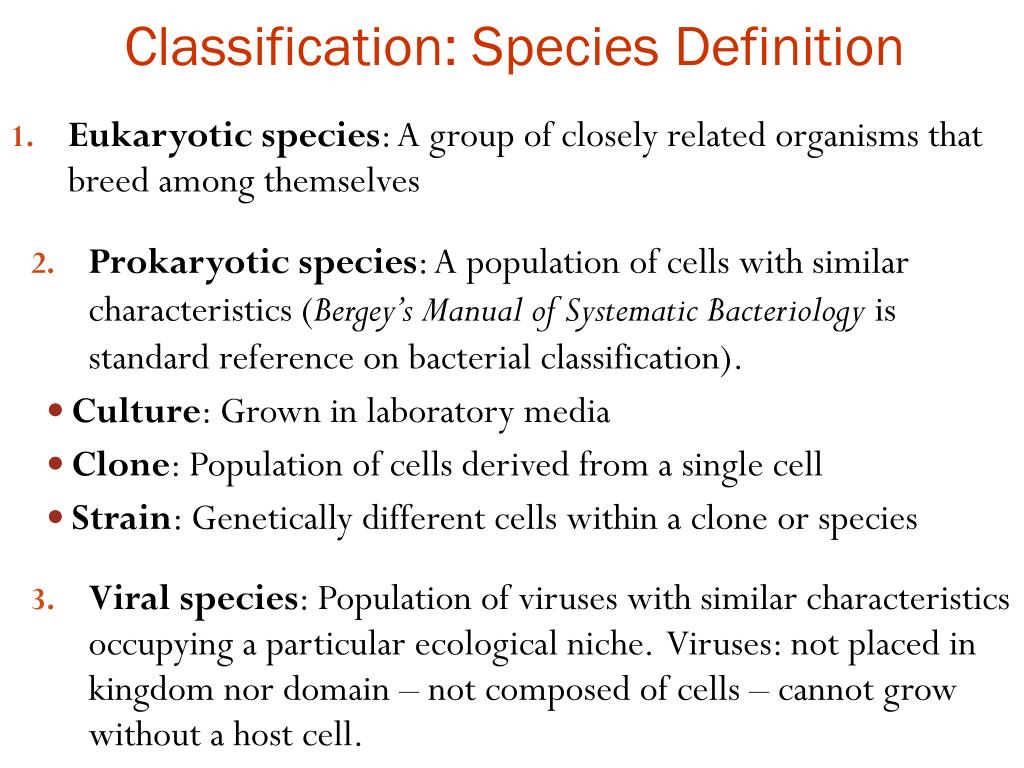

  8. Classification: Species Definition • Eukaryotic species: A group of closely related organisms that breed among themselves • Prokaryotic species: A population of cells with similar characteristics (Bergey’s Manual of Systematic Bacteriology is standard reference on bacterial classification). • Culture: Grown in laboratory media • Clone: Population of cells derived from a single cell • Strain: Genetically different cells within a clone or species • Viral species: Population of viruses with similar characteristics occupying a particular ecological niche. Viruses: not placed in kingdom nor domain – not composed of cells – cannot grow without a host cell.

  9. Domain Eukarya • Animalia: Multicellular; no cell walls; chemoheterotrophic • Plantae: Multicellular; cellulose cell walls; usually photoautotrophic • Fungi: Chemoheterotrophic; unicellular or multicellular; cell walls of chitin; develop from spores or hyphal fragments • Protista: A catchall kingdom for eukaryotic organisms that do not fit other kingdoms • Grouped into clades based on rRNA

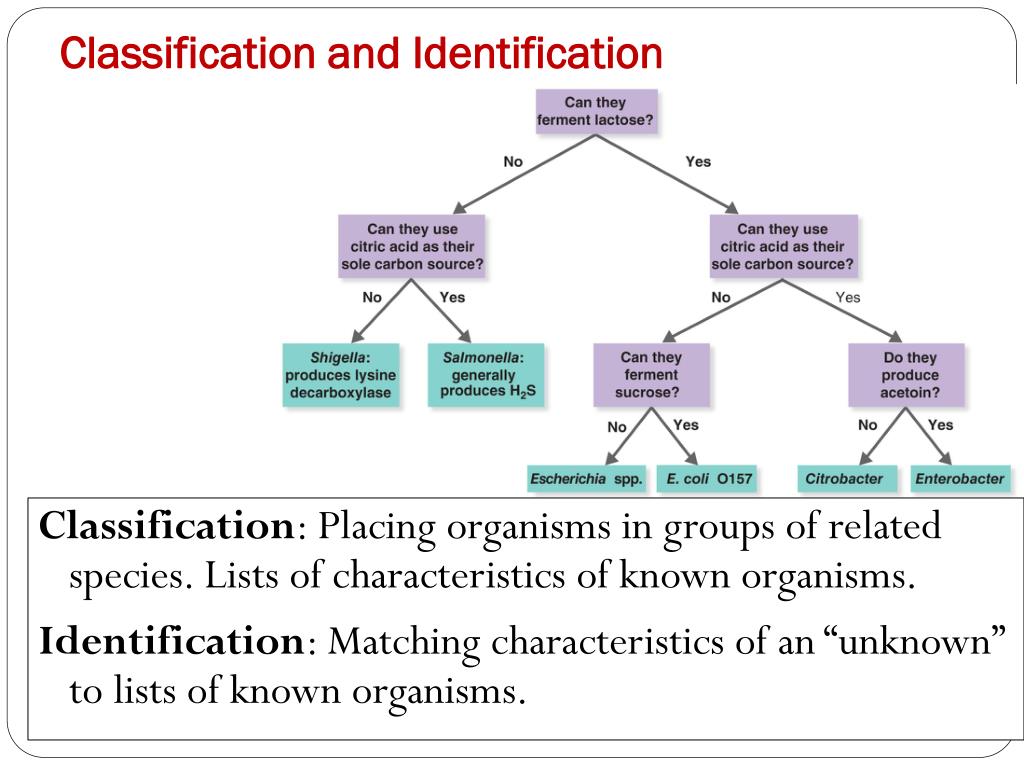

  10. Classification and Identification Fig 10.8 Classification: Placing organisms in groups of related species. Lists of characteristics of known organisms. Identification: Matching characteristics of an “unknown” to lists of known organisms.

  11. David Hendricks Bergey, 1870 - 1937

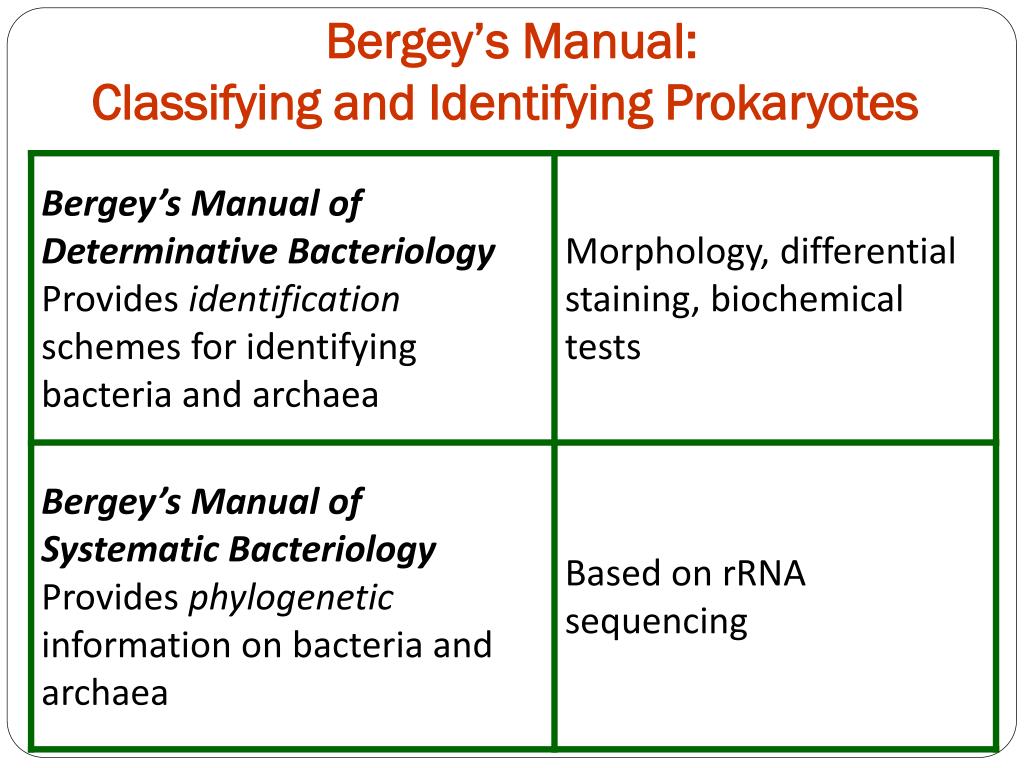

  12. Bergey’s Manual:Classifying and Identifying Prokaryotes

  13. Clinical Lab Identification Morphological characteristics only useful for identifying eukaryotes. Numerical Rapid Identification Differential staining Gram staining, acid-fast staining Biochemical tests Determines presence of bacterial enzymes

  14. Serological Testing - Serology • Involves reactions of microorganisms with specific antibodies: Combine known anti-serum with unknown bacterium • Useful in determining the identity of strains and species, as well as relationships among organisms. Fig 10.10: Slide Agglutination • Examples: • Slide agglutination • ELISA (see lab) • Western blot (no details)

  15. Phage Typing Fig 10.13 Identification of bacterial species and strains by determining their susceptibility to various phages. More details on bacteriophages in Ch 13

  16. Genetics • DNA fingerprinting: genetic similarities determined by # and sizes of DNA fragments (fingerprints) produced by RE digests • Ribotyping: rRNA sequencing • Polymerase chain reaction (PCR) can be used to amplify a small amount of microbial DNA in a sample. The presence or identification of an organism is indicated by amplified DNA. (see lab) Fig 10.14: Electrophoresis of RE digest of plasmid DNA

  17. Nucleic Acid Hybridization Single strands of DNA or RNA, from related organisms will hydrogen-bond to form a double-stranded molecule; this bonding is called nucleic acid hybridization. • Examples of Applications: • Southern blotting, • DNA chips, and • FISH Fig 10.15

  18. Nucleic Acid Hybridization: DNA Chip Fig 10.17

  19. Fluorescent In Situ Hybridization (FISH) Add DNA or RNA probe attached to fluorescent dye for S. aureus Fig 10.18a–b

  20. Review in Mastering Microbiology ANIMATION Dichotomous Keys: Overview ANIMATION Dichotomous Keys: Sample with Flowchart ANIMATION Dichotomous Keys: Practice The End
