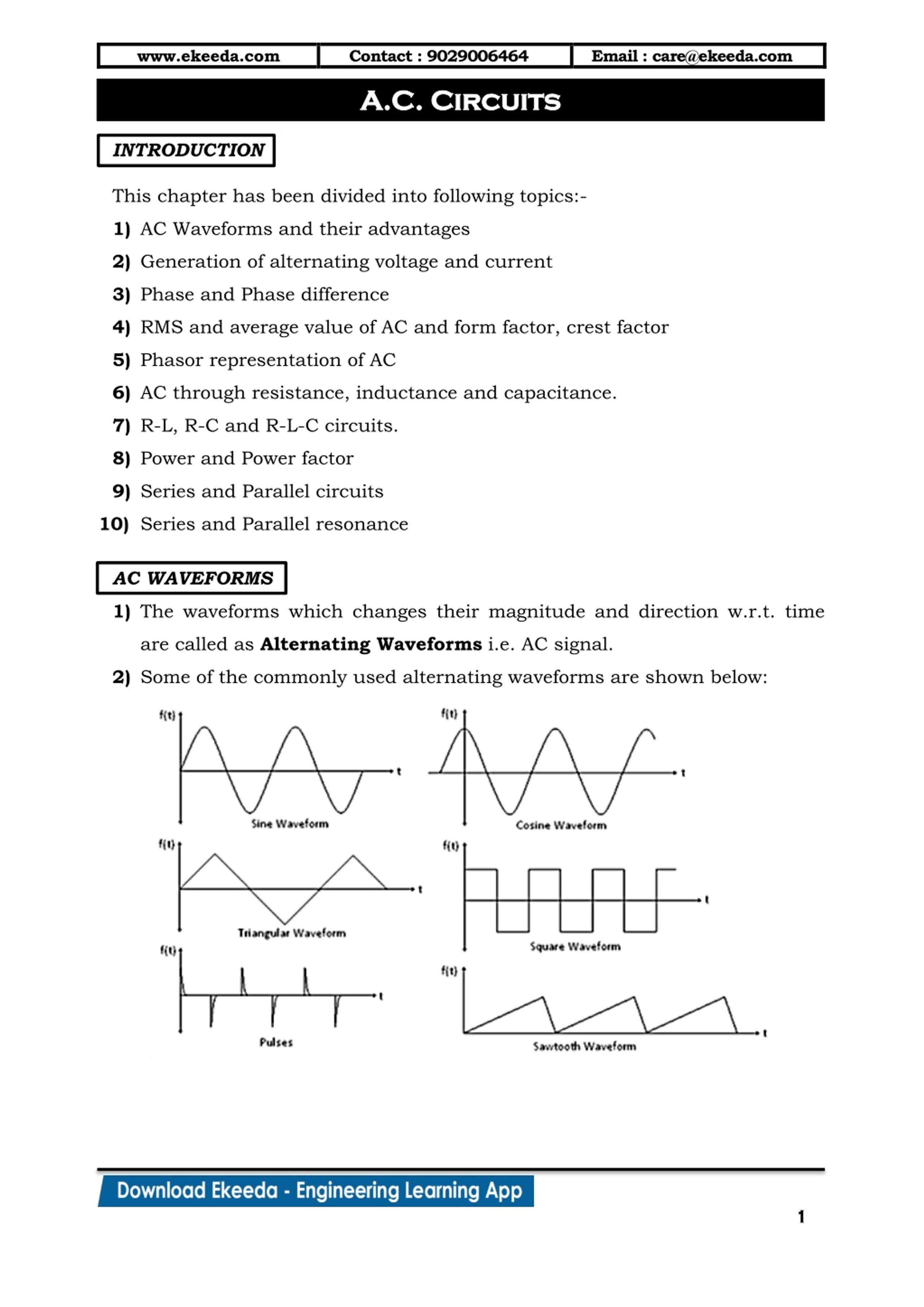

  1. www.ekeeda.com Contact : 9029006464 A.C. Circuits A.C. Circuits Email : care@ekeeda.com P INTRODUCTION This chapter has been divided into following topics:- 1)AC Waveforms and their advantages 2)Generation of alternating voltage and current 3)Phase and Phase difference 4)RMS and average value of AC and form factor, crest factor 5)Phasor representation of AC 6)AC through resistance, inductance and capacitance. 7)R-L, R-C and R-L-C circuits. 8)Power and Power factor 9)Series and Parallel circuits 10)Series and Parallel resonance AC WAVEFORMS 1)The waveforms which changes their magnitude and direction w.r.t. time are called as Alternating Waveforms i.e. AC signal. 2)Some of the commonly used alternating waveforms are shown below: 1

  2. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Advantages of AC Signal Out of all these types of alternating waveforms, sinusoidal waveform is considered as basic AC signal. The advantages of sinusoidal signal are 1)Sinusoidal waveforms can be easily generated. 2)Any other AC signal can be expressed as sum of series of sine components. 3)Analysis of linear circuit with sinusoidal excitation is easy. 4)Sum and difference of two sine waves is a sine wave. 5)The integration and derivative of a sinusoidal function is again a sinusoidal function. Generation of AC Construction:- 1)It consists of a single turn rectangular coil (ABCD) made up of some conducting material like copper or aluminium. 2)The coil is so placed that it can be rotated about its own axis at a constant speed in a uniform magnetic field provided by the North and South poles of the magnet. 3)The coil is known as armature of the alternator. The ends of the alternator coil are connected to rings called slip rings which rotate with armature. 4)Two carbon brushes pressed against the slip rings collect the current induced in the coil and carry it to external resistor R. 2

  3. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Working: o Case i ( θ = 0 ): 1.This is the initial position of the coil. The plane of the coil being perpendicular to the magnetic field, the conductors (A and B) of the coil move parallel to the magnetic field. 2.Since, there is no flux cutting, no emf is generated in the conductors and therefore, no current flows through the external circuit. o Case ii ( θ = 90 ): o o 1.As the coil rotates from ( θ = 90 ), more lines of force are θ = 0 ) to ( cut by the conductors. 2.In this case both the conductors of the coil move at right angles to the magnetic field and cut through a maximum number of lines of force, so a maximum emf is induced in them. o Case iii ( θ=180 ): o o 1.When the coil rotates from ( θ=180 ) (i.e. first half θ = 0 ) to ( revolution), again the plane of the coil becomes perpendicular to the magnetic field. Thus, the emf again reaches to zero. 2.During the interval 0o to 180o the output voltage remains positive. o Case iv ( θ=270 ): o o θ=180 ) to ( θ = 270 ), more lines of force are 1.As the coil rotates from ( cut by the conductors and emf starts building up in negative direction. o θ = 270the emf becomes maximum negative and thereafter it 2.At starts decreasing. 3

  4. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com EQUATION OF SINE WAVE 1)Consider a rectangular coil ABCD placed in a magnetic field generated by permanent magnet. The coil with constant angular velocity in filed. These causes generation of alternating emf in the coil. 2)Let, B = Flux Density (Wb/m2) l= Active length of each Conductor (m) r = Radius of circular path traced by conductors (m) = Angular velocity of coil (rad/s) v = Linear velocity of each conductor (m/s) 3)Consider an instant where coil has rotated through an angle ‘θ’ from o θ = 0 ). It requires time ‘t’ to rotate through θ. So θin initial position. (i.e. radians can be expressed as  θ = t rad 4)The position of coil is shown in fig. The instantaneous velocity of any conductor can be resolved into two components as shown in figure: 5)The components of velocity v are: a)Parallel to the direction of magnetic field = v cos θ b)Perpendicular to direction of magnetic field = v sin θ 6)EMF induced due to parallel component is zero, since there is no cutting of flux. Thus, the perpendicular component is responsible for emf generation. 7)According to Faraday’s law of electromagnetic induction, the expression for the generated emf in each conductor is  vsinθ e Bl (Volts) 4

  5. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 8)The active length ‘l’ means the length of conductor which is under influence of magnetic field. Now, Em = Blv = Maximum induced emf in conductor o θ = 90 This is possible at 9)Hence instantaneous value of induced emf is given by, e = E sinθ m But θ= ωt  But ω = 2πf e = E sin(ωt) m  e = E sin(2πft) 1 f =T m But       t  e = E sin 2πT m 10)Similarly equation for current wave are, i = I sinθ i = I sin ωt m       m  i = I sin 2πft m    t i = I sin 2πT m Expression for frequency of AC signal 1)Let ‘p’ be the number of poles and ‘P’ be the pair of magnetic poles. p P = 2 2)Let ‘N’ be the revolutions per minute (rpm) of a coil in a magnetic field. N n = 60 3)If the frequency of AC signal is f, then cycle cycles revolution f = = × sec revolution f = P×n  p N = × 2 60 pN f =120  …… (1)  where n = revolutions per second …….(2) sec  5

  6. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com PHASE AND PHASE DIFFERENCE Phase The phase of an alternating current is the time that has elapsed since the quantity has last passed through zero point of reference. In phase waveform 1)In the fig. shown below consists of two conductors ‘A’ and ‘B’ pivoted centrally and arranged in a permanent magnetic field. Both the conductors differ in physical dimension. These conductors are allowed to rotate in a field with angular velocity ‘ω’. 2)As angular velocity is same for each conductor, frequency of AC waveform across each conductor is same. As the conductors differ in physical dimensions, the magnitude of waveform generated across each conductor E > E. is different. i.e. A B 3)As both the signals have same frequency, the waveform reaches its maximum value and minimum value simultaneously. These waveforms are said to be in phase. 6

  7. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Out of phase waveform 1)In the fig. shown below consists of two conductors ‘A’ and ‘B’ pivoted centrally and arranged in a permanent magnetic field. Both the conductors have same physical dimension. These conductors are allowed to rotate in a field with angular velocity ‘ω’. 2)Because of same dimensions the emf induced in both the coils is same. The waveforms are shown in fig. 3)When two or more sine waveforms do not reach their minimum and maximum values simultaneously, then there exists a phase difference between them. 4)From fig. the equations of waveforms are,  e = E sinωtand e = E sin(ωt - ) A A B B eby an angle  . e lags i.e. B A R.M.S. Value or Effective Value Definition:- The R.M.S. (Root Mean Square) value of an alternating current is that value of current which when passed through a resistance for a definite amount of time produces the same heating effect as that of DC current which is passed through the same resistance for the same period of time. 7

  8. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Analytical Method 1)Consider a sinusoidal varying current. The R.M.S. value of a waveform is obtained by comparing the heat produced in the resistor. 2)For the same value of resistance and same value of time interval the heat produced in is directly proportional to the square of current. (H = I2 R t) 3)As the sinusoidal waveform is symmetric in opposite quadrants, the heat produced in positive and negative quadrants is same. 4)Hence consider only positive half cycle, which is divided into ‘n’ intervals as shown in fig. Thus the width of each interval is ‘t/n’ seconds. 5)Hence the heat produced due to AC current is, t n t n t n 2 1 2 2 2 n (Heat) = i R + i R +.....+ i R AC       2 2 2 2 2 n i + i +.....+ i n = Rt …….. (1) 6)Now, heat produced by DC current I passing through the same resistance ‘R’ for the same time ‘t’ is, …… (2) 2 (Heat) =I Rt AC 7)According to the definition of R.M.S. value both these currents must be same. Hence, from equation (1) and (2)       2 2 2 2 2 n i + i +....+ i n 2 I R t= R t 2 1 2 2 2 n i + i +....+ i n i + i +....+ i  2 I = 2 1 2 2 2 n  I= n 8

  9. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 8)This can be written as,   2   sin  m I   d I 0   2 m I     d 2 sin 0   1 cos2   2 m       I   d  2 2 0   2 m     sin2 I       2 2 0 2 m I    2 2 m I  2 I   0.707 I m I . . . R M S m 2 Similarly, V R.M.S. V = = 0.707V m 2 m 9

  10. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com GRAPHICAL METHOD 1)The equation of sinusoidal current waveform is given by i = Im sin θ. The following figure shows the complete cycle of this current wave. 2)To find the R.M.S. value of this current waveform, plot square of this current waveform as shown in figure. i.e. i2 = m I sin2θ. 2 3)In order to find mean value of square curve, draw a line AB at a height 2 m I /2 above the horizontal axis. Now the total area of the curve i = I sin θ is 2 2 m 2 equal to the area of the rectangle formed by line AB with horizontal axis. 2 Im 2 2 4)Thus, Mean value of i × 2π = × 2π 2 Im 2 2 Or Mean value of i = I  2 I = MeanValueof i = = 0.7070I m 2 m 10

  11. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Average Value of Sinusoidal Current 1)Average value of any alternating waveform is given by, Areaunderthecurve Lengthof Base Averagevalue = .....(1) 2)Thus, for sinusoidal varying quantity, π I π I = I sinθd0 avg m 0 π I m π I = sinθdθ avg 0 I π 0 I = -cosθ m π avg I I = -cosπ+cos0 m π avg I I = -(-1)+1 m π avg I I = 2 m π avg  I =0.637I avg m Similarly, V = 0.637V avg m Form Factor (Kf) Definition:- The form factor of an alternating current is defined as the ratio of its R.M.S. value to the value of current. R.M.S.valueof current Thus, FormFactor=Averagevalueof current 0.707I For sine wave, K =0.637I m f m K =1.11 f 11

  12. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Peak factor or Crest factor (Kp) Definition:- The peak factor of an alternating current is defined as the ratio of its maximum value to the R.M.S. value. Maximumvalueof current R.M.S.valueof current Peakvalue = I K =0.707I K =1.414 m p For sine wave, m p Difference between Phasors and Vectors 1)We know that the physical quantities can be represented with either a scalar or a vector. 2)A scalar quantity has magnitude whereas vector quantity has magnitude as well as direction. 3)In case of alternating electrical signal, we require third specification i.e. Phase, as alternating quantities are time dependent. Hence, alternating quantities are not vectors but they are phasors. 4)A vector quantity has space co-ordinates while a phasor is derived from the time varying quantity. This is the major difference between vectors and phasors. Phasor Representation of AC 1)Consider an alternating current represented by the equation i = Im sin ωt. Consider a phasor OP rotating in anticlockwise direction at an angular velocity ωrad/s about the point O. 2)Consider an instant at which angular displacement of OP is θ = ωtin the anticlockwise direction. The projection of OP on the Y-axis is OM. 3)Where, OM = OP sin θ = Im sin ωt 12

  13. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com = i (i.e. instantaneous value of current.) 4)Hence, the projection of phasor on the Y-axis at any instant gives the value o θ = 90the projection of Y-axis is OP of current at that instant. Thus, at (i.e. Im) itself. 5)Thus if we plot the projection of the phasor on the Y-axis versus its angular position, we get a sinusoidally varying quantity as shown in figure. Behavior of Resistor to AC excitation Circuit Diagram and description: 1)Consider a resistor of R Ωconnected across AC supply given by, v = Vm sin ωt ….. (1) 2)Due to application of this alternating voltage, current i flow through the resistor. 3)A sinusoidally varying voltage VR is generated in the resistor R due to this current. 13

  14. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Equation of Current 1)According to Ohm’s law, instantaneous voltage across resistor is, v = i R Where, i = instantaneous value of current But, v = Vm sin ωt  V sinωt = iR m V R  i = sinωt m ……. (2)  2)Comparing equation (2) with general equation i = Imsin(ωt ) V R I = m We get, m  3) Equationof currentis i = I sin ωt ……. (3) m Waveform and Phasor Diagram 1)The equation of voltage and current for AC excitation are v = Vm sin ωt and i = I sinωt m The waveforms of voltage and current are shown in fig. 2)From the voltage and current equation we can observe that v and i are in phase. The phasor diagram is shown below. 14

  15. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Power Factor 1)The angle between voltage and current vectors s known as phase angle. It is denoted by  . 2)The power factor is defined as the cosine of the phase angle. = 0  o From phasor diagram,  = cos0 =1  o PowerFactor= cos Thus resistive circuits are called as unity power factor circuit. Expression for Power 1)The instantaneous power is a product of instantaneous voltage and instantaneous current. i.e. P = v i P = (Vm sinωt) (Im sinωt)    2 (sin 1 cos2     ) P m m V I t     t   P V I m m 2 m m V I m m V I     cos2 P t ……. (4) 2 2 The equation of instantaneous power consists of two parts. m m V I 2 1st→ (Constant part) m m V I 2 cos2ωt 2nd→ (Fluctuating part) 2)The average value of the 2nd part over a complete cycle is zero. 2π  m m V I 2 i.e. cos2ωtdt = 0 0 V V I  P = = mlm 2 m 2 m 2 avg  P =V I avg rms rms Hence, for resistive element power loss is product of RMS values of voltage and current. 15

  16. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Behavior of Inductor to AC excitation Circuit Diagram and description:- 1)Consider an inductor of ‘L’ Henry connected across AC supply given by v = Vm sin ωt…. (1) 2)This applied voltage causes a current ‘i’ to flow through the inductor. This current generates magnetic field around the inductor which causes induced emf across it. According to Lenz’s law, di e = -Ldt And this induced emf is in opposition with applied voltage. Equation of Current:- 1)The applied voltage = v = -e       di dt di dt  v = - -L = L But, v = Vm sinωt di  V sinωt = Ldt V di = L m  sinωtdt m 2)Integrating this equation we get, V L V cosωt = - L V = - ωL V i= sin ωt- ωL  i = sinωtdt m m ω                   π 2 π 2 sin -ωt m Qcosθ = sin -θ       π 2  m ......(2) 16

  17. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 3)Comparing this equation with general equation of current, i = Im sin ) (ω V π 2   I =ωLand m We get, (Lagging) m V I  =ωL m m But ratio of voltage to current is opposition offered by circuit. In this case it is ωLwhich is called as Inductive Reactance and denoted by ‘XL’. It is measured in Ω . X = ωL = 2πfL (Ω)  L       π Hence, equation of current is i = Im sin ωt - 2 Waveform and Phasor Diagram 1)The equation of voltage and current for inductive circuit are       π v =V sin ωtand i = I sin ωt- 2 m m The waveforms of voltage and current are shown in the fig. 2)For Inductive Circuit Current lags the voltage by 90o. The phasor diagram for inductive circuit is shown in fig. Power Factor 1)From phasor diagram, =90 (lag)  o   o PowerFactor=cos =cos 90 = 0 Thus for inductive circuit power factor is zero. 17

  18. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Expression for Power 1)The instantaneous power is a product of instantaneous voltage and instantaneous current. i.e. P = v i             π   P = V sinωt I sin ωt-2 sinωt -cosωt m m     m m V I -V I   = 2sinωtcosωt m m 2 -V I = sin2ωt m m 2 2)But the integration of sin 2ωtover a complete cycle is zero. 2π  V l i.e. - sin2ωtdt=0 m m 2 0  P = 0 avg Thus, for an pure inductive circuit average power consumed is zero. But pure inductance without any resistance is not possible practically and hence practical choke coil consumes some power. Behavior of Capacitor to AC excitation Circuit Diagram and description 1)Consider a Capacitor of ‘C’ Farad connected across AC supply given by v = Vm sin ωt 2)During positive half cycle capacitor gets charged with left plate positive and right plate negative. During negative half cycle polarities get reversed. We know that, q=Cv dq =C dt dv dt d dt   i=C V sinωt m dq  i=dt 18

  19. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Equation of Current: i)From the above equation i=CV (cosωt)(ω) m       π 2 i=ωC V sin ωt + .....(2) m ii)Comparing i = I sin ωt equation   (2) with general equation of current  m   (leading) We get, I = ωC Vand m m 2 V I 1  = m ωC m But ratio of voltage to current is opposition offered by circuit. In this case 1 it is ωCwhich is called as Capacitive Reactance and denoted by ‘Xc’. It is measured in Ω . 1 1  X = = (Ω) c ωC 2πfC       π Hence, equation of current is i = I sin ωt+2 m Waveform and Phasor Diagram 1)The equation of voltage and current for capacitive circuit are       π v =V sinωt and i = I sin ωt+2 m m The waveforms of voltage and current are shown in the fig. 2)For Capacitive Circuit Current leads the voltage by 90o. The phasor diagram for capacitive circuit is shown in fig. 19

  20. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Power Factor:- =90 (lead)  o 1)From phasor diagram,  =cos90 =0  o PowerFactor=cos Thus, for capacitive circuit power factor is zero. Expression for Power:- 1)The instantaneous power is a product of instantaneous voltage and instantaneous current. v i P                     sin sin P V t I t m m 2       sin cos V I t t m m m m V I      2sin cos t t 2 m m V I  = sin2 t 2  over a complete cycle is zero. 2)But the integration of sin2 t  2  m m V I   i.e. sin2 0 tdt 2 0   P 0 avg Thus for a capacitive circuit average power consumed is zero. R-L SERIES CIRCUIT Circuit Diagram and description 1)Consider a resistance of ‘R’ Ω connected in series with an inductor of ‘L’ Henry. This series combination is excited by AC supply given by   v sin V t m 20

  21. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com       V  2)Let V be the R.M.S. value of the applied voltage and I be the V m 2       m I  R.M.S. value of the current drawn from the source. . This i.e. I 2 current causes a voltage drop across each element connected in series as shown in fig. 3)Let, VR– R.M.S. value of voltage drop across Resistor R VL– R.M.S. value of voltage drop across Inductor L The voltage VR is in phase with current I where VR = IR and the voltage VL leads the current I by 90° where VL = IXL. 4)From the property of series circuit,   V V V R L This can be represented by a phasor diagram as shownin fig.   5)If v sin V t m       Then …(1) i I sin m t Also from the phasor diagram,     V V   1 tan L   R   2 2 V V V and R L     2 2   i.e. V IR IX L   2 2 V I R X L V I    2 2 R X L But ratio of voltage to current is opposition of circuit. This opposition is called as Impedance and it is denoted by ‘Z’. It is measured inΩ.   2 2 Z R X Thus, ….. (2) L 21

  22. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 6)From the phasor diagram we can write, V V IR IZ    cos R R Z    cos …..(3) Thus, Power factor for R-L series circuit is defined as the ratio of the resistance of the circuit to the impedance of the circuit. 7)Now construct a right angle triangle having one of the angle as  R Z   cos where . This triangle is known as Impedance Triangle. 8)From Impedance Triangle,   2 2 Z R X ….. (4) L   cos R Z   sin X Z L Expression for Power 1)The instantaneous power is a product of instantaneous voltage and instantaneous current. P  i.e. v i       2)              n V sin m I sin m ... From eq . 1 P t t            V I m sin sin t t m V I m             cos cos 2 m t 2 1 2        sinAsinB cos A B cos A+B V I m V I m          cos cos 2 m m P t 2 2 22

  23. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 3)From equation (5) we can see that instantaneous power of R-L series circuit consist of two parts, V I m    cos Constant  st 1 m 2 V I m         nd 2 cos 2 Fluctuating m t 2 4)But the integration of 2nd part over the complete cycle is zero. Hence, V I m    avg. P cos 0 m 2 V I    avg. P cos m m 2 2   V I cos avg. P This is the expression for average power loss in R-L series circuit. This is also called true power, active power or absolute power. It is measured in watts or kilo-watts. 5)Therefore, Active power is due to cosine component of current.  P V I cos Watts   6)Similarly reactive power is the loss in the circuit due to sine component of  …… (6) current. It is denoted by ‘Q’ and measured in volt-amp-reactive (VAR) or kilo- volt- amp-reactive (KVAR).     …… (7) V I sin VAR Q 7)The apparent power is the product of R.M.S. value of voltage and R.M.S. value of current. It is denoted by ‘S’ and measured in volt-amp (VA) or kilo- volt-amp (KVA).    …… (8) V I VA S 8)From eqn. (6), (7) and (8) we can draw a right angle triangle known as Power Triangle. From Power triangle, P S    Power Factor cos 23

  24. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com R-C SERIES CIRCUIT 1)Consider a resistance of ‘R’ Ω connected in series with a capacitor of ‘C’ Farad. This series combination is excited by AC supply given by v V sin m t         V  2)Let V be the R.M.S. value of the applied voltage and I be the i.e. V m 2       I  R.M.S. value of the current drawn from the source. This i.e. I m 2 current causes a voltage drop across each element connected in series as shown in fig. 3)Let, VR – R.M.S. value of voltage drop across Resistor R VC – R.M.S. value of voltage drop across Capacitor C The voltage VR is in phase with current I where VR = IR and the voltage VC lags the current I by 90° where VL = IXC. 4)From the property of series circuit, R C V V V   This can be represented by a phasor diagram as shown in fig. 5)Also from the phasor diagram, V tan V   V V V R C        1 c  R 2 2     2 2   i.e. V IR IX c   2 2 V I R X c V I    2 2 R X c But, ratio of voltage to current is opposition of circuit. This opposition is called as Impedance and it is denoted by ‘Z’. It is measured in Ω.   2 2 Z R X Thus, c 24

  25. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 6)From Impedance Triangle,   2 2 Z R X c   R cos Z   X sin Z c Expression for Power 1)The instantaneous power is a product of instantaneous voltage and instantaneous current. i.e. P  2)     V sin I sin m m P t t            V I sin sin          m m t t V I cos cos 2 2     sinAsinB cos A B cos A+B 2   cos cos 2 2 2 3)From above equation we can see that instantaneous power of R-C series circuit consist of two parts, V I 1 cos Constant 2    2 cos 2 Fluctuating 2 4)But the integration of 2nd part over the complete cycle is zero. Hence, V I cos 0 2 V I cos 2 2  avg. V I cos P   This is the expression for average power loss in R-C series circuit. 5)Therefore Active power is,   V I cos Watts P   Reactive power is,   VI sin VAR Q   Apparent power is,   S V I VA  vi                m m t 1    V I m V I m        m m P t     st m m V I m      nd m t    m m avg. P    m m avg. P 25

  26. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 6)From above equations we can draw a right angle triangle known as Power Triangle. From Power triangle, P S    Power Factor cos R-L-C SERIES CIRCUIT 1)Consider a resistance of ‘R’ Ω connected in series with an inductor of ‘L’ Henry and a capacitor of ‘C’ Farad. This series combination is excited by AC supply given by   v V sin m t       V  2)Let V be the R.M.S. value of the applied voltage and I be the i.e. V m 2       I  R.M.S. value of the current drawn from the source. This i.e. I m 2 current causes a voltage drop across each element connected in series as shown in fig. 3)Let, VR – R.M.S. value of voltage drop across Resistor R VL – R.M.S. value of voltage drop across Inductor L VC – R.M.S. value of voltage drop across Capacitor C The voltage VR is in phase with current I (VR = IR). The voltage VL leads the current I by 90° (VL = IXL) and the voltage VC lags the current I by 90° (VL = IXC). 4)From the property of series circuit,    V V V V R L C The position of resultant voltage V depends on the magnitude of VL and VC. Hence, consider following two cases: 26

  27. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 5)Case – I : When VL > VC From Vector Diagram,   2    2 V V V V L C R     2 2    IX IX IR L C     R 2 2    I X X L C V I     R 2 2      X X Z L C From phasor diagram current lags voltage by an angle  . 6)Case – II: When VL < VC From Vector Diagram,   2    2 V V V V L R C   2    2 IX IX IR L C     R 2 2    I X X L C V I     R 2 2      Z X X L C From phasor diagram current leads voltage by an angle  . R-L-C- SERIES RESONANCE CIRCUIT 1.Consider a resistance of ‘R’ Ω connected in series with an inductor of ‘L’ Henry and a capacitor of ‘C’ Farad. This series circuit is connected across constant voltage variable frequency AC supply. 2.The series R-L-C series circuit is said to be in resonance when net reactance of the circuit is zero. (i.e. X = 0) But X = XL - XC or X = XC - XL  at resonance, XL - XC = 0 i.e. XL = XC ….(1) 27

  28. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 3.If ωr is the resonant frequency then at resonance, 1 rC  XL = ωr L X c  1   4.From eqn. (1) L r  C r 1    2 r LC 1 LC      r …. (2) rad/s 5.But ωr = 2πfr where fr is the frequency in Hz. Hence, from eqn. (2), 1 LC 2 f   r 1     …. (3) f Hz r  2 LC Phasor diagram at resonance 6.At Series resonance   XL = XC I XL = I XC VL = VC    V V V V 7.But from the property of series circuit, R L C As VL and VC are equal in magnitude and opposite in direction they cancel out each other. Hence at resonance,  V V R 8.Thus, at series resonance, a.V = I R  b. Z R min V R  I c. max  d.p.f. = cos = 1 28

  29. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Graphical representation of R-L-C series Resonance If an alternating voltage of constant voltage but varying frequency is applied across a series R-L-C circuit then variation of R, Z, XL, XC w.r.t. frequency is shown in fig. Expression for Bandwidth Definition: It is defined as the range of frequencies at which current falls to 0.707 times current at resonance.   From fig. B.W. = AB l     f f Hz 2 1      1 rad/s  2 29

  30. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 1.From the resonance curve at cut-off frequencies f1 and f2, current = 0.707 Imax and  Impedance at cut-off frequencies, voltage = V V  f1/f2  Impedance = 2R 0.707 I max 2.But Impedance at f1 and f2 is given by, 2       1     2       2 2 Impedance = R X X R L C L 1  f1 C 1 2     1     2         2 2 Impedance = R X X R L L C 2  f2 C 3.Hence we can write,  Impedance 2        Impedance Impedance f1/f2 f1 f2 2 2           1 1           2 2 ...… (1) 2R= R L R L 1 2   C C 1 2 4.From equation (1), 2       1    2 2R= R L 1  C 1 2       1     2 2 2R = R L 1  C 1 2       1    2 R = L 1  C 1    2 1 LC C  R= 1 1   .    1 0   This is quadratic equation in 2 LC RC 1 1 1 30

  31. www.ekeeda.com Contact : 9029006464 4LC  Email : care@ekeeda.com   2 2 RC R C 2LC 5.   1  2 2 R 2L R C 4LC    2 2 4L C 2 R 2L R 4L 1     2 LC 2 2 R 4L R 4L 1  Neglecting term we get, 2 2 LC R 2L 1     1 LC R 2L 1 LC          R 2L 1 LC       r r R 2L      rad/s ...…(2) r 1 6.Similarly From equation(1) we get, 2     1       2 2R R L 2  C 2 R 2L     We get, rad/s …. (3) r 1 7.From equation (2) and (3), R  R      f f Hz f f Hz and 1 r 2 r 4 L 4 L The B.W. is given by, R L R            rad/s f f Hz and 2 1 2 1 2 L 31

  32. www.ekeeda.com Contact : 9029006464 and r    :- Email : care@ekeeda.com Relation between , 1 2 From eqn (1) we have, 2 2           1 1          2 2 R L R L 1 2   C C 1 2 2 2           1 1           2 2 R L R L 1 2   C C 1 2 2 2           1 1         L L 1 2   C C 1 2           1 1         L L 1 2   C C 1 2 1 1      L+ L 1 2   C C 1 2          + 1 C    + L 1 2 1 2 1 2 1   LC  1 2 1    1 2 LC       1 LC        2 r r 1 2   r Hence, and f 1 2 f f  r 1 2 In other words resonant frequency is geometric mean of upper and lower cut-off frequencies. Quality Factor of Series Resonance Circuit 1.Defn : Quality factor of a series R-L-C resonance circuit is defined as the ratio of voltage across either of the reactive element to the total voltage applied to the circuit. It is also called as voltage magnification factor. Voltage across coil or capacitor Voltage applied to the circuit  V V V V           Q at resonance              ... 1 C L Q at resonance at resonance 32

  33. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 2.But at resonance, VL = Imax XL, Thus, eqn. (1) becomes, VC = Imax XC and V = Imax R          X R . Thus, from eqn. (2)       I X R I X R   max I L max I C Q max max           X R    …… (2) C Q L  L 3.At resonance X r L           L       r r   Q R R L             R L r        Q B.W.   2 1        2 1      r   …… (3) Q    B.W. in rad/s    2 f L R L R LC    L r    r Q R 1   2  2 1 R L C  ..… (4) Energy stored in reactive elements at resonance 1)Consider a series R-L-C circuit connected to constant voltage, variable frequency supply. Let the supply voltage be   v V sin m t   t V R   t     i sin m t resonance Z R 2)We know that, energy stored in inductor is, 1 2   t   t  2 E L i L 2       V R 1 2   t    E L sin m t L 1 L 2 R   t    2 2 E V sin t …. (1) L m 2 33

  34. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 3)Now energy stored in the capacitor is, 1 2   t   t  2 E C V C C         V R V RC 1 C 1 C cos  t   t   t dt     sin t   But, V i m m dt C 2         V RC 1 2 cos t   t   E C m C  2 V   t    2 …(2) E cos t m C  2 2 2CR 4)From (1) and (2), the total energy stored in reactive elements is,       L C E E E t t t   2 V 1 L 2 R   t      2 2 2 E V sin m cos t t m  2 2 2 2CR   2 V 1 2 L R   t      2 2 2 E V sin m cos t t m  2 2 2 2CR 1     But at Resonance, and L= r r  C r     L R L R   t      2 2 2 2 E V sin m V cos m t t r r r r 2 2 2 2 r r   L R     2 2 2 V sin m cos t t r r r 2 2 r L  2 V m 2 2R L  m 2 I R V I R at resonance max max 2 2R LI 2  2 max  Energy stored in reactive elements at resonance is, L 2   t    2 max E LI Joules 34

  35. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com AC PARALLEL CIRCUIT There are three methods available for solving problems on parallel circuits. These methods are: 1)Phasor Method 2)Admittance Method 3)Complex Algebra Method PARALLEL RESONANT CIRCUIT 1)Consider a coil of resistance R Ω and inductor L. Henry connected in parallel with capacitor of C Farad. This parallel combination is connected across constant voltage, variable frequency AC supply. 2)A parallel circuit is said to be in resonance if the reactive component of current becomes zero. CONDITION FOR RESONANCE 1)Consider the phasor diagram for the above circuit, From phasor diagram,   I sin I I Net reactive component of current is net C L L  I 0. But at Resonance, net     I I sin 0 C L L   I sin I ..… (1) C L L 35

  36. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com 2)From Impedance triangle and Circuit Diagram, X Z V Z V X     I , sin and I L L L C L L C From equation (1) X V X V Z Z  L C L L  2 L Z X X L C    3)At resonance r 1 ,C      2 L Z ,L   L C   2 L Z …… (2) Z   2 L 2 L R X 4)But, L Hence, from eqn. (2), L C   2 L 2 L R X L C    2 L 2 L X R L C   2  2 f L    2 L R r 2 L 2 R L 1     2 2 r 4 f LC       2 L 2 R L 1  1    2 r f 2 4 LC 2 L 2 R L 1  1    ….. (Hz) f r 2 LC 36

  37. www.ekeeda.com Contact : 9029006464 Email : care@ekeeda.com Current at resonance 1)During parallel resonance  The only current flowing through the circuit is 2)From Impedance triangle and Circuit diagram,  I sin I C L L  I cos I L L V R Z Z  I L L VR Z VR LC   I 2 L   I [From equation (2)] 3)During parallel resonance current is minimum and impedance is maximum. VRC L L   I Z Hence, min. and max. RC QUALITY FACTOR OF PARALLEL CIRCUIT 1)Defn : Quality factor of a parallel resonance circuit is defined as the ratio of current through capacitor to the total current flowing through the circuit. It is also called as current magnification factor. Current through Capacitor Q Total current flowing through the circuit        at resonance      I   ….(1) Q C I V/X I cos at resonance   C V C L 2)    Q C  r r R V R L L L  rL R   Q ….(2) L R     2 f  Q r         2 1   1 R L L R     Q 2 2 LC 3)If R is negligible then 1 R L C  ….(3) Q 37
