This lecture explores the concept of one-hot encoding within the context of state machines, particularly focusing on its application in designing a digital control circuit for a successive approximation A-to-D converter. One-hot encoding allows for efficient representation of states with minimal excitation equations, making it ideal for systems with a distinct set of outputs indicating the current state. The lecture also discusses bit-slice logic, where uniform logic is adapted across multiple slices for effective VLSI implementations. Gain insights into how to implement these concepts in digital design.

State Machine Realizations - slide 1
01 / 9State Machine Realizations
1 / 17

Télécharger la présentation

State Machine Realizations
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

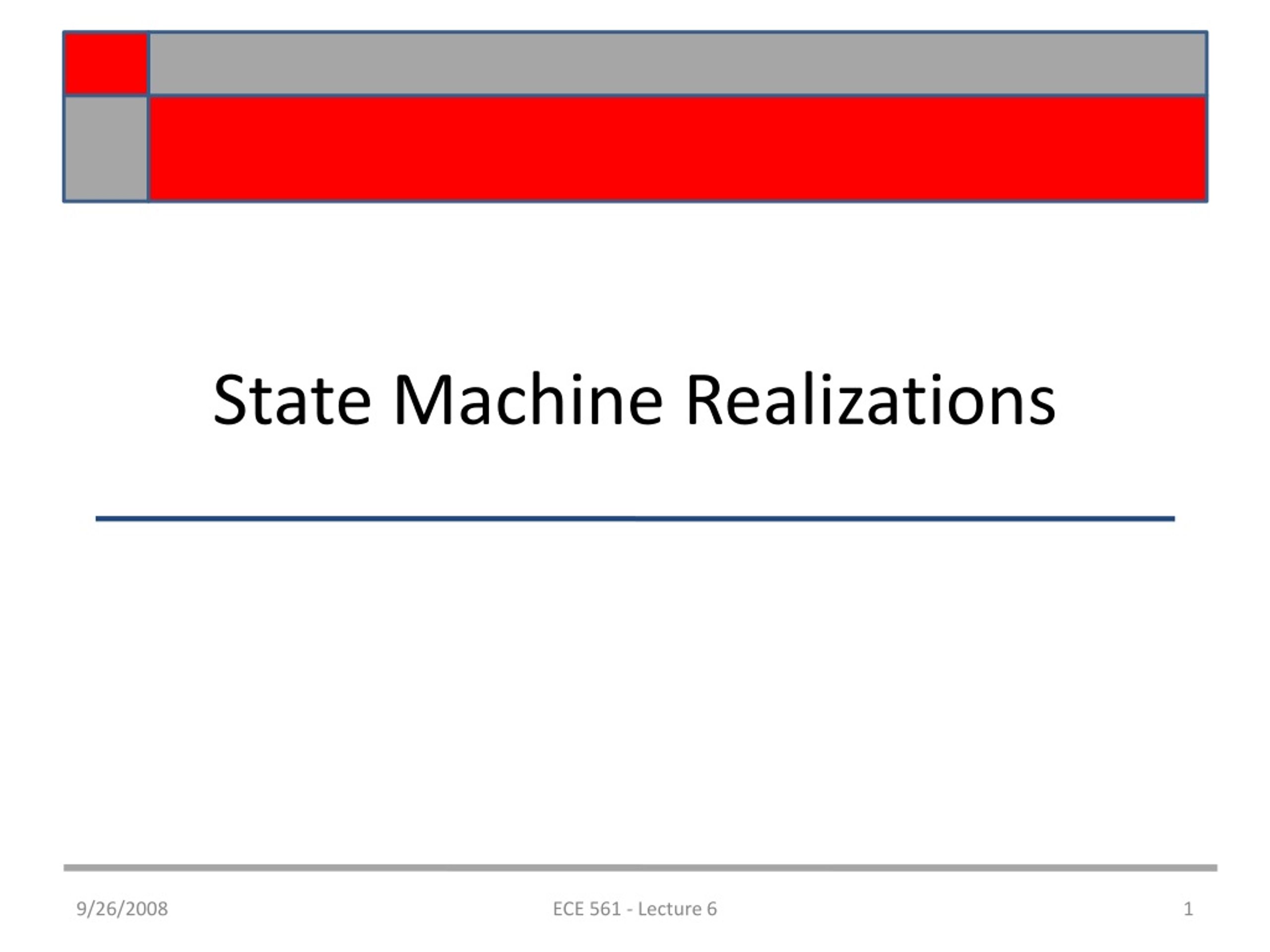

  1. State Machine Realizations ECE 561 - Lecture 6

  2. Another type of system • One Hot encoding – only one of the state flip-flops is ever a 1. All the other state flip-flops are a 0. • Requires n flip-flops for an n state machine. • Ideal for a state machine having a set of 1-out-of-s coded outputs indicating the current state ECE 561 - Lecture 6

  3. A D-to-A Converter • Design a successive approximation A-to-D converter • Will do a 10 bit conversion • Another designer is responsible for the design of the analog comparator • A different designer is responsible for the D-to-A converter within the unit • Your job is to design the digital control circuitry ECE 561 - Lecture 6

  4. The system • The D-to-A system ECE 561 - Lecture 6

  5. The States • The states are fairly simple ECE 561 - Lecture 6

  6. One Hot Encoding • There are 10 distinct state during conversion – each state represents which bit is being converted • Also an initial state and the conversion complete state • The architecture lends itself to one-hot encoding of the states ECE 561 - Lecture 6

  7. Why One hot encoding • One hot encoding typically leads to minimal excitation equations • Minimal excitation equations = lower complexity logic • Lend itself to bit slice logic ECE 561 - Lecture 6

  8. Bit slice logic • Bit slice logic – the same logic is used for each slice. There may be minor modifications needed for the end slice. • Excellent for VLSI implementations ECE 561 - Lecture 6

  9. The slice here • Slice is simply repeated for the number of bits. ECE 561 - Lecture 6
