Power Systems – August 2010

amos-pena avatar
amos-pena
22 diapositives · 541 Views · Nov 19, 2014

Power Systems – August 2010. JS Blades. Power 795. Power 780. Power 770. Power 755. Power 750. Power 575. Power 570. Power 550. Power 595. Power 520. PS Blades. Power 720/740. Power 710/730. POWER5 510. Power 560. HPC. IBM i strategy and roadmap.

#power systems – august 2010 #power systems – august 2010 ppt #powerpoint #presentation
Power Systems – August 2010 - slide 1
01 / 22Power Systems – August 2010
1 / 17

Télécharger la présentation

Power Systems – August 2010
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

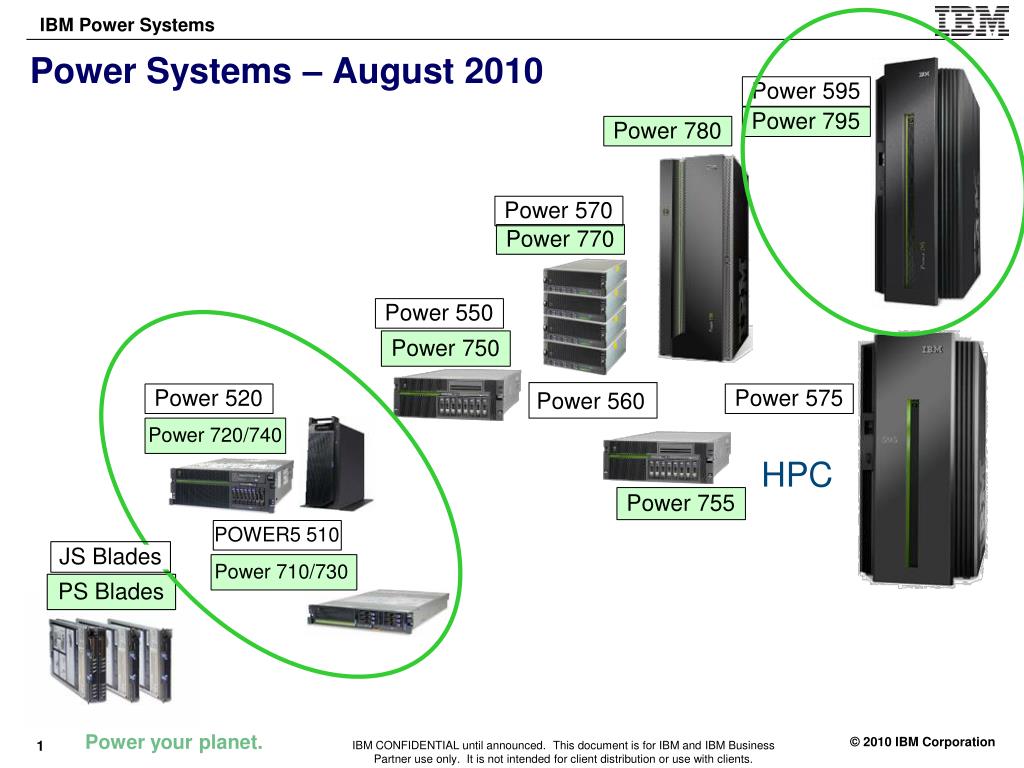

  1. Power Systems – August 2010 JS Blades Power 795 Power 780 Power 770 Power 755 Power 750 Power 575 Power 570 Power 550 Power 595 Power 520 PS Blades Power 720/740 Power 710/730 POWER5 510 Power 560 HPC

  2. IBM i strategy and roadmap “Our commitment to our IBM i clients, ISVs and business partners is solid and unchanged. With our clearly defined processor and software roadmap, we are making substantial investments in the future of IBM i as an important, strategic element in the IBM systems portfolio.” IBM white paper Includes information about the IBM i market, Power Systems and IBM i roadmaps, plus the latest information on POWER7 and IBM i 7.1 http://www.ibm.com/systems/power/software/i/rossmauri/index.html

  3. IBM i Roadmap 2009 2010 2011 Future IBM i Next IBM i 6.1.1 IBM i 6.1 Enhancements

  4. Power of i Webcast Series Introducing New Power Systems Express Servers for IBM i Clients • Wednesday, September 1, 2010 – 2 p.m. Eastern Time Moving up to IBM i 6.1, 7.1 and POWER7 • Tuesday, September 21, 2010 – 2 p.m. Eastern Time IBM DB2 WebQuery - the powerful, easy to use data analysis solution • Tuesday, October 12, 2010 – 2 p.m. Eastern Time IBM i Application Developers Update: Rational, Zend and more • Tuesday, October 26, 2010 – 2 p.m. Eastern Time Register today at www.systeminetwork.com/iwebcast1

  5. IBM i System Support * Specific models

  6. POWER7 IBM i Offering Portfolio *US list price

  7. Power 720 Express • Latest business solutions • Workload-optimizing Features • Outstanding Energy Efficiency • Enhanced Diagnostics • Innovative Solid State Drive options • Expanded Virtualization capabilities • 5X performance • 4x memory • 4X consolidation • 3 year HWMA Power 720 Express POWER6 520 • 6X performance • 4x memory • 4X consolidation • Reduced HWMA POWER5 520 • 25X performance • 16x memory • PowerVM • Reduced HWMA POWER4 800

  8. Power 740 Express • Latest business solutions • Workload-optimizing Features • Outstanding Energy Efficiency • Enhanced Diagnostics • Innovative Solid State Drive options • Expanded Virtualization capabilities • 2.5X performance • 2x cores • 2X consolidation • 3 year HWMA Power 740 Express POWER6 550 • 7X performance • 4x memory • 4X consolidation • Reduced HWMA POWER5 550 • 13X performance • 8x memory • PowerVM • Reduced SW costs • Reduced HWMA POWER4 830

  9. 2H2010 Power Systems Express IBM i Transition POWER7 POWER6 • 740 • 2 I/O loops • 2 sockets • Up to 16 cores • Small p20 tier • 520 • 2 I/O loops • 2 sockets • 4-core • Small p10 tier • 720 • 1 I/O loops • 1 socket • 6/8-core • Small p10 tier • 520 • 1 I/O loops • 1 socket • 2-core • Small p10 tier • 520 • 0 I/O loops • 1 socket • 1-core • Small p05 tier • 720 • 0 I/O loops • 1 socket • 4-core • Small p05 tier

  10. 2H2010 Power Systems Express IBM i Transition POWER7 POWER6 • 750 • 2 I/O loops • 4 sockets • Up to 32 cores • Small p20 tier • 550 • 2 I/O loops • 2 socket • Up to 8 cores • Small p20 tier • 740 • 2 I/O loops • 2 sockets • Up to 16 cores • Small p20 tier

  11. 2H2010 Power Systems Express IBM i Transition Selling POWER6 520: Selling POWER7 720: • Delivers best price/performance • Includes 3yr HWMA • Scalability • Improved performance per core • Supports IBM i 5.4 • Client can upgrade OS from V5R2 to 5.4 • Upgrade path from POWER5 520 & 525 • Support older I/O • Client can continue to use HSL2 / RIO • IOP based cards & I/O

  12. POWER7 delivers outstanding performance CPW 80,000 60,000 40,000 20,000 3800 4300 5950 Single core CPW

  13. IBM i CPW compares 520 4-core 720 6 or 8-core 520 2-core 720 4-core 520 1-core

  14. IBM i CPW compares 750 550 740 * 4 & 8 core at 3.3 Ghz * 16 core at 3.55 Ghz

  15. IBM i and Multi-core • IBM i Automated license management • IBM i only accesses number of cores entitled to • When additional license keys installed, IBM i provided access to additional cores • Offered today on POWER6 multi-core systems • PowerVM • PowerVM Express defaulted on 710, 720, 730 and 740 orders for all active cores • PowerVM Express may be removed from order • With IBM i, PowerVM core licenses may be reduced to the number of IBM i licenses • No need for active core deconfguration 720 4-core Small p05

  16. Expanding Move up to i Incentive • Provides a no charge IBM i core entitlement when migrating from selected legacy i servers • Automated ordering thru econfig • IBM i Economic Replacement Tool includes in business case http://www-03.ibm.com/systems/info/power/moveup/index.html

  17. POWER7 Technology Leadership • More performance per core • A lot more performance per system • 4, 6 or 8 cores per chip • 3.0 to 4.25 GHz • Up to 4 threads per core • Integrated eDRAM L3 Cache • Dynamic Energy Optimization

  18. Power 710, 720, 730 and 740 Express Highlights 2U - 1 Socket 4U - 1 Socket Power 7104-core P05 Tier 6- or 8- cores P10 Tier Max memory: 64 GB PCIe = 4 low profile Zero 12X I/O loops IBM i 6.1 or later Power 7204-core P05 Tier 6- or 8-cores P10 Tier Max memory: 128 GB CEC PCIe = 4 + 4 Up to 1* 12X I/O loop * if 6- or 8-core IBM i 6.1 or later 2U - 2 Sockets 4U - 2 Sockets Power 7308, 12 or 16 cores P20 Tier Max memory: 128 GB CEC PCIe = 4 low profile Zero 12X I/O loops IBM i 6.1 or later Power 740 4, 6, 8, 12, or 16 cores P20 Tier Max memory: 256 GB CEC PCIe = 4 + 4 Up to 2 12X I/O loops IBM i 6.1 or later

  19. Power Systems Express Rack/Tower Positioning

  20. Model Upgrades (Same Serial Number) 795 780 595 595 770 570 750 Withdrawal Jan 2011 570 560 N/A 740 4/6/8/12/16 core 550 550 N/A 720 6/8 core 520 4 core 720 4 core 520 2 core 520/525 N/A 520 1-core 730 8/12/16 core 520/515 710 4/6/8 core 510 POWER5 POWER6 POWER7

  21. 520 Upgrade Paths (same serial number) 740 4/6/8/12/16 core No upgrade paths into 740 POWER7 520 4-core 8203-E4A 720 6/8-core No upgrade paths into 4-core POWER6 POWER6 POWER7 withdrawn 525 9406-525 520 2-core 8203-E4A 520 2-core 9408-M25 * withdrawn withdrawn POWER5 POWER6 POWER6 No one-step POWER5 to POWER7 520 9406-520 720 4-core No upgrade paths into 4-core POWER5 withdrawn POWER7 * 520 1-core 9407-M15 520 1-core 8203-E4A 515 9407-515 No upgrade paths POWER6 POWER6 POWER5 No upgrade paths 520 9405-520 * conversion to 8203 POWER5

  22. Thanks
