  1. Input/Output Optics subgroup • Current Members • S. TELADA (AIST) • S. MIYOKI (ICRR) • T. UCHIYAMA (ICRR) • O. MIYAKAWA (ICRR) • N. MIO (U-Tokyo) • S. MORIWAKI (U-Tokyo) • N. OHMAE (U-Tokyo) • K. IZUMI (U-Tokyo) • K. SOMIYA (Titech) • T. AKUTSU (NAO) • E. HIROSE (ICRR) • S. NAGANO (NICT) • S. SAKATA (UEC) • M. MUSHA (UEC) Contact: Souichi TELADA <souichi.telada@aist.go.jp> f2f meeting IOO

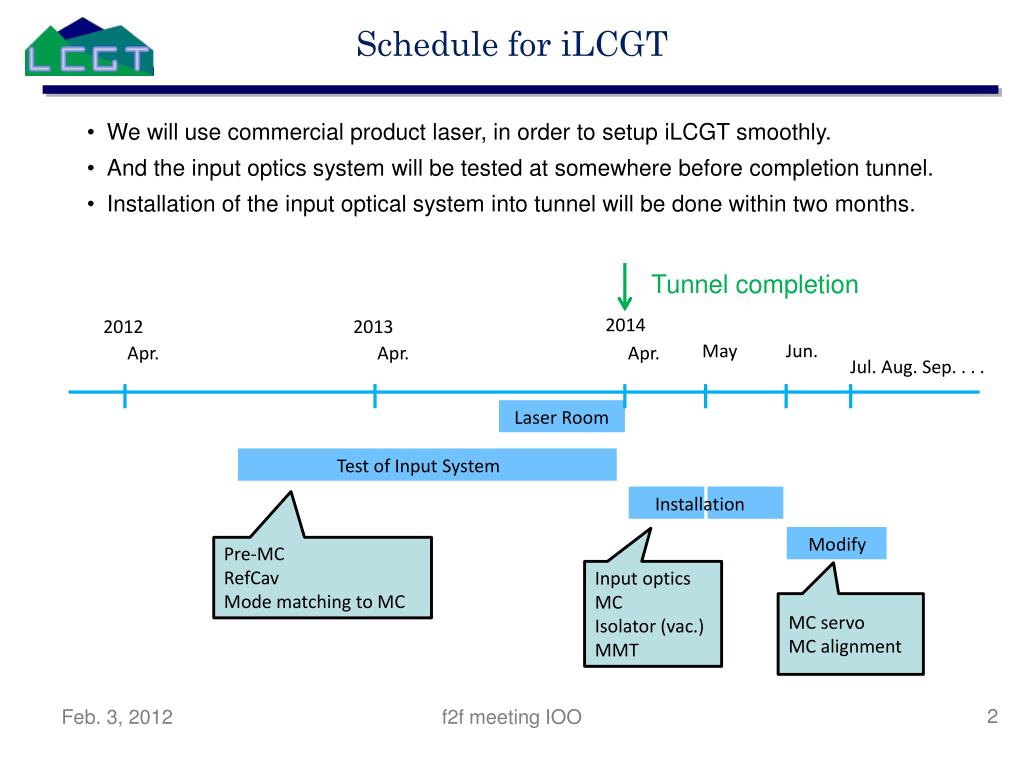

  2. Schedule for iLCGT • We will use commercial product laser, in order to setup iLCGT smoothly. • And the input optics system will be tested at somewhere before completion tunnel. • Installation of the input optical system into tunnel will be done within two months. Tunnel completion 2014 2012 2013 May Jun. Apr. Apr. Apr. Jul. Aug. Sep. . . . Laser Room Test of Input System Installation Modify Pre-MC RefCav Mode matching to MC Input optics MC Isolator (vac.) MMT MC servo MC alignment f2f meeting IOO

  3. Test of Input Optics System • First Step • Using commercial product laser. • Develop pre-MC and RefCav. • Test of mode matching. Pre Mode Cleaner 42W Laser AOM EOPM Reference Cavity f2f meeting IOO
