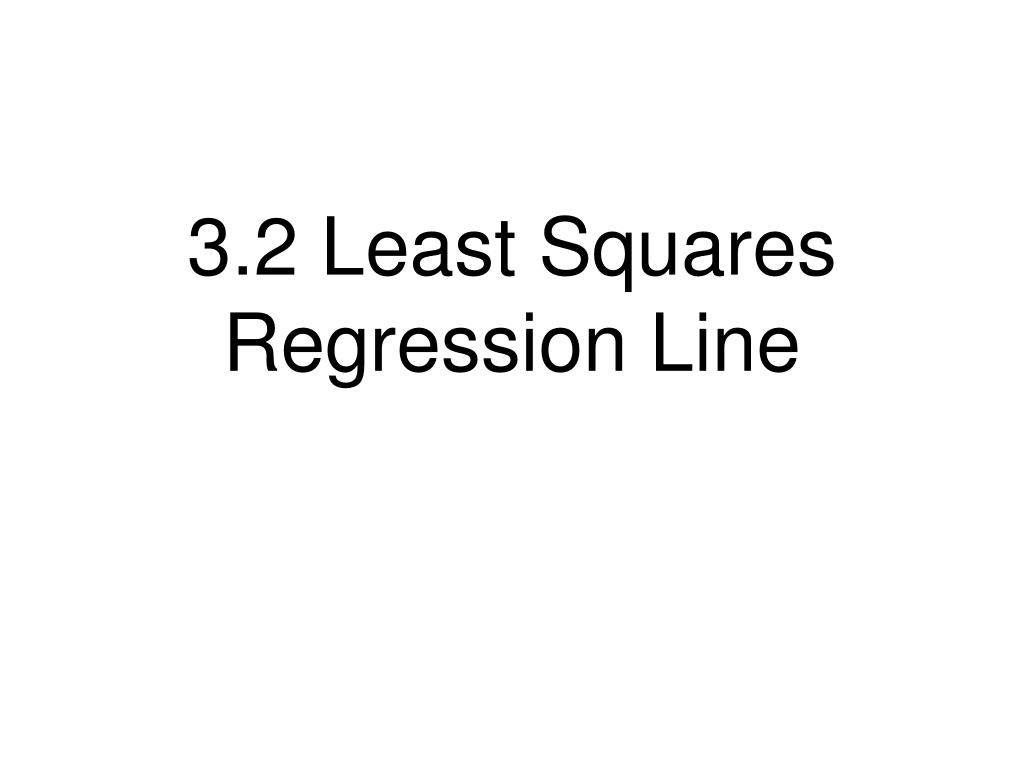

  1. 3.2 Least Squares Regression Line

  2. Regression Line • Describes how a response variable changes as an explanatory variable changes • Formula sheet: • Calculator version:

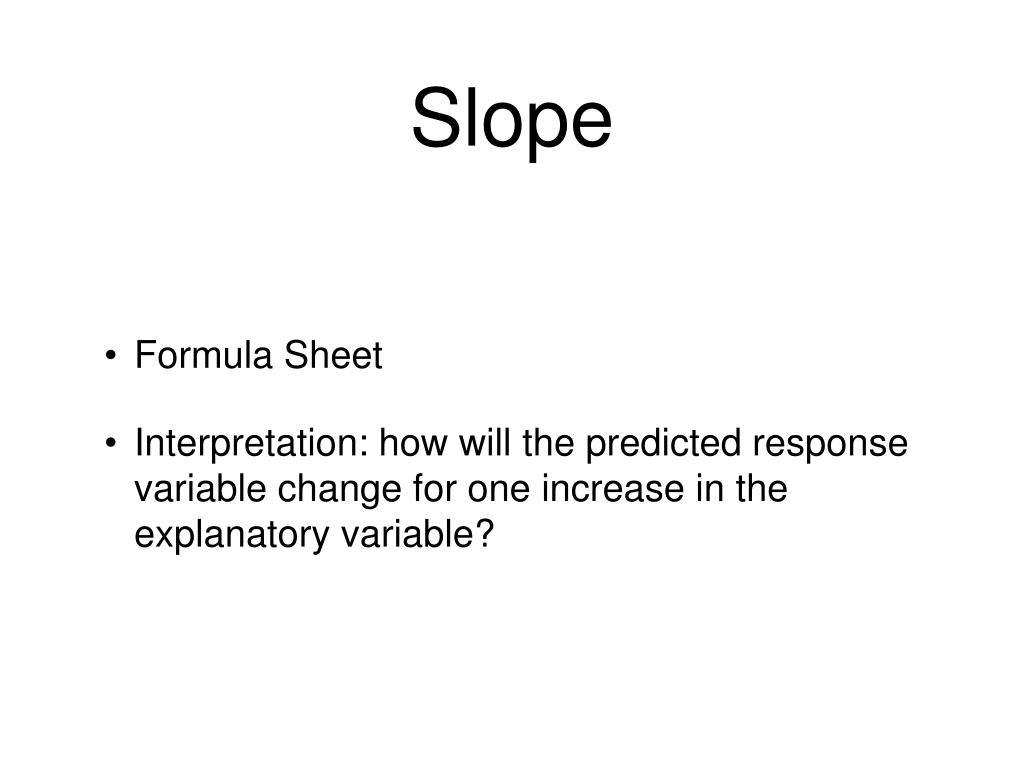

  3. Slope • Formula Sheet • Interpretation: how will the predicted response variable change for one increase in the explanatory variable?

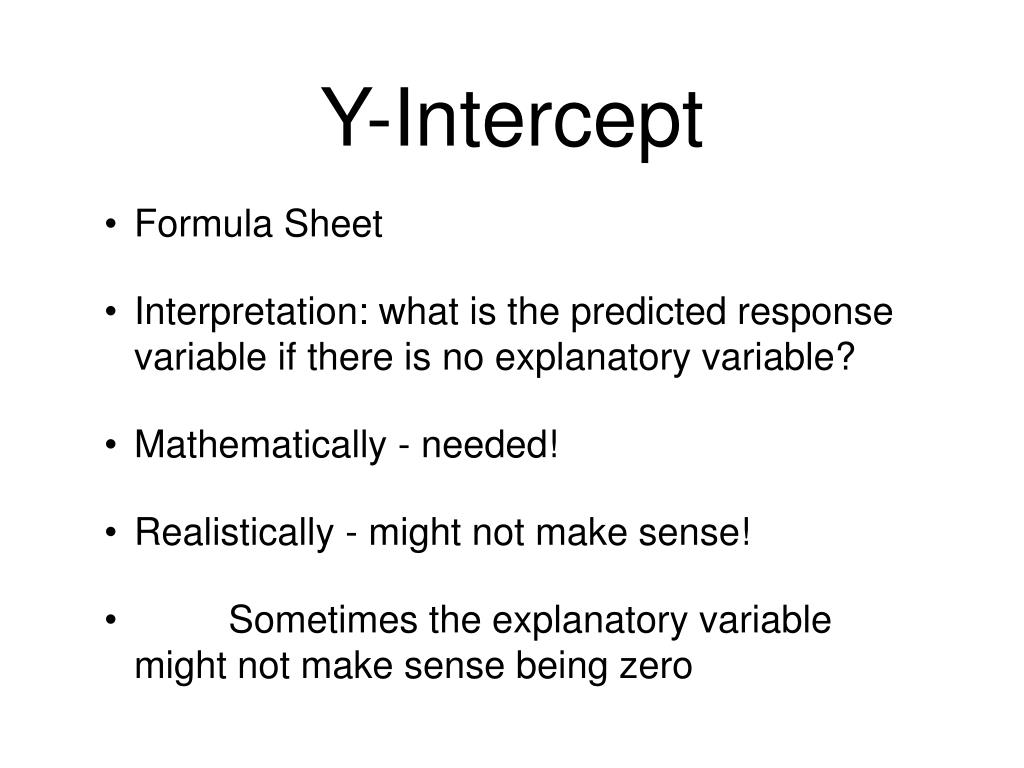

  4. Y-Intercept • Formula Sheet • Interpretation: what is the predicted response variable if there is no explanatory variable? • Mathematically - needed! • Realistically - might not make sense! • Sometimes the explanatory variable might not make sense being zero

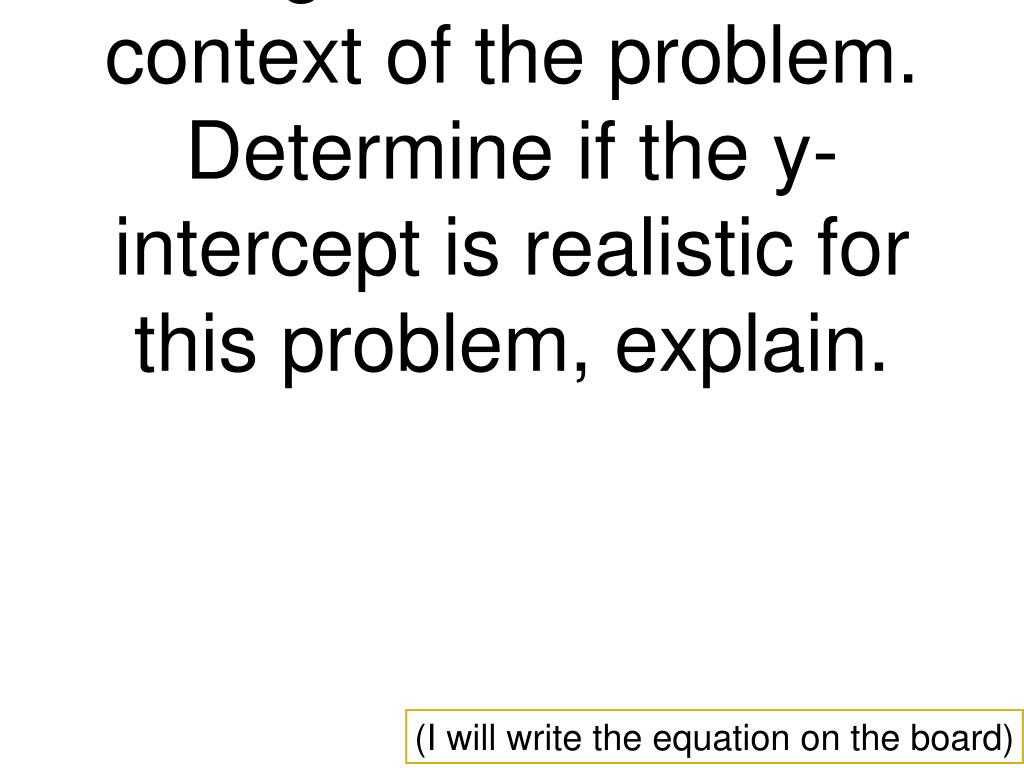

  5. Interpret the slope and the y-intercept from the given least squares regression line in context of the problem. Determine if the y-intercept is realistic for this problem, explain. (I will write the equation on the board)

  6. Extrapolation • When using a regression line to predict a variable outside the range of the data gathered • Unreliable predictions!

  7. Multiple Choice Problems

  8. Let's do p. 160!

  9. 3.2 - Least-Squares Regression (Residuals)

  10. Remember: AP Where else have we seen “residuals?” • Sx = data point - mean (observed - predicted) • z-scores = observed - expected * note: this is just the numerator of these calculations

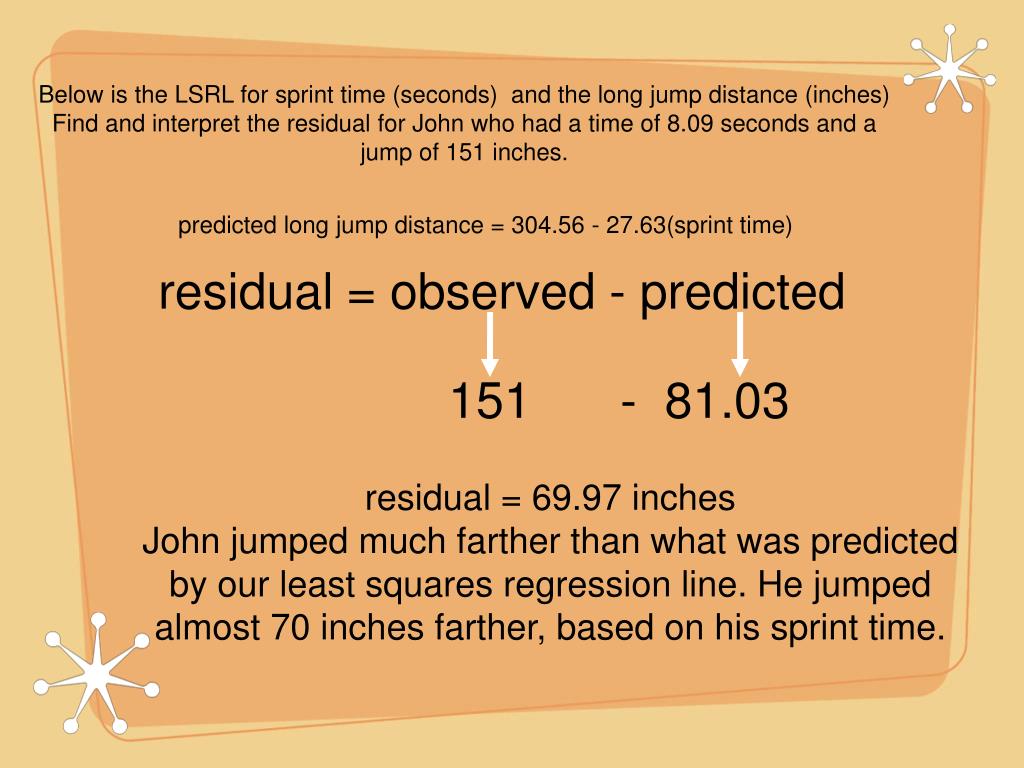

  11. Below is the LSRL for sprint time (seconds) and the long jump distance (inches)Find and interpret the residual for John who had a time of 8.09 seconds and a jump of 151 inches. predicted long jump distance = 304.56 - 27.63(sprint time) residual = observed - predicted 151 - 81.03 residual = 69.97 inches John jumped much farther than what was predicted by our least squares regression line. He jumped almost 70 inches farther, based on his sprint time.

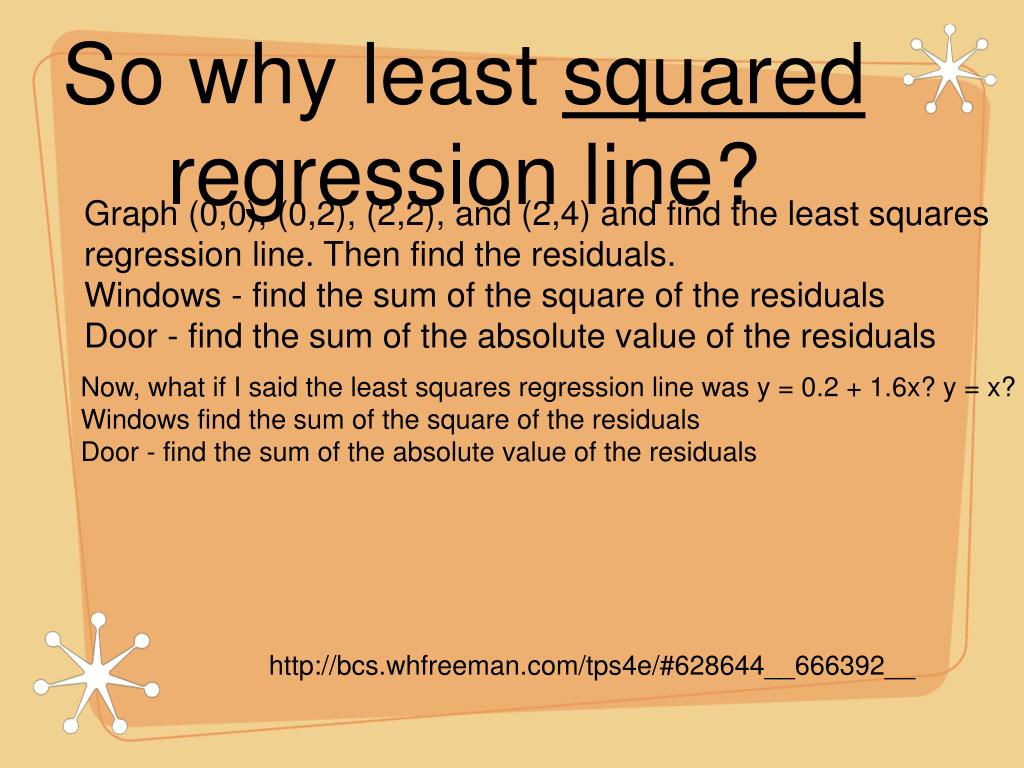

  12. So why least squared regression line? Graph (0,0), (0,2), (2,2), and (2,4) and find the least squares regression line. Then find the residuals. Windows - find the sum of the square of the residuals Door - find the sum of the absolute value of the residuals Now, what if I said the least squares regression line was y = 0.2 + 1.6x? y = x? Windows find the sum of the square of the residuals Door - find the sum of the absolute value of the residuals http://bcs.whfreeman.com/tps4e/#628644__666392__

  13. Stop notes for todayHomework is p193#43,45,47,53 • Activity - "Matching Descriptions to Scatterplots" Homework hint: you will need to be familiar with the formulas on your sheet to write the LSRL

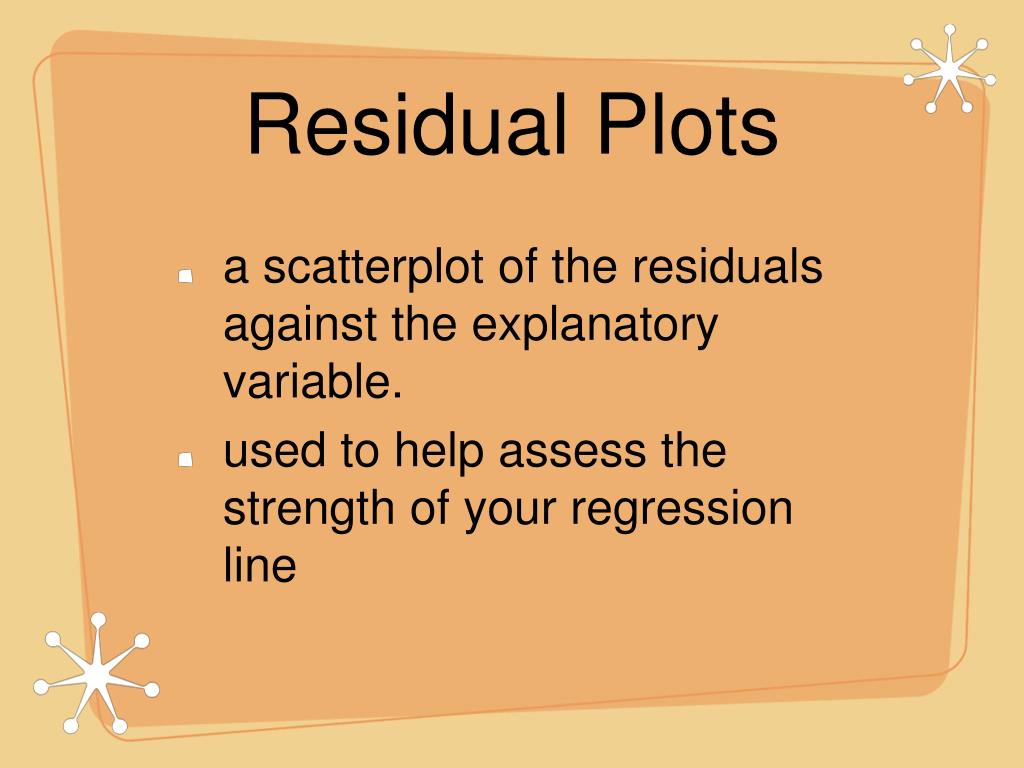

  14. Residual Plots • a scatterplot of the residuals against the explanatory variable. • used to help assess the strength of your regression line

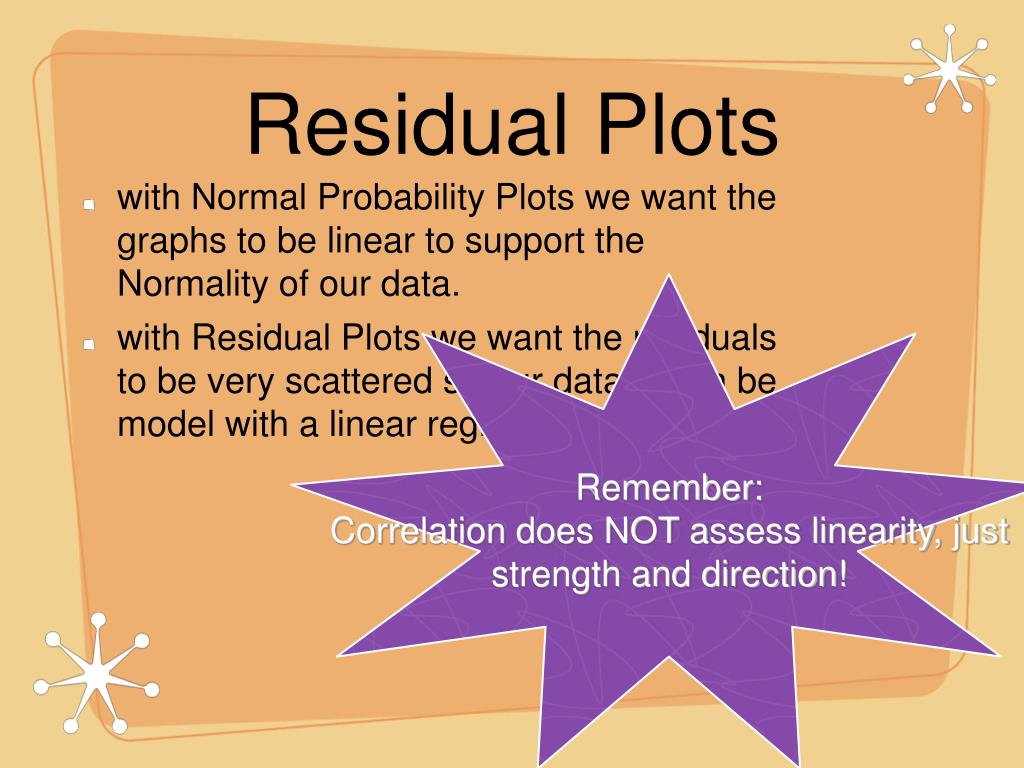

  15. Remember: Correlation does NOT assess linearity, just strength and direction! Residual Plots • with Normal Probability Plots we want the graphs to be linear to support the Normality of our data. • with Residual Plots we want the residuals to be very scattered so our data is can be model with a linear regression.

  16. What’s a Good Residual Plot? • No obvious pattern - the LSRL would be in the middle of the data, some data above and some below • Relatively small residuals - the data points are close to the LSRL

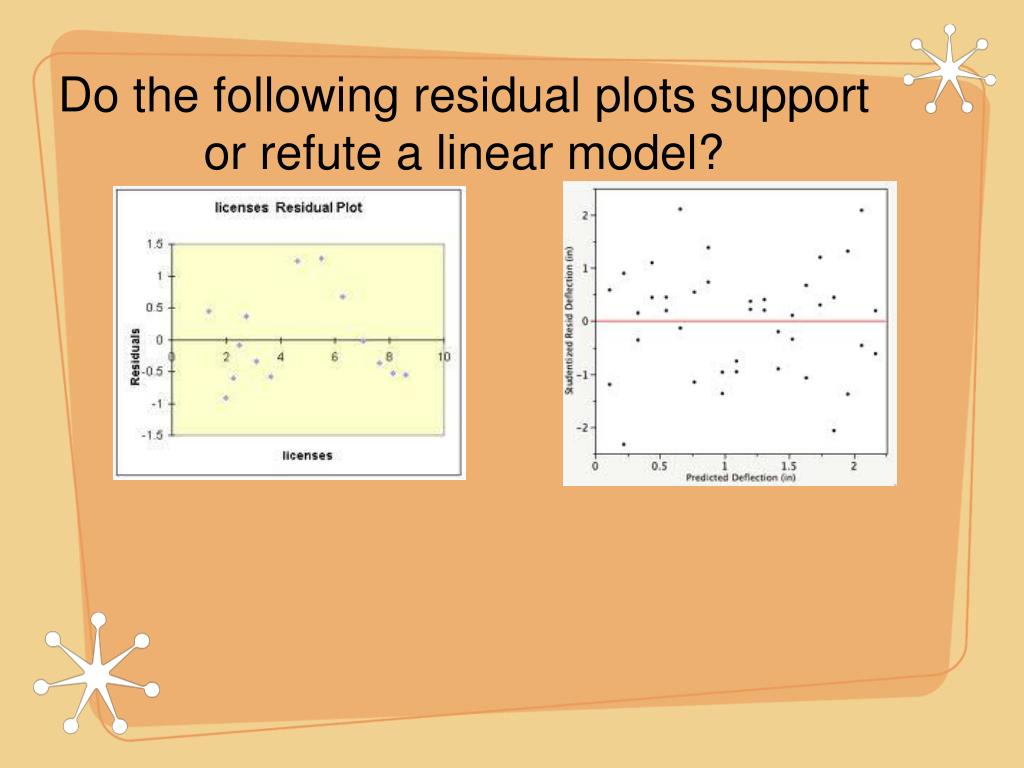

  17. Do the following residual plots support or refute a linear model?

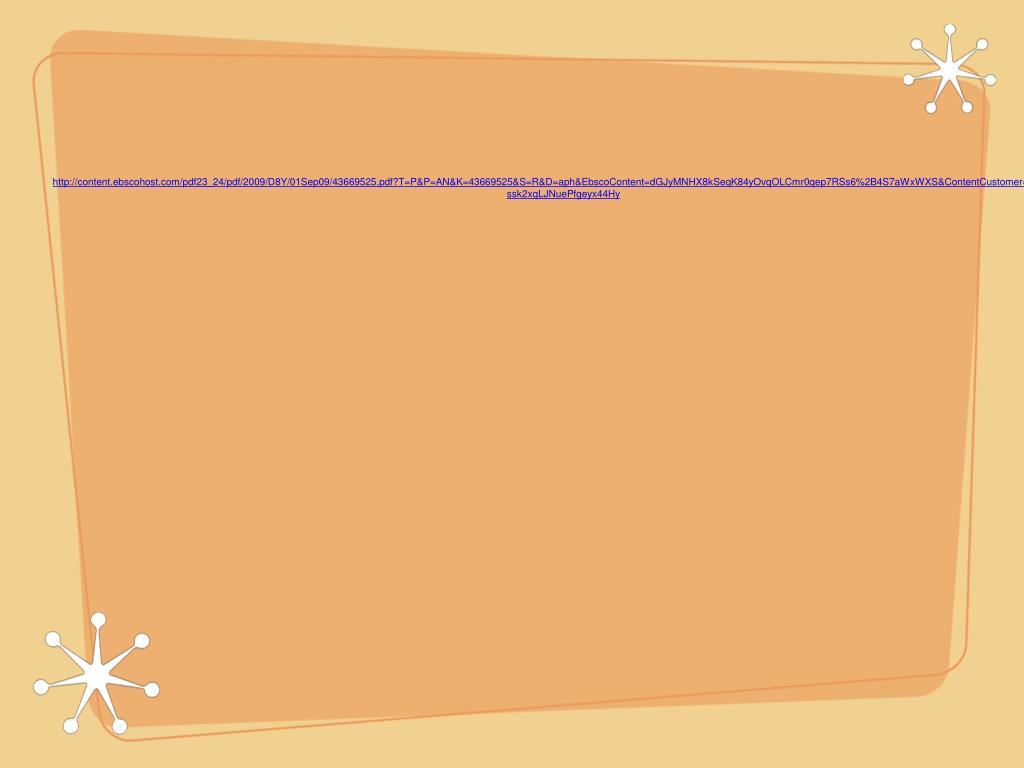

  18. http://content.ebscohost.com/pdf23_24/pdf/2009/D8Y/01Sep09/43669525.pdf?T=P&P=AN&K=43669525&S=R&D=aph&EbscoContent=dGJyMNHX8kSeqK84yOvqOLCmr0qep7RSs6%2B4S7aWxWXS&ContentCustomer=dGJyMPGssk2xqLJNuePfgeyx44Hyhttp://content.ebscohost.com/pdf23_24/pdf/2009/D8Y/01Sep09/43669525.pdf?T=P&P=AN&K=43669525&S=R&D=aph&EbscoContent=dGJyMNHX8kSeqK84yOvqOLCmr0qep7RSs6%2B4S7aWxWXS&ContentCustomer=dGJyMPGssk2xqLJNuePfgeyx44Hy

  19. How to Graph? • Take each data point and determine the residual • Plot the residuals versus the explanatory variable i.e. (explanatory data, residual) 2 1.5 1 0.5 0 -0.5 -1 -1.5 -2 residual use the same numbers as your scatterplot explanatory variable

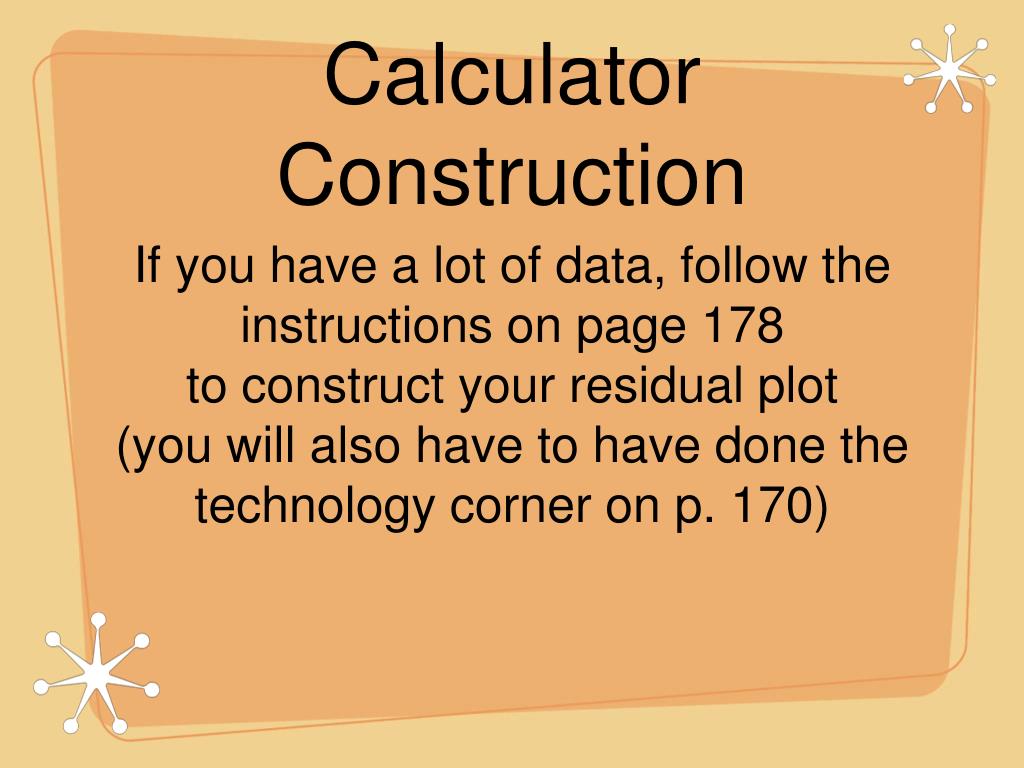

  20. Calculator Construction If you have a lot of data, follow the instructions on page 178 to construct your residual plot (you will also have to have done the technology corner on p. 170)

  21. What is Standard Deviation? • the average squared distance a data point is from the mean • Is there a sx? Is there a sy? • So why not s? (standard deviation of residuals)

  22. Standard Deviation of Residuals • gives the approximate size of an “average” or “typical” prediction error from our LSRL • formula on page 177 • Why divide by n-2?
