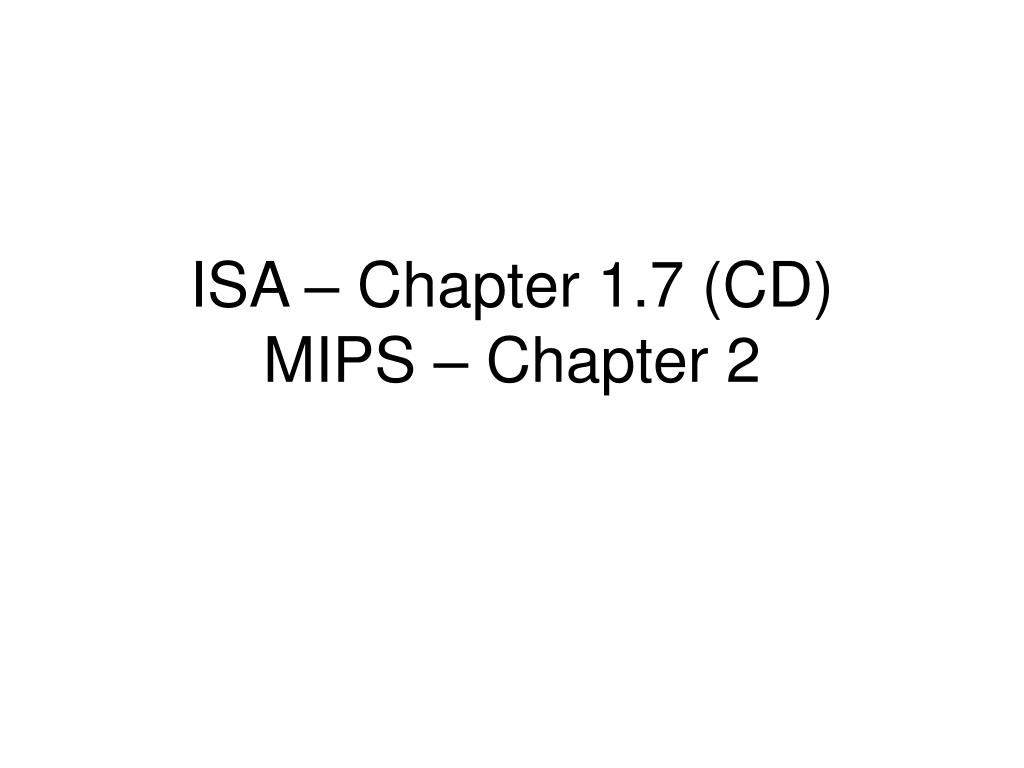

  1. ISA – Chapter 1.7 (CD)MIPS – Chapter 2

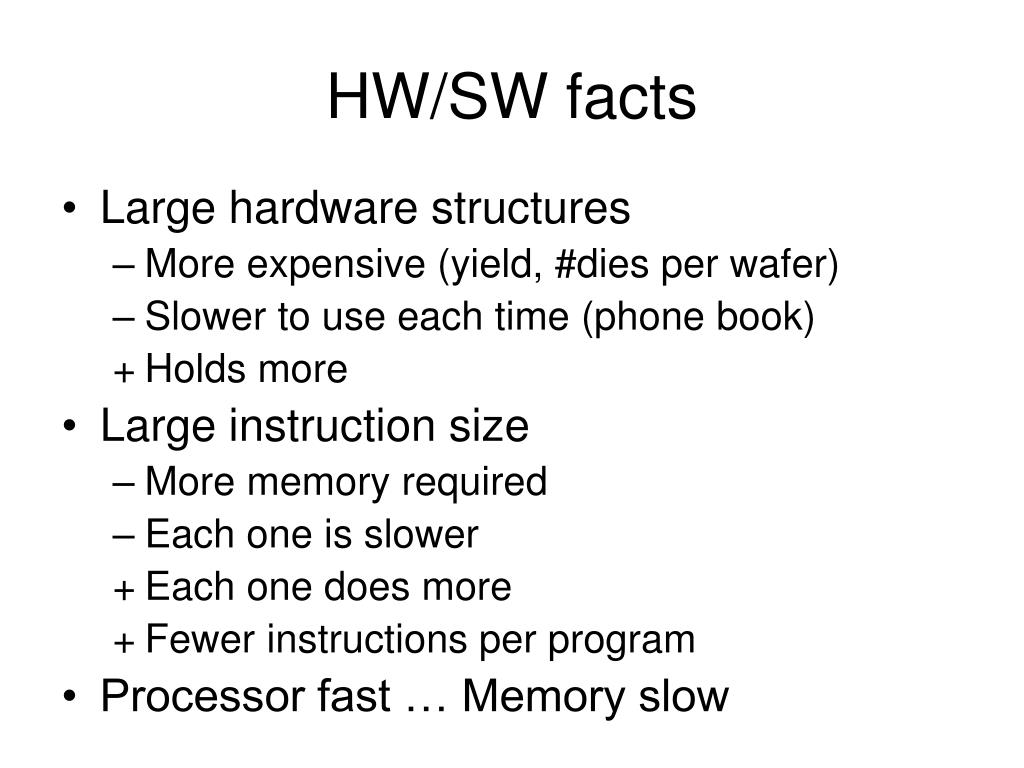

  2. HW/SW facts • Large hardware structures • More expensive (yield, #dies per wafer) • Slower to use each time (phone book) • Holds more • Large instruction size • More memory required • Each one is slower • Each one does more • Fewer instructions per program • Processor fast … Memory slow

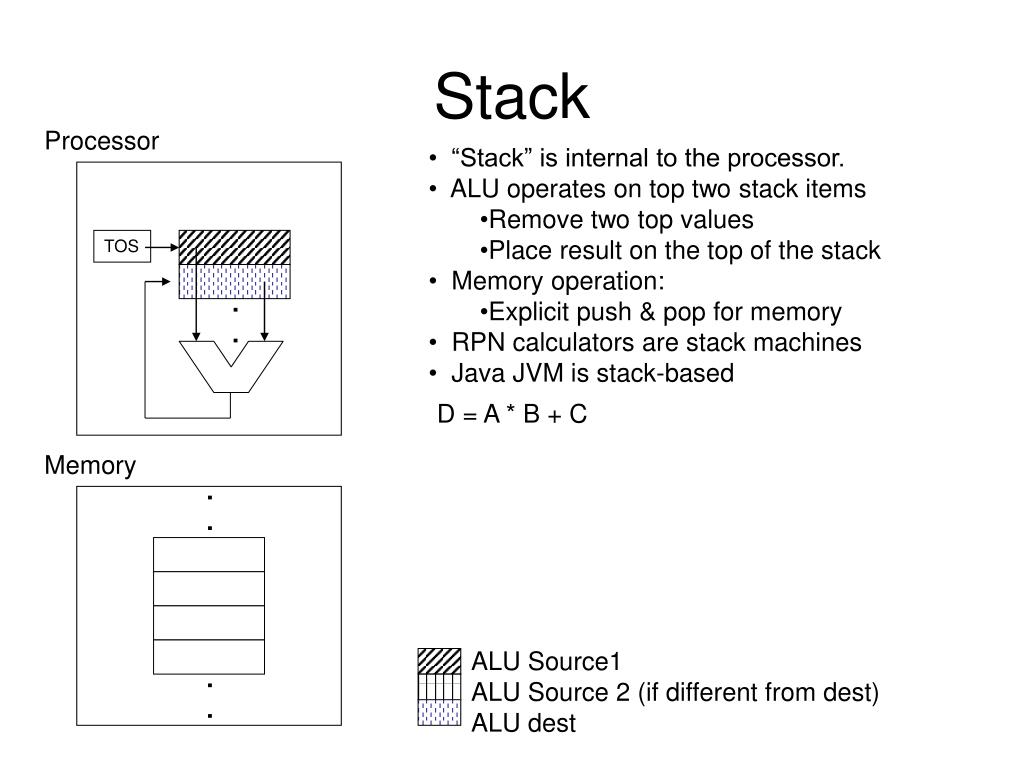

  3. . . ALU Source1 ALU Source 2 (if different from dest) ALU dest . . Stack Processor • “Stack” is internal to the processor. • ALU operates on top two stack items • Remove two top values • Place result on the top of the stack • Memory operation: • Explicit push & pop for memory • RPN calculators are stack machines • Java JVM is stack-based TOS . . D = A * B + C Memory

  4. ALU Source1 ALU Source 2 (if different from dest) ALU dest Accumulator Processor Only one register ALU inputs: accumulator & memory Memory Operations: explicit load & store one operand of alu operations . . D = A * B + C Memory . . . .

  5. ALU Source1 ALU Source 2 (if different from dest) ALU dest Register (register-memory) Processor ALU inputs: register & memory Memory operations: Explicit load & store One operand of ALU operations . . D = A * B + C Memory . . . .

  6. . . ALU Source1 ALU Source 2 (if different from dest) ALU dest Register (load-store) Processor ALU inputs: Two registers Memory access: Only through load & store D = A * B + C Memory . . . .

  7. Core Differences Reg-Reg Stack Accumulator Reg-Mem • Which access memory every instruction? • Which have access to any values inside the processor at any time? TOS . . . . . . . . Memory Memory

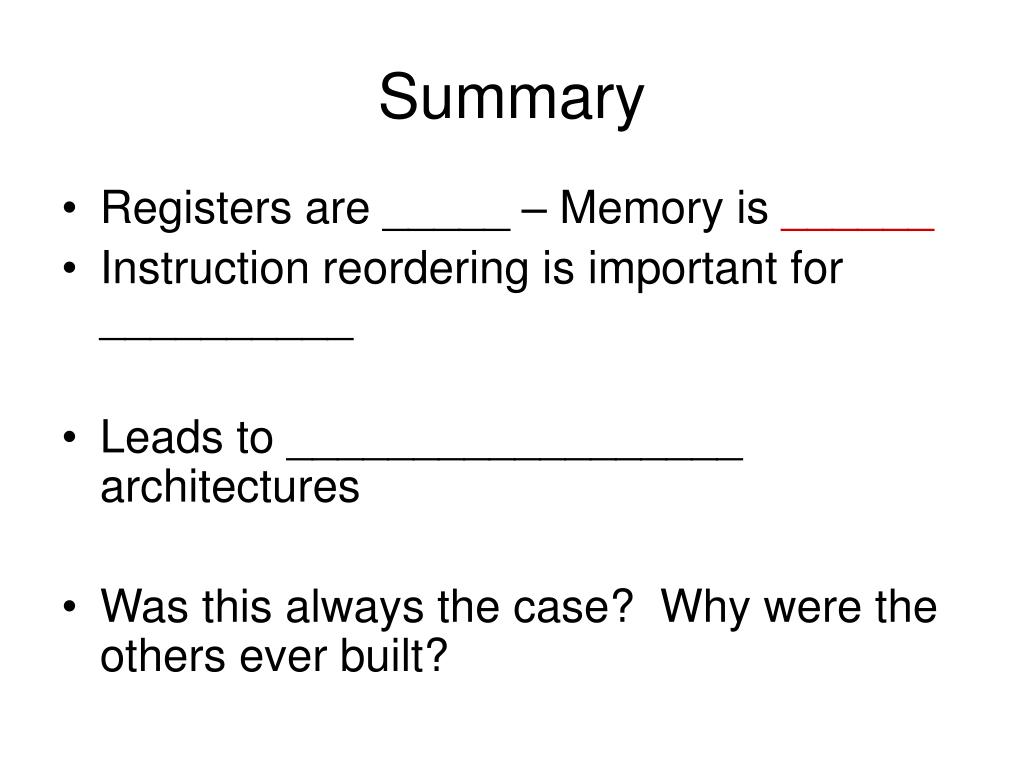

  8. Summary • Registers are _____ – Memory is ______ • Instruction reordering is important for __________ • Leads to __________________ architectures • Was this always the case? Why were the others ever built?

  9. MIPS Assembly Language • Load-Store architecture • Arithmetic ops only on regs • Reads <= two regs per instruction • Writes <= one reg per instruction • Simple instructions • 32 total registers

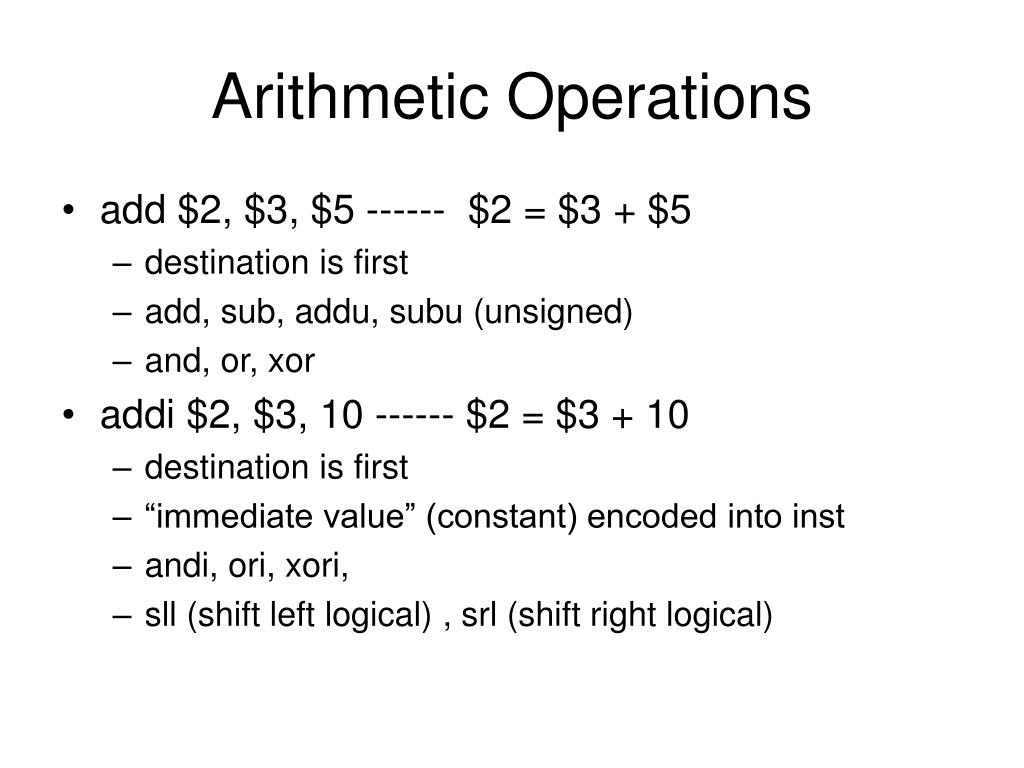

  10. Arithmetic Operations • add $2, $3, $5 ------ $2 = $3 + $5 • destination is first • add, sub, addu, subu (unsigned) • and, or, xor • addi $2, $3, 10 ------ $2 = $3 + 10 • destination is first • “immediate value” (constant) encoded into inst • andi, ori, xori, • sll (shift left logical) , srl (shift right logical)

  11. Multiply, Divide: Using the Co-Processor • mult $s2, $s3 -- HI, LO = $s2 * $s3 • div $s2, $s3 - LO = $s2 / $s3, HI = $s2 % $s3 • mfhi $s1 -- $s1 = HI • mflo $s1 -- $s1 = LO $s1 = $s2 * $s3 mult $s2, $s3 mflo $s1 $s1 = $s2 / $s3 div $s2, $s3 mflo $s1 $s1 = $s2 % $s3 div $s2, $s3 mfhi $s1

  12. Multiply, Divide:Using simple operations Exploiting binary numbers • $s2 = $s1 * 2n == ____________ • ____________ • $s2 = $s1 / 2n == ____________ • ____________ • $s2 = $s1 % 2n == ____________ • ____________
