Chapter 24 Endodontics

Chapter 24 Endodontics. Endodontic Procedure. Objectives. Understand some of the indications and contraindications for doing a RCT Know the four fracture classifications Know the different diagnostic tests for determining if an RCT is needed

chakra
Télécharger la présentation

Chapter 24 Endodontics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 24Endodontics

  2. Endodontic Procedure

  3. Objectives • Understand some of the indications and contraindications for doing a RCT • Know the four fracture classifications • Know the different diagnostic tests for determining if an RCT is needed • Understand the difference between reversible pulpitis and irreversible pulpitis • Understand the difference between: pulpectomy, pulpotomy, RCT, open and medicate, incise & drain • Know the steps involved in performing a non-surgical RCT • Understand the difference between a surgical and non-surgical endodontic treatment • Be able to define these surgical tx’s: apicoectomy, root amputation, hemisection

  4. Endodontist • Deals and treats diseases of the pulp and periapical tissues. • 2 additional years of training. • General dentists can do RCT, refer difficult cases to endodontist. • Curved roots • additional canals • re-treats

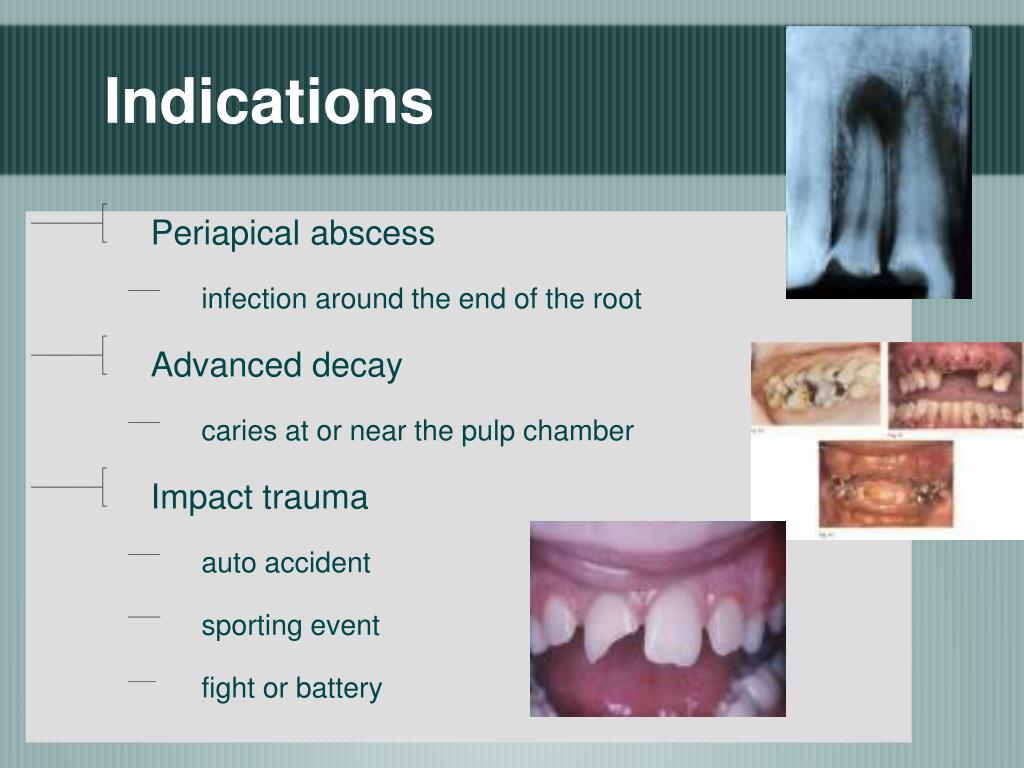

  5. Indications • Periapical abscess • infection around the end of the root • Advanced decay • caries at or near the pulp chamber • Impact trauma • auto accident • sporting event • fight or battery

  6. Indications • Fractures • near or through the pulp chamber • Invasive restorative procedures • very deep fillings • crown prep close to pulp chamber • Reaction to dental materials • materials used to restore the tooth

  7. Class I Enamel only Class II Dentin involved Possible RCT Class III Pulp involved RCT Class IV Fx @ gumline (no crown) Fracture Classifications

  8. Diagnosis • Pt. Medical/dental history • General dentists diagnosis • Radiographs (x-rays) • Extra-oral exam • redness • facial symmetry • swelling • external fistula • (pathway for pus to drain)

  9. Diagnosis: • Intra-oral exam • discoloration • fractures • visual caries • abscesses • fistulas

  10. Diagnostic Tests • Radiographs • most useful diagnostic tool • correct position • good contrast • must see the apex • must see 2 mm of bone

  11. Diagnostic Tests • Palpation (feeling with fingers) • tissue around apex is palpated for an • abscess • several teeth are palpated for • comparison • control tooth (same tooth, opposite • arch) • May be done by the doctor or an • assistant.

  12. Diagnostic Tests • Percussion (tapping on the tooth) • Lightly tap the occlusal or incisal edge. • Usually done with the handle of the mouth mirror • will tap control tooth • will tap adjacent teeth • will tap suspect tooth • Assistant can do this, too!

  13. Diagnostic Tests • Mobility • (Movement of a tooth within a socket • Determines condition of supporting tissues • Moderate to severe mobility is a contraindication for a RCT • Pt will lose tooth to periodontal disease

  14. Diagnostic Tests • Cold Test • Dry ice • Chemicals • ethyl chloride (Endo Ice) • Ice • frozen water

  15. Diagnostic Tests • Heat Test • Ball of warm gutta percha • on the end of an instrument. • Frictional heat • rubber prophy cup applied to the • tooth • may indicate irreversible pulpitis

  16. HA HA!

  17. Diagnostic Tests • Electronic or Digital Pulp Testing • Transillumination • Fiberoptic light shined • through crown of the • tooth. • May show a shadow • or a Vertical fracture • determines tooth vitality • (if the tooth is dead or • alive) • battery operated device, • sends small “shock” to • tooth . • - Do not place on an amalgam • or a crown • A dead tooth will not feel the • “shock”

  18. Diagnostic Tests • Caries Removal: • Selective anesthetic • can’t determine which tooth. • Numb a tooth / area • if pain subsides, we have located the tooth or quad. • Normally done on Max. • caries removed, tooth • stays the same, gets worse • = Possible RCT • Carries removed, tooth • gets better = No RCT

  19. Irreversible Pulpitis Diseases and Conditions • Reversible pulpitis • inflammation of the pulpal tissues. • When you treat or remove the cause. • Caries, fracture, or attrition. • Inflammation subsides • Pulp is able to heal • Inflammation of the • pulp that does not • subside. • Pulp will not heal • Tx: RCT or EXT

  20. Review Questions from Yesterday • Name some of the diagnostic tests used to determine if a patient is in need of a root canal treatment • What are some indications and contraindications for doing a root canal treatment? • Name the four classifications of fractures and what types of fractures are included in each.

  21. Pulpal Necrosis • Apical Periodontitis • when infection reaches • the surrounding tissues • death of the pulp cells • result of irreversible\ • pulpitis • creates exudate • Ligament • Bone • Gingiva • pus and gas that forms in • the pulp chamber • Cold relieves the pain. • Can form a granuloma or a cyst Diseases and Conditions

  22. Diseases and Conditions • Periapical (PA) abscess • localized area of infection. • mod - severe discomfort; can cause swelling • Tx • RCT • EXT

  23. Related Terms • Cellulitis: swelling and discomfort caused by the abscess spreading into the facial tissue. • Osteomyelitis: Advanced PA infection that has spread into the bone.

  24. Treatment • Prescription therapy: No Tx given. • RX for analgesic • RX for antibiotic • I & D (incise and drain) • Tx done to relieve pressure from • the abscess or cellulitis • O & M (open and medicate) • Tooth is opened to relieve the pressure. Medication is • placed. Pt comes back for RCT

  25. Treatment • Pulpectomy • removal of pulpal tissue to about 1-3 mm short of the apex • 1st step or appointment of RCT • RCT is done next • clean • enlarge • obturate (fill) the canals • Pulpotomy • removal of pulpal tissue from the pulp chamber only • Tissue is left in the canals • Done on baby teeth w/pulp exposure • Root end(s) not fully developed (apexogenesis)

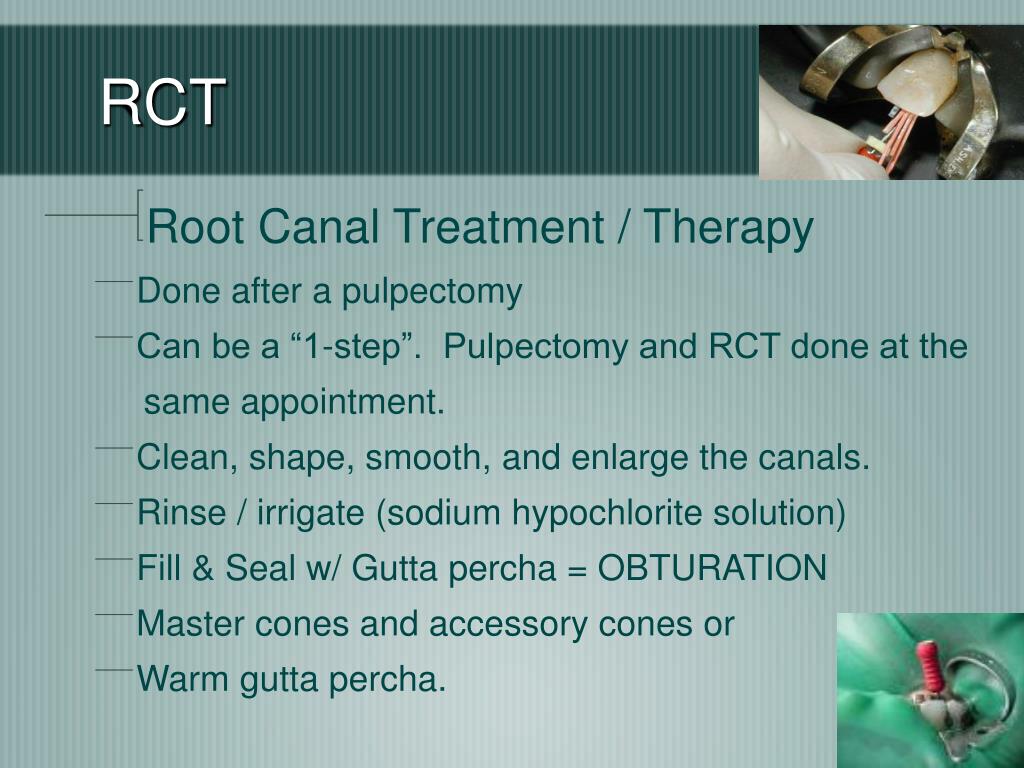

  26. RCT • Root Canal Treatment / Therapy • Done after a pulpectomy • Can be a “1-step”. Pulpectomy and RCT done at the • same appointment. • Clean, shape, smooth, and enlarge the canals. • Rinse / irrigate (sodium hypochlorite solution) • Fill & Seal w/ Gutta percha = OBTURATION • Master cones and accessory cones or • Warm gutta percha.

  27. Obturation, Obturation…

  28. My Office’s Endo Cart Special Endo. Rotary Handpiece Sodium Hypochlorite

  29. On The ____ Day of Endo. My Dentist Gave To Me A Lidocaine in a main nerve Two Rubber dams Three Long burs Four Hiding holes Five Endo. Rings Six Gates a-gliding Seven Barbs a-broaching Eight Files a’flexing Nine Diluted Bleaches Ten Papers Pointing Eleven Guttas perching Twelve Composites curing

  30. Endo. Activity p. #15:Post-Op Instructions • You will be numb for 1-3 hours, depending upon the type of • anesthetic given • 2. Try not to bite your lip or tongue during the time you are numb • 3. Your tooth may be sore to bite on for 2-3 days. • Your tooth has a temporary filling in it, stay away from sticky • foods on that side of your mouth. • If the filling comes out, please call the office to schedule a • time to replace it. Food can get trapped in the opening • 6. Take your medications as directed or prescribed • If you notice any swelling on your gum above the tooth, or • have any bad taste, or drainage, contact the office • immediately. • 8. Please call the office if you have any questions or concerns.

  31. Surgical Endodontics • Apicoectomy • - Complete removal of the apex of the tooth. • Single rooted tooth or multiple rooted tooth • Must do a retrograde restoration, • (filling at the bottom of the tooth) • Amalgam • Composite • Gutta percha

  32. Apicoectomy / Retro-grade Restoration

  33. Apicoectomy / Retro-grade Restoration

  34. Apicoectomy /Retro-Grade Restoration

  35. Root Amputation • Complete removal of one root. • Only done on a multi-rooted tooth • Must do a retro-grade restoration.

  36. Hemisection • Surgical removal of part of a multi-rooted tooth, including the overlying crown. • Only done on • Multi-rooted teeth.

  37. Hemisection • Post-op x-ray • Pre-op photo • Post-op photo

  38. Closing • Understanding Indications, contra-indications, and Treatment is a very important part of your job. • You should be able to confidently explain RCT to your patient. • If in doubt…ask questions. • (( Activities to Follow this Page))

  39. Group Questions • What is the difference between a open and medicate and a pulpotomy? • What is the difference between a pulpectomy and a pulpotomy? • What is an incise and drain? • Which instrument would you use to locate the canals during an endodontic treatment? • What is the difference between a root amputation and a hemisection? • What is a retrograde restoration? When would you see one placed?

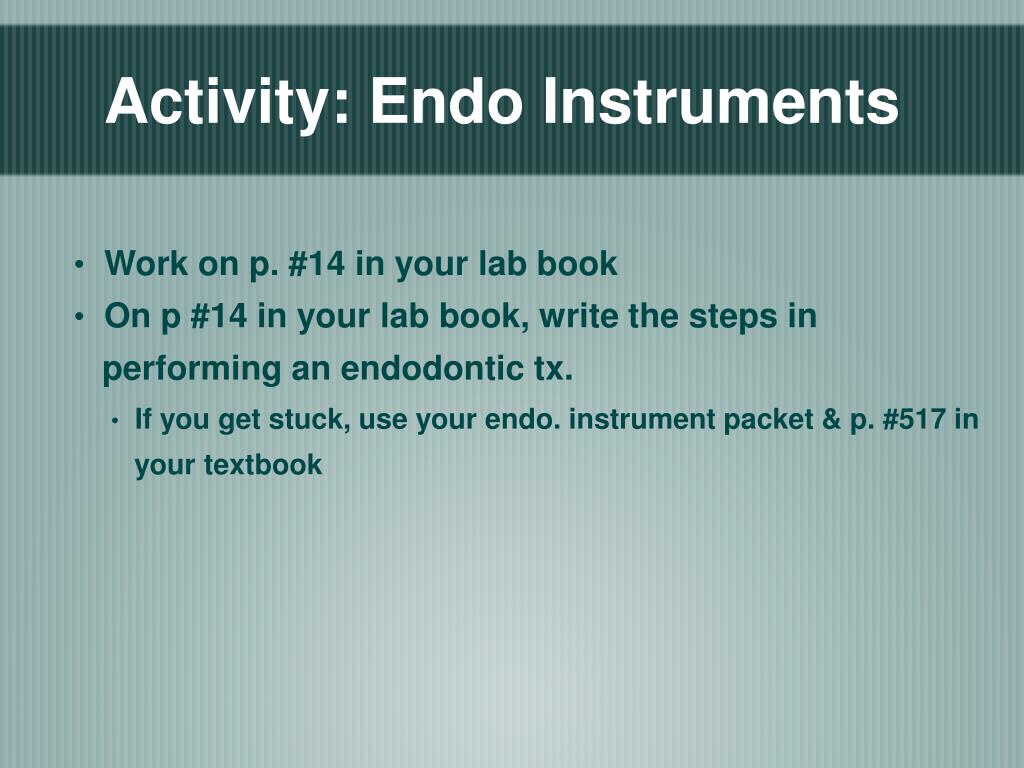

  40. Activity: Endo Instruments • Work on p. #14 in your lab book • On p #14 in your lab book, write the steps in performing an endodontic tx. • If you get stuck, use your endo. instrument packet & p. #517 in your textbook

  41. Steps in A Root Canal Tx • Administer Anesthetic • Isolate the area (a.k.a. Using a Rubber Dam) • Gain access to the pulp w/burs • Locate the canals (with an endo. exploer, of course! ) • Use the gates glidden to open and widen the canal • Use the barbed broaches to remove the majority of the nerve & soft tissue • Enlarge and smooth the root canal with k-files and/or hedstrom files • Irrigate the root canal (with an irrigating syringe full of NaOCl & H20 • Dry the canals with paper points • Obturate (seal) the root canal with sealer & gutta percha • Place temporary filling or build up over tooth
