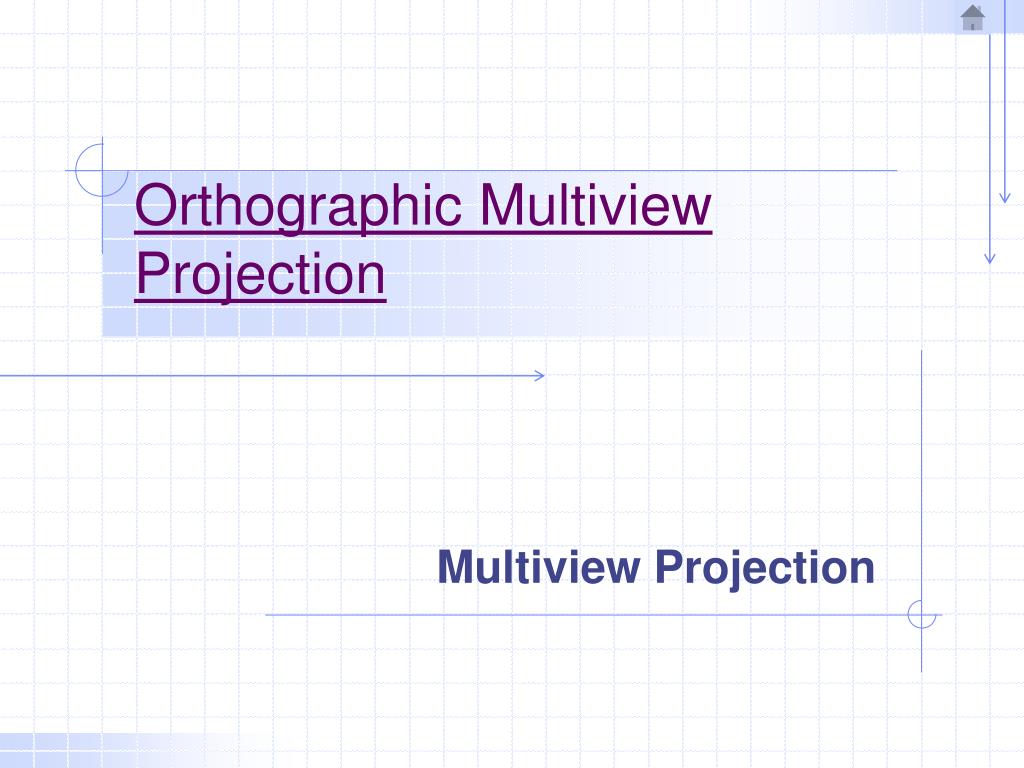

  1. Orthographic Multiview Projection Multiview Projection

  2. Multiview Projection The method of viewing an object to obtain a multiview projection is illustrated in figure a. Between the observer and the object a transparent plane is located parallel to the front view. The view is obtained by drawing perpendicular lines (projectors) from all points of the edges of the object to the plane of projection (figure b). The piercing points of these projectors form lines on the projection plane (figure c)

  3. Multiview Projection If planes of projection are placed parallel to the principal faces of the object, they form a “glass box” as shown in figure a. Since the glass box has six sides, six views of the object can be obtained. To show the views on a flat sheet of paper it is necessary to unfold the planes so that they will all lie in the same plane. All planes except the rear plane are hinged to the frontal plane (figure b).

  4. Multiview Projection The positions of the six planes after they have been revolved are shown.

  5. Multiview Projection ALIGNMENT OF VIEWS Top, Front, Right multiview arrangement Feature alignment

  6. Multiview Projection TRANSFER OF DEPTH Miter line at 45 degrees Transfer of depth using a miter line

  7. Multiview Projection TRANSFER OF DEPTH Transfer of depth using a miter line

  8. Multiview Projection LINE CONVENTION Visible continuous line usage

  9. Multiview Projection LINE CONVENTION Hidden line usage

  10. Multiview Projection LINE CONVENTION Centerline usages

  11. Multiview Projection MULTIVIEW DRAWING OF A CYLINDER

  12. Multiview Projection LINE PRECEDENCE

  13. Multiview Projection

  14. Multiview Projection INTERSECTION VERSUS TANGENCY No line should be drawn where a curved surface is tangent to a plane surface. When a curved surface intersects a plane surface a definite edge is formed.

  15. Multiview Projection examples of intersections and tangencies.

  16. Multiview Projection VISUALIZATION TECHNIQUES - Normal Surfaces - Inclined Surfaces

  17. Multiview Projection VISUALIZATION TECHNIQUES - Oblique Surfaces

  18. Multiview Projection PROJECTION STUDIES Primitive shapes

  19. Multiview Projection PROJECTION STUDIES Primitive shapes

  20. Multiview Projection PROJECTION STUDIES Standard Representation of various geometric forms

  21. Multiview Projection Surface Labeling Surface 1 – normal surface Surface 3 – inclined surface Surface 5 – oblique surface

  22. Multiview Projection Labeling Vertices

  23. Multiview Projection MISSING-LINE AND MISSING-VIEW PROBLEMS

  24. Multiview Projection MISSING-LINE

  25. Multiview Projection HOUSE ELEVATIONS
